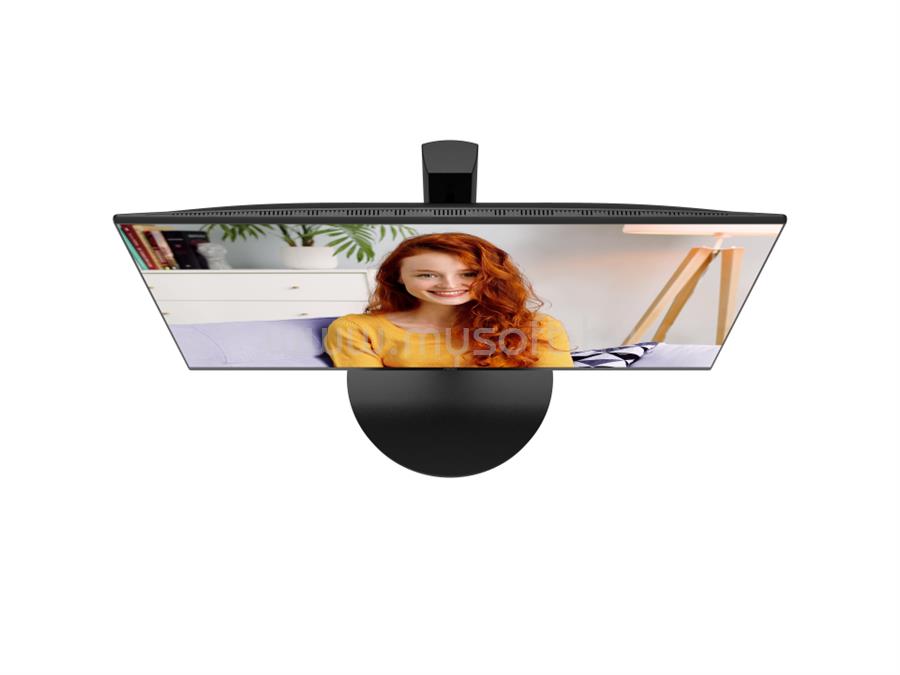

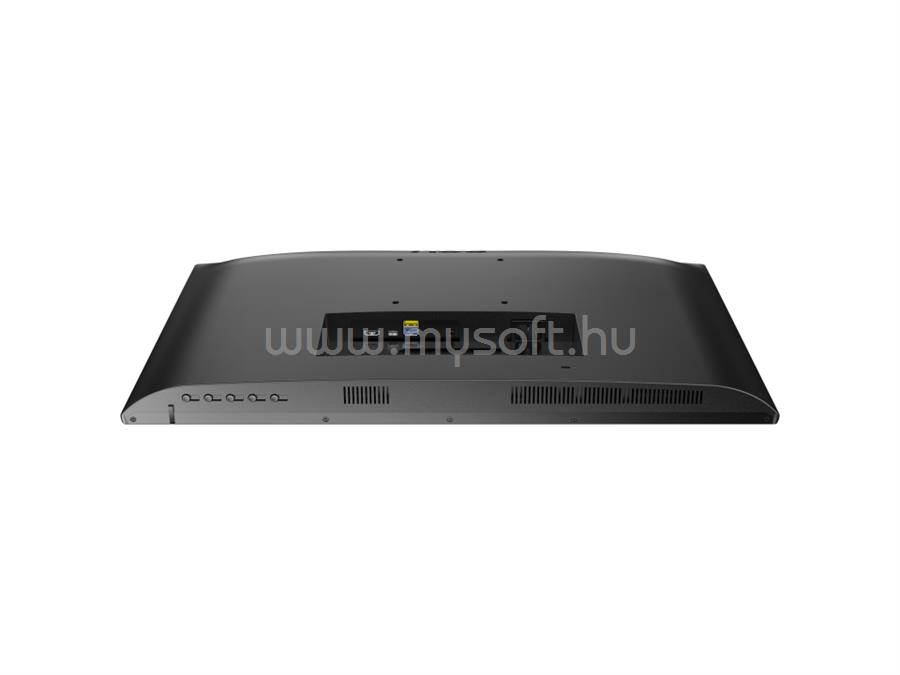

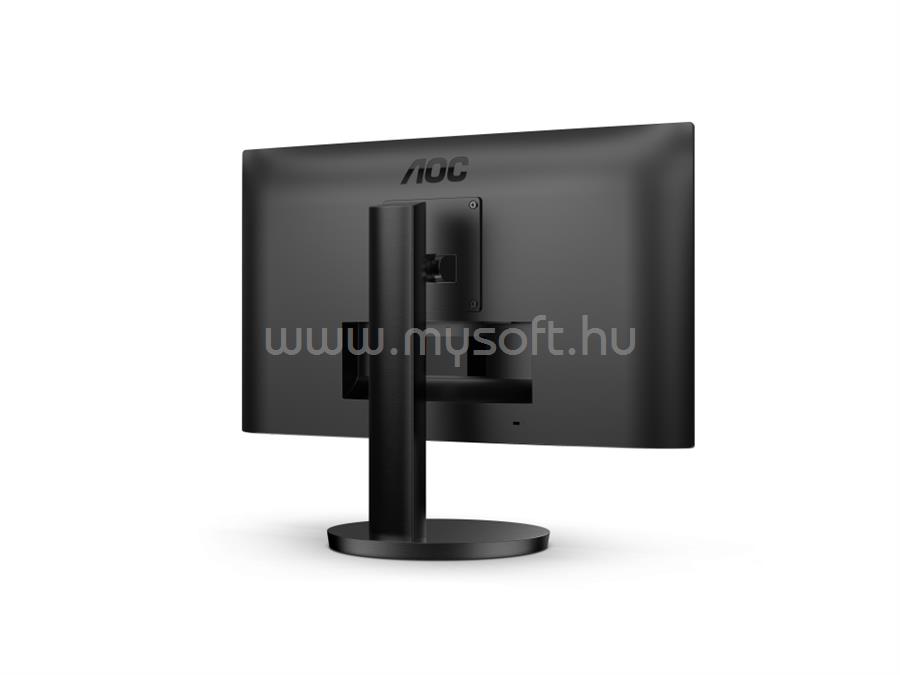

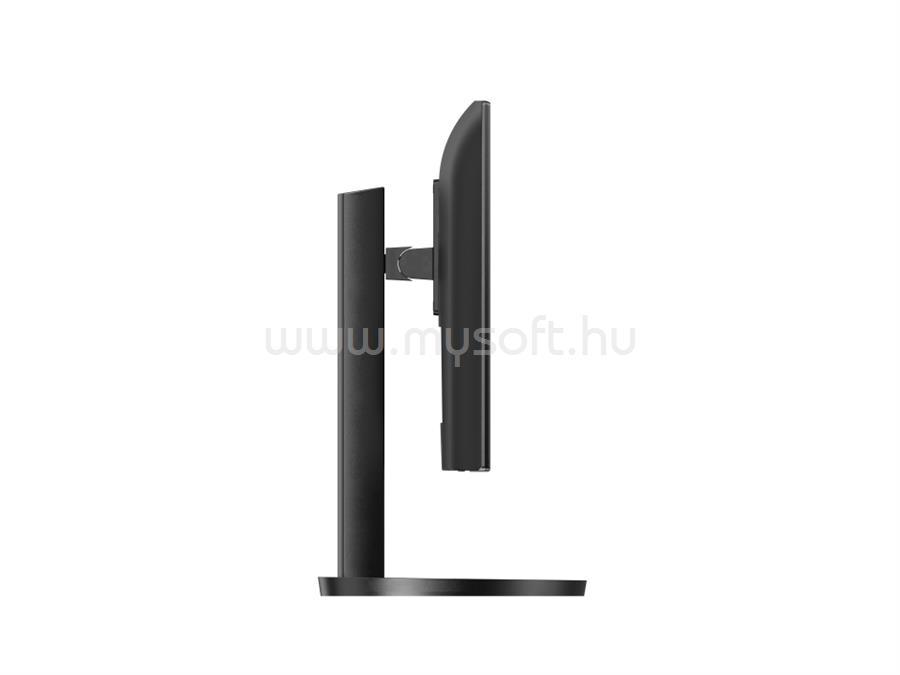

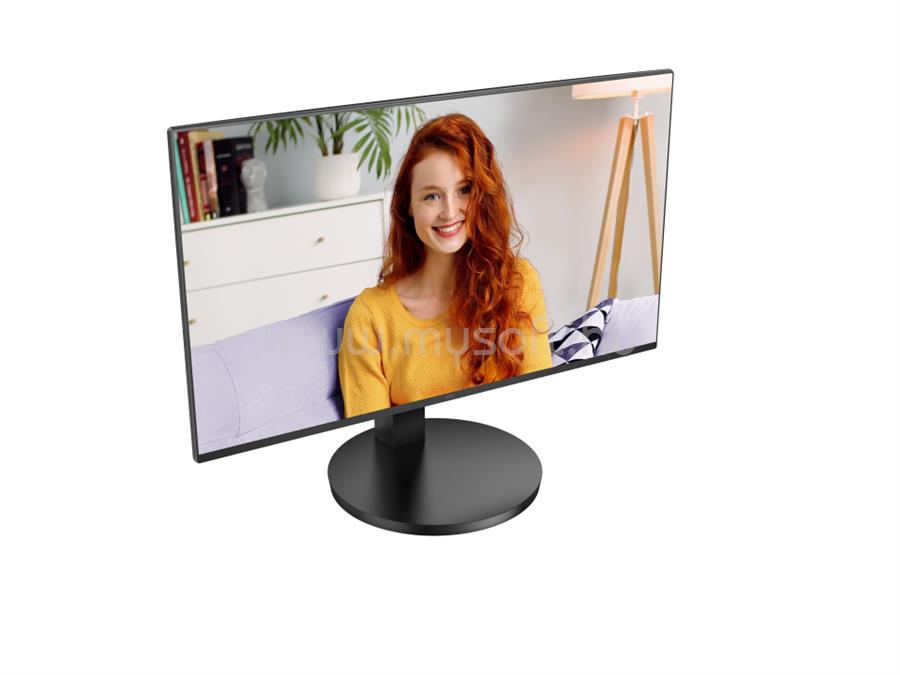

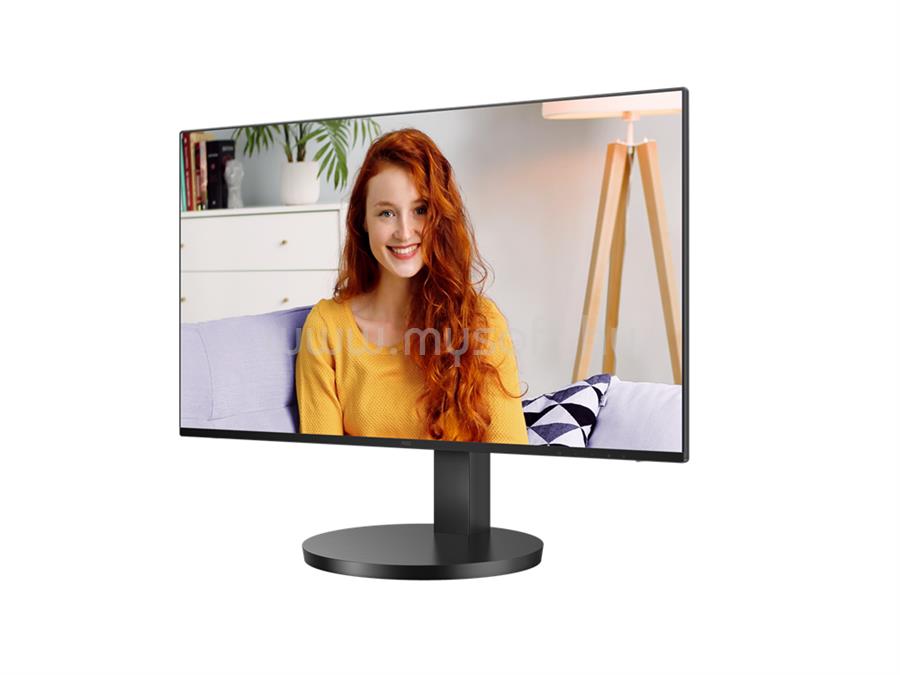

AOC 24B3CF2 MONITOR

Kijelző

• Képátló: 23,8"
  Felbontás: 1920x1080
  Panel: IPS
  Képarány: 16:9

Csatlakozók

• • 0x VGA
  • 0x DVI
  • 0x DisplayPort
  • 1x HDMI
  • TV-tuner

• Display information

• Screen size (inch)
• 23.8
• Screen size (cm)
• 60.5
• Flat / Curved
• Flat
• Display hardness
• 3H
• Panel treatment
• Antiglare (AG)
• Pixel Pitch (mm)
• 0.2745
• Pixels per Inch
• 93
• Panel resolution
• 1920x1080
• Resolution name
• FHD
• Aspect ratio
• 16:9
• Panel type
• IPS
• Backlight type
• WLED
• Max Refresh rate
• 100 Hz
• Response time GtG
• 4 ms
• Response time MPRT
• 1 ms
• Static contrast ratio
• 1300:1
• Dynamic contrast ratio
• 20M:1
• Viewing angle (CR10)
• 178/178
• Display colours
• 16.7 Million
• Brightness in nits
• 250 cd/m2
• Color Gamut
• NTSC 72%
• OD Response (typical)
• 4 ms GtG
• Panel Haze Value
• 25%
• Local Dimming Zones
• Global Dimming

• Video Features

• Sync technology (VRR)
• Adaptive Sync
• HDR (High Dynamic Range)
• HDR Mode
• Blue Light Technology
• Low Blue Light
• Colour space (sRGB) CIE 1931 %
• 102.7
• Colour space (sRGB) CIE 1976 %
• 102.5
• Colour space (DCI-P3) CIE 1931 %
• 75.7
• Colour space (DCI-P3) CIE 1976 %
• 81.6
• Colour space (Adobe RGB) CIE 1931 %
• 76.1
• Colour space (Adobe RGB) CIE 1976 %
• 87.8
• Colour space (NTSC) CIE 1931 %
• 72.7
• Colour space (NTSC) CIE 1976 %
• 89.4
• Colour space (BT 709) CIE 1931 %
• 102.7
• Colour space (BT 709) CIE 1976 %
• 102.5
• Colour space (BT 2020) CIE 1931 %
• 54.3
• Colour space (BT 2020) CIE 1976 %
• 59.5
• Flicker-Free
• Flicker Free
• KVM
• No

• Cabinet information

• Bezel type (front)
• Ultra Narrow
• Bezel Colour (front)
• Black
• Bezel finishing (front)
• Texture
• Cabinet colour (backside)
• Black
• Cabinet finishing (backside)
• Texture
• Removable stand
• Yes
• Speakers
• Yes
• Speaker power
• 2 W x 2
• Kensington Lock
• Yes
• Vesa wallmount
• 100x100
• I/O define: Connectors on rear cabinet
• Vertical insert
• VESA Mount screw Spec
• M4 x 10
• Built-in speakers fire direction
• Back fire
• VESA Mount Support
• Yes
• MonitorWebcam
• No

• Ergonomic information

• Tilt
• -5 (+3/-0) ~ +23 (-3/+0)
• Height adjust (mm)
• 110mm
• Swivel
• No
• Pivot
• No

• Sustainability

• TCO Certified
• No
• Energy star
• Energy star 8
• Carton material
• Paper
• Carton material print
• Water Print (Brown Carton)

• Power Consumption

• Power supply
• Internal
• Power source
• 100 - 240V 50/60Hz
• Power consumption on (maximum) in watts
• 130
• Power consumption on (typical) in watts
• 30
• Power consumption standby in watts
• 0.5
• Power consumption off in watts
• 0.3
• Power LED indicator (Operation)
• White/Blue
• Power LED indicator (Standby)
• Orange

• Connectivity information

• HDMI
• HDMI 1.4 x 1
• Digital HDCP (HDMI version)
• HDCP 1.4
• USB-C connectivity
• USB-C 3.2 x 1 (DP alt mode, upstream, power delivery up to 65 W)
• USB Hub
• Yes
• USB Hub speed
• USB 3.2 (Gen 1)
• USB downstream ports
• 2
• USB fast charge port
• Yes
• Audio Output
• 1x Audio out
• mini USB (for external keypad)
• No
• Thunderbolt in
• 0x
• Thunderbolt out
• 0x
• PD for USB C/TBT
• USB C1 : PD=65W, PD3.0, 5V/3A, 7V/3A, 9V/3A, 10V/3A, 12V/3A, 15V/3A, 20V/3.25A
• USB Hub up stream
• 1 x USB3.2 type C Gen 1, 5 Gbit/s
• D-SUB (VGA)
• 0x
• DVI
• 0x
• RJ45
• No

• Product Dimensions

• Product dimensions incl. base (WxHxD) mm
• 542.4 x (359.9-469.9) x 229.8
• Product dimensions excl. base (WxHxD) mm
• 542.4 x 316.2 x 44.6
• Packaging dimensions (WxHxD) mm
• 613 x 519 x 162
• Packaging dimensions (WxHxD) mm (CN)
• 613 x 519 x 162
• Gross weight incl. package (in kg)
• 7.04
• Net weight excl. package (in kg)
• 4.56
• Gross weight incl. package (in kg) (CN)
• 7.04
• Product without stand (kg)
• 3.04

• What's in the box

• HDMI cable
• 1.5
• USB-C to C cable
• 1.8
• Power Cable
• Yes
• Power adaptor
• Yes

• Other information

• OSD languages
• English, Ukranian, Turkish, Polish, German, Portuguese, Spanish, French, Finnish, Korean, Japanese, Chinese (simplified), Chinese (traditional), Swedish, Dutch, Italian, Kroatian, Russian, Czech
• MTBF (including panel)
• 30.000 hours
• Operation System
• Windows 8.1/10/11, MacOS
• OSD type
• Normal
• Plug & Play Compatibility
• Yes, DDC/CI

• Maximum Resolution by connector

• Default resolution by input
• 1920 x 1080
• Max resolution by input
• 1920 x 1080
• Max resolution for USB C/TBT (with USB information)
• 8 bit panel USB-C@USB3.2 + source HBR2: FHD 100Hz

Garancia fogyasztók részére

• 2 év kötelező jótállás + 1 év gyártó által biztosított szervizgarancia

Garancia nem fogyasztók részére

• 3 év gyártó által biztosított szervizgarancia
