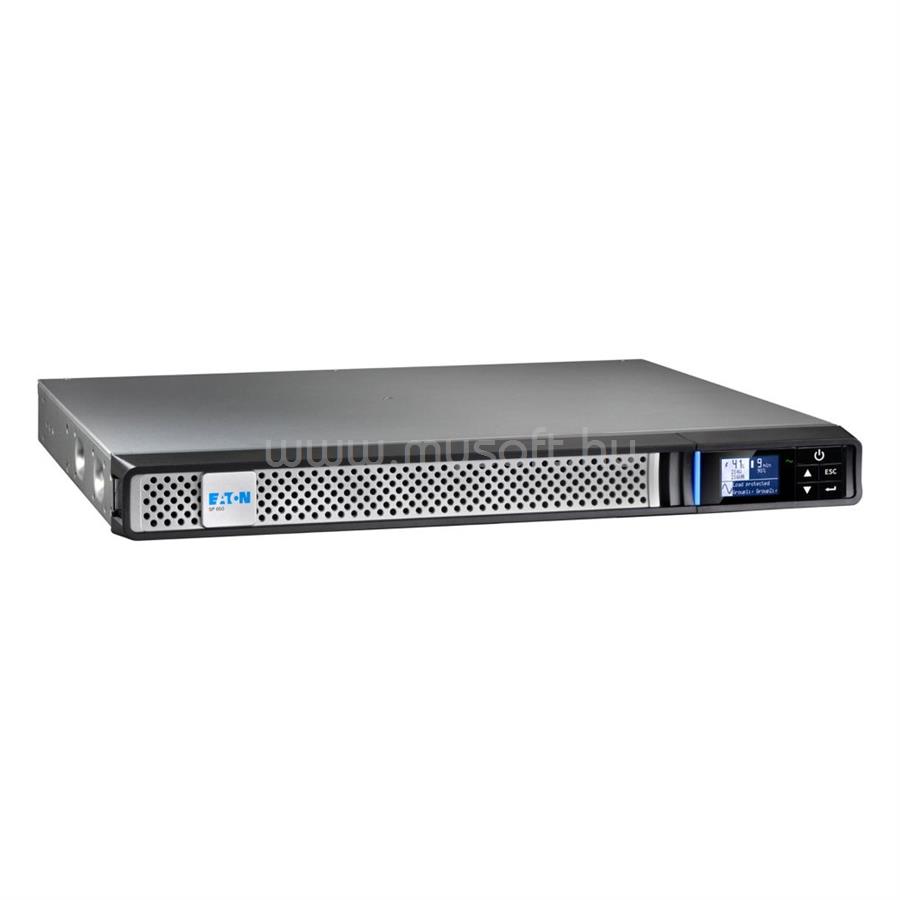

EATON 5P 650IG2 RACK1U VONALI-INTERAKTÍV 1:1 UPS SZÜNETMENTES TÁPEGYSÉG

• General Specifications

• Product Length/Depth
• 361 mm
• Product Height
• 43.2 mm
• Product Width
• 438 mm
• Product Weight
• 8.6 kg

• Product specifications

• Special features
• Automatic Voltage Regulation (AVR)
• High-density protection for networks: 1U only
• Energy efficient, reduce energy and cooling costs
• Delivers clean sinewave output
• 1 slot for optional com card (Network management card, Relay card or Network and Industrial card)
• Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat)
• Fully integrates with Eaton Brightlayer Software suite
• 1 USB port + 1 serial port
• Advanced Battery Management (ABM+) technology to increase battery lifetime and improve life time prediction accuracy
• Next-generation graphical LCD display
• Hot swappable batteries
• Remote reboot and runtime optimization thanks to 2 manageable outlet groups
• Type
• UPS
• Topology
• Line-interactive
• Form factor
• Rack
• Rack size
• 1U
• Construction type
• 482.6 mm (19 inch) device
• Color
• Black/silver
• Enclosure
• Black/silver
• VA rating
• 650 VA
• Wattage
• 520 W
• Rack mounting kit
• Yes
• Package contents
• Rack-mounting kit
• Cable locking system
• USB cable
• (2) IEC-IEC cables
• Quickstart guide
• Safety instructions
• Auto shutdown function
• Yes
• Primary frequency - max
• 70 Hz
• Primary frequency - min
• 47 Hz
• Input connection
• C14
• Input nominal voltage
• 230V default (200/208/220/230/240V)
• Nominal frequency
• 50-60 Hz
• Input frequency range
• 47-70 Hz (50 Hz system), 56.5-70 Hz (60 Hz system), 40 Hz in low sensitivity mode
• Receptacle
• (4) C13
• Number of Outputs C13
• 4
• Output waveform
• Sine wave
• Voltage
• 230V
• Output nominal voltage
• 230V default (200/208/220/230/240V)
• Feed type
• 1
• Voltage type
• AC
• Battery management
• ABM or constant voltage charging method (user selectable), automatic battery test, deep discharge protection
• Battery replacement
• User replaceable
• Battery rating
• 6 V / 9 Ah
• Battery type
• Lead-acid maintenance-free (replaceable)
• Extended battery capability
• No
• Runtime at half load
• 7 min
• Communication
• USB port (HID compliant)
• Serial port (RS232)
• Mini-terminal block for remote On/Off and Remote Power Off
• Dry contacts (2 outputs, optocoupler, RJ)
• Expansion slots
• One slot for optional communication card
• Ethernet interface
• No
• Includes network card
• No
• Software compatibility
• Eaton Brightlayer Software suite
• User interface
• Multilingual graphical LCD display
• Type of interface
• Other
• Potential free switch contact
• Yes
• Altitude
• 3000 m
• BTU Rating
• Online: 53, Battery: 461 BTU/hr
• Noise level
• <35 dB at 1 meter
• Relative humidity
• 0-90% non-condensing
• Temperature range
• 0° to 40°C (32° to 104°F)
• Input voltage - max
• 294 V
• Input voltage - min
• 150 V
• Output voltage - max
• 240 V
• Output voltage - min
• 200 V
• Secondary frequency - max
• 60 Hz
• Secondary frequency - min
• 50 Hz
• Battery quantity
• 2
• Efficiency
• 97
• Input voltage range
• 160-294 V (adjustable to 150 V-294 V)
• Output frequency
• 50/60 Hz
• Output power factor
• 0,8
• Output voltage range
• 230 V (+6%/-10%)
• Phase (input)
• 1
• Phase (output)
• 1
• Runtime at full load
• 1
• Communication interface
• RS232
• USB
• Power consumption
• 16 W
• USB interface
• Yes
• With communication interface RS-232
• Yes

Garancia fogyasztók részére

• 2 év kötelező jótállás + 1 év gyártó által biztosított szervizgarancia

Garancia nem fogyasztók részére

• 3 év gyártó által biztosított szervizgarancia
