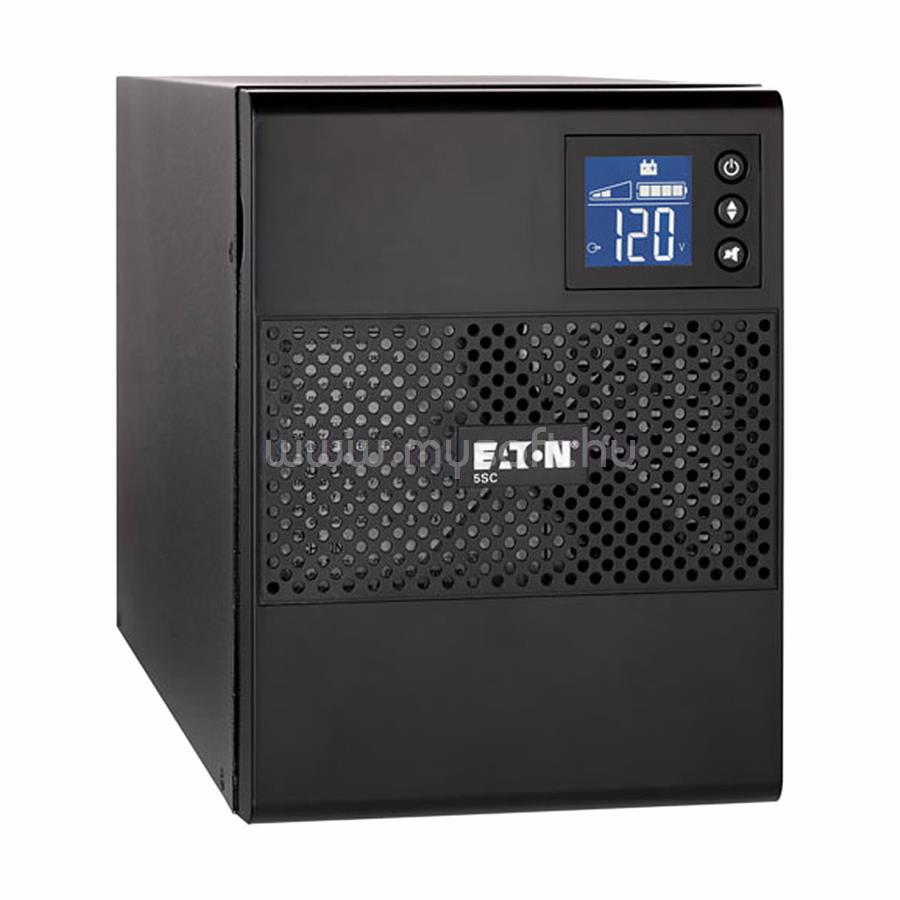

EATON UPS 750VA C13/C14 5SC VONALI-INTERAKTÍV SZÜNETMENTES TÁPEGYSÉG

• GENERAL SPECIFICATIONS

• PRODUCT LENGTH/DEPTH
• 150 mm
• PRODUCT HEIGHT
• 210 mm
• PRODUCT WIDTH
• 340 mm
• PRODUCT WEIGHT
• 10.4 kg

• PRODUCT SPECIFICATIONS

• SECONDARY FREQUENCY - MAX
• 60 Hz
• OUTPUT WAVEFORM
• Sine wave
• WATTAGE
• 525 W
• OUTPUT POWER FACTOR
• 0.7
• FORM FACTOR
• Tower
• ENCLOSURE
• Black
• INCLUDES NETWORK CARD
• No
• INPUT CONNECTION
• C14
• INPUT VOLTAGE - MIN
• 184 V
• OUTPUT VOLTAGE - MAX
• 240 V
• SECONDARY FREQUENCY - MIN
• 50 Hz
• SOFTWARE COMPATIBILITY
• Eaton Intelligent Power Protector
• BATTERY REPLACEMENT
• User replaceable
• BATTERY TYPE
• Lead-acid maintenance-free (replaceable)
• EFFICIENCY
• 96
• SPECIAL FEATURES
• Automatic Voltage Regulation (AVR)
• Delivers clean sinewave output

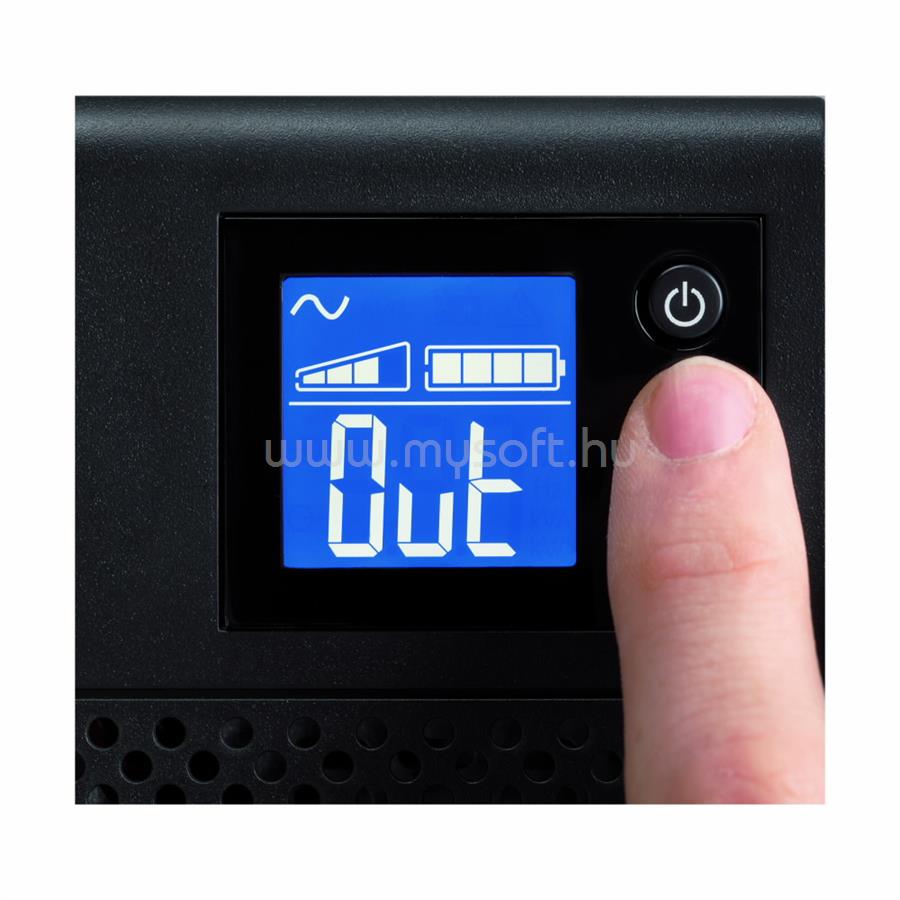

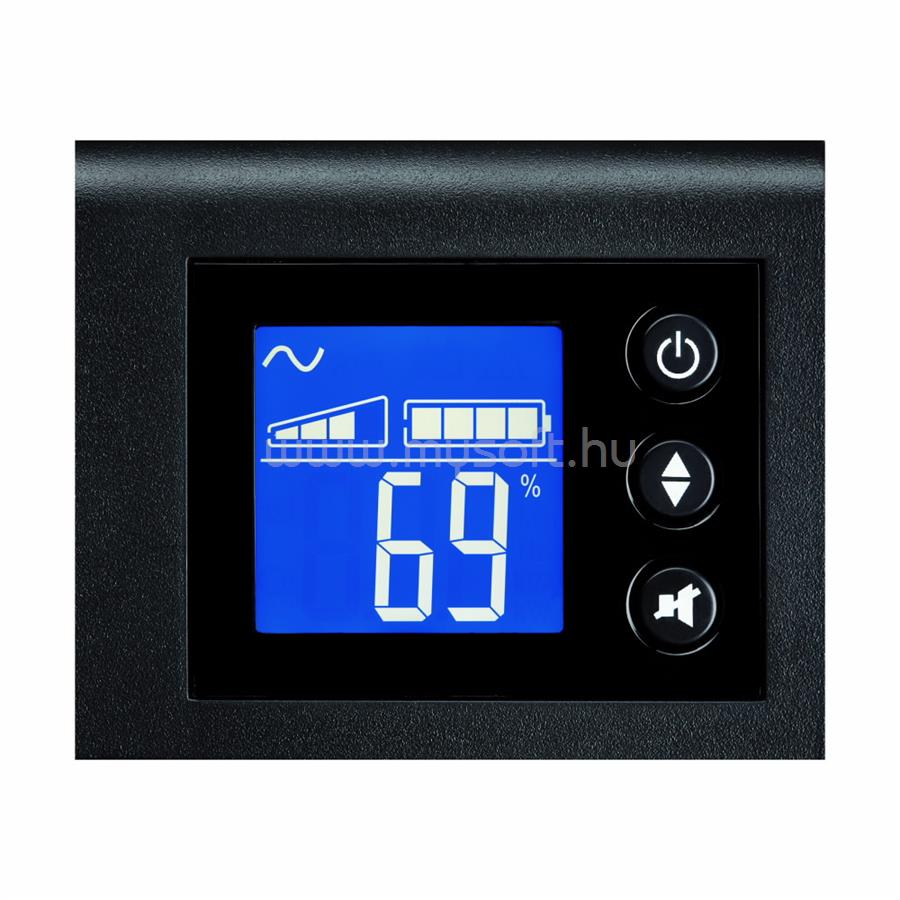

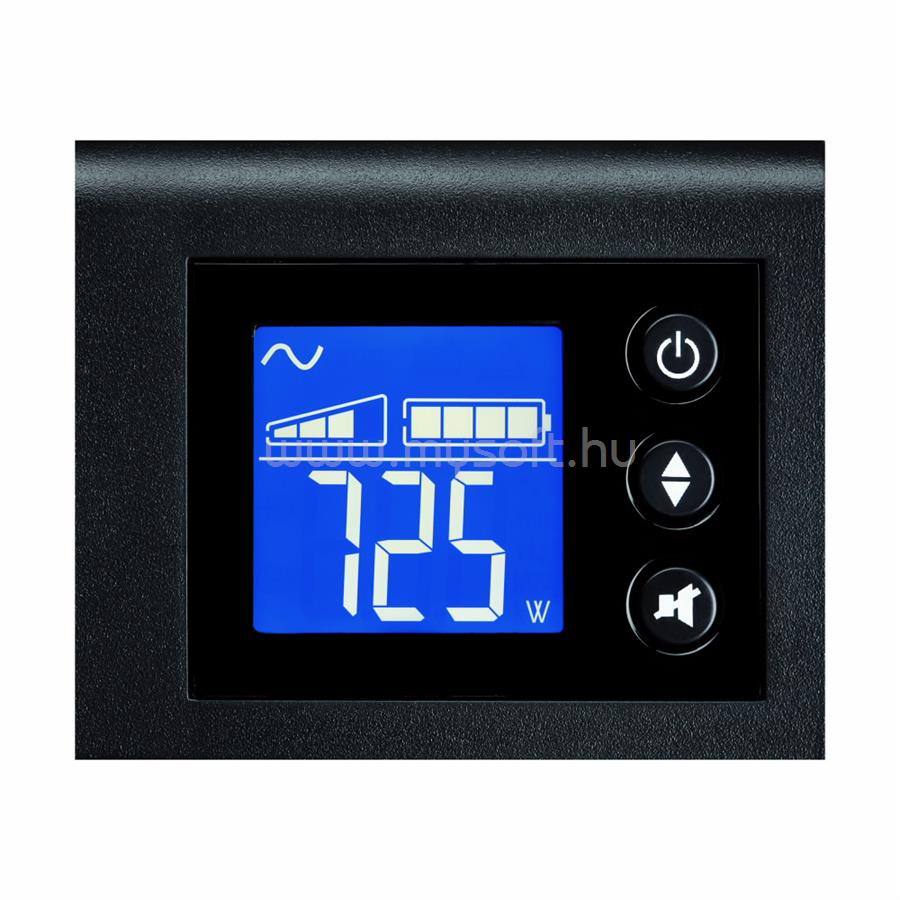

• LCD display for real-time status and measurements
• Reliable and affordable UPS for tower servers, networking and storage
• Saves space with a compact tower design
• Fully integrates with Eaton Intelligent Power Manager software
• 1 USB port + 1 serial port
• 1 USB port + 1 serial port
• Advanced Battery Management (ABM) technology to increase battery lifetime
• CONSTRUCTION TYPE
• Free standing model
• OUTPUT VOLTAGE - MIN
• 220 V
• COLOR
• Black
• EXTENDED BATTERY CAPABILITY
• No
• OUTPUT VOLTAGE RANGE
• 230 V (+6%/-10%)
• TOPOLOGY
• Line-interactive
• BTU RATING
• Online: 106
• BACK-UP TIME
• 12.5 min
• INPUT NOMINAL VOLTAGE
• 230V default (220/230/240V)
• INPUT FREQUENCY RANGE
• 45-55 Hz (50 Hz system), 55-65 Hz (60 Hz system)
• INPUT VOLTAGE - MAX
• 276 V
• VOLTAGE TYPE
• AC
• PHASE (OUTPUT)
• 1
• BATTERY MANAGEMENT
• ABM or constant voltage charging method (user selectable), automatic battery test, deep discharge protection
• AUTO SHUTDOWN FUNCTION
• Yes
• NUMBER OF OUTPUTS C13
• 6
• VA RATING
• 750 VA
• POTENTIAL FREE SWITCH CONTACT
• No

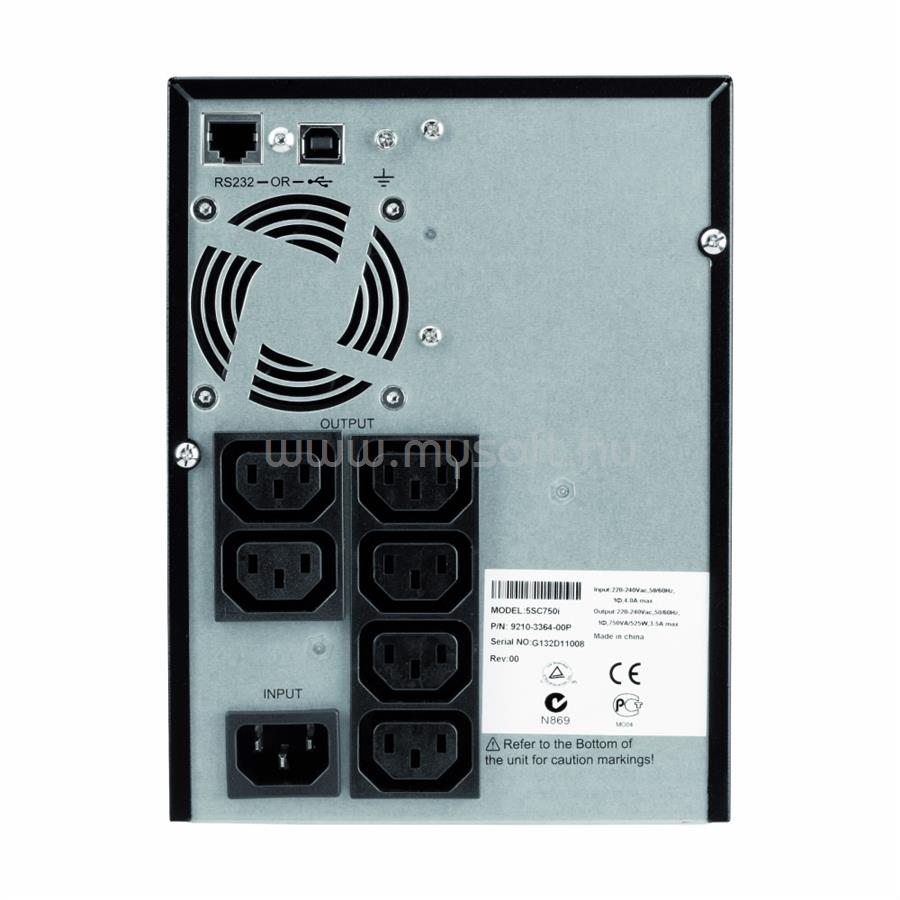

• RECEPTACLE
• (6) C13
• PHASE (INPUT)
• 1
• PACKAGE CONTENTS
• USB cable
• Serial cable
• (2) IEC-IEC cables
• Quickstart guide
• Safety instructions
• NOISE LEVEL
• <40 dB at 1 meter
• FEED TYPE
• 1
• USER INTERFACE
• LCD Display
• BATTERY QUANTITY
• 2
• VOLTAGE
• 230V
• TEMPERATURE RANGE
• 0-90% non-condensing
• ETHERNET INTERFACE
• No
• COMMUNICATION
• USB port (HID compliant)
• Serial port (RS232)
• RELATIVE HUMIDITY
• 0-90% non-condensing
• RACK MOUNTING KIT
• No
• OUTPUT FREQUENCY
• 50/60 Hz
• RUNTIME AT FULL LOAD
• 5 min
• TYPE OF INTERFACE
• Other
• PRIMARY FREQUENCY - MIN
• 45 Hz
• BATTERY RATING
• 12 V / 7 Ah
• TYPE
• UPS
• OUTPUT NOMINAL VOLTAGE
• 230V default (220/230/240V)
• EXPANSION SLOTS
• No
• INPUT VOLTAGE RANGE
• 184-276 V
• NOMINAL FREQUENCY
• 50-60 Hz
• PRIMARY FREQUENCY - MAX
• 65 Hz
• ALTITUDE
• 2000 m
