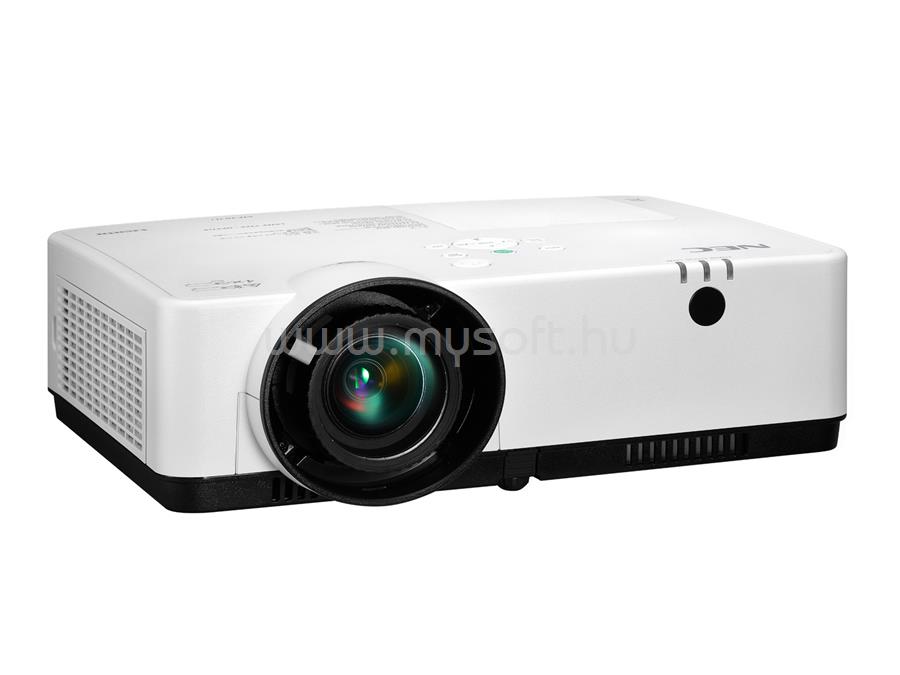

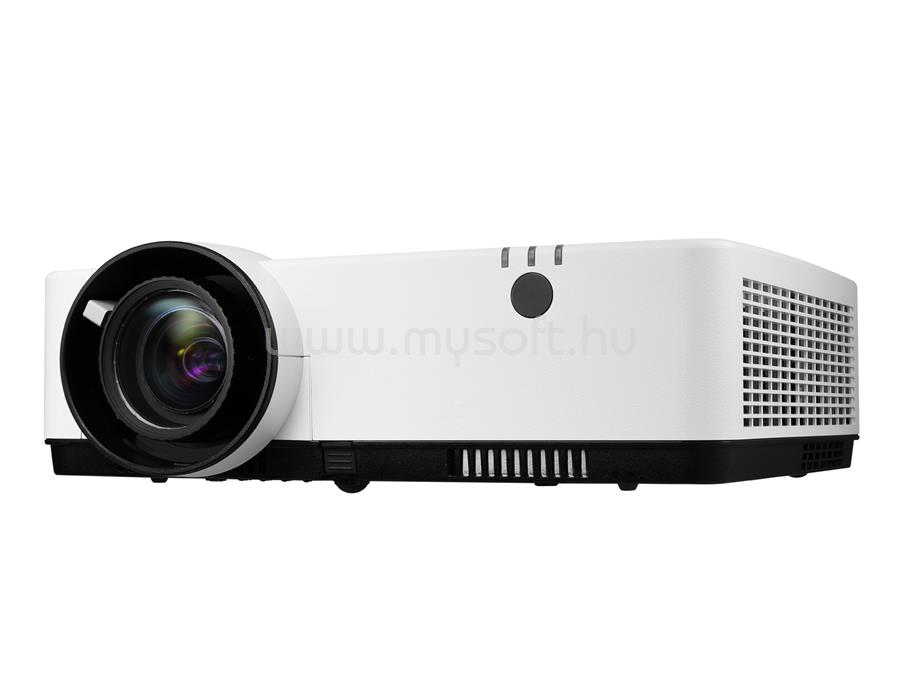

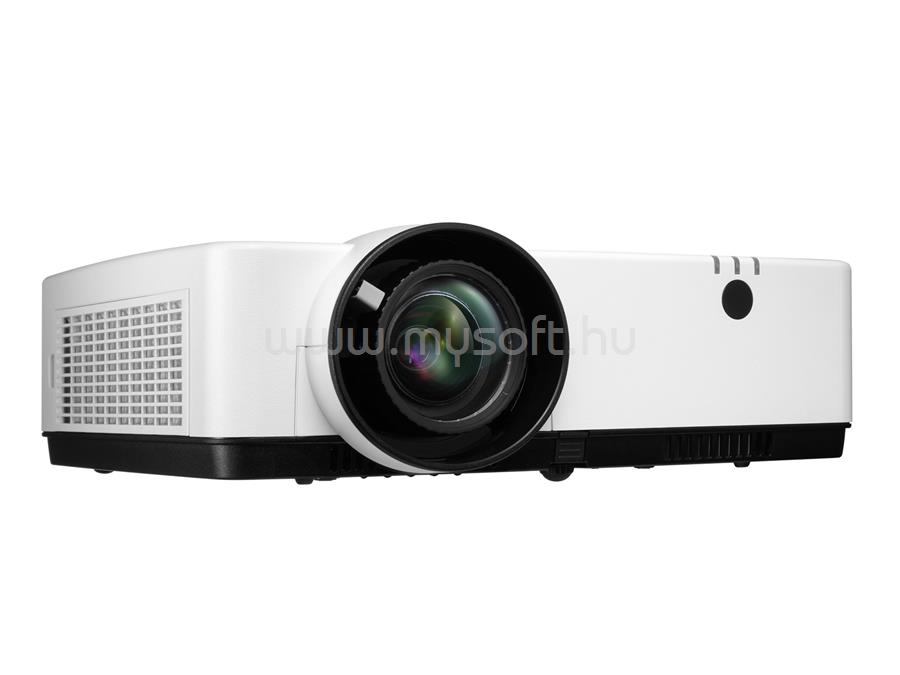

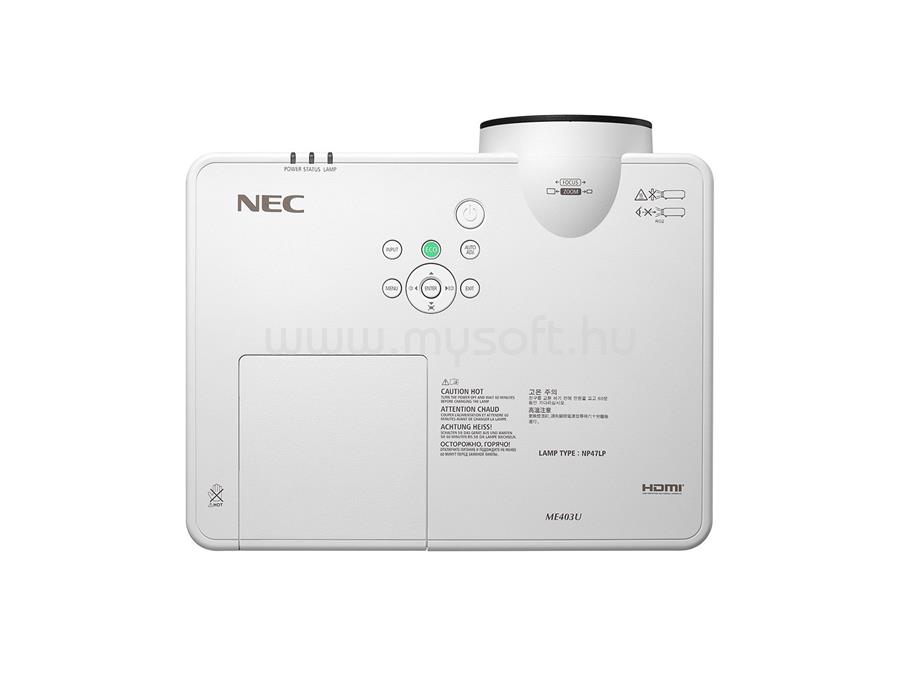

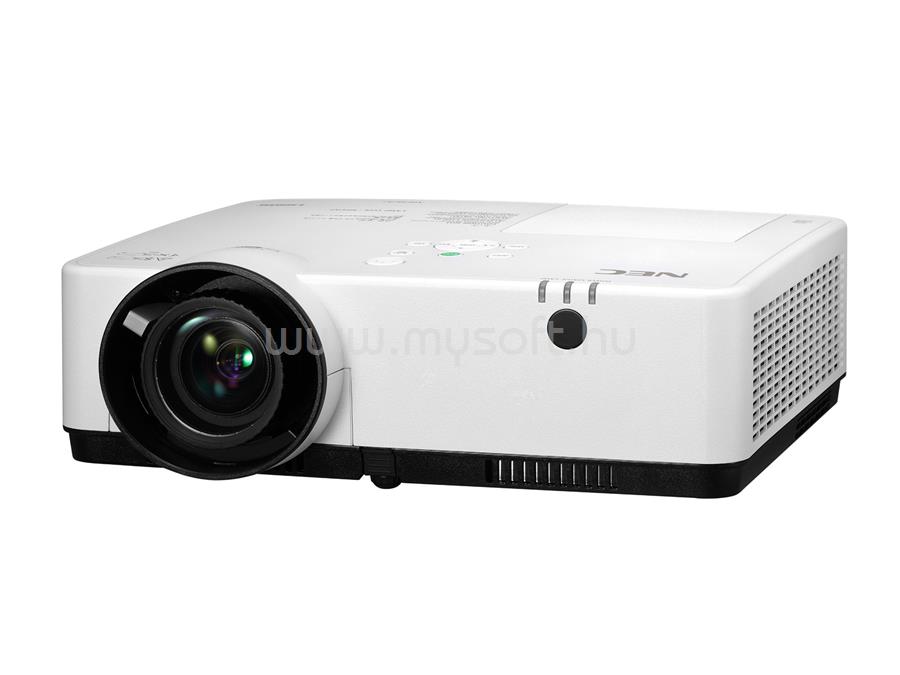

NEC ME403U (1920X1200) PROJEKTOR

• IMAGE

• Projection Technology
• 3LCD Technology
• Native Resolution
• 1920 x 1200 (WUXGA)
• Aspect Ratio
• 16:10
• Contrast Ratio
• 16000:1
• Brightness
• 3700 Normal / 3000 Eco ANSI Lumen; 4200 Centre Lumen
• Brightness (Boost Mode)
• 4000 ANSI Lumen
• Lamp
• 225 W AC (151 W AC Eco Mode)
• Light Source Life [hrs]
• 10000 (20000 Eco Mode)
• Lens
• F= 1.5-2.08, f= 17.2-27.7 mm
• Keystone correction
• +/- 30° manual horizontal / +/- 30° automatic / manual vertical
• Projection Angle [°]
• 6.9 - 11.1
• Projection Factor
• 1.2 - 2 : 1
• Projection Distance [m]
• 0.75 - 12.88
• Screen Size (diagonal) [cm] / [inch]
• Maximum: 762 / 300"; Minimum: 76 / 30"
• Zoom
• Manual; x1.6
• Focus Adjustment
• Manual
• Supported Resolutions
• 1920x1200 (Maximum resolution of analog input)
• Frequency
• Horizontal: 15-100 kHz (RGB: 24 kHz- 100 kHz); Vertical: 24 - 85 Hz

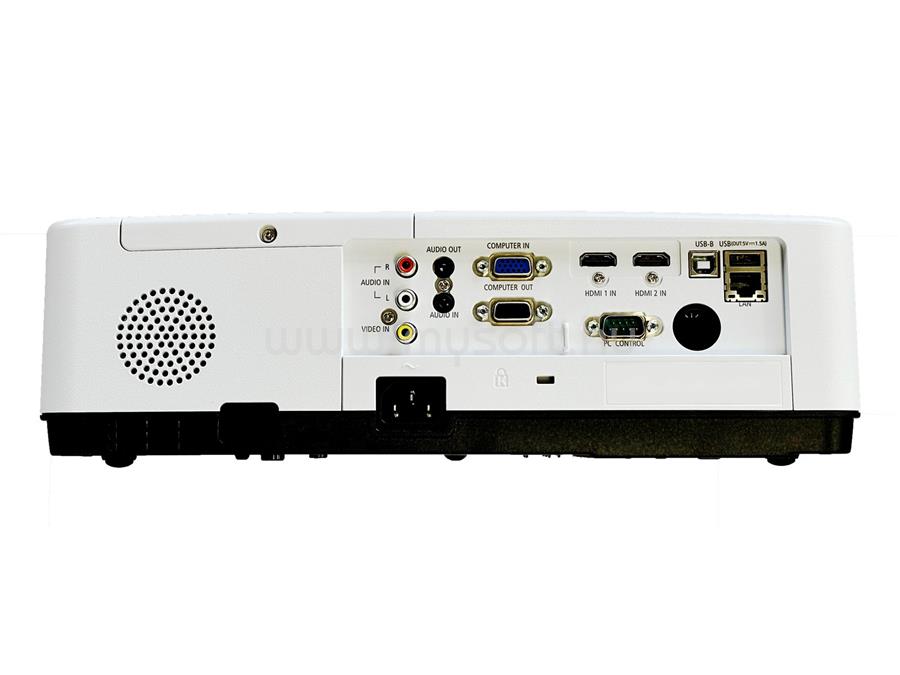

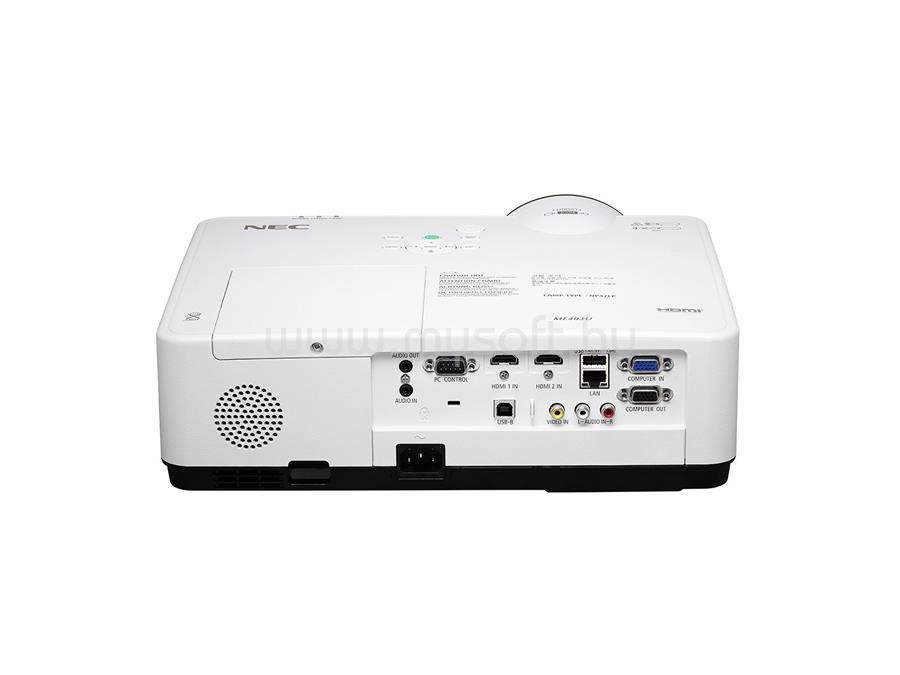

• CONNECTIVITY

• RGB (analog)
• Input: 1 x Mini D-sub 15-pin, compatible to component (YPbPr)
• Output: 1 x Mini D-sub 15 pin
• Digital
• Input: 2 x HDMI™ (Deep Color, Lip sync)
• Video
• Input: 1 x RCA
• Audio
• Input: 1 x 3.5 mm Stereo Mini Jack; 1 x RCA Stereo
• Output: 1 x 3.5 mm Stereo Mini Jack (variable)
• Control
• Input: 1 x D-Sub 9 pin (RS-232) (male)
• LAN
• 1 x RJ45; Optional WLAN
• USB
• 1 x Type B; 1x Type A (USB 2.0 high speed) with 1.5 Power Supply
• Video Signals
• NTSC; PAL; PAL60; SECAM

• REMOTE CONTROL

• Remote Control
• Aspect Ratio; Auto Adjust; AV Mute; Digital Zoom; Freeze; ID set; Optional Presentation and Mouse Control

• ELECTRICAL

• Power Supply
• 100-240 V AC; 50 - 60 Hz
• Power Consumption [W]
• 305 (High Bright) / 220 (Eco) / 1.5 (Network Stand-by) / 0.5 (Stand-by)

• MECHANICAL

• Dimensions (W x H x D) [mm]
• 345 x 104.6 x 261 (without lens and feet)
• Weight [kg]
• 3.5
• Fan Noise [dB (A)]
• 29 / 37 (Eco / Normal)

• ENVIRONMENTAL CONDITIONS

• Operating Temperature [°C]
• 5 to 40
• Operating Humidity [%]
• 20 to 80
• Storage Temperature [°C]
• -10 to 50
• Storage Humidity [%]
• 20 to 80

• ERGONOMICS

• Safety and Ergonomics
• CE; EAC; ErP; RoHS; TUEV Type Approved; WEEE
• Speakers [W]
• 1 x 16 (mono)

• ADDITIONAL FEATURES

• Special Characteristics
• Auto Eco Mode; Auto Power ON/OFF; Carbon Savings Meter; Colour Management; Content Transmission via Network; Crestron RoomView; DICOM simulation; Direct Power-Off Function; High Altitude Mode; Kensington security slot; Keypad Lock; Lens Cover; Magnify; NaViSet Administrator 2; Off-Timer; Optional WLAN; OSD with 29 languages; Password Security System; Quick On/Off; RS-232 Control; Security Bar; USB Display; USB Viewer for JPEG; Wall Colour Correction

• GREEN FEATURES

• Energy Efficiency
• 75 % AV mute function; Auto ECO Mode; ECO scheduler; Green one touch ECO and AV mute button; Intelligent Power Management; Longer Light Source Life; Software scheduling
• Ecological Materials
• 100% recyclable packaging; Downloadable manuals; ECO packaging
• Ecological Standards
• ErP compliant; RoHs compliant; WEEE

• SHIPPING CONTENT

• Shipping Contents
• 2x AAA Batteries
• IR Remote Control (RD-469E)
• Mini D-SUB Signal Cable (1.8 m)
• Quick Setup Guide
• Security Sticker
• Users Manual on CD-ROM
• Utility software
