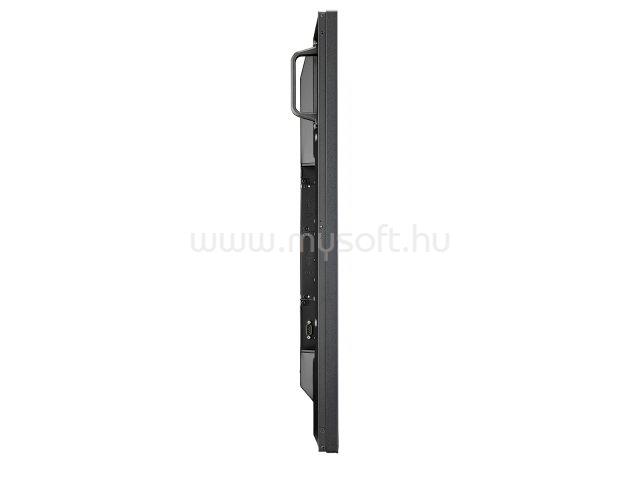

NEC M651-2 65" LFD

• Display

• Panel Technology
• IPS with Direct LED backlights
• Screen Size [inch/cm]
• 65 / 163.9
• Aspect Ratio
• 16:9
• Brightness [cd/m2]
• 500
• Contrast Ratio
• > 8000:1 1
• Viewing Angle [°]
• 178 horizontal / 178 vertical (typ. at contrast ratio 10:1)
• Colour Depth [bn]
• 1.073 (8bit + FRC)
• HDR
• HDR10; HLG; PQ
• Response Time (typ.) [ms]
• 6
• Panel Refresh Rate [Hz]
• 60
• Haze Level [%]
• Pro (25)
• Supported Orientation
• Landscape; Portrait

• Resolution

• Native Resolution
• 3840 x 2160
• Supported Resolutions
• 1024 x 768
• 1280 x 1024
• 1280 x 720
• 1360 x 768
• 1366 x 768
• 1400 x 1050
• 1440 x 900
• 1600 x 1200
• 1650 x 1050
• 1920 x 1080
• 1920 x 1200
• 1920 x 2160
• 3840 x 2160
• 4096 x 2160

• Synchronisation Rate

• Horizontal Frequency [kHz]
• 26 - 135
• Vertical Frequency [Hz]
• 23 - 86

• Connectivity

• Input Video Digital
• 1 x DisplayPort (with HDCP); 2 x HDMI (with HDCP)
• Input Audio Digital
• 1 x DisplayPort; 2 x HDMI
• Input Control
• LAN 100Mbit; remote control wire (3,5mm jack); RS232
• Input Data
• 1 x USB 2.0 (MediaPlayer)
• Output Audio Analogue
• 1 x 3,5 mm jack
• Input Detect
• Custom; First; Last

• Open Modular Intelligence

• Intel© SDM
• accepts Intel© Smart Display Modules Large and Small up to 66 W
• Compute Module Slot
• RPi Compute Module 4

• Sensors

• Temperature Sensor
• Integrated, 3 sensors, triggered actions programmable

• Electrical

• Power Consumption [W]
• 165 shipping
• Power Savings Mode [W]
• < 0.5; < 2 (Networked Standby)
• Power Management
• VESA DPMS
• Power Supply
• 100-240 V AC; 50/60 Hz; internal

• Environmental Conditions

• Operating Temperature [°C]
• +0 to +40
• Operating Humidity [%]
• 20 to 80
• Storage Humidity [%]
• 10 to 90
• Storage Temperature [°C]
• -20 to 60

• Mechanical

• Dimensions (W x H x D) [mm]
• 1,462.3 x 837.3 x 68.1
• Weight [kg]
• 29.4
• Bezel Width [mm]
• 14.9
• VESA Mounting [mm]
• 4 holes; 400 x 400 (FDMI); M8
• Ingress Protection
• IP5x (front); IP2x (back)
• Packaging Dimensions (W x H x D) [mm]
• 1,736 x 1,033 x 280
• Packaging Weight [kg]
• 41.7
• Colour Bezel
• Pantone 426M (black)
• Material
• Metal

• MediaPlayer

• Supported File Storage / File System
• USB 2.0 / FAT16, FAT32
• Supported Image Formats
• JPG (baseline, progressive, RGB, CMYK); max. resolution 15360 x 8640
• Supported Video Formats
• MPG (MPEG1/2/4, max res 1080p@30Hz); MP4 (MPEG2/4, H.263, H.264, HEVC/H.265, max res 3840x2160@60Hz); TS (MPEG2, H.264, HEVC/H.265, max res 3840x2160@60Hz); audio: LPCM, MP3, AAC; WMV (video H.264, Windows Media Video 9, max res 1080p@30Hz, audio WMA 9, WMA 10 Pro)
• Supported Audio Formats
• MP3 (MP3); max. bit-rate 320 kBit/s

• Available Options

• Accessories
• Feet (ST-65M); Presence Sensor (KT-RC3); Trolley (PD04-Tipster Trolley); Wall mount (PDW S 32-65 L, PDW S 32-65 P)

• Regulatory

• Safety and Ergonomics
• BSMI; CE; EAC; EMC Class B; Energy Star 8; FCC Class B; KC/KCC; PSB; RCM; RoHS; VCCI
• Pixel Failure Class
• ISO 9241-307, Class 1
• Resistance to Fire
• Metal backcover, plastic material certified acc. to UL94-5VB

• Green Features

• Energy Efficiency
• Energy consumption: 156 kWh/1000 h; Energy efficiency class: G; LED backlight
• Ecological Standards
• EnergyStar 8.0

• Additional Features

• Special Characteristics
• DICOM Simulation; HDMI ARC; Powered USB Port (10 W); Removable Logo
• Audio
• Integrated Speakers (10 W + 10 W)
• Shipping Content
• 2x AAA batteries; Display; HDMI Cable; Power Cable; Remote Control; Setup Manual
• Operating Hours
• 24/7
• External Control
• AMX NetLinx Support; ASCII Control Commands; Crestron Connected; HDMI CEC; HTTP Browser; PJLink; Scheduled Timer; Scheduled Timer; SNMP
• Remote Management
• Automated Email Alerts; NEC NaViSet Administrator 2
• Security
• Disable HW Buttons; Disable IR Functionality; Emergency Notification
