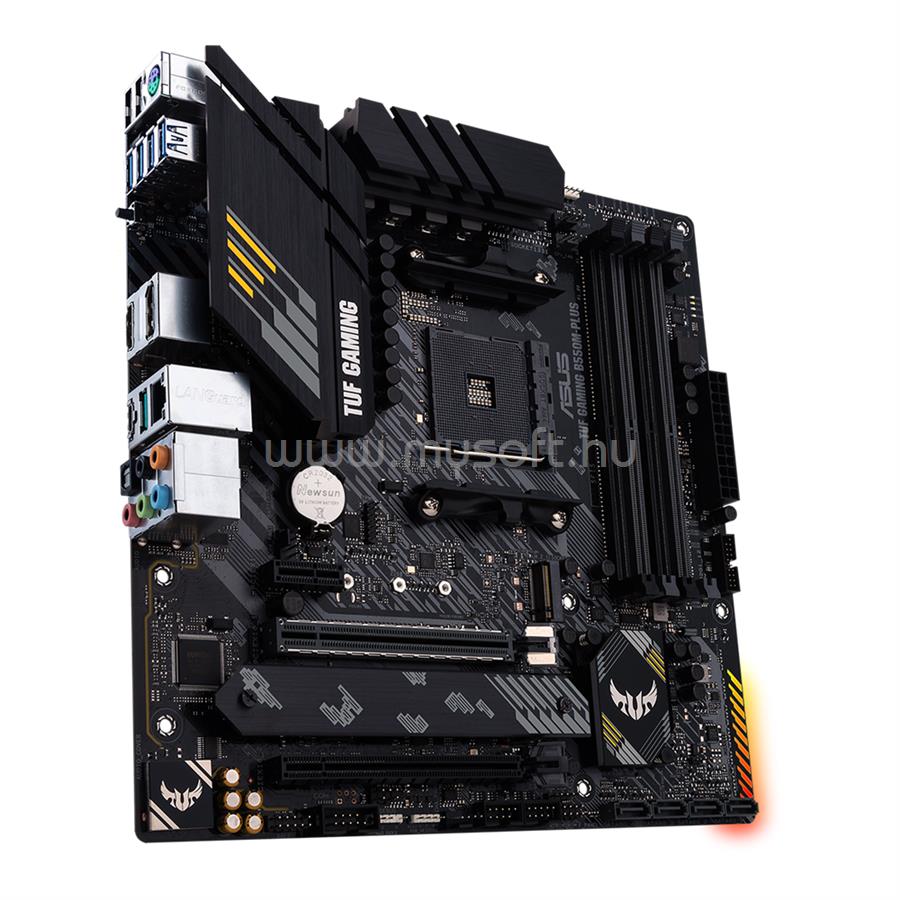

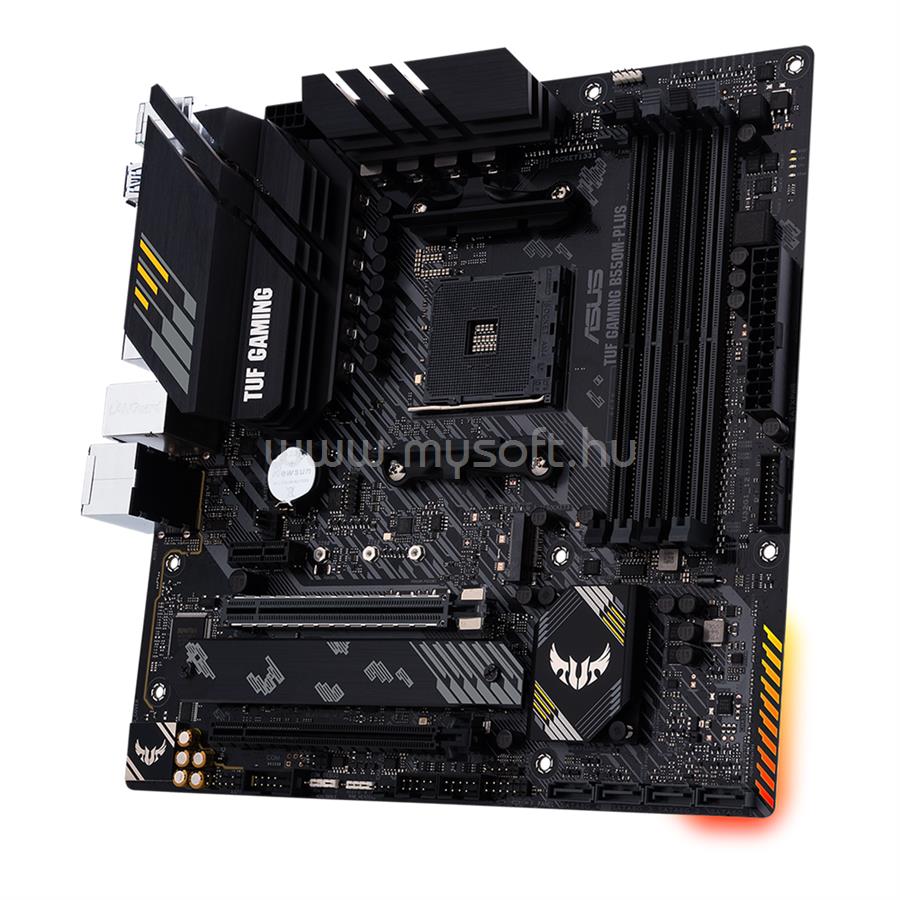

ASUS ALAPLAP TUF GAMING B550M-PLUS (AM4, MATX)

• Specification

• CPU
• AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
• Chipset
• AMD B550
• Memory
• 4 x DIMM, Max. 128GB, DDR4 4866(O.C)/4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4333(O.C.)/4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory *
• Dual Channel Memory Architecture
• ECC Memory (ECC mode) support varies by CPU.
• Graphic
• 1 x DisplayPort 1.2
• 1 x HDMI 2.1(4K@60HZ)
• Multi-GPU Support
• Supports AMD 2-Way CrossFireX Technology
• Expansion Slots
• AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors
• 1 x PCIe 4.0 x16 (x16 mode)
• AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors
• 1 x PCIe 3.0 x16 (x16 mode)
• AMD B550 Chipset
• 1 x PCIe 3.0 x16 (x4 mode)
• 1 x PCIe 3.0 x1
• Storage
• Total supports 2 x M.2 slot(s) and 4 x SATA 6Gb/s ports
• AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors :
• 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support
• AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors :
• 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support
• AMD B550 Chipset :
• 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support
• 4 x SATA 6Gb/s port(s),
• Support Raid 0, 1, 10
• LAN
• Realtek RTL8125B 2.5Gb Ethernet
• TUF LANGuard
• Audio
• Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC
• Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
• Audio Feature :
• Exclusive DTS Custom for GAMING Headsets.
• Optical S/PDIF out port(s) at back panel
• Audio cover
• Audio Shielding
• Dedicated audio PCB layers
• Premium audio capacitors
• USB Ports
• Rear USB Port ( Total 8 )
• 2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C©)
• 4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
• 2 x USB 2.0 port(s)(2 x Type-A)
• Front USB Port ( Total 6 )
• 2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
• 4 x USB 2.0 port(s)(4 x Type-A)
• Software Features
• ASUS Exclusive Software
• Armoury Crate
• Aura Creator
• Aura Sync
• AI Noise Cancelling Microphone
• AI Suite 3
• Performance And Power Saving Utility
• TurboV EVO
• EPU
• Digi+ VRM
• Fan Xpert 2+
• EZ update
• TUF GAMING CPU-Z
• AI Charger
• ASUS Turbo LAN
• DAEMON Tools
• DTS Custom for GAMING Headsets
• Norton Anti-virus software (Free Trial for 60 days)
• WinRAR
• UEFI BIOS
• ASUS EZ DIY
• ASUS CrashFree BIOS 3
• ASUS EZ Flash 3
• ASUS UEFI BIOS EZ Mode
• ASUS Special Features
• ASUS TUF PROTECTION
• ASUS DIGI+ VRM (Digital power design with Dr. MOS)
• ASUS Enhanced DRAM Overcurrent Protection
• ASUS ESD Guards
• TUF LANGuard
• ASUS Overvoltage Protection
• ASUS SafeSlot
• ASUS Stainless-Steel Back I/O
• ASUS Q-Design
• ASUS Q-DIMM
• ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
• ASUS Q-Slot
• ASUS Thermal Solution
• Aluminum M.2 heatsink
• ASUS EZ DIY
• BIOS FlashBack button
• BIOS FlashBack LED
• Procool
• AURA Sync
• Standard RGB headers
• Addressable Gen 2 RGB header

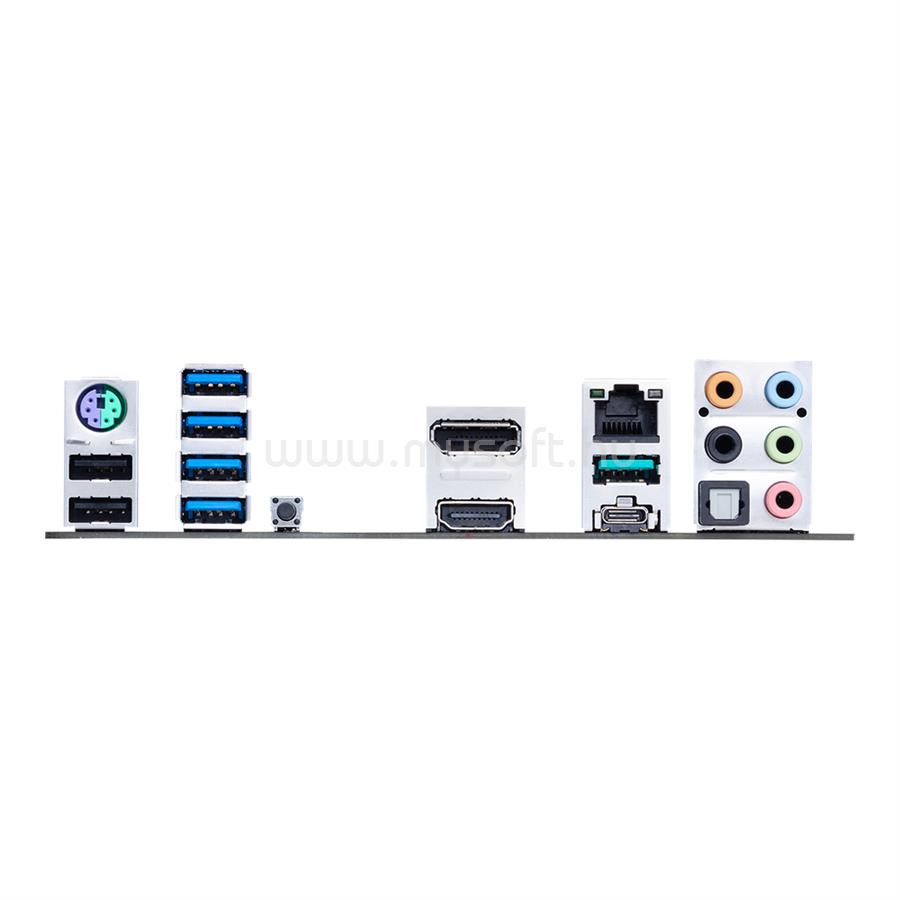

• Back I/O Ports
• 1 x PS/2 keyboard/mouse combo port(s)
• 1 x DisplayPort
• 1 x HDMI
• 1 x LAN (2.5G) port(s)
• 2 x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C©)
• 2 x USB 2.0
• 4 x USB 3.2 Gen 1 (blue) (one port can be switched to USB BIOS FlashBack™)
• 1 x Optical S/PDIF out
• 5 x Audio jack(s)
• 1 x BIOS FlashBack Button(s)
• Internal I/O Ports
• 1 x CPU Fan connector(s)
• 1 x CPU OPT Fan connector(s)
• 2 x Chassis Fan connector(s)
• 2 x Aura RGB Strip Headers
• 1 x Addressable Gen 2 header(s)
• 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
• 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
• 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)
• 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)
• 1 x SPI TPM header
• 4 x SATA 6Gb/s connector(s)
• 1 x 24-pin EATX Power connector(s)
• 1 x 8-pin EATX 12V Power connectors
• 1 x Front panel audio connector(s) (AAFP)
• 1 x Clear CMOS jumper(s)
• 1 x System panel connector
• 1 x COM port header
• 1 x Speaker connector
• Accessories
• User´s manual
• I/O Shield
• 2 x SATA 6Gb/s cable(s)
• 1 x Supporting DVD
• 1 x TUF Gaming Sticker
• 1 x TUF Certification card(s)
• 1 x M.2 SSD screw package(s)
• 1 x M.2 Rubber Package(s)
• BIOS
• 256 Mb Flash ROM, UEFI AMI BIOS
• Manageability
• WOL by PXE
• Operating System
• Windows© 10 64-bit
• Form Factor
• mATX Form Factor
• 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
