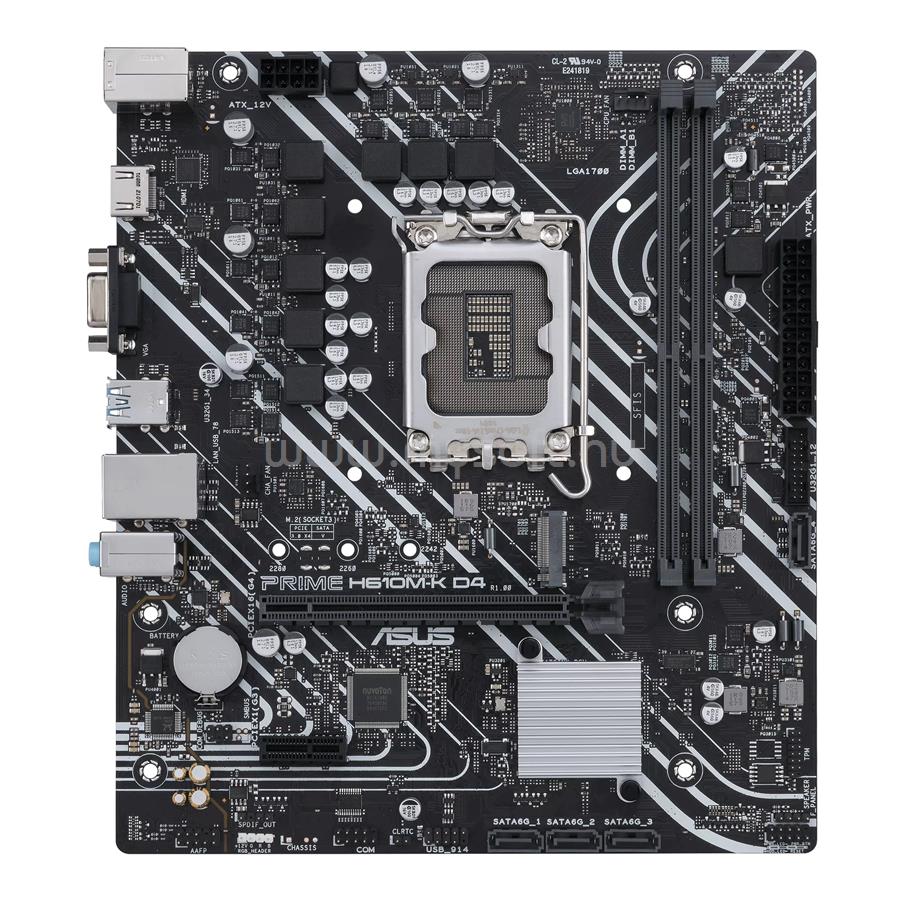

ASUS ALAPLAP PRIME H610M-K D4 (LGA1700, MATX)

• CPU

• Intel© Socket LGA1700 for Intel© Core 14th & 13th Gen Processors, Intel© Core 12th Gen, Pentium© Gold and Celeron© Processors**
• Supports Intel© Turbo Boost Technology 2.0 and Intel© Turbo Boost Max Technology 3.0**
• * Refer to www.asus.com for CPU support list.
• ** Intel© Turbo Boost Max Technology 3.0 support depends on the CPU types.

• Chipset

• Intel© H610 Chipset

• Memory

• 2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
• Dual Channel Memory Architecture
• Supports Intel© Extreme Memory Profile (XMP)
• * Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list.

• Graphics

• 1 x D-Sub port
• 1 x HDMI© port**
• * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
• ** Supports 4K@60Hz as specified in HDMI 2.1.

• Expansion Slots

• Intel© Core Processors (14th & 13th & 12th Gen)*
• 1 x PCIe 4.0 x16 slot
• Intel© H610 Chipset
• 1 x PCIe 3.0 x1 slot

• Storage

• Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
• Intel© H610 Chipset
• M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
• 4 x SATA 6Gb/s ports
• * The M.2 slot shares bandwidth with the SATA6G_4 port. When a device in SATA mode is installed on the M.2 slot, the SATA6G_4 port cannot be used.

• Ethernet

• 1 x Realtek 1Gb Ethernet

• USB

• Rear USB (Total 6 ports)
• 2 x USB 3.2 Gen 1 ports (2 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• Front USB (Total 4 ports)
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 1 x USB 2.0 header supports additional 2 USB 2.0 ports

• Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC*
• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• Supports up to 24-Bit/192 kHz playback
• Audio Features
• Audio Shielding
• Dedicated audio PCB layers
• * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

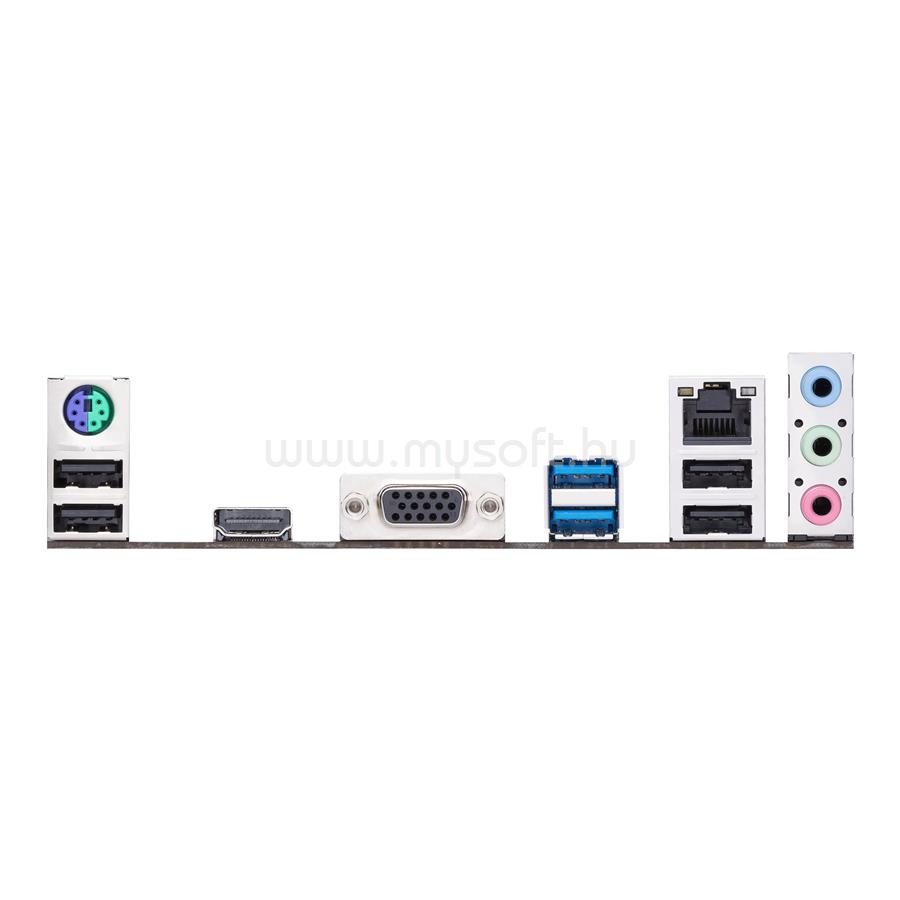

• Back Panel I/O Ports

• 2 x USB 3.2 Gen 1 ports (2 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• 1 x D-Sub port
• 1 x HDMI© port
• 1 x Realtek 1Gb Ethernet port
• 3 x Audio jacks
• 1 x PS/2 Keyboard/Mouse combo port

• Internal I/O Connectors

• Fan and Cooling related
• 1 x 4-pin CPU Fan header
• 1 x 4-pin Chassis Fan header
• Power related
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector
• Storage related
• 1 x M.2 slot (Key M)
• 4 x SATA 6Gb/s ports
• USB
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 1 x USB 2.0 header supports additional 2 USB 2.0 ports
• Miscellaneous
• 1 x RGB header
• 1 x Clear CMOS header
• 1 x COM Port header
• 1 x Front Panel Audio header (AAFP)
• 1 x S/PDIF Out header
• 1 x Speaker header
• 1 x SPI TPM header (14-1pin)
• 1 x 10-1 pin System Panel header

• Special Features

• ASUS 5X PROTECTION III
• DIGI+ VRM
• LANGuard
• Overvoltage Protection
• SafeSlot Core
• Stainless-Steel Back I/O
• ASUS Q-Design
• Q-DIMM
• Q-Slot
• ASUS Thermal Solution
• Aluminum heatsink design
• ASUS Lighting Control
• RGB header

• Software Features

• ASUS Exclusive Software
• Armoury Crate
• AI Suite 3
• Performance And Power Saving Utility
• TurboV EVO
• EPU
• DIGI+ VRM
• Fan Xpert
• ASUS CPU-Z
• Norton Anti-virus software (Free Trial version)
• WinRAR
• UEFI BIOS
• ASUS EZ DIY
• ASUS CrashFree BIOS 3
• ASUS EZ Flash 3
• ASUS UEFI BIOS EZ Mode

• BIOS

• 128 Mb Flash ROM, UEFI AMI BIOS

• Manageability

• WOL by PME, PXE

• Accessories

• Cables
• 2 x SATA 6Gb/s cables
• Miscellaneous
• 1 x I/O Shield
• 1 x M.2 ANCHOR
• Installation Media
• 1 x Support DVD
• Documentation
• 1 x User Guide

• Operating System

• Windows© 11 64-bit, Windows© 10 64-bit

• Form Factor

• mATX Form Factor
• 9.2 inch x 8.0 inch ( 23.4 cm x 20.3 cm )
