ASUS MUNKAÁLLOMÁS ALAPLAP PRO WS TRX50-SAGE WIFI (STR5)

• CPU

• AMD Socket sTR5 for Ryzen Threadripper PRO 7000 WX-Series and Ryzen Threadripper 7000 Series Processors

• Chipset

• AMD TRX50 Chipset

• Memory

• 4 x DIMM slots, DDR5, ECC Registered Memory*
• 4 Channel Memory Architecture
• * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.

• Expansion Slots

• AMD Ryzen Threadripper PRO 7000 WX-Series and Ryzen Threadripper 7000 Series Processors
• 2 x PCIe 5.0 x16 slots
• 1 x PCIe 5.0 x16 slot(x8 mode)
• 1 x PCIe 4.0 x16 slot
• 1 x PCIe 4.0 x16 slot(x4 mode)
• * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/)

• Storage

• Total supports 3 x M.2 slots, 4 x SATA 6Gb/s ports AMD Ryzen Threadripper PRO 7000 WX-Series and Ryzen Threadripper 7000 Series Processors
• M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)AMD TRX50 Chipset
• M.2_3 slot (Key M), type 2280(supports PCIe 4.0 x4 mode)
• 4 x SATA 6Gb/s ports
• 1 x SlimSAS slot supports PCIe 4.0 x4 mode NVMe device
• * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10.

• Ethernet

• 1 x Marvell© AQtion 10Gb Ethernet
• 1 x Intel© I226-LM 2.5Gb Ethernet

• Wireless & Bluetooth

• Wi-Fi 7*
• 2x2 Wi-Fi 7 (802.11be)
• Supports 2.4/5/6GHz frequency band**
• Support Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
• Bluetooth© v5.4***
• *Wi-Fi features may vary depending on the operating system
• For Windows 11, Wi-Fi 7 will require SV3 or later version for full functions, Windows 11 SV1/2 only support Wi-Fi 6E.
• For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details.
• ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
• *** The Bluetooth© version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

• USB

• Rear USB (Total 9 ports)
• 1 x USB 20Gbps port (1 x USB Type-C©)
• 6 x USB 10Gbps ports (6 x Type-A )
• 2 x USB 2.0 ports (2 x Type-A )
• Front USB (Total 7 ports)
• 1 x USB 20Gbpsconnector (supports USB Type-C© with up to 27W PD/QC4+)
• 1 x USB 5Gbps header supports 2 additional USB 5G ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports

• Audio

• Realtek ALC1220P Surround Sound High Definition Audio CODEC*
• Impedance sense for front and rear headphone outputs
• Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
• Supports up to 32-Bit/192 kHz playback

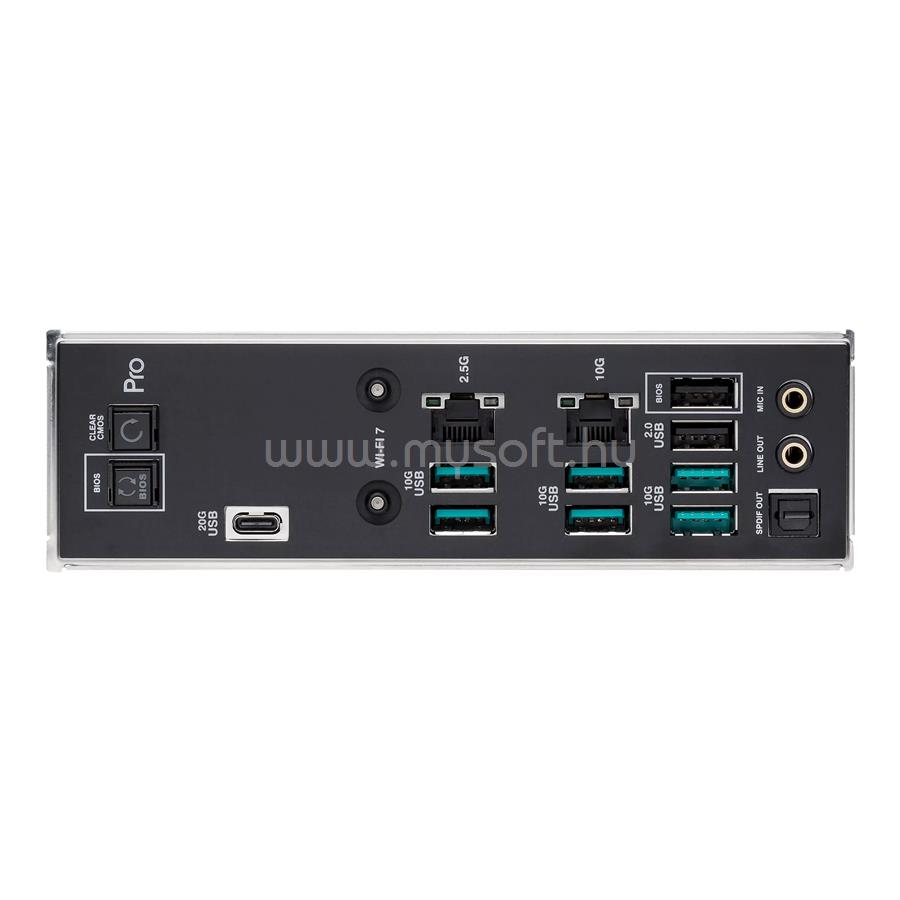

• Back Panel I/O Ports

• 1 x USB 20Gbps port (1 x USB Type-C©)
• 6 x USB 10Gbps ports (6 x Type-A)
• 2 x USB 2.0 port (2 x Type-A)
• 1 x Wi-Fi Module
• 1 x Marvell© AQtion 10Gb Ethernet port
• 1 x Intel© 2.5Gb Ethernet port
• 2 x Audio jacks
• 1 x Optical S/PDIF out port
• 1 x BIOS FlashBack™ button
• 1 x Clear CMOS button

• Internal I/O Connectors

• Fan and Cooling related
• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x W_PUMP+ header
• 4 x 4-pin Chassis Fan headers
• 2 x 4-pin VRM Fan header (with VRM FAN onboard)
• Power related
• 2 x 24-pin Main Power connectors
• 2 x 8-pin +12V Power connectors
• 2 x 8-pin PCIe to CPU power connectors
• 1 x 6-pin PCIe Power connector
• 1 x 8-pin PCIe Power connector
• Storage related
• 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports
• 1 x SlimSAS port
• USB
• 1 x USB 20Gbps connector supports USB Type-C©
• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports
• Miscellaneous
• 1 x BMC header1 x COM Port header
• 1 x USB4 header1 x FlexKey button
• 1 x Front panel audio header (F_AUDIO)
• 1 x Start button
• 1 x Safe boot button
• 1 x ReTry button1 x LN2 mode jumper
• 1 x Slow mode switch
• 1 x SPI TPM header (14-1pin)
• 1 x 10-1 pin system panel header
• 1 x Chassis intrusion header
• 1 x Thermal Sensor header

• Special Features

• ASUS Q-Design
• Q-Code
• M.2 Q-Latch
• Q-Connector
• Q-DIMM
• Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
• Q-Slot
• ASUS Thermal Solution
• M.2 heatsink and onboard thermal pads
• VRM heatsink design with active fans
• ASUS EZ DIY
• BIOS FlashBack button
• BIOS FlashBack LED
• Clear CMOS button
• ProCool II
• Pre-mounted I/O shield
• SafeSlot
• SafeDIMMBespoke
• Motherboard Design & Business Focused Features
• 24/7 Reliability
• Overcurrent Protection

• Software Features

• ASUS Exclusive Software
• Armoury Crate- Fan Xpert 4
• ASUS CPU-Z
• IT Management software supported
• ASUS Control Center Express(ACCE)
• Adobe Creative Cloud (Free Trial)
• Norton 360 Deluxe (60 Days Free Trial)
• WinRAR (40 Days Free Trial)
• UEFI BIOS
• ASUS EZ DIY
• ASUS CrashFree BIOS 3
• ASUSTeK. EzFlash UtilityFlexKey

• BIOS

• 256 Mb Flash ROM, UEFI AMI BIOS

• Manageability

• WOL by PME, PXE (UEFI mode)

• Accessories

• Cables
• 2 x SATA 6Gb/s cables
• 1 x CPU 8-pin to PCIe 8-pin adapter cable package
• 1 x Thermistor cable pack
• Miscellaneous
• 1 x ASUS 2x2 Dual-Band Wi-Fi moving antennas
• 1 x M.2 Q-Latch package(2 in 1)
• 2 x M.2 Rubber Packages
• 1 x Q-connectorDocumentation
• 1 x ACC Express Activation Key Card
• 1 x QSG

• Operating System

• Windows© 11 64-bit

• Form Factor

• CEB Form Factor
• 12 inch x 11 inch
• (30.5 cm x 28.0 cm)

Garancia fogyasztók részére

• 3 év kötelező jótállás (gyártó által biztosított szervizgarancia)

Garancia nem fogyasztók részére

• 3 év gyártó által biztosított szervizgarancia
