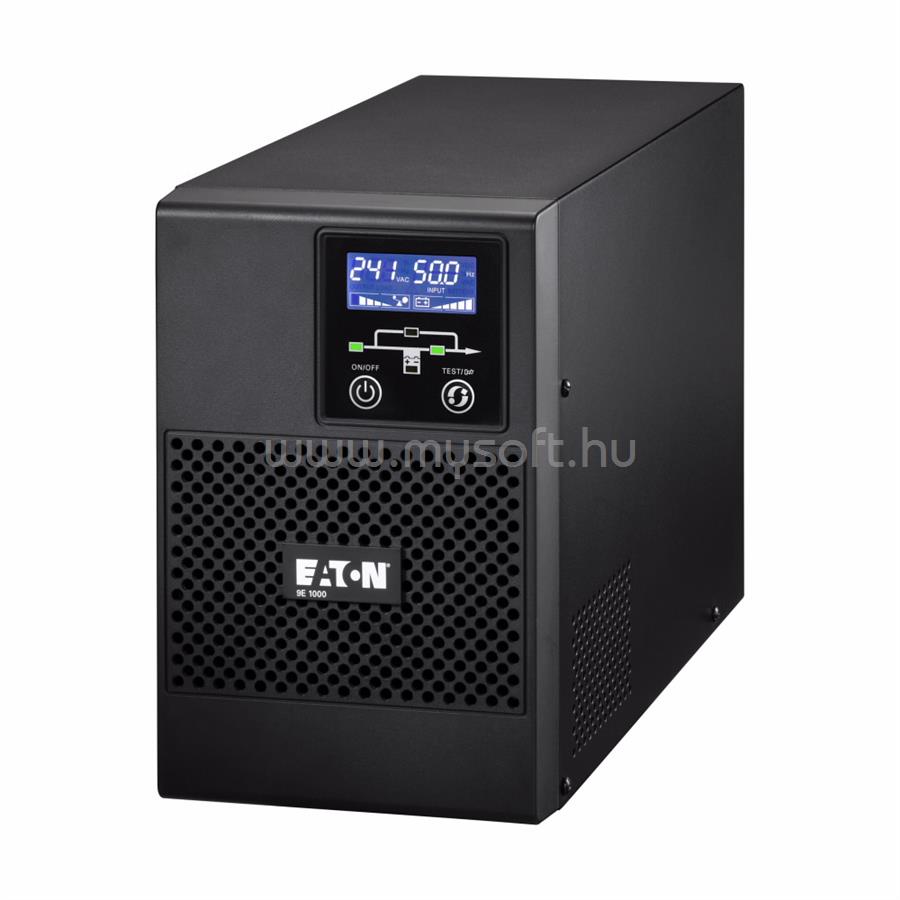

EATON UPS 1000VA C13/C14 9E 1000I ONLINE KETTŐS KONVERZIÓS SZÜNETMENTES TÁPEGYSÉG

• GENERAL SPECIFICATIONS

• PRODUCT LENGTH/DEPTH
• 605 mm
• PRODUCT HEIGHT
• 86.5 mm
• PRODUCT WIDTH
• 440 mm
• PRODUCT WEIGHT
• 22.1 kg

• PRODUCT SPECIFICATIONS

• SECONDARY FREQUENCY - MAX
• 60 Hz
• OUTPUT WAVEFORM
• Sine wave
• WATTAGE
• 800 W
• OUTPUT POWER FACTOR
• 0.8
• FORM FACTOR
• Tower
• VOLTAGE DISTORTION OUTPUT (LINEAR LOAD) - MAX
• 3
• INCLUDES NETWORK CARD
• No
• INPUT CONNECTION
• C14
• INPUT VOLTAGE - MIN
• 100 V
• OUTPUT VOLTAGE - MAX
• 240 V
• SECONDARY FREQUENCY - MIN
• 50 Hz
• SOFTWARE COMPATIBILITY
• Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
• BATTERY REPLACEMENT
• Replacable batteries
• BATTERY TYPE
• Sealed, lead-acid
• EFFICIENCY
• 91
• SPECIAL FEATURES
• Double conversion topology
• Constantly monitors power conditions and regulates voltage and frequency
• Internal bypass allows service continuity in case of UPS fault
• LCD display for real-time status and measurements
• Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat)
• CONSTRUCTION TYPE
• Free standing model
• OUTPUT VOLTAGE - MIN
• 220 V
• COLOR
• Black
• EXTENDED BATTERY CAPABILITY
• Yes
• OUTPUT VOLTAGE RANGE
• 220/230/240 V +/- 2%
• TOPOLOGY
• Online/Double-conversion
• BTU RATING
• Online: 300
• EFFICIENCY (ECO-MODE)
• 97
• BACK-UP TIME
• 11.5 min
• INPUT NOMINAL VOLTAGE
• 230V default (220/230/240V)
• INPUT POWER FACTOR
• >.99
• INPUT FREQUENCY RANGE
• 40-70 Hz
• INTERNAL BYPASS
• Yes
• INPUT VOLTAGE - MAX
• 300 V
• VOLTAGE TYPE
• AC
• PHASE (OUTPUT)
• 1
• BATTERY MANAGEMENT
• Automatic battery test
• Deep discharge protection
• AUTO SHUTDOWN FUNCTION
• Yes
• NUMBER OF OUTPUTS C13
• 4
• VA RATING
• 1000 VA
• POTENTIAL FREE SWITCH CONTACT
• No

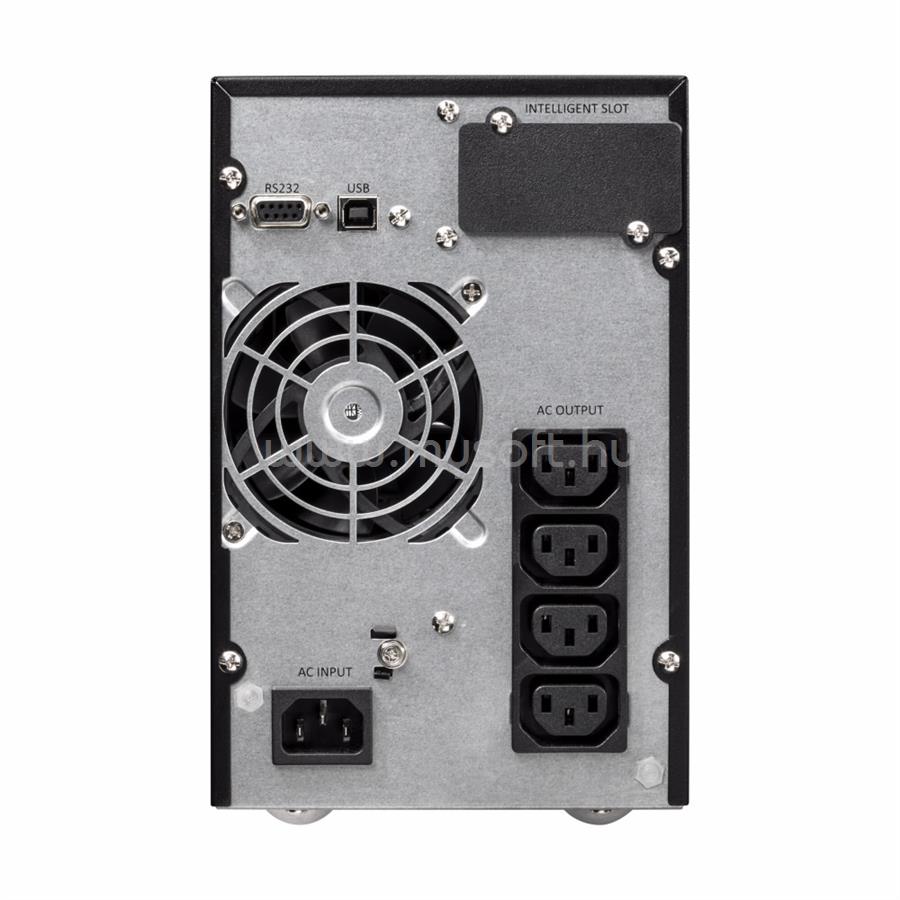

• RECEPTACLE
• (4) C13
• PHASE (INPUT)
• 1
• PACKAGE CONTENTS
• UPS
• USB cable
• Serial cable
• Quickstart guide
• Safety instructions
• NOISE LEVEL
• <37 dB at 1 meter
• FEED TYPE
• 1
• RUNTIME GRAPH
• View runtime graph

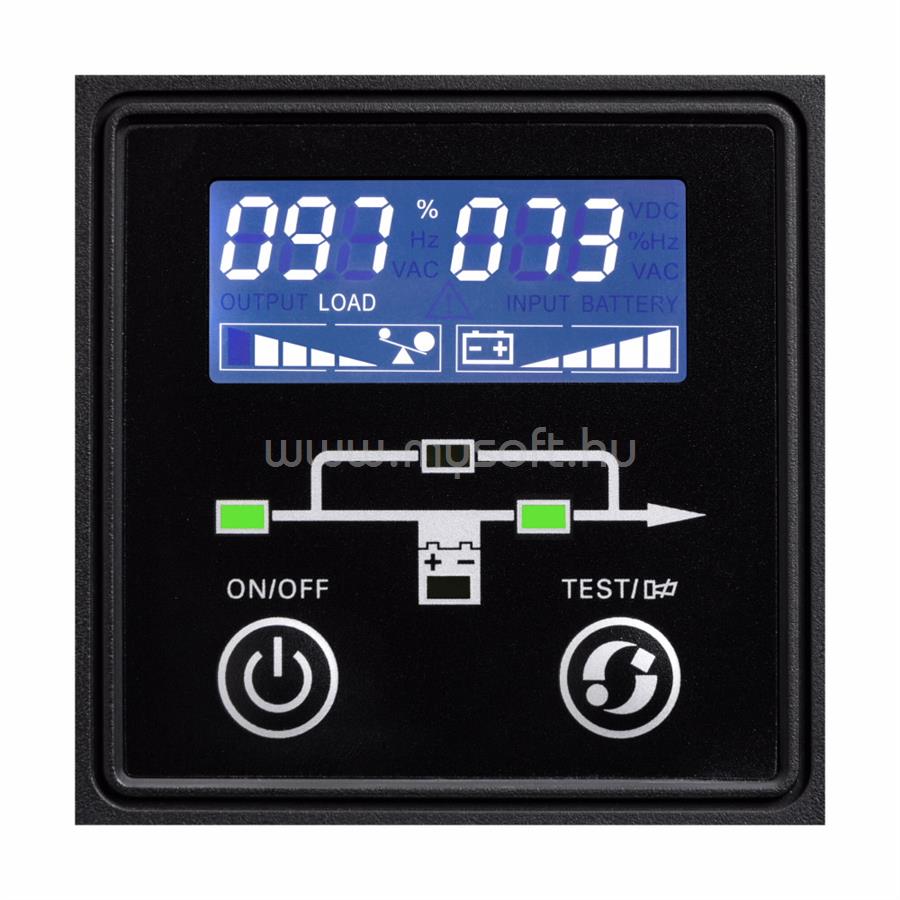

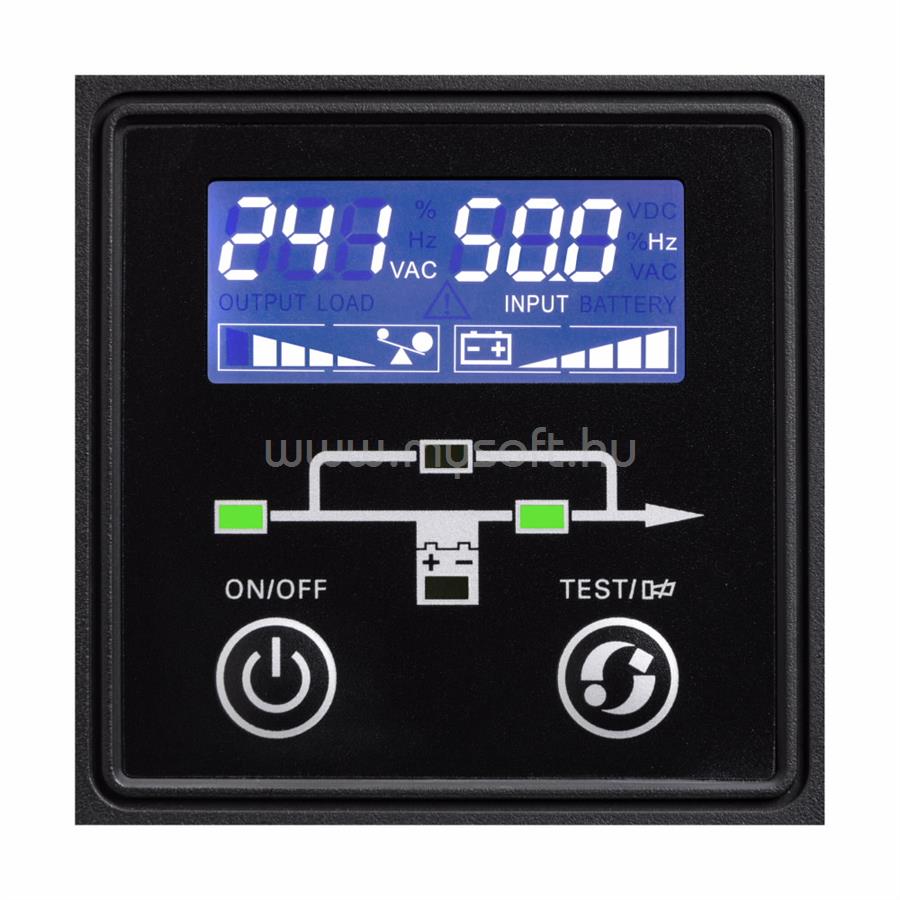

• USER INTERFACE
• LCD Display
• BATTERY QUANTITY
• 2
• VOLTAGE
• 230V
• HOT SWAP POWER
• No
• TEMPERATURE RANGE
• 0° to 40°C (32° to 104°F)
• ETHERNET INTERFACE
• No
• COMMUNICATION
• USB port (HID compliant)
• Serial port (RS232)
• Communication slot
• RELATIVE HUMIDITY
• 0-95% non-condensing
• RACK MOUNTING KIT
• No
• OUTPUT FREQUENCY
• 50/60 Hz
• RUNTIME AT FULL LOAD
• 5 min
• TYPE OF INTERFACE
• Other
• PRIMARY FREQUENCY - MIN
• 40 Hz
• BATTERY RATING
• 12 V / 9 Ah
• TYPE
• UPS
• OUTPUT NOMINAL VOLTAGE
• 230V default (220/230/240V)

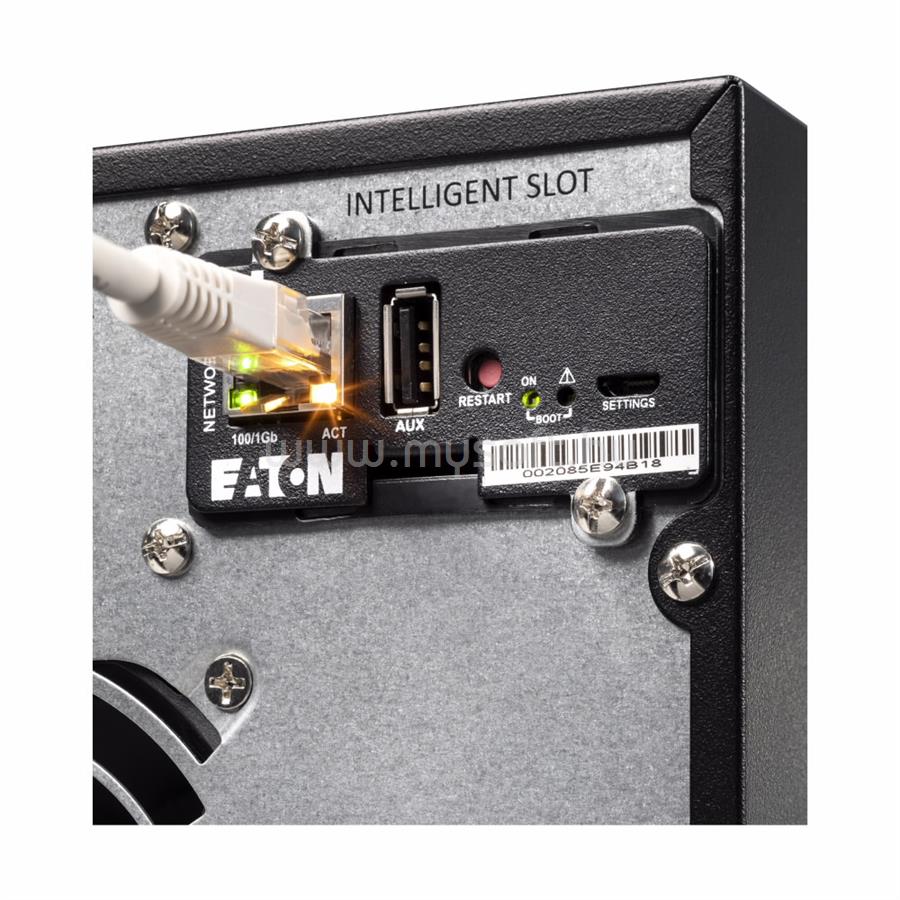

• EXPANSION SLOTS
• One slot for optional communication card
• INPUT VOLTAGE RANGE
• 176-300 V (100 V-300 V with derating)
• NOMINAL FREQUENCY
• 50/60 Hz
• PRIMARY FREQUENCY - MAX
• 70 Hz
• ALTITUDE
• 3000 m
