BENQ EW600 (1280X800) PROJEKTOR

• Display

• Brightness (ANSI lumens)
• 3600
• Native Resolution
• WXGA (1280x800)
• Native Aspect Ratio
• 16:10
• Contrast Ratio (FOFO)
• 20,000:1
• Display Color
• 30-bit (1.07 billion colors)
• Light Source
• Lamp
• Light Source Life
• a. Normal 5000 hrs, b. ECO 10000 hrs, c. SmartEco 15000 hrs, d. LampSave 15000 hrs

• Optical

• Throw Ratio
• 1.55~1.7
• Zoom Ratio
• 1.1x
• Lens
• F/#=2.56~2.68, f=22~24.1
• Projection Offset (Full-Height)
• 100%
• Keystone Adjustment
• 1D, Vertical +/- 40 degrees

• Picture

• Picture Modes
• 3D, Bright, Infographic, Presentation, sRGB, User 1, User 2, Video

• Compatibility

• Input Lag
• 33.4 ms (1080P 60Hz)
• Resolution Support
• VGA(640 x 480) to WUXGA_RB(1920 x 1200) *RB=Reduced blanking
• Horizontal Frequency
• 15K~102KHz
• Vertical Scan Rate
• 23~120Hz

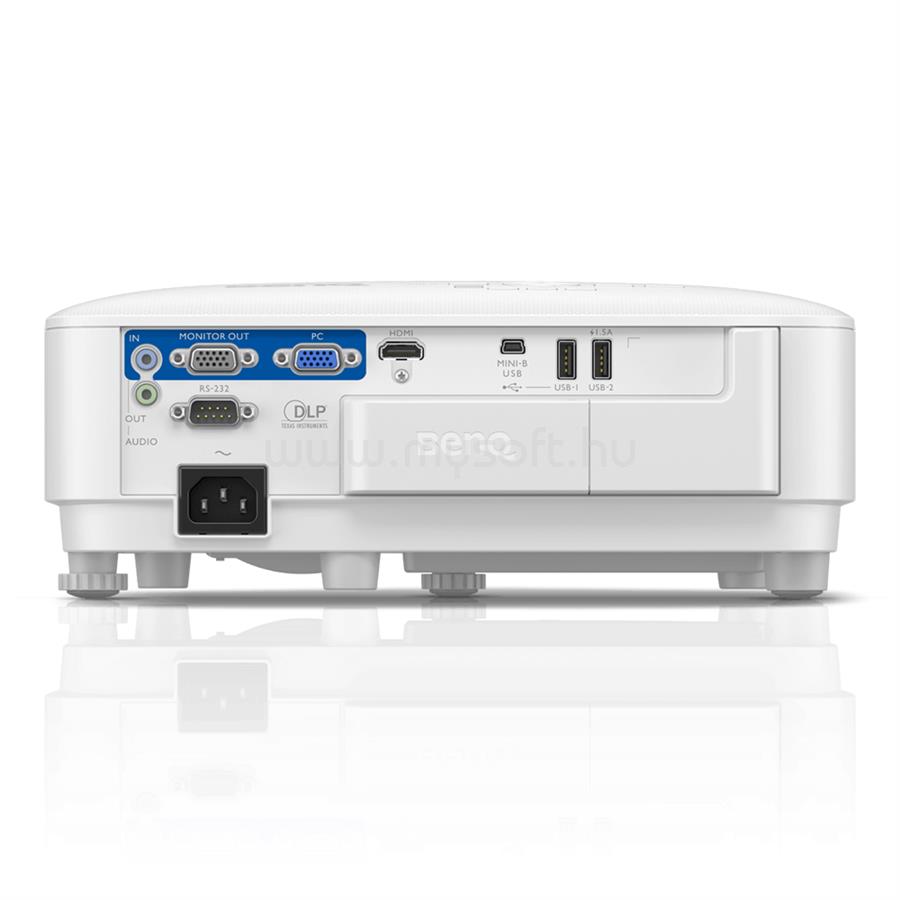

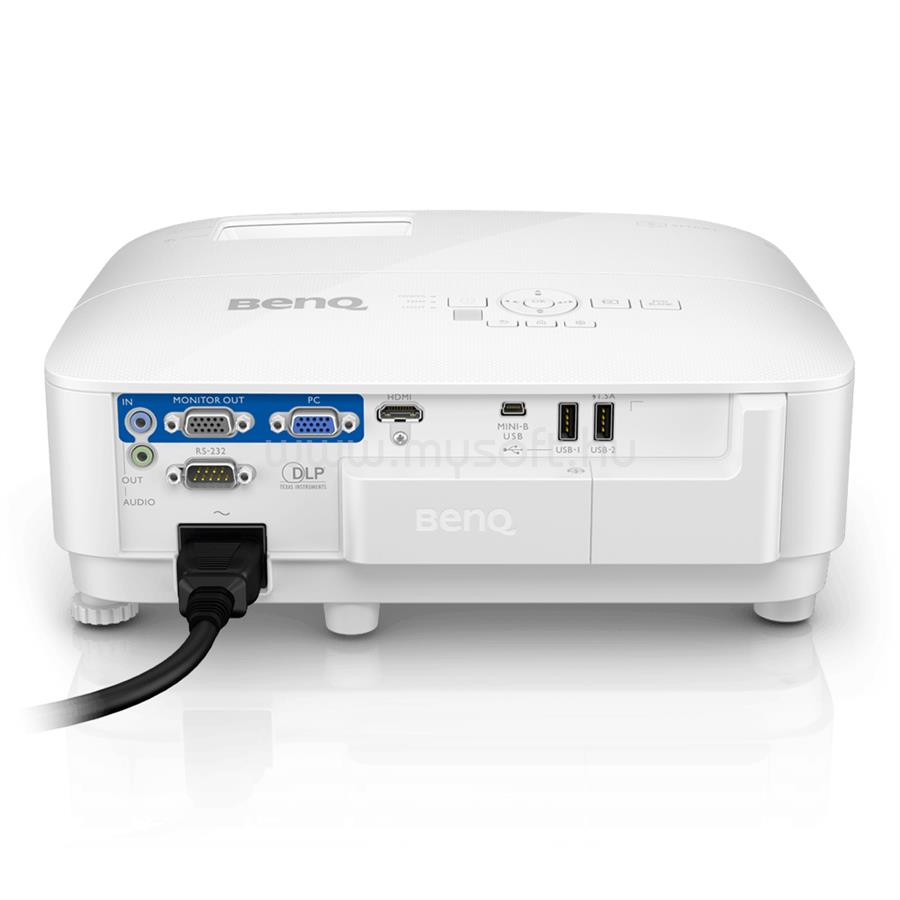

• I/O Interface

• PC in (D-sub 15pin)
• PC in-1 (shared with component video)
• Monitor out (D-sub 15pin)
• (x1)
• HDMI in
• (x1), HDMI-1 (1.4a/HDCP1.4)
• USB Type A
• (x3), USB Type A-1 (2.0/Power Supply1.0A/Reader), USB Type A-2 (2.0/Power Supply1.5A/Reader), USB Type A-3 (2.0/Wireless Dongle)
• USB Type Mini B
• (x1), USB Type Mini B-1(service/Page up&down)
• RS232 in (DB-9pin)
• (x1)

• Audio

• Speaker
• (x1), 2W
• Audio in (3.5mm Mini Jack)
• (x1)
• Audio out (3.5mm Mini Jack)
• (x1)

• Environment

• Operating Temperature
• 0~40?
• Power Supply
• AC 100 to 240 V, 50/60 Hz
• Typical Power Consumption (110V)
• 270W/110V
• Stand-by Power Consumption
• <0.5W
• Acoustic Noise (Typ./Eco.)(dB)
• 33/29 dB

• Accessories

• Wireless USB dongle
• WDR02U
• Remote Control w/ Battery
• RCI023
• Power Cord (by region)
• x1 (1.8M)
• VGA(D-sub 15pin) Cable
• (Standard), 1 (1.5m)
• Quick Start Guide
• (x1) 21L
• Warranty Card (by region)
• Yes

• Onscreen Display

• Launcher
• Smart Business

• Smart System

• Built-in OS
• Yes, Android 6.0
• Bluetooth
• Yes, Bluetooth 4.0
• Wi-Fi Standard
• 802.11 a/b/g/n/ac (2.4G/5G)
• Wireless Projection
• AirPlay, Google Cast

• Dimension & Weight

• Dimensions (WxHxD) (mm)
• 296 x120 x232
• Net Weight (kg)
• 2.5 kg(5lbs)
• Net Weight (lb)
• 5

• Projection System

• Projection System
• DLP

• Optical

• Throw Ratio
• 1.55~1.7
• Zoom Ratio
• 1.1X
• Lens Control
• Manual Focus
• Keystone Correction
• 1D, Vertical +/- 40 degrees
• Projection Size
• 60"~180"
• Projection Offset
• 100?2.5%( (Full-Height)

• Display

• Projection System
• DLP Single 0.65" WXGA
• DMD type
• DMD chip
• Resolution
• 1280 x 800 pixels, 16:10
• Brightness
• 3,600 Lumens
• Contrast Ratio
• 20,000:1
• Display Color
• 1.07 Billion Colors
• Aspect Ratio
• Native 16:10 (5 aspect ratio selectable) ?
• Light Source
• Lamp 200W
• Light Source life
• Normal 5000 hrs;Economic 10000 hrs;SmartEco 15000 hrs;LampSave 15000 hrs

• Audio

• Built-in Speaker
• 2W x1

• Feature

• Security
• Security Bar
• Feature
• Built-In smart system, BenQ Launcher, Hidden Wireless dingle, Bluetooth Audio out, Digital zoom(2x), Digital Shrink and Shift

• Connectivity

• HDMI
• x 1
• PC (D-sub 15pin)
• x 1
• Monitor out (D-sub 15pin,Female)
• x 1
• Audio in(mini jack)
• x 1
• Audio out (mini jack)
• x 1
• RS232 In (D-sub 9pin, male)
• x 1
• USB TypeA-1
• x 1
• USB TypeA-2 (5V,1.5A)
• x 1
• USB TypeA (For hidden wireless dongle)
• x 1
• USB Type mini B
• x 1 (For TI FW upgrade only)
• IR Receiver(Front+Top)
• x 2

• Compatibility

• Resolution Support
• VGA(640 x 480) to WUXGA_RB(1920 x 1200)
• Horizontal Frequency
• 15~102KHz
• Vertical Scan Rate
• 23~120Hz
• HDTV Compatibility
• 480i, 480p, 576i, 567p, 720p, 1080i, 1080p
• Video Compatibility
• NTSC, PAL, SECAM

• Power

• Power Supply
• 100 ~ 240V AC
• Power Comsumption(Max/Normal/Eco)
• Max 320W. Normal 280 W. Eco 235 W.
• Standby Power Comsumption
• Normal < 0.5W

• Dimension and Weight

• Product Dimensions (WxHxD)
• 296 x 120 x 232 mm
• Product Weight
• 2.5 Kg

• Operation Condition

• Noise Level(Normal/Eco)
• 33/29 dBA
• Operating Temperature
• 0 ~ 40°C

• Accessories

• Accessories (Standard)
• Wireless Dongle: WDR02U
• Power Cord (by region)
• Remote Control w/ Battery(RC1023)
• VGA cable
• Warranty Card (by region)
• QSG
