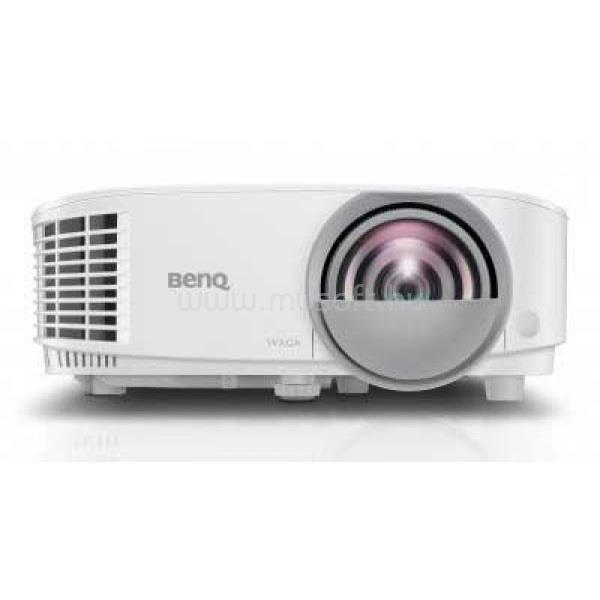

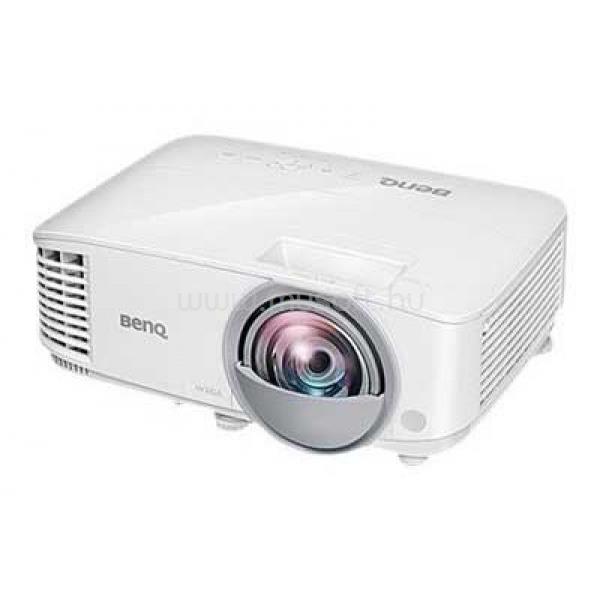

BENQ MW809STH (1280X800) PROJEKTOR

• Display

• Brightness (ANSI lumens)
• 3600
• Native Resolution
• WXGA (1280x800)
• Native Aspect Ratio
• 16:10
• Contrast Ratio (FOFO)
• 20000:1
• Display Color
• 10-bit (1.07 billion colors)
• Light Source
• Lamp
• Light Source Life
• a. Normal 6000 hrs, b. ECO 10000 hrs, c. SmartEco 10000 hrs, d. LampSave 15000 hrs

• Optical

• Throw Ratio
• 0.49
• Zoom Ratio
• Fixed
• Lens
• F/# = 2.6,f = 6.9 mm
• Projection Offset (Full-Height)
• 105%
• Keystone Adjustment
• 1D, Vertical +/- 30 degrees

• Picture

• Picture Modes
• 3D, Bright, Cinema, Presentation, sRGB, User 1, User 2

• Compatibility

• Input Lag
• 34 ms (1080p@60Hz)
• Resolution Support
• VGA(640 x 480) to WUXGA_RB(1920 x 1200) *RB=Reduced blanking

• I/O Interface

• PC in (D-sub 15pin)
• (x2)
• Monitor out (D-sub 15pin)
• (x1)
• HDMI in
• (x2), HDMI-1 (1.4a/HDCP1.4)
• USB Type A
• (x1), USB Type A-1 (2.0/Power Supply1.5A)
• USB Type Mini B
• (x1), USB Type Mini B-1(service/Page up&down)
• RS232 in (DB-9pin)
• (x1)

• Audio

• Speaker
• (x1), 10W
• Audio in (3.5mm Mini Jack)
• 2
• Audio out (3.5mm Mini Jack)
• 1

• Environment

• Operating Temperature
• 0~40?
• Power Supply
• AC 100 to 240 V, 50/60 Hz
• Typical Power Consumption (110V)
• 260
• Acoustic Noise (Typ./Eco.)(dB)
• 34/29

• Accessories

• Carry Bag
• Yes,5J.J3T09.001 (optional)
• Remote Control w/ Battery
• RCE013
• Power Cord (by region)
• x1 (1.8M)
• 3D Glasses
• (Optional), DGD5
• Quick Start Guide
• 1 (21L)
• Warranty Card (by region)
• Yes

• Dimension & Weight

• Dimensions (WxHxD) (mm)
• 296 x120 x239
• Net Weight (kg)
• 2.6

• Projection System

• Projection System
• DLP

• Optical

• Throw Ratio
• 0.49
• Zoom Ratio
• Fixed
• Keystone Correction
• 1D, Vertical +/- 30 degrees
• Projection Size
• 70"~120" / 120"
• Projection Offset
• 105%+/-2.5% (Full-Height)

• Display

• Projection System
• DLP
• DMD type
• 0.65" WXGA
• Brightness
• 3600AL
• Display Color
• 30 Bits/1.07 Billion Colors
• Aspect Ratio
• Native 16:10 (5 aspect ratio selectable)
• Light Source
• Lamp
• Light Source Life
• 6000/10000/10000/15000 hours
• (Normal/Economic/SmartEco/LampSave)
• Native Resolution
• WXGA, 1280x800
• Contrast Ratio
• 20,000:1

• Audio

• Built-in Speaker
• 10Wx1

• Special Feature

• Security
• Security Bar, Kensington lock
• Feature
• SmartEco Power Saving Technology, 0.49 Short Throw Ratio, Designed for Education & IWB

• Connectivity

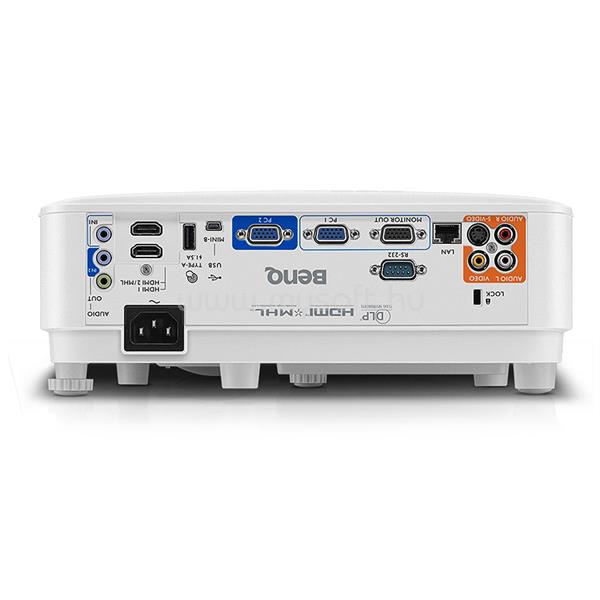

• I/O Port
• Computer in (D-sub 15pin) x 2 (Share with component)
• Monitor out (D-sub 15pin) x 1
• Composite Video in (RCA) x 1
• S-Video in (Mini DIN 4pin) x 1
• HDMI x 2
• Audio in (Mini Jack) x 2
• Audio out (Mini Jack) x 1
• Audio L/R in (RCA) x 1
• Speaker 10W x 1
• USB (Type A) x 1 (power only 5V/1.5A)
• USB (Type Mini B) x 1 (Download & page/down)
• RS232 (DB-9pin) x 1

• Compatibility

• Resolution Support
• VGA(640 x 480) to WUXGA_RB(1920 x 1200)
• *RB-Reduced Blanking
• Horizontal Frequency
• 15K~102KHz
• Vertical Scan Rate
• 23Hz ~120Hz
• HDTV Compatibility
• 480i, 480p, 576i, 567p, 720p, 1080i, 1080p
• Video Compatibility
• Frame Sequential: Up to 720p
• Frame Packing: Up to 24 Hz 1080p
• Side by Side Half: Up to 60Hz 1080p
• Top Bottom: Up to 60Hz 1080p

• Power

• Power Consumption (Max/Normal/Eco)
• Typical 260W
• Standby Power Consumption
• Standby<0.5W, Network standby<2W
• Power Supply
• AC 100 to 240 V, 50/60 Hz

• Dimension and Weight

• Product Dimensions (WxHxD)
• 296 (W)*239(D)*120(H) mm
• Product Weight
• 2.6 Kg (5.7 lbs)

• Operation Condition

• Operating Temperature
• 0o ~ 40oC
• Noise Level (Normal/Eco)
• 33/29 dBA (Normal/Economic mode)

• Accessories

• Accessories (Standard)
• Remote Control w/ Battery RCE013 x 1
• Power Cord (by region) x 1
• Warranty card (by Region)
• User Manual e-edition x 1
• QSG x1

Garancia fogyasztók részére

• 2 év kötelező jótállás + 1 év gyártó által biztosított szervizgarancia

Garancia nem fogyasztók részére

• 3 év gyártó által biztosított szervizgarancia
