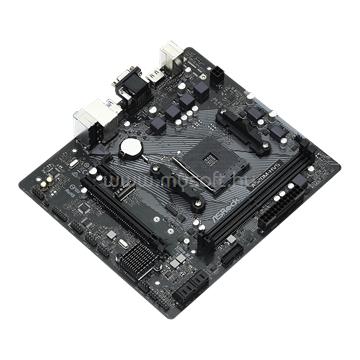

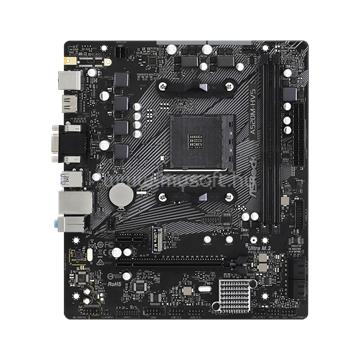

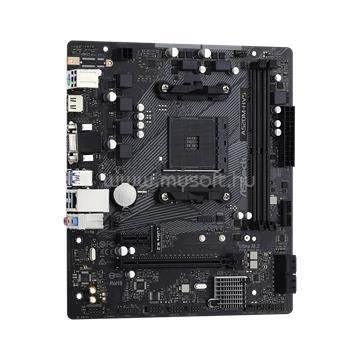

ASROCK ALAPLAP A520M-HVS (AM4, MATX)

• Unique Feature

• ASRock Super Alloy
• Premium 50A Power Choke
• Sapphire Black PCB
• High Density Glass Fabric PCB
• ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
• ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
• ASRock Live Update & APP Shop

• CPU

• Supports AMD AM4 Socket Ryzen 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors
• 6 Power Phase design

• Chipset

• AMD A520

• Memory

• Dual Channel DDR4 Memory Technology
• 2 x DDR4 DIMM Slots
• AMD Ryzen series CPUs (Vermeer) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
• AMD Ryzen series CPUs (Matisse) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
• AMD Ryzen series APUs (Cezanne) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
• AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
• Max. capacity of system memory: 64GB**
• Supports Extreme Memory Profile (XMP) memory modules
• 15u Gold Contact in DIMM Slots

• BIOS

• 128Mb AMI UEFI Legal BIOS with GUI support
• Supports "Plug and Play"
• ACPI 5.1 compliance wake up events
• Supports jumperfree
• SMBIOS 2.3 support
• CPU, CPU VDDCR_SOC, DRAM, VDDP Voltage Multi-adjustment

• Graphics

• Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU*
• DirectX 12, Pixel Shader 5.0
• Shared memory default 2GB. Max Shared memory supports up to 16GB.**
• Dual graphics output: support D-Sub and HDMI ports by independent display controllers
• Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
• Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
• Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)
• Supports HDR (High Dynamic Range) with HDMI 2.1
• Supports HDCP 2.3 with HDMI 2.1 Port
• Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port
• Supports Microsoft PlayReady
• *Actual support may vary by CPU
• **The Max shared memory 16GB requires 32GB system memory installed.

• Audio

• 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
• Supports Surge Protection

• LAN

• PCIE x1 Gigabit LAN 10/100/1000 Mb/s
• Realtek RTL8111H
• Supports Wake-On-LAN
• Supports Lightning/ESD Protection
• Supports Energy Efficient Ethernet 802.3az
• Supports PXE

• Slots

• 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)*
• 1 x PCI Express 3.0 x1 Slot
• *Supports NVMe SSD as boot disks

• Storage

• CPU:
• 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*
• Chipset:
• 4 x SATA3 6.0 Gb/s Connectors
• *Supports NVMe SSD as boot disks
• NVMe SSD is not supported with AMD Athlon™ 3000G Processors
• Supports ASRock U.2 Kit

• RAID

• Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

• Connector

• 1 x SPI TPM Header
• 1 x COM Port Header
• 1 x Chassis Intrusion and Speaker Header
• 1 x CPU Fan Connector (4-pin)*
• 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)**
• 1 x 24 pin ATX Power Connector
• 1 x 4 pin 12V Power Connector
• 1 x Front Panel Audio Connector
• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
• 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
• *The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
• **The Chassis Fan supports the water cooler fan of maximum 1A (12W) fan power.
• CHA_FAN2 can auto detect if 3-pin or 4-pin fan is in use.

• Rear Panel I/O

• 1 x PS/2 Mouse/Keyboard Port
• 1 x D-Sub Port
• 1 x HDMI Port
• 2 x USB 2.0 Ports (Supports ESD Protection)
• 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
• HD Audio Jacks: Line in / Front Speaker / Microphone

• Software and UEFI

• Software
• ASRock Motherboard Utility (A-Tuning)
• UEFI
• ASRock Full HD UEFI
• ASRock Instant Flash
• *These utilities can be downloaded from ASRock Live Update & APP Shop.

• Support CD

• Drivers, Utilities, AntiVirus Software (Trial Version)

• Accessories

• Quick Installation Guide, Support CD, I/O Shield
• 2 x SATA Data Cables
• 1 x Screw for M.2 Socket

• Hardware Monitor

• Temperature Sensing: CPU, Chassis
• Fan Tachometer: CPU, Chassis Fans
• Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis Fans
• Fan Multi-Speed Control: CPU, Chassis Fans
• CASE OPEN detection
• Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore

• Form Factor

• Micro ATX Form Factor: 9.0-in x 7.9-in, 23.0 cm x 20.1 cm
• Solid Capacitor design

• OS

• Microsoft Windows© 10 64-bit / 11 64-bit
