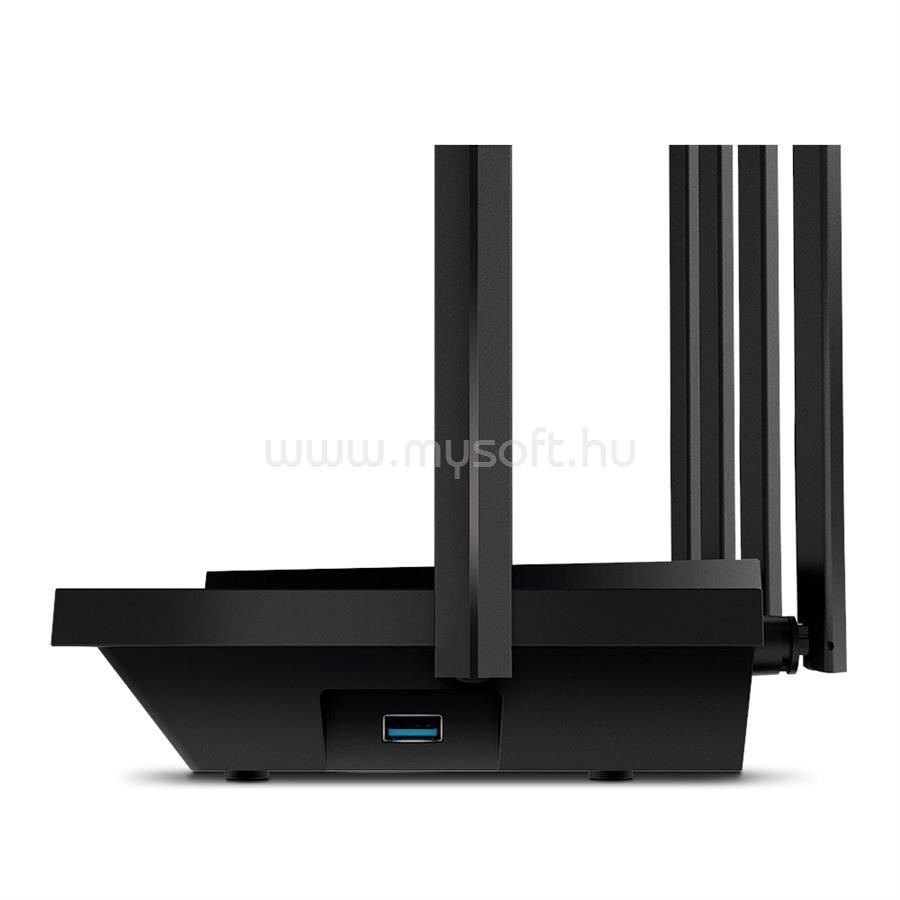

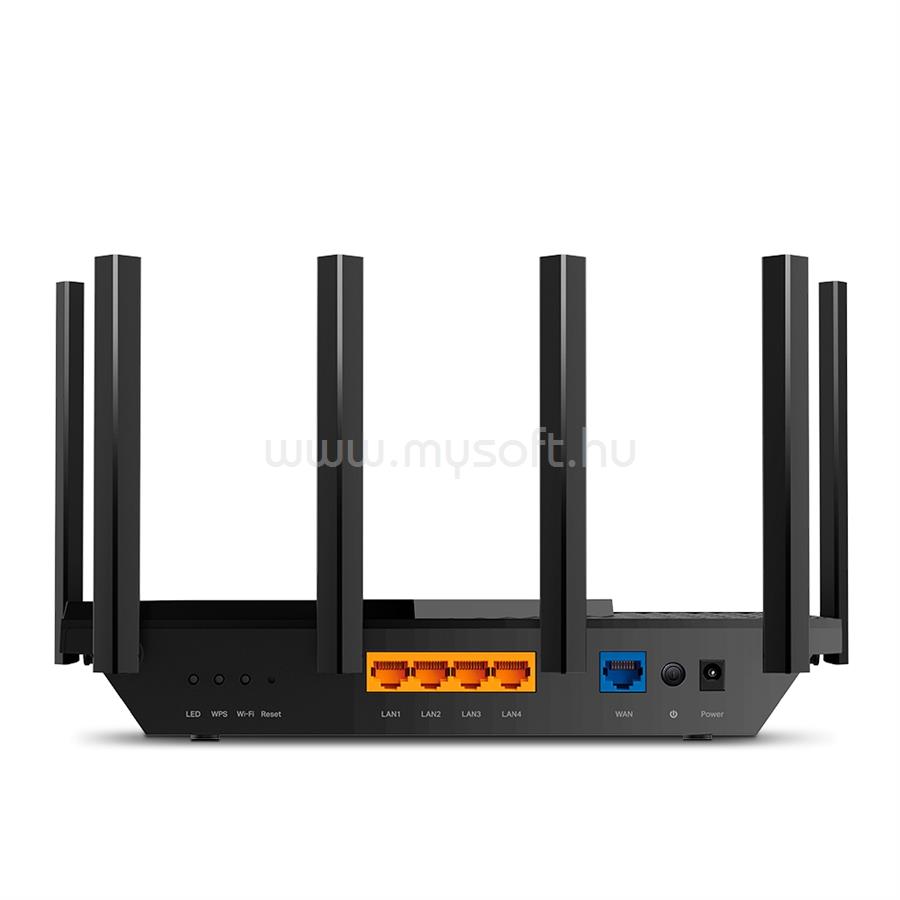

TP-LINK ARCHER AX72 WIRELESS ROUTER DUAL BAND AX5400 1XWAN(1000MBPS) + 4XLAN(1000MBPS) + 1XUSB 3.0

• VEZETÉK NÉLKÜLI

• Standards
• Wi-Fi 6
• IEEE 802.11ax/ac/n/a 5 GHz
• IEEE 802.11ax/n/b/g 2.4 GHz
• WiFi Speeds
• AX5400
• 5 GHz: 4804 Mbps (802.11ax, HE160)
• 2.4 GHz: 574 Mbps (802.11ax)
• WiFi Range
• 3 Bedroom Houses
• 6× Fixed High-Performance Antennas
• Multiple antennas form a signal-boosting array to cover more directions and large areas
• Beamforming
• Concentrates wireless signal strength towards clients to expand WiFi range
• High-Power FEM
• Improves transmission power to strengthen signal coverage
• 4T4R
• Multiple streams in the same band strengthen the fault tolerance in transmission
• WiFi Capacity
• High
• Dual-Band
• Allocate devices to different bands for optimal performance
• 4×4 MU-MIMO
• Simultaneously communicates with multiple MU-MIMO clients
• OFDMA
• Simultaneously communicates with multiple Wi-Fi 6 clients
• Airtime Fairness
• Improves network efficiency by limiting excessive occupation
• DFS
• Access an extra band to reduce congestion
• 6 Streams
• Connect your devices to more bandwidth
• Working Modes
• Router Mode
• Access Point Mode

• HARDWARE

• Processor
• 1 GHz Dual-Core CPU
• Ethernet Ports
• 1× Gigabit WAN Port
• 4× Gigabit LAN Ports
• USB Support
• 1× USB 3.0 Port
• Supported Partition Formats:
• NTFS, exFAT, HFS+, FAT32
• Supported Functions:
• Apple Time Machine
• FTP Server
• Media Server
• Samba Server
• Buttons
• Wi-Fi On/Off Button
• Power On/Off Button
• LED On/Off Button
• WPS Button
• Reset Button
• Power
• 12 V = 2.5 A

• BIZTONSÁG

• WiFi Encryption
• WPA
• WPA2
• WPA3
• WPA/WPA2-Enterprise (802.1x)
• Network Security
• SPI Firewall
• Access Control
• IP & MAC Binding
• Application Layer Gateway
• HomeShield Security
• Real-Time IoT Protection
• Malicious Site Blocker
• Intrusion Prevention System
• DDoS Attack Prevention
• Home Network Scanner
• Guest Network
• 1× 5 GHz Guest Network
• 1× 2.4 GHz Guest Network
• VPN Server
• OpenVPN
• PPTP

• SOFTWARE

• Protocols
• IPv4
• IPv6
• Service Kits
• HomeShield
• OneMesh
• OneMesh Supported
• Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh helps you create a more flexible network that covers your entire home with TP-Link OneMesh products.
• Parental Controls
• HomeShield Parental Controls
• Custom Profiles
• Professional Content Filter Library
• Family Time
• Bedtime
• Off Time
• Time Rewards
• Family Online Time Ranking
• Pause the Internet
• Weekly and Monthly Reports
• WAN Types
• Dynamic IP
• Static IP
• PPPoE
• PPTP
• L2TP
• Quality of Service
• QoS by Device
• Cloud Service
• Auto Firmware Upgrade
• TP-Link ID
• DDNS
• NAT Forwarding
• Port Forwarding
• Port Triggering
• DMZ
• UPnP
• Virtual Server
• IPTV
• IGMP Proxy
• IGMP Snooping
• Bridge
• Tag VLAN
• DHCP
• Address Reservation
• DHCP Client List
• Server
• DDNS
• TP-Link
• NO-IP
• DynDNS
• Management
• Tether App
• Webpage

• PHYSICAL

• Dimensions (W×D×H)
• 10.7 × 5.8 × 1.9 in (272.5 × 147.2 × 49.2 mm)
• Package Contents
• Wi-Fi Router Archer AX72
• Power Adapter
• RJ45 Ethernet Cable
• Quick Installation Guide

• OTHER

• System Requirements
• Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
• Cable or DSL Modem (if needed)
• Subscription with an internet service provider (for internet access)
• Environment
• Operating Temperature: 0°C~40°C (32°F ~104°F)
• Storage Temperature: -40°C~70°C (-40°F ~158°F)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing

• TEST DATA

• WiFi Transmission Power
• CE:
• <20dBm{2.4GHz}
• <23dBm{5.15GHz~5.35GHz}
• <30dBm{5.47GHz~5.725GHz}
• FCC:
• <24dBm{5.25GHz~5.35GHz&5.47GHz~5.725GHz }
• <30dBm{2.4GHz &5.15GHz~5.25GHz&5.725GHz~5.825GHz }
• WiFi Reception Sensitivity
• 2.4GHz:
• 11ac VHT20 MCS0:-94.5dBm
• 11ac VHT20 MCS8:-72.5dBm
• 11ac VHT40 MCS0:-92.5dBm
• 11ac VHT40 MCS9:-69.5dBm
• 11ax HE20 MCS0:-95dBm
• 11ax HE20 MCS11:-64.5dBm
• 11ax HE40 MCS0:-92.5dBm
• 11ax HE40 MCS11:-62dBm
• 5GHz:
• 11ac VHT20 MCS0:-97dBm
• 11ac VHT20 MCS8:-74dBm
• 11ac VHT40 MCS0:-95dBm
• 11ac VHT40 MCS9:-70dBm
• 11ac VHT80 MCS0:-91.5dBm
• 11ac VHT80 MCS9:-66dBm
• 11ac VHT160 MCS0:-86dBm
• 11ac VHT160 MCS9:-61dBm
• 11ax HE20 MCS0:-95dBm
• 11ax HE20 MCS11:-64dBm
• 11ax HE40 MCS0:-91.5dBm
• 11ax HE40 MCS11:-62dBm
• 11ax HE80 MCS0:-88dBm
• 11ax HE80 MCS11:-58dBm
• 11ax HE160 MCS0:-85.5dBm
• 11ax HE160 MCS11:-55dBm
