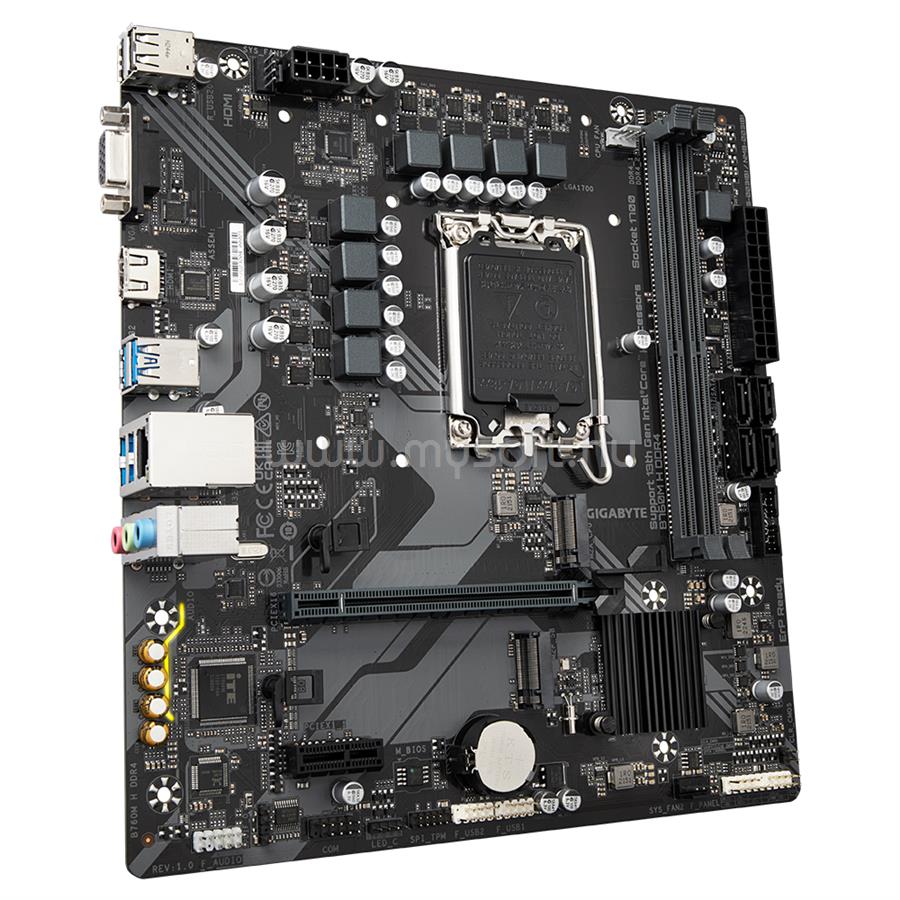

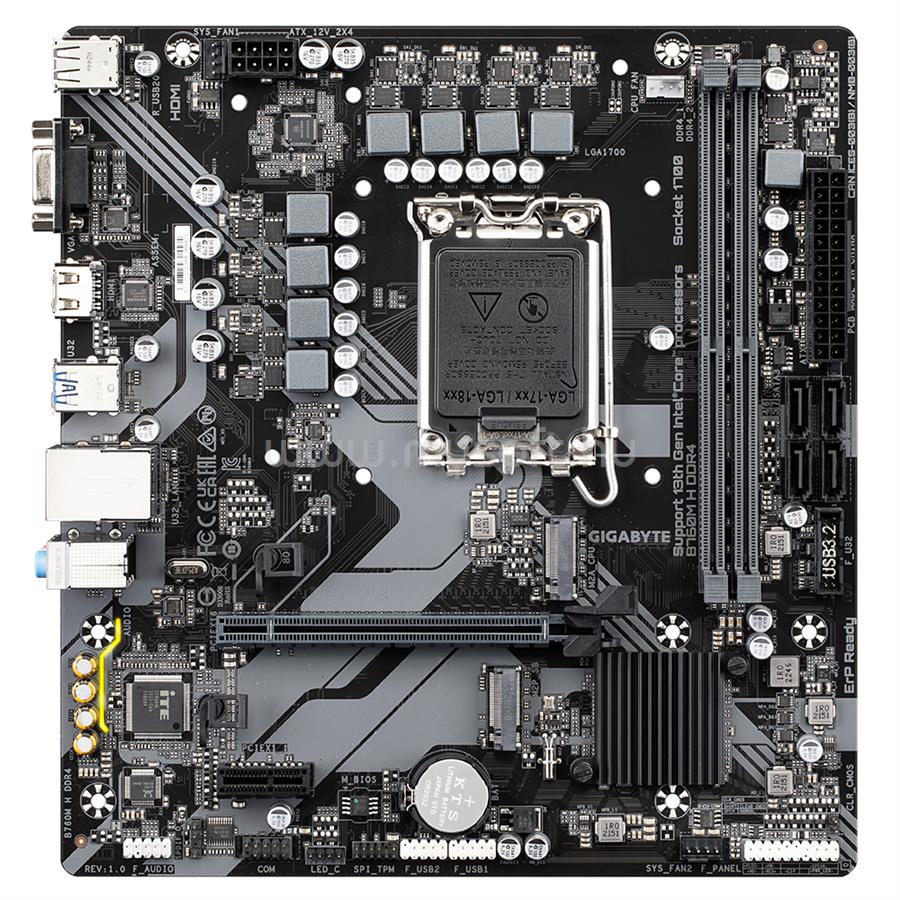

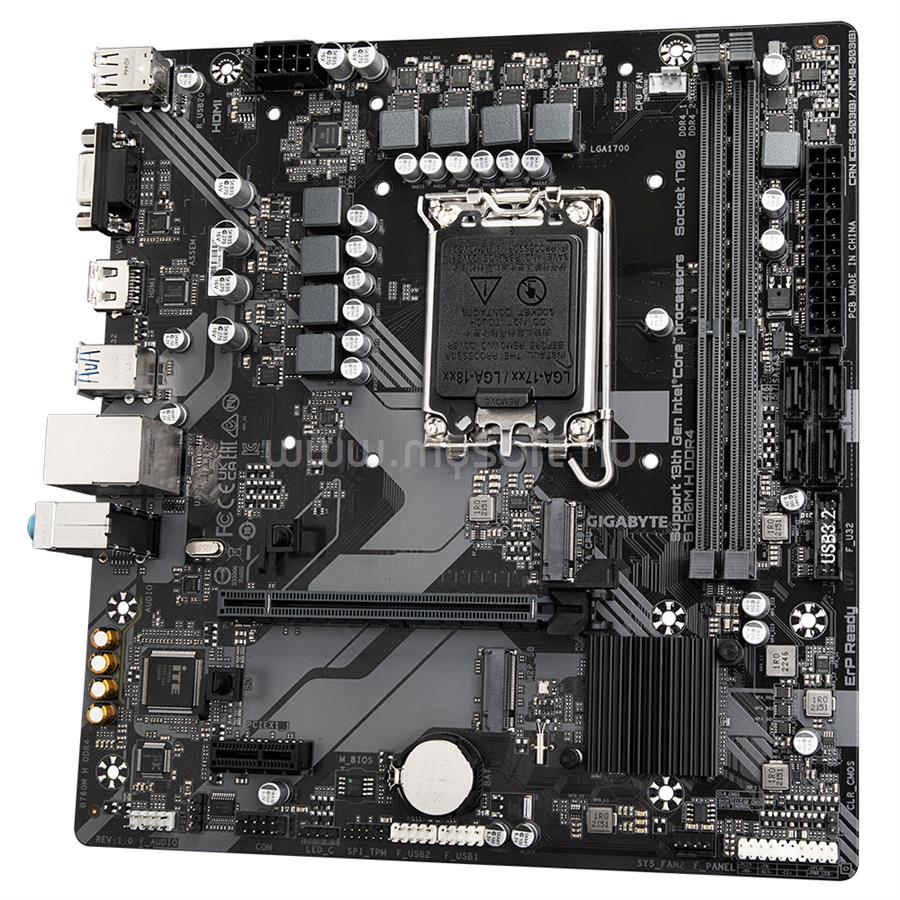

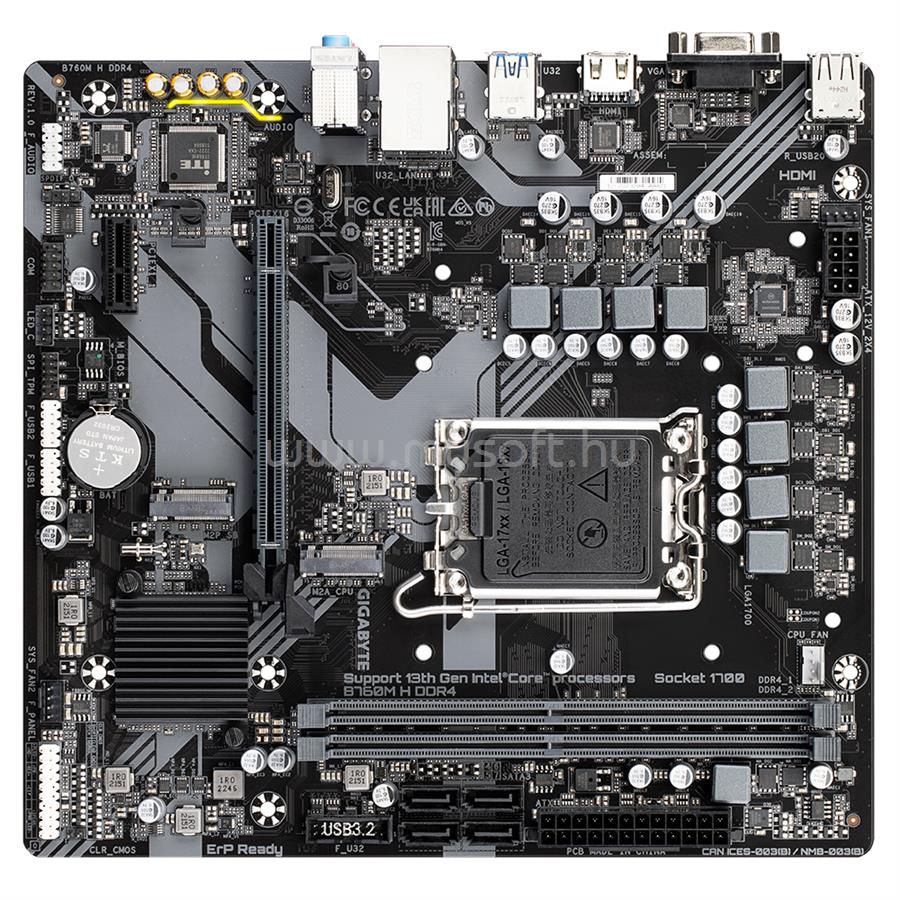

GIGABYTE ALAPLAP B760M H DDR4 (LGA1700, MATX)

• CPU

• LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel© Core, Pentium© Gold and Celeron© Processors
• L3 cache varies with CPU
• (Please refer to "CPU Support List" for more information.)

• Chipset

• Intel© B760 Express Chipset

• Memory

• Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
• 2 x DDR4 DIMM sockets supporting up to 64GB (32 GB single DIMM capacity) of system memory
• Dual channel memory architecture
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules
• (Please refer "Memory Support List" for more information.)

• Onboard Graphics

• Integrated Graphics Processor-Intel© HD Graphics support:
• 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
• 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
• Support for HDMI 2.1 version and HDCP 2.3.
• Support native HDMI 2.1 TMDS compatible ports.
• (Graphics specifications may vary depending on CPU support.)

• Audio

• Realtek© Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel
• * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
• Support for S/PDIF Out

• LAN

• Realtek© GbE LAN chip (1 Gbps/100 Mbps)

• Expansion Slots

• CPU
• 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
• * The PCIEX16 slot can only support a graphics card or an NVMe SSD.
• Chipset
• 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

• Storage Interface

• CPU
• 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
• Chipset
• 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
• 4 x SATA 6Gb/s connectors
• RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

• USB

• Chipset
• 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
• 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

• Internal I/O Connectors

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 2 x system fan headers
• 1 x RGB LED strip header
• 2 x M.2 Socket 3 connectors
• 4 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x S/PDIF Out header
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
• 1 x serial port header
• 1 x Clear CMOS jumper

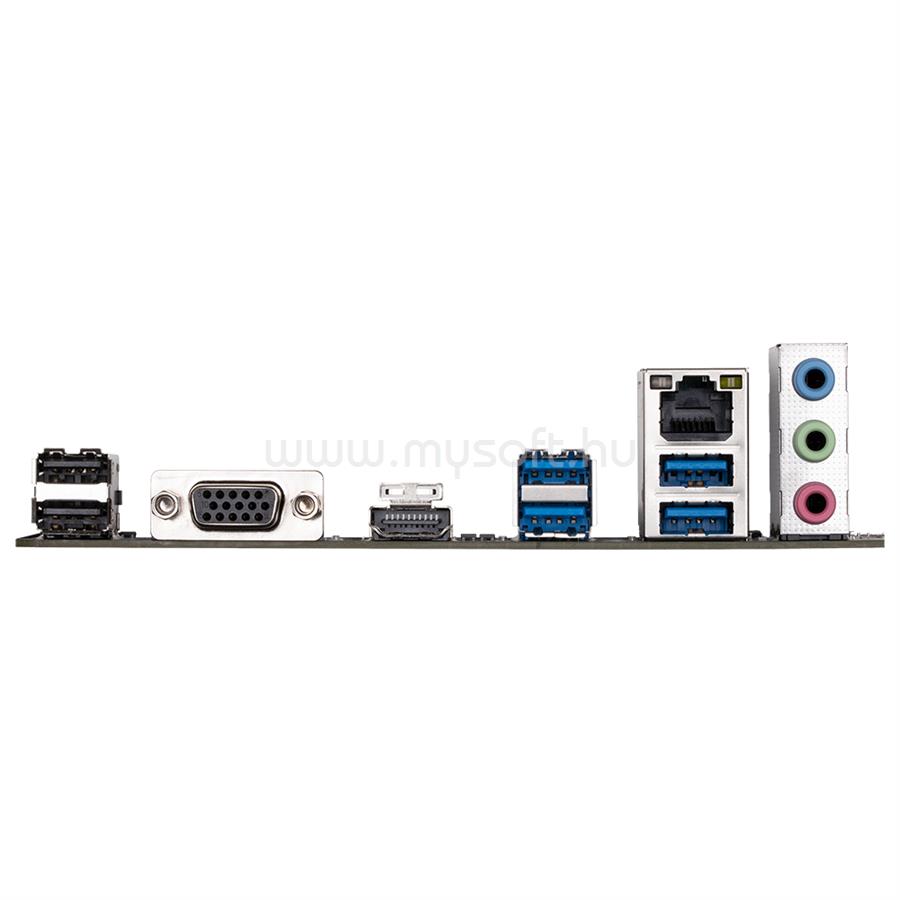

• Back Panel Connectors

• 2 x USB 2.0/1.1 ports
• 1 x D-Sub port
• 1 x HDMI port
• 4 x USB 3.2 Gen 1 ports
• 1 x RJ-45 port
• 3 x audio jacks

• I/O Controller

• iTE© I/O Controller Chip

• H/W Monitoring

• Voltage detection
• Temperature detection
• Fan speed detection
• Water cooling flow rate detection
• Fan fail warning
• Fan speed control
• * Whether the fan speed control function is supported will depend on the cooler you install.

• BIOS

• 1 x 128 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Unique Features

• Support for GIGABYTE Control Center (GCC)
• * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
• Support for Q-Flash

• Bundled Software

• Norton© Internet Security (OEM version)
• LAN bandwidth management software

• Operating System

• Support for Windows 11 64-bit
• Support for Windows 10 64-bit

• Form Factor

• Micro ATX Form Factor; 23.0cm x 21.5cm
