APC BR700G SZÜNETMENTES TÁPEGYSÉG BACK UPS RS LCD 700 MASTER CONTROL 120V US NEMA 5-15R OUTLETS

• Main

• Run time for load 420 W
• Min-max: 42-420 W
• 3min 23s
• Max. Capacity Used
• 100 %
• Main Input Voltage
• 120 V
• Main Output Voltage
• 120 V
• rated power in W
• 420 W
• Rated power in VA
• 700 VA

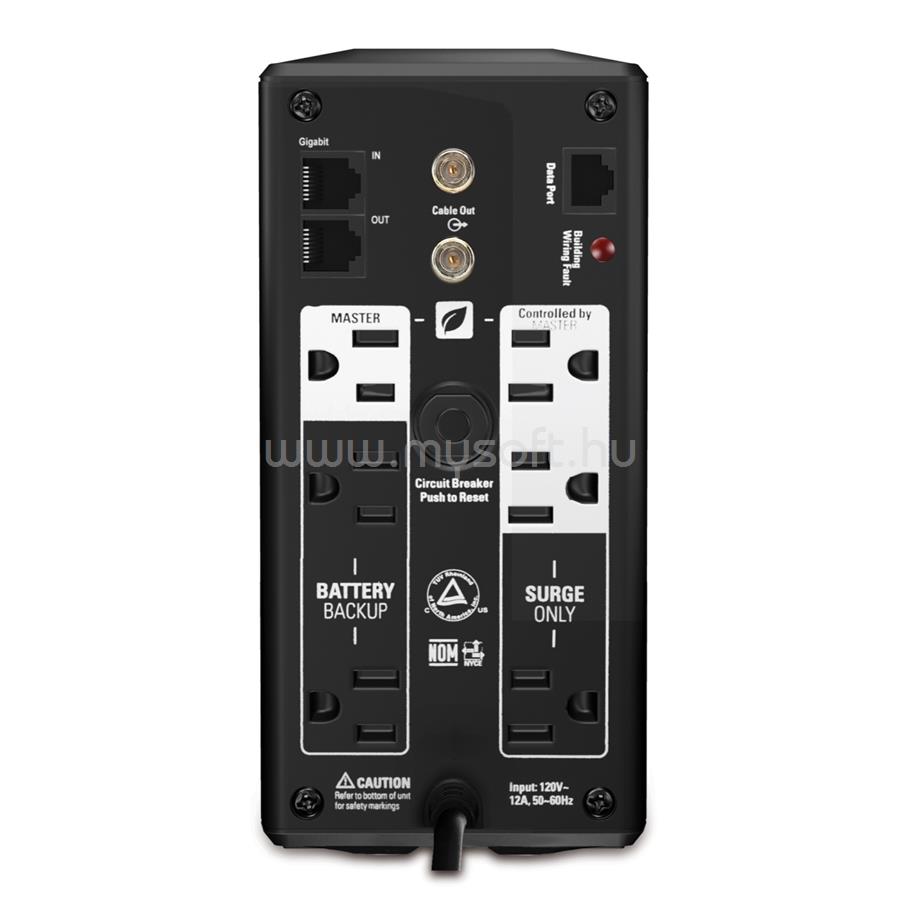

• output connection type
• 3 NEMA 5-15R
• 3 NEMA 5-15R surge
• Cable length
• 6 ft (1.83 m)

• General

• Provided equipment
• User Manual
• USB cable
• Number of power module free slots
• 0
• Number of power module filled slots
• 0
• Redundant
• No

• Physical

• color
• Black
• Height
• 7.48 in (19 cm)
• Width
• 3.58 in (9.1 cm)
• Depth
• 12.20 in (31 cm)
• Net Weight
• 15.76 lb(US) (7.15 kg)
• Mounting preference
• No preference
• Mounting Mode
• Not rack-mountable
• Two post mountable
• 0
• USB compatible
• Yes

• Input

• Input Frequency
• 50/60 Hz +/- 3 Hz auto-sensing
• Efficiency at full load
• 88...143 V
• Maximum Input Current per Phase
• 12 A
• Switching current capacity
• 15 A

• Output

• Max Configurable Power (Watts)
• 420 W
• Output Frequency (sync to mains)
• 50/60 Hz +/- 3 Hz sync to mains
• Topology
• Line Interactive
• Waveform Type
• Stepped approximation to a sinewave
• Maximum configurable power in VA
• 700 VA
• Transfer Time
• 8ms typical : 12ms maximum

• Environmental

• Ambient Air Temperature for Operation
• 32.104 °F (0.40 °C)
• Relative Humidity
• 0.95 %
• Operating altitude
• 0...10000 ft
• Ambient Air Temperature for Storage
• 5.113 °F (-15.45 °C)
• Storage Relative Humidity
• 0.95 %
• Storage altitude
• 0.50000 ft (0.00.15240.00 m)
• Acoustic level
• 45 dBA
• heat dissipation
• 48.5 Btu/h

• Batteries & Runtime

• Included Battery Modules
• 1
• Battery Slots Empty
• 0
• Typical recharge time
• 12 h
• RBC Quantity
• 1
• Battery Voltage
• 12 V
• Battery Capacity
• 9.0 Ah
• Battery Charge Power (Watts)
• 7 W rated
• Battery power in VAH
• 102 VAh capacity
• 86 VAh runtime
• Battery Life
• 3.5 year(s)
• Replacement battery
• RBC17
• Battery graph comments
• This graph is based on actual measured runtime data. All measurements were taken with new, fully charged batteries and a balanced resistive load (PF = 1.0). Actual runtimes may vary from the values of this graph. Actual runtimes are dependent on several variables including battery age, battery charge level, environmental conditions and characteristics of the connected load.
• Extendable Run Time
• 0

• Surge Protection and Filtering

• Surge energy rating
• 354 J
• Filtering
• Full time multi-pole noise filtering :5% of IEEE surge let-through : zero clamping response time: in
• Data line protection
• Coaxial cable for CATV/SATV/modem/audio-video
