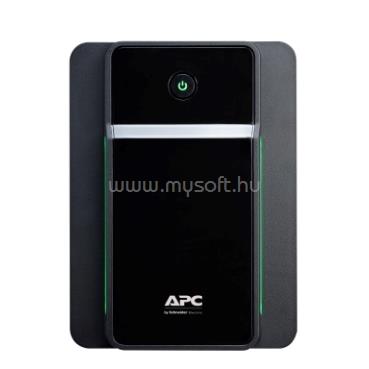

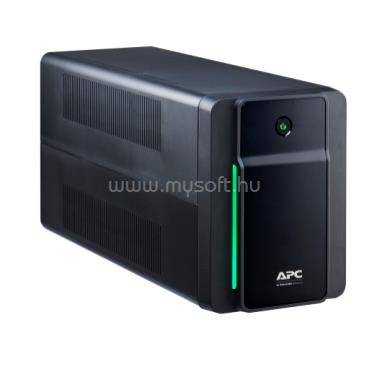

APC BACK-UPS 1600VA BX1600MI SZÜNETMENTES TÁPEGYSÉG, 230V, AVR, IEC SOCKETS

• Main

• Max. Capacity Used
• 100 %
• Main Input Voltage
• 230 V
• rated power in W
• 900 W
• Rated power in VA
• 1600 VA
• output connection type
• 6 IEC 60320 C13
• Cable length
• 1.22 m
• Number of cables
• 1
• Battery type
• Lead-acid battery

• General

• Provided equipment
• User manual
• Max runtime
• 240 min
• Number of power module free slots
• 0
• Number of power module filled slots
• 0
• Redundant
• No

• Physical

• Colour
• Black
• Height
• 19 cm
• Width
• 14 cm
• Depth
• 39 cm
• Net weight
• 10.3 kg
• Mounting preference
• No preference
• Mounting mode
• Not rack-mountable
• Two post mountable
• 0
• USB compatible
• No

• Input

• Network frequency
• 50/60 Hz +/- 5 Hz auto-sensing
• Input voltage limits
• 140...300 V
• Input Power Factor at Full Load
• 0.56

• Output

• Maximum configurable power in W
• 900 W
• Output frequency
• 50/60 Hz +/- 1 Hz sync to mains
• UPS type
• Line interactive
• Wave type
• Stepped approximation to a sinewave
• Full load runtime
• 00:01:00 900 W
• Half load runtime
• 00:06:30 450 W
• Maximum configurable power in VA
• 1600 VA
• Transfer time
• 6 ms typical : 10 ms maximum

• Conformance

• Product certifications
• CE
• CB
• EAC
• Standards
• EN/IEC 62040-1:2019/A11:2021
• EN/IEC 62040-2:2006/AC:2006
• EN/IEC 62040-2:2018
• Equipment protection policy
• Lifetime : 50000 euros

• Environmental

• Ambient air temperature for operation
• 0.40 °C
• Relative humidity
• 0.95 % non-condensing
• Operating altitude
• 0...3000 m
• Ambient air temperature for storage
• -15.40 °C
• Storage Relative Humidity
• 0.95 % non-condensing
• Storage altitude
• 0.3000 m
• Acoustic level
• 40 dBA
• IP degree of protection
• IP20

• Batteries & Runtime

• Number of battery filled slots
• 0
• Number of battery free slots
• 0
• Battery recharge time
• 8 h
• Battery voltage
• 24 V
• Battery capacity
• 7.0 Ah
• Battery power in VAH
• 136 VAh runtime
• 168 VAh capacity
• Battery life
• 3.5 year(s)
• Replacement battery
• APCRBC176
• Battery graph comments
• Curve fit to measured runtime data. All measurements taken with new, fully charged batteries, at typical environmental conditions, with no electrical input and balanced resistive load (PF = 1.0) output.
• Extended runtime
• 0

• Communications & Management

• control panel
• LED Status display with on line : on battery

• Surge Protection and Filtering

• Surge energy rate
• 273 J
