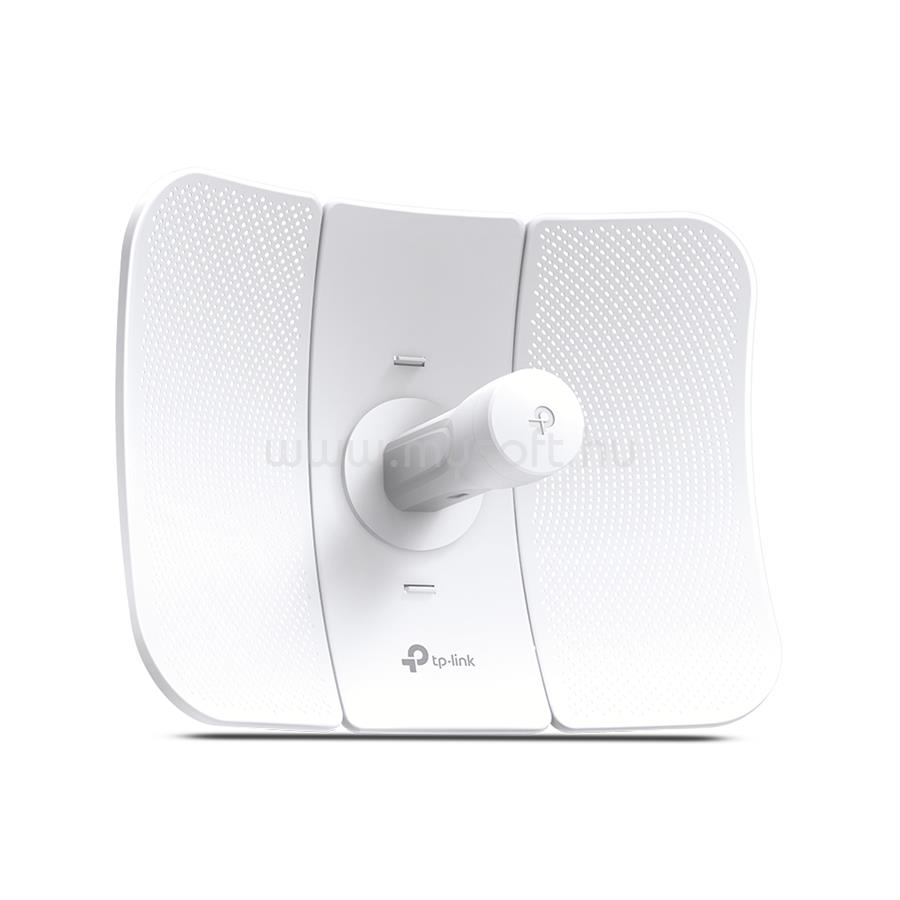

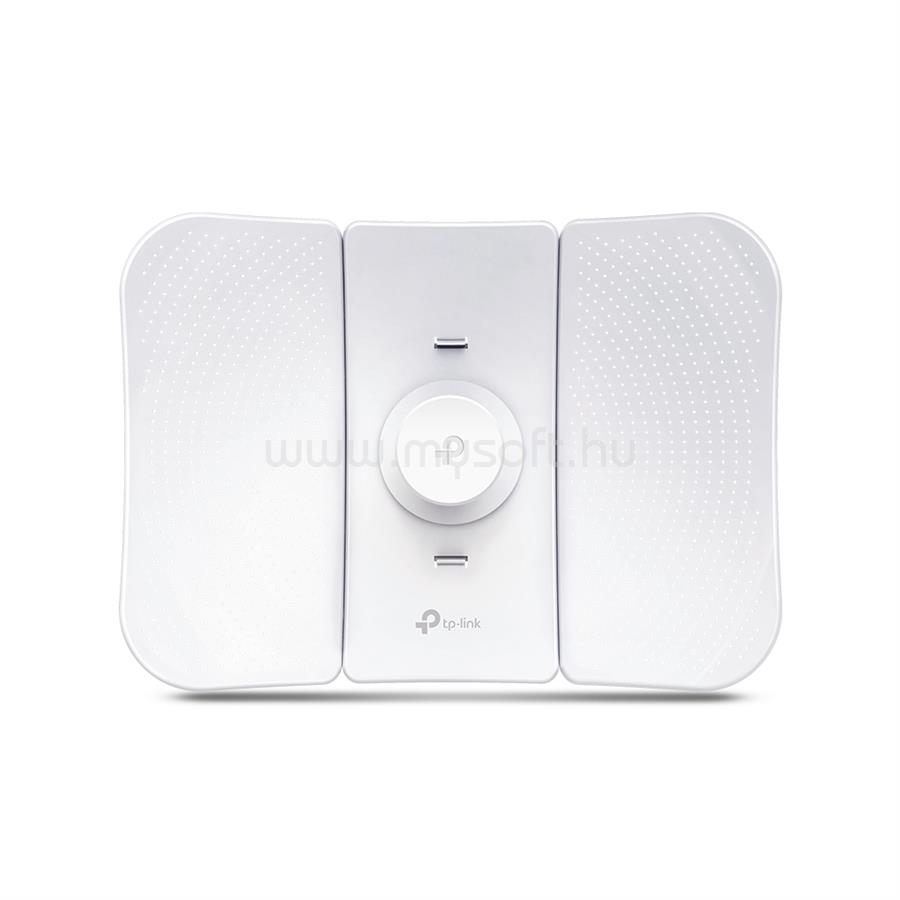

TP-LINK CPE710 5GHZ 867MBPS KÜLTÉRI WIRELESS ACCESS POINT

• HARDWARE FEATURES

• Processor
• Qualcomm 750MHz CPU, MIPS 74Kc
• Memory
• 128 MB DDR2 RAM, 16 MB Flash
• Interface
• 1 10/100/1000 Mbps Shielded Ethernet Port (LAN/POE)
• 1 Reset Button
• Power Supply
• Passive Power over Ethernet via LAN (+4,5pins; -7,8pins)
• Voltage range: 16-27V DC
• Dimensions ( W x D x H )
• 14.4 x 11.0 x 8.1 in. (366 x 280 x 207 mm)
• Antenna Gain
• 23 dBi
• Antenna Beamwidth
• 9° (Azimuth)/7° (Elevation)
• Protection
• 15 KV ESD Protection
• 6 KV Lightning Protection
• Enclosure
• Material: Outdoor PC stabilized plastic
• Weatherproof: IP65 water and dust proof design

• WIRELESS FEATURES

• Wireless Standards
• IEEE 802.11a/n/ac
• Wireless Speeds
• Up to 867 Mbps (80 MHz, Dynamic)
• Up to 400 Mbps (40 MHz, Dynamic)
• Up to 173.4 Mbps (20 MHz, Dynamic)
• Frequency
• 5.15-5.85 GHz
• Transmit Power
• Max. 27 dBm (Adjustable power by 1dBm)

• SOFTWARE FEATURES

• Network Configuration
• WAN: Static/ Dynamic/ PPPoE
• LAN: Static/ Dynamic/ DHCP
• Forwarding: ALG/ UPnP/ Virtual Server/ Port Trigger
• Security: SPI Firewall/ Ping Forbidden/ DoS Protection
• Access Control
• Static Routing
• Bandwidth Control
• IP & MAC Binding
• Wireless Configurations
• Selectable channel width: 20, 40 or 80MHz
• Automatic Wi-Fi channel selection
• RF transmit power adjustment in 1 dB step
• Dynamic Frequency Selection (DFS)
• WDS Enable/ Disable
• Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) encryption,
• SSID broadcast enable/ disable
• Multi-SSID with VLAN tagging in AP mode
• Distance/ ACK timeout setting
• Wireless MAC address filter
• Wireless advanced features:
• Beacon interval, RTS threshold, fragmentation threshold, DTIM interval, AP isolation, short GI, Wi-Fi multimedia
• Long range point-to-point
• Management
• Discovery and Remote Management with Pharos Control (Windows)
• HTTP/ HTTPS Web-based management
• System log
• SNMP agent (v2c)
• Ping watchdog
• Dynamic DNS
• SSH server
• System Tools
• Indicators:Signal Strength, Noise, Transmit CCQ, CPU, and Memory usage
• Monitors: Throughput, Stations, Interfaces, ARP, Routes, WAN, and DHCP
• Spectrum Analyzer
• Speed Test
• Ping
• Traceroute
• Antenna Alignment
• System-level Optimizations
• Optimized IGMP Snooping / Proxy for multicast applications

• POE ADAPTER FEATURES

• Dimensions(W x D x H)
• 3.3 x 1.7 x 1.2 in. (85 × 44 × 30 mm)
• Interfaces
• 1 AC Jack with Earth Ground
• 1× 10/100/1000 Mbps Shielded Ethernet Port (Power + Data)
• 1× 10/100/1000 Mbps Shielded Ethernet Port (Data)
• Button
• Remote Reset Button
• Power Status LEDs
• Green
• Input
• 100-240VAC, 50/60Hz
• Output
• 24VDC, 0.5A Max
• +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)
• Efficiency
• > 84.29%

• OTHERS

• Package Contents
• Outdoor Wireless CPE
• 24V 0.5A Passive PoE Adapter

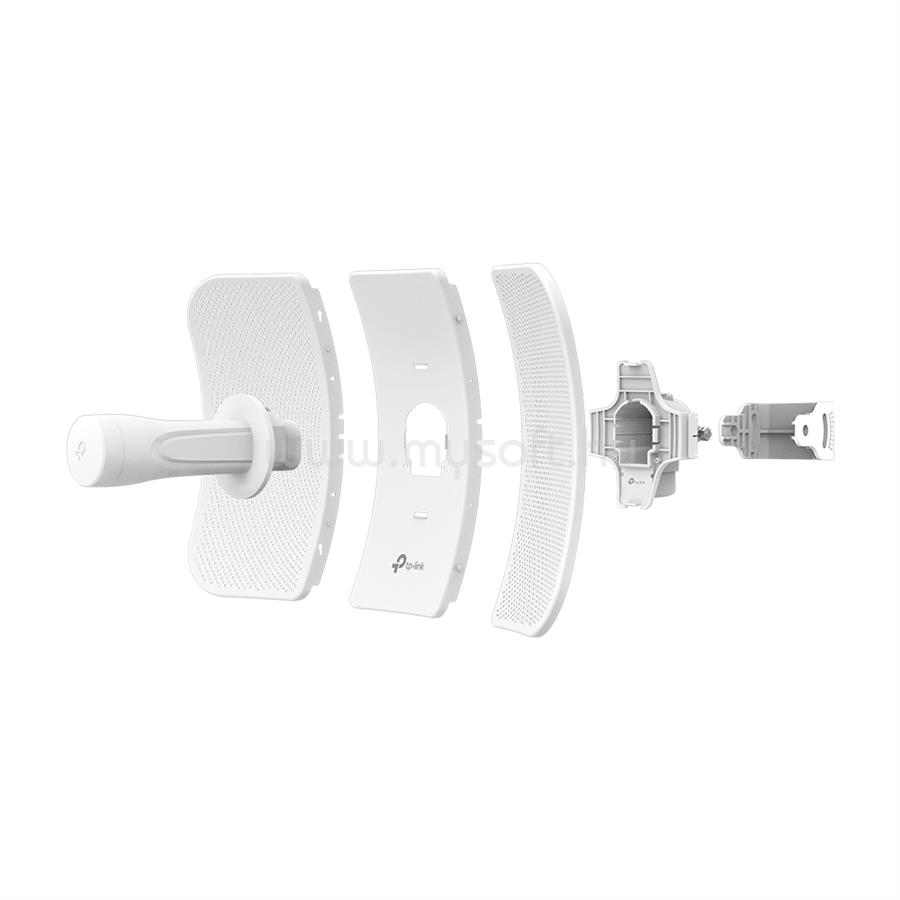

• Pole Mounting Kits
• AC Power Cord
• Installation Guide
• Environment
• Operating Temperature: -40°C~70°C (-40°F~158°F)
• Storage Temperature: -40°C~70°C (-40°F~158°F)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~95% non-condensing
