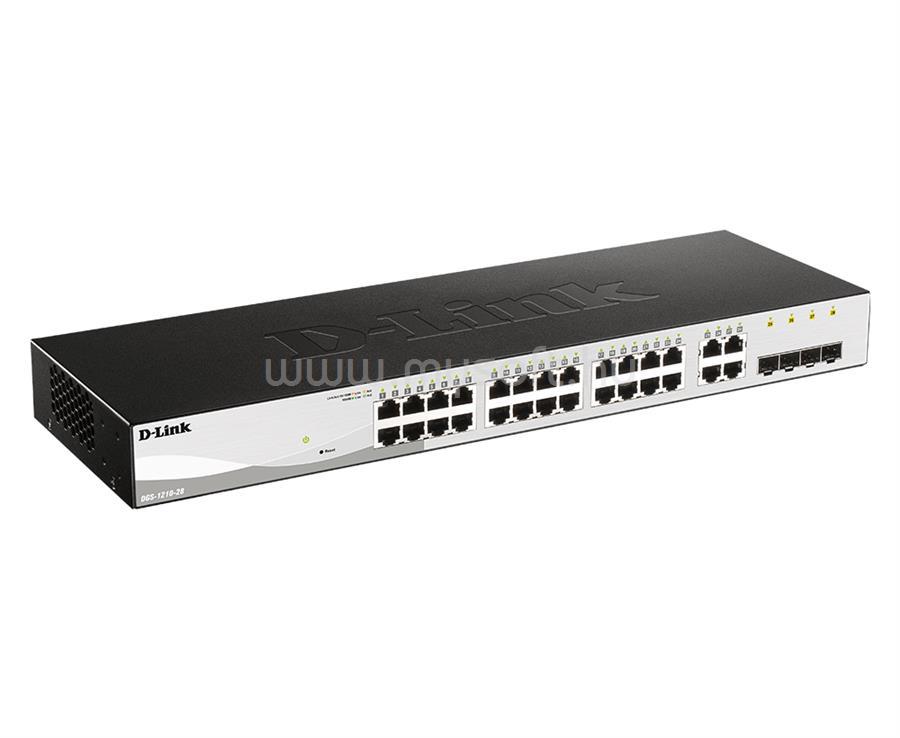

D-LINK DGS-1210-28/E SMART SWITCH 24 10/100/1000 BASE-T PORT WITH 4 X 1000BASE-T /SFP PORTS

• Specifications

• 1000Base-T Interface
• 24
• Combo 1000Base-T/SFP
• 4
• Auto MDI/MDIX
• Yes
• 10/100/1000BASE-T ports
• 24
• Combo 10/100/1000BASE-T/SFP ports
• 4
• Switch Capacity
• 56 Gbps
• Max. Packet Forwarding Rate
• 41.7 Mpps
• Store & Forwarding Forwading
• Yes
• Dimension
• 440mm x 140 mm x 44mm
• Weight
• 2.15 kg
• Operation Temperature
• -5 - 50°C
• Storage Temperature
• -20-70°C
• Operation Humidity
• 0% - 95% RH
• Storage Humidity
• 0% ~ 95% RH
• Operating Altitude
• 1500 meters
• Maximum Power Consumption
• 17.32 W/100 V
  16.94 W/240 V
• Standby Power Consumption
• 6.49 W/100V / 6.55 W/240V
• Maximum Heat Dissipation
• 59.09 BTU/hr (100V)
  57.79 BTU/hr (240V)
• Acoustic
• 0 dB
• MTBF
• 992,594 hours
• Power Input
• 100-240 VAC
• CPU Speed
• 500MHz
• DRAM Size
• DDR3 128MB
• Flash Memory Size
• 32MB
• Packet Buffer Size
• 4.1MBits
• FAN
• Fanless
• Comply with RoHS 6
• Yes
• Energy Efficiency Ethernet (EEE)
• Yes
• Power Saving By Link Status
• Yes
• Power Saving By Cable Length
• Yes
• Power Saving By Port Shut-Off
• Yes
• Power Saving By System Hibernation
• Yes
• Time-based PoE
• Yes
• MAC Address Table Size
• 8K
• 802.3x Flow Control
• Yes
• Head-of-line (HOL) Blocking Prevention
• Yes
• 802.1D Spanning Tree (STP)
• Yes
• 802.1w Rapid Spanning Tree (RSTP)
• Yes
• 802.1s Multiple Spanning Tree (MSTP)
• Yes
• Root Restriction
• Yes
• 802.3ad Link Aggregation
• Yes
• Link Aggregation Group Per Device
• 8
• Max Port Per Link Aggregation Group
• 8
• Port Mirroring
• Yes
• Jumbo Frame
• 10,000 Bytes
• Loopback Detection (LBD)
• Yes
• IGMP Snooping
• Yes
• Max IGMP Snooping Groups
• 256
• IGMP Snooping Fast Leave
• Yes
• MLD Snooping
• Yes
• MLD Snooping Groups
• Yes
• MLD Snooping Fast Leave
• Yes
• 802.1Q VLAN
• Yes
• VLAN Groups
• Yes
• Port-based VLAN
• Yes
• Voice VLAN
• Yes
• Auto Surveillance VLAN
• Yes
• Asymmetric VLAN
• Yes
• IP Interface
• Yes
• ARP
• Yes
• Max Number of IP Interface
• 4
• ARP Entries
• Yes
• IPv6 Neighbor Discovery (ND)
• Yes
• ND Entries
• 128
• Default Route
• Yes
• Static Route
• Yes
• Class of Service (CoS)
• Yes
• Number of Queue
• Yes
• Strict Priority Queue (SPQ)
• Yes
• Weighted Round Robin (WRR)
• Yes
• Port-based Bandwidth Control
• Yes
• MAC Access List
• Yes
• Max Access Control List (ACL) Entries
• Yes
• IP Access List
• Yes
• IPv6 Access List
• Yes
• SSH
• Yes
• SSL
• Yes (only support TLS 1.0)
• Port Security
• Yes
• Broadcast/Multicast/Unicast Storm Control
• Yes
• Traffic Segmentation
• Yes
• D-Link Safeguard Engine
• Yes
• Smart IP-MAC-Port Binding (Smart IMPB)
• Yes
• DHCP Server Screening
• Yes
• ARP Spoofing Prevention
• Yes
• DoS Attack Prevention
• Yes
• Port based 802.1X Authentication
• Yes
• 802.1X
• Yes
• Authentication for Management Access
• Yes
• RADIUS
• Yes
• Trusted Host
• Yes
• Cable Diagnostics
• Yes
• Simple Network Time Protocol (SNTP)
• Yes
• Web-based GUI
• Yes
• Command Line Interface (CLI)
• Yes (Limited CLI via telnet)
• Telnet Server
• Yes
• SNMP
• Yes
• SNMP Trap
• Yes
• TFTP Client
• Yes
• System Log
• Yes
• RMONv1
• Yes
• LLDP-MED
• Yes
• LLDP
• Yes
• DHCP/BootP Client
• Yes
• D-Link Discover Protocol (DDP)
• Yes (v0.26)
• DHCP Auto-configuration
• Yes
• DHCP relay
• Yes
• Dual Images
• Yes
• Dual Configurations
• Yes
• Debug Command
• Yes
• Ping
• Yes
• D-Link Network Assistant
• Yes (Chrome edition)
• Smart Wizard
• Yes
