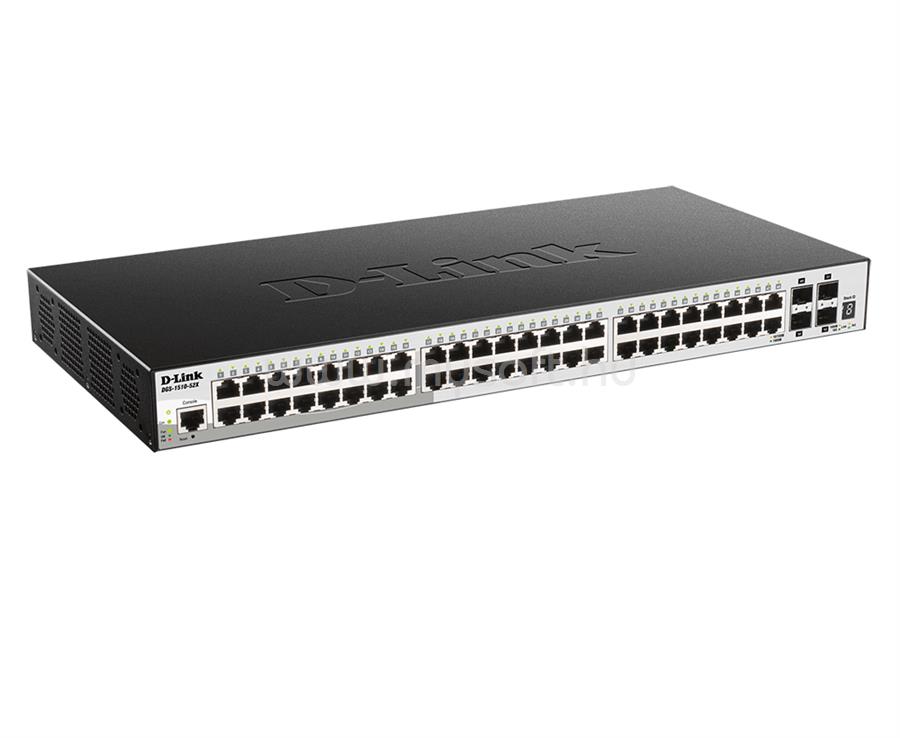

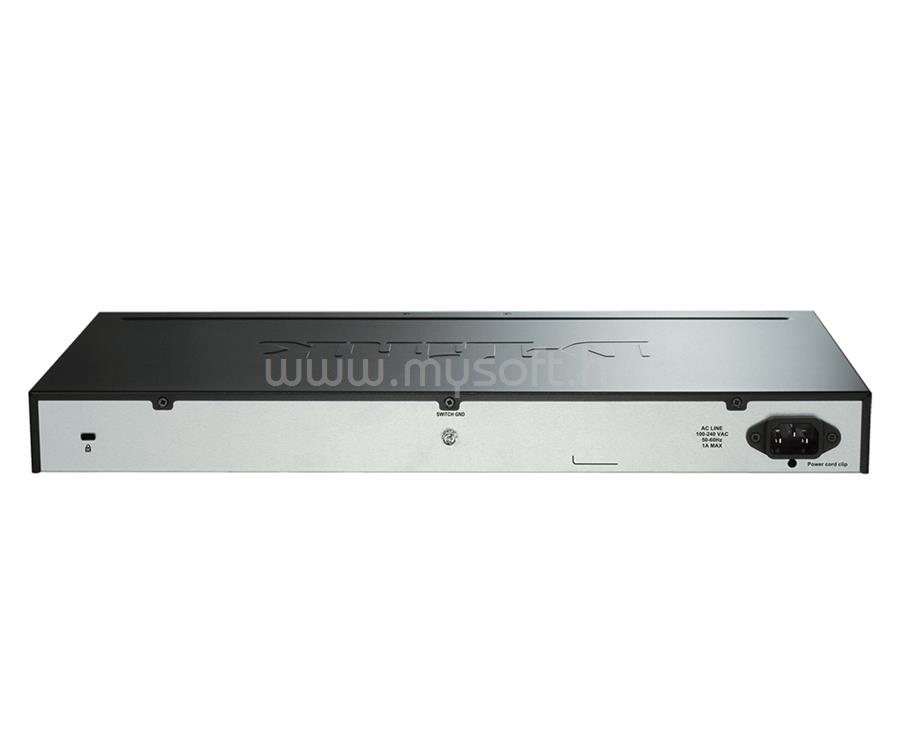

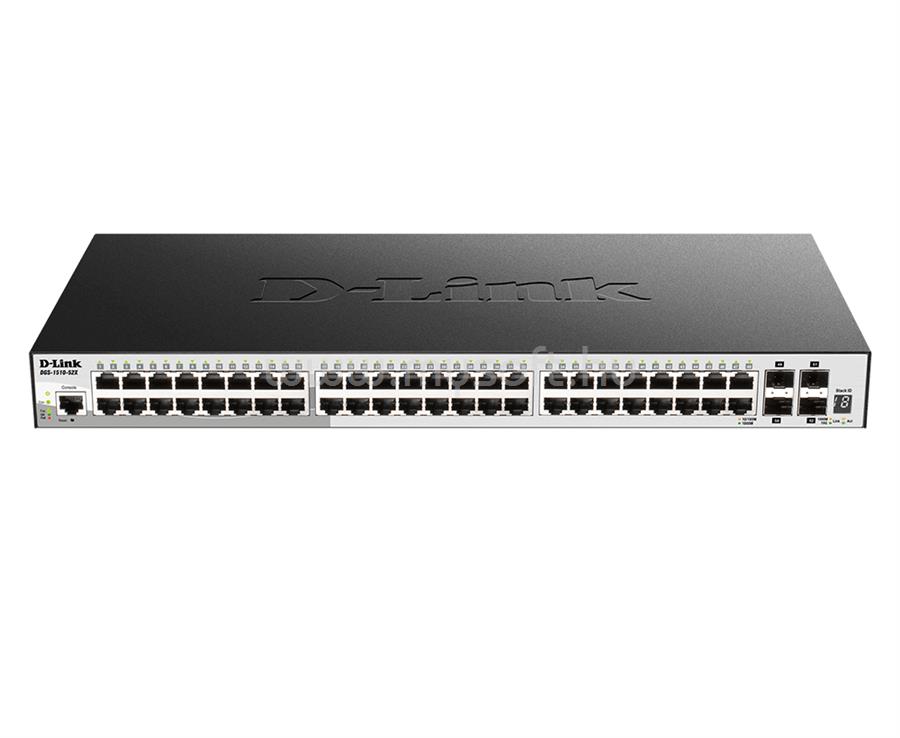

D-LINK DGS-1510-52X/E 52-PORT GIGABIT STACKABLE SMART MANAGED SWITCH INCLUDING 4 10G SFP+

• Specifications

• 1000Base-T Interface
• 48
• 10G SFP+ Interface
• 4
• Auto MDI/MDIX
• Yes
• Console Port
• Yes
• 10/100/1000BASE-T ports
• 48
• 10G SFP+ ports
• 4
• Switch Capacity
• 176 Gbps
• Max. Packet Forwarding Rate
• 130.95 Mpps
• Dimension
• 440mm x 210mm x 44mm
• Weight
• 3.1Kg
• Operation Temperature
• -5 -50°C
• Storage Temperature
• -20-70°C
• Operation Humidity
• 0% ~ 95% RH
• Storage Humidity
• 0% ~ 95% RH
• Maximum Power Consumption
• 48 W
• Standby Power Consumption
• 30.4Watt/100V 30.3Watt/240V
• Maximum Heat Dissipation
• 163.68 BTU/hr
• Acoustic
• 49.7 dB(A)
• MTBF
• 423,302 hours
• Power Input
• 100 - 240 VAC
• CPU Speed
• 400MHz
• DRAM Size
• 256MB
• Flash Memory Size
• 32MB
• Packet Buffer Size
• 3MB
• FAN
• 1 DC fan
• Comply with RoHS 6
• Yes
• Energy Efficiency Ethernet (EEE)
• Yes
• Power Saving By System Hibernation
• Yes
• Power Saving By Link Status
• Yes
• Power Saving By LED Shut-Off
• Yes
• Power Saving By Port Shut-Off
• Yes
• Physical Stacking
• Yes
• Physical Stacking Bandwidth
• 40 G
• Units Per Physical Stack
• 6
• D-Link Single IP Management (SIM)
• Yes
• Units Per SIM Stack
• 32
• MAC Address Table Size
• 16384
• Black Hole MAC Address
• Yes
• 802.3x Flow Control
• Yes
• Head-of-line (HOL) Blocking Prevention
• Yes
• 802.1D Spanning Tree (STP)
• Yes
• 802.1w Rapid Spanning Tree (RSTP)
• Yes
• 802.1s Multiple Spanning Tree (MSTP)
• Yes
• Root Restriction
• Yes
• G.8032 ERPS
• Yes
• 802.1AX Link Aggregation
• Yes
• 802.3ad Link Aggregation
• Yes
• Link Aggregation Group Per Device
• 32
• Max Port Per Link Aggregation Group
• 8
• Port Mirroring
• Yes
• Flow-based (ACL) mirroring
• Yes
• Jumbo Frame
• 9216
• Loopback Detection (LBD)
• Yes
• IGMP Snooping
• Yes
• Max IGMP Snooping Groups
• 512
• IGMP Snooping Fast Leave
• Yes
• IGMP Proxy Reporting
• Yes
• MLD Snooping
• Yes
• MLD Snooping Groups
• Yes
• MLD Snooping Fast Leave
• Yes
• MLD Proxy Reporting
• Yes
• 802.1Q VLAN
• Yes
• VLAN Groups
• 4094
• Port-based VLAN
• Yes
• 802.1v Protocol-based VLAN
• Yes
• MAC-based VLAN
• Yes
• Voice VLAN
• Yes
• Auto Surveillance VLAN
• Yes, 2.1
• GVRP
• Yes
• Asymmetric VLAN
• Yes
• IP Interface
• Yes
• Max Number of IP Interface
• 16
• ARP
• Yes
• ARP Entries
• 512
• Gratuitous ARP
• Yes
• ND Entries
• Yes
• UDP Helper
• Yes
• Default Route
• Yes
• Static Route
• Yes
• Class of Service (CoS)
• Yes
• Number of Queue
• 8
• Remark 802.1p priority
• Yes
• Remark ToS/DSCP
• Yes
• Rate Limiting
• Yes
• Queue Handling
• Yes
• Strict Priority Queue (SPQ)
• Yes
• Weighted Round Robin (WRR)
• Yes
• Deficit Round Robin (DRR)
• Yes
• SPQ + WRR
• Yes
• Port-based Bandwidth Control
• Yes
• Max Access Control List (ACL) Entries
• Yes
• MAC Access List
• Yes
• IP Access List
• Yes
• IPv6 Access List
• Yes
• Time based ACL
• Yes
• SSH
• Yes
• SSL
• Yes
• Port Security
• Yes
• Broadcast/Multicast/Unicast Storm Control
• Yes
• Traffic Segmentation
• Yes
• IP Source Guard
• Yes
• DHCP Snooping
• Yes
• IPv6 Snooping
• Yes
• Dynamic ARP Inspection (DAI)
• Yes
• DHCPv6 Guard
• Yes
• IPv6 Route Advertisement (RA) Guard
• Yes
• IPv6 ND Inspection
• Yes
• Duplicate Address Detection (DAD)
• Yes
• D-Link Safeguard Engine
• Yes
• DHCP Server Screening
• Yes
• ARP Spoofing Prevention
• Yes
• BPDU Attack Protection
• Yes
• DoS Attack Prevention
• Yes
• 802.1X
• Yes
• Port based 802.1X Authentication
• Yes
• Host based 802.1X Authentication
• Yes
• Identity Driven 802.1X Policy Assignment
• Yes
• Web-based Access Control (WAC)
• Yes
• Port based WAC Authentication
• Yes
• Host based WAC Authentication
• Yes
• Identity Driven WAC Policy Assignment
• Yes
• Japanese Web-based Access Control (JWAC)
• Yes
• Port based JWAC Authentication
• Yes
• Host based JWAC Authentication
• Yes
• Identity Driven JWAC Policy Assignment
• Yes
• MAC-based Access Control (MAC)
• Yes
• Port based MAC Authentication
• Yes
• Host based MAC Authentication
• Yes
• Identity Driven MAC Policy Assignment
• Yes
• Compound Authentication
• Yes
• Guest VLAN
• Yes
• Authentication for Management Access
• Yes
• Privilege Level for Management Access
• 5
• RADIUS
• Yes
• RADIUS Accounting
• Yes
• TACACS+
• Yes
• TACACS+ Accounting
• Yes
• Cable Diagnostics
• Yes
• Optical Transceiver Digital Diagnostic Monitoring (DDM)
• Yes
• Network Time Protocol (NTP)
• Yes
• Simple Network Time Protocol (SNTP)
• Yes
• Web-based GUI
• Yes
• Command Line Interface (CLI)
• Yes
• Telnet Server
• Yes
• Telnet Client
• Yes
• SNMP
• Yes
• SNMP Trap
• Yes
• TFTP Client
• Yes
• ZModem
• Yes
• System Log
• Yes
• RMONv1
• Yes
• LLDP
• Yes
• LLDP-MED
• Yes
• D-Link Discover Protocol (DDP)
• Yes (v0.25)
• DHCP/BootP Client
• Yes
• DHCP Auto-configuration
• Yes
• DHCP relay
• Yes
• Flash file system
• Yes
• Multiple Images
• Yes
• Multiple Configurations
• Yes
• Editable Login Banner
• Yes
• Editable System Prompt
• Yes
• DNS Client
• Yes
• Debug Command
• Yes
• Password Encryption
• Yes
• Ping
• Yes
• Traceroute
• Yes
• sFlow
• Yes
• D-Link Network Assistant
• Yes
• Smart Wizard
• Yes
• SSH
• Yes
• SSL
• Yes
• Store-and-Forwarding
• Yes
