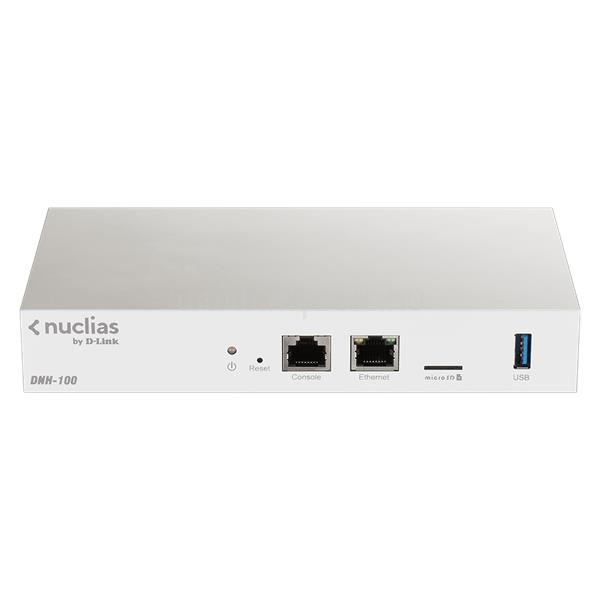

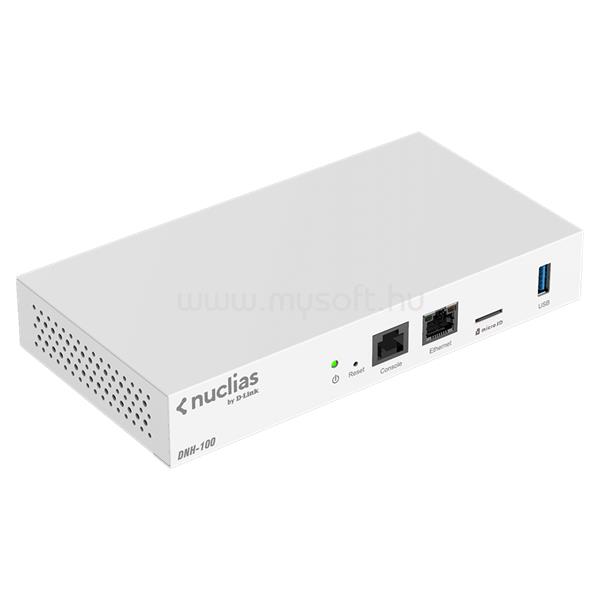

D-LINK HUB - DNH-100 - NUCLIUS CONNECT 1GBITLAN, 1CONSOLE PORT, 1USB3.0, 1MICROSD, TÖBB, MINT 100 AP KEZELÉS

• Specifications

• 10/100/1000Base-T
• 1
• Optional 10G Uplink Module
• N/A
• Combo 10/100/1000Base-T/SFP
• N/A
• Console Port
• RJ-45
• USB Port (2.0)
• 1 (3.0)
• Maximum Access Points per unit (default/ upgrade)
• 100
• Maximum Access Points per cluster (default/ upgrade)
• 100
• AP Auto Discovery
• Yes
• AP Monitoring
• Yes
• AP Authentication by External RADIUS
• Yes
• AP Authentication by Local Database
• Yes
• Auto Power Management
• Yes
• Auto Channel Management
• Yes
• Centralized Firmware Upgrade
• Yes
• Visualization Management
• Yes
• Remote AP Reboot
• Yes
• Connection mode between controller and AP
• Bridge
• Multi-tenant
• Yes
• NAT pass through (Controller can manage APs behind NAT)
• Yes
• Device Clustering
• No
• Device Clustering per Group
• No
• Configuration Push within Group
• Yes
• 802.3af PoE
• N/A
• 802.3at PoE
• N/A
• PoE Power budget
• N/A
• PoE Power budget with RPS
• N/A
• 802.3at (Per Port)
• N/A
• Captive Portal
• Yes
• External User Database - RADIUS
• Yes
• External User Database - POP3
• Yes
• External User Database - LDAP
• Yes
• Local User Database
• Yes
• TACACS+
• No
• 802.1X
• Yes
• Client Monitoring
• Yes
• Client Classicification
• Yes
• Ad-hoc Client Monitoring
• No
• Location Tracking
• No
• L2 Fast Roaming
• No
• L3 Fast Roaming
• No
• TKIP/AES Encryption
• Yes
• WPA/WPA2-Enterprise
• Yes
• WPA/WPA2-Personal
• Yes
• Rouge AP Detection & Mitigation
• No
• Rouge Client Detection & Mitigation
• No
• WLAN MAC Filtering
• Yes
• Hidden SSID
• Yes
• AP Station Isolation
• Yes
• AP Classification
• Yes
• WIDS
• No
• Wireless Multimedia (WMM)
• Yes
• 802.1p Priority Queues
• No
• CoS-based QoS
• No
• Per-port Traffic Shaping
• N/A
• Per-flow Bandwidth Control
• No
• Per-queue Minimum Bandwidth Guarantee
• No
• 802.1Q VLAN Tagging
• Yes
• 802.1V Subnet-based VLAN
• No
• MAC-based VLAN
• No
• Port-based VLAN
• N/A
• GVRP
• N/A
• Static VLAN
• Yes
• Voice VLAN
• N/A
• VLAN Numbers
• N/A
• Dynamic VLAN
• Yes
• Double VLAN (Q-in-Q)
• N/A
• Switching Capacity
• N/A
• Max. Packet Forwarding Rate
• N/A
• MAC Address Table Size
• N/A
• Packet Buffer Size
• N/A
• Telnet Client
• No
• Telnet Server
• Yes
• TFTP Server
• No
• TFTP Client
• No
• SNMP (v1,v2c,v3)
• No
• SNTP
• No
• NTP
• Yes
• sFlow
• No
• Multiple Configuration Files
• Yes
• Dual Images
• Yes
• RMONv1
• No
• DHCP / BootP Client
• No
• DHCP Server
• No
• DHCP Relay
• No
• SYSLOG
• Yes
• SSH
• Yes
• HTTP
• No
• HTTPS
• Yes
• Command Line Interface (CLI)
• Yes
• 802.1D Spanning Tree (STP)
• N/A
• 802.1w Rapid Spanning Tree (RSTP)
• N/A
• 802.1s Multiple Spanning Tree (MSTP)
• N/A
• IGMP Snooping
• N/A
• LLDP-MED
• N/A
• Many-to-One Mirroring
• N/A
• One-to-One Mirroring
• N/A
• MLD Snooping
• N/A
• Maximum Jumbo Frame (KB)
• N/A
• IPv6 Static Route
• N/A
• IPv4 Static Route
• N/A
• Routing Table Size
• N/A
• ARP Proxy
• N/A
• OSPF
• N/A
• RIP v1/ v2
• N/A
• LAN MAC Filtering
• N/A
• Broadcast Storm Control
• N/A
• DHCP Filtering
• N/A
• DHCP Snooping
• N/A
• Dynamic ARP Inspection ( DAI )
• N/A
• 802.3ad Link Aggregation
• N/A
• Link Aggregation Group Per Device
• N/A
• Max Port Per Link Aggregation Group
• N/A
• VRRP
• N/A
• WAN Fail-over
• No
• Firewall Policy
• No
• Numbers of Firewall Policy
• N/A
• Policy-based route
• No
• NAT, PAT
• No
• Outbound Load Balancing
• No
• Dynamic DNS
• No
• IPSec VPN Tunnel
• No
• PPTP / L2TP VPN Tunnel
• No
• IPSec Nat Traversal
• No
• VPN Tunnel Keep Alive
• No
• Dead Peer Detection
• No
• Hub and Spoke
• No
• SSL VPN Tunnel
• No
• Encryption Methods (DES/3DES/AES/Twofish/Blowfish/CAST-128/Null)
• No
• IP Encapsulating Security Payload (ESP)
• No
• IP Authentication Header(AH)
• No
• SSL Encryption Methods (DES/3DES/AES)
• No
• SSL Message Integrity (MD5/SHA1)
• No
• Static Web Content Filtering - Key word / URL
• No
• Dynamic Web Content Filtering ( Category)
• No
• Rackmount
• 19 inch
• Dimension
• 190 x 100 x 31 mm
• Weight
• 529 g
• Operation Temperature
• 0 ~ 40 °C
• Storage Temperature
• - 20 ~ 70 °C
• Operation Humidity
• 10% ~ 90% RH
• Storage Humidity
• 5% ~ 95% RH
• Power Supply
• AC:100 ~ 240 V, 50/60 Hz
• Power Consumption
• 6.5 W
• Redundant Power Supply Support
• No
• Redundant Power Supply Module
• No
• Heat Dispassion
• N/A
• Acoustic
• 0 dB (fanless)
• MTBF
• 260,000 hrs
• FCC
• Class B
• CE
• Yes
• C-Tick
• Yes
• VCCI
• Yes
• BSMI
• Yes
• ICES-003
• N/A
• EN 60601-1-2
• No
• Safety Certifications (cUL)
• Yes
• Safety Certifications (CB)
• Yes
• Safety Certifications (LVD (En60950-1) )
• Yes
• AP License Upgrade
• N/A
• Advanced Feature Lincense Upgrade
• N/A

Garancia fogyasztók részére

• 2 év kötelező jótállás (gyártó által biztosított szervizgarancia)

Garancia nem fogyasztók részére

• 1 év gyártó által biztosított szervizgarancia
