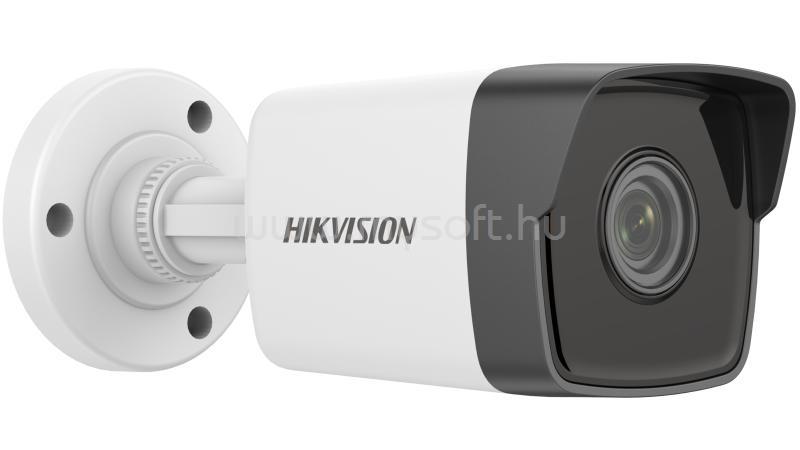

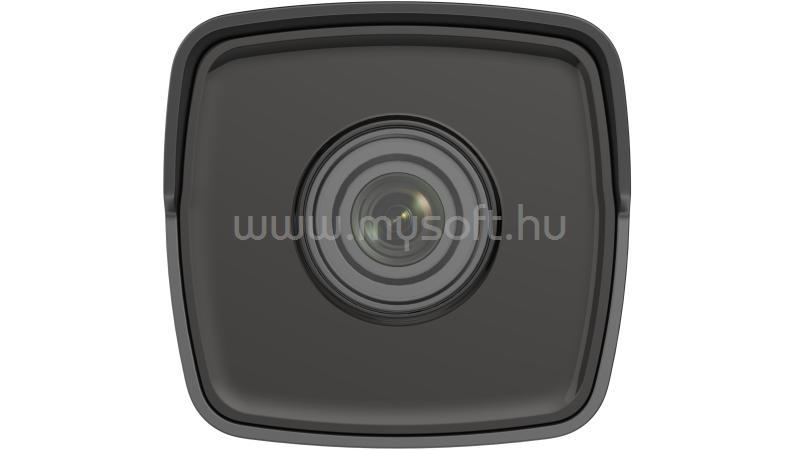

HIKVISION DS-2CD1021-I IP CSŐKAMERA (2MP, 2,8MM, KÜLTÉRI, H264, IP67, IR30M, ICR, DWDR, 3DNR, POE)

• Kamera

• Image Sensor
• 1/2.7" Progressive Scan CMOS
• Min. Illumination
• Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR
• Shutter Time
• 1/3 s to 1/100, 000 s
• Day & Night
• IR cut filter
• Max. Resolution
• 1920 × 1080
• Angle Adjustment
• Pan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360°

• Lens

• Focal Length & FOV
• 2.8 mm, horizontal FOV 105°, vertical FOV 58°, diagonal FOV 123°
• Lens Mount
• M12
• Iris Type
• Fixed
• Aperture
• F2.0

• Illuminator

• Supplement Light Range
• Up to 30 m
• Supplement Light Type
• IR
• Smart Supplement Light
• Yes
• IR Wavelength
• 850 nm

• Video

• Main Stream
• 50 Hz: 25 fps (1920 × 1080, 1280 × 720)
• 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
• Sub-Stream
• 50 Hz: 25 fps (640 × 480, 640 × 360)
• 60 Hz: 30 fps (640 × 480, 640 × 360)
• Video Compression
• Main Stream: H.264/H.264+
• Sub-Stream: H.264/MJPEG
• Video Bit Rate
• 32 Kbps to 8 Mbps
• H.264 Type
• Baseline Profile/Main Profile/High Profile
• Region of Interest (ROI)
• 1 fixed region for main stream

• Network

• Protocols
• TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
• Simultaneous Live View
• Up to 6 channels
• API
• Open Network Video Interface, ISAPI
• User/Host
• Up to 32 users. 3 levels: administrator, operator and user
• Client
• iVMS-4200, Hik-Connect
• Web Browser
• Plug-in required live view: IE 10+
• Plug-in free live view: Chrome 57.0+, Firefox 52.0+
• Local service: Chrome 57.0+, Firefox 52.0+

• Image

• Image Settings
• Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser.
• Day/Night Switch
• Day, Night, Auto, Schedule
• Wide Dynamic Range (WDR)
• Digital WDR
• SNR
• > 52 dB
• Image Enhancement
• BLC, 3D DNR

• Interface

• Ethernet Interface
• 1 RJ45 10 M/100 M self-adaptive Ethernet port

• Event

• Basic Event
• Motion detection, video tampering alarm, exception
• Linkage
• Upload to FTP, notify surveillance center, send email

• General

• Power
• 12 VDC +/- 25%, 0.4 A, max. 5 W, O5.5 mm coaxial power plug
• PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
• Dimension
• 177.6 mm × 66.2 mm × 67.8 mm (7.0" × 2.6" × 2.7")
• Package Dimension
• 216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6")
• Weight
• Approx. 270 g (0.6 lb.)
• With Package Weight
• Approx. 490 g (1.1 lb.)
• Storage Conditions
• -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
• Startup and Operating Conditions
• -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
• Language
• English, Ukrainian
• General Function
• Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Garancia fogyasztók részére

• 2 év kötelező jótállás (gyártó által biztosított szervizgarancia)

Garancia nem fogyasztók részére

• 1 év gyártó által biztosított szervizgarancia
