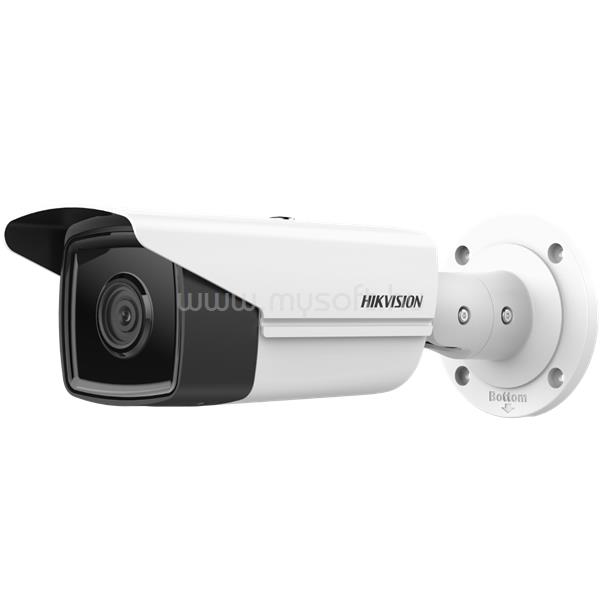

HIKVISION IP CSŐKAMERA - DS-2CD2T43G2-4I (4MP, 4MM, KÜLTÉRI, H265+, IP67, IR80M, ICR, WDR, SD, POE)

• Kamera

• Image Sensor
• 1/3? Progressive Scan CMOS
• Max. Resolution
• 2688 × 1520
• Min. Illumination
• Color: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR on
• Shutter Time
• 1/3 s to 1/100,000 s
• Day & Night
• ICR Cut
• Angle Adjustment
• Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

• Lens

• Lens Type
• Fixed focal lens 4 mm
• Focal Length & FOV
• 4 mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 100°
• Lens Mount
• M12
• Iris Type
• Fixed
• Aperture
• F1.6

• DORI

• DORI
• 4 mm: D: 80 m, O: 31 m, R: 16 m, I: 8 m

• Illuminator

• Supplement Light Type
• IR
• Supplement Light Range
• -4I: up to 80 m
• Smart Supplement Light
• Yes
• IR Wavelength
• 850 nm

• Video

• Main Stream
• 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
• 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream
• 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
• 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
• Third Stream
• 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
• 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
• Video Compression
• Main stream: H.265/H.264/H.264+/H.265+
• Sub-stream: H.265/H.264/MJPEG
• Third stream: H.265/H.264
• Video Bit Rate
• 32 Kbps to 8 Mbps
• H.264 Type
• Baseline Profile/Main Profile/High Profile
• H.265 Type
• Main Profile
• Bit Rate Control
• CBR/VBR
• Scalable Video Coding (SVC)
• Yes
• Region of Interest (ROI)
• 1 fixed region for main stream and sub-stream

• Network

• Protocols
• TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, WebSocket, WebSockets
• Simultaneous Live View
• Up to 6 channels
• API
• ONVIF (Profile S, Profile G), ISAPI, SDK
• User/Host
• Up to 32 users. 3 user levels: administrator, operator and user
• Security
• Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
• Network Storage
• NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• Client
• iVMS-4200, Hik-Connect, Hik-Central
• Web Browser
• Plug-in required live view: IE 10, IE 11
• Plug-in free live view : Chrome 57.0+, Firefox 52.0+
• Local service: Chrome 57.0+, Firefox 52.0+

• Image

• Image Parameters Switch
• Yes
• Image Settings
• Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
• Day/Night Switch
• Day, Night, Auto, Schedule
• Wide Dynamic Range (WDR)
• 120 dB
• SNR
• > 52 dB
• Image Enhancement
• BLC, HLC, 3D DNR

• Interface

• Ethernet Interface
• 1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage
• Built-in microSD, up to 512 GB
• Reset Key
• Yes

• Event

• Basic Event
• Motion detection (human and vehicle targets classification), video tampering alarm, exception
• Smart Event
• Line crossing detection, intrusion detection
• Supports human and vehicle targets classification
• Face detection
• Linkage
• Upload to FTP/memory card/NAS, notify surveillance center, trigger recording, trigger capture, sned email

• General

• Power
• 12 VDC ? 25%, 1.0 A, amx. 11.5 W, O5.5 mm coaxial power plug, reverse polarity protection
• PoE: 802.3af, Class 3, 36 V to 57 V, 0.35 A to 0.22 A, max. 12.5 W
• Material
• Aluminum alloy body
• Sun shield, IR cover: plastic
• Dimension
• O105 × 299.7 mm (O4.1? × 11.8?)
• Package Dimension
• 386 × 156 × 155 mm (15.2" × 6.2" × 6.2")
• Weight
• Approx. 1070 g (2.4 lb.)
• With Package Weight
• Approx. 1589 g (3.5 lb.)
• Storage Conditions
• -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions
• -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language
• 33 languages
• English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• General Function
• Anti-flicker, heartbeat, password reset via e-mail, pixel counter

• Approval

• EMC
• FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
• Safety
• UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
• Environment
• CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
• Protection
• IP67 (IEC 60529-2013)
