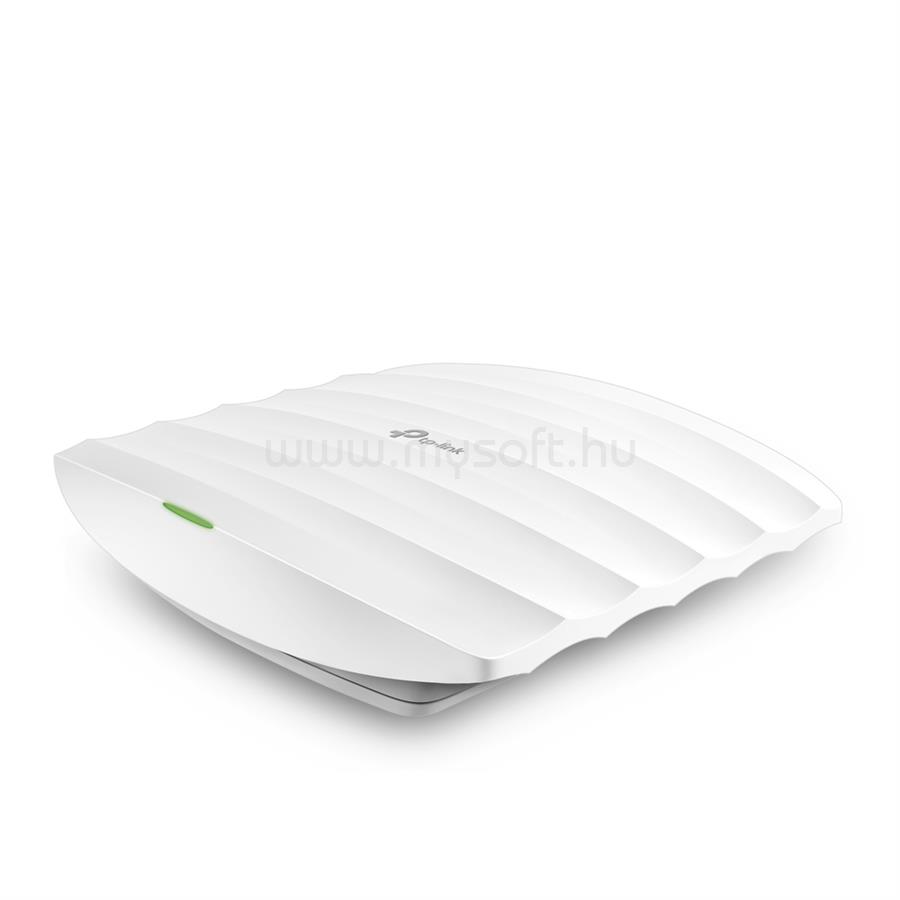

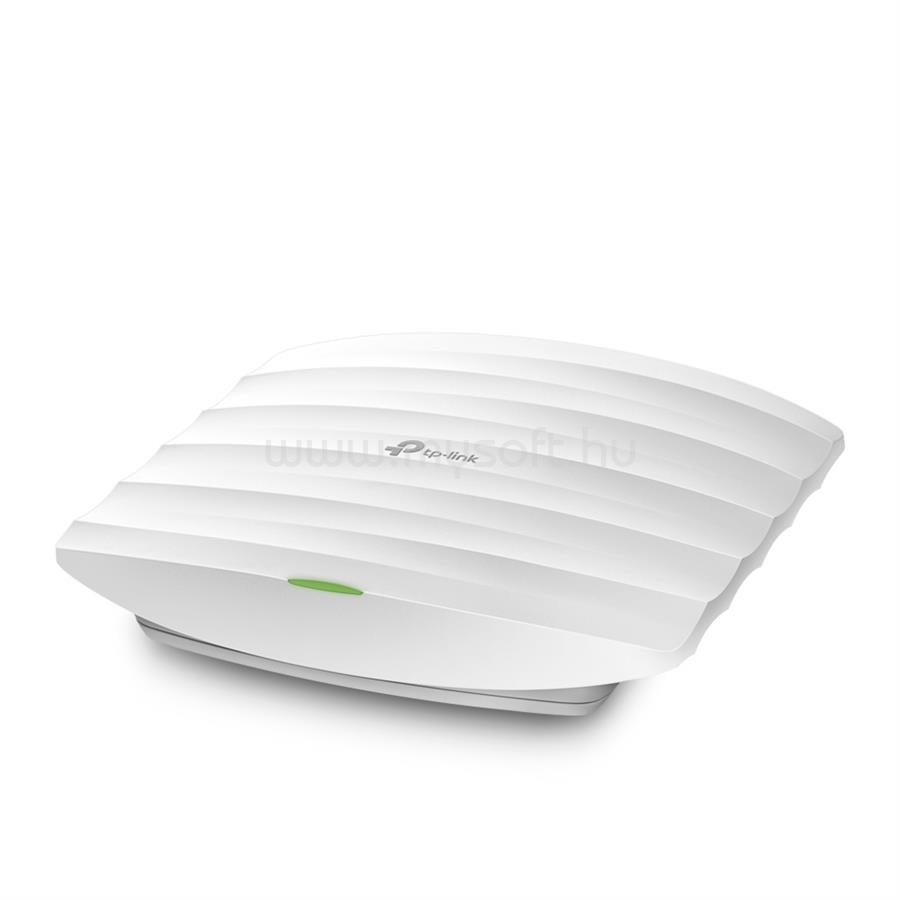

TP-LINK EAP223 WIRELESS ACCESS POINT DUAL BAND AC1350 MU-MIMO MENNYEZETRE RÖGZÍTHETŐ

• HARDWARE FEATURES

• Interface

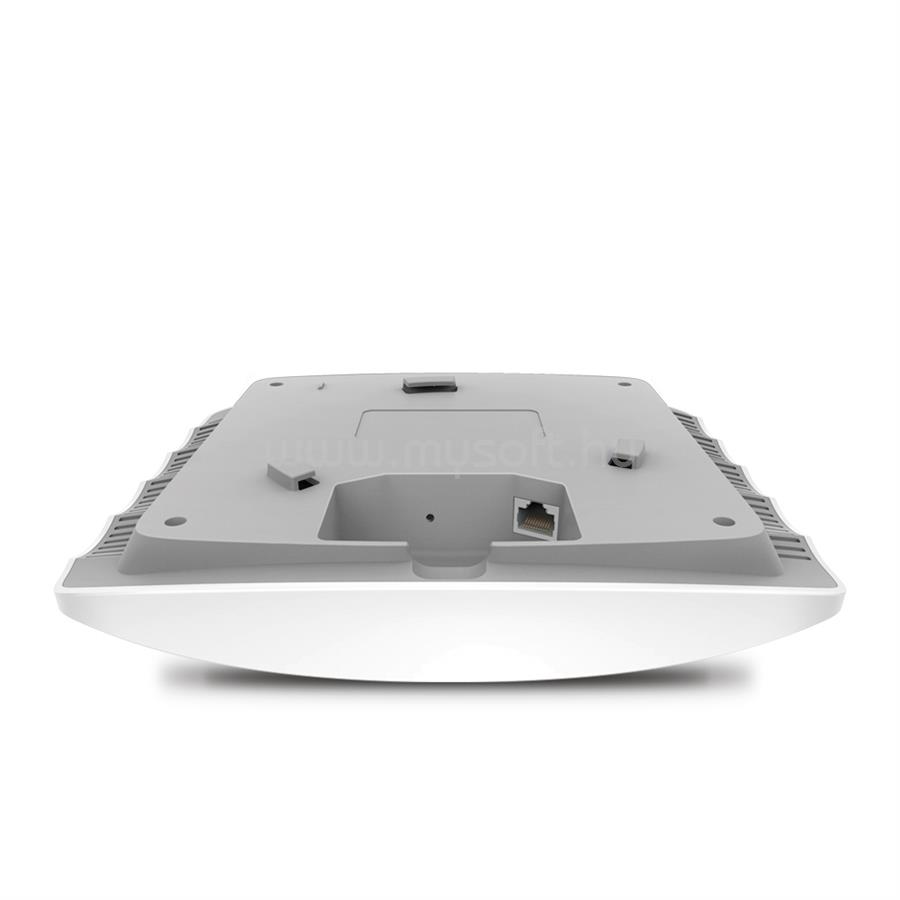

• Gigabit Ethernet (RJ-45) Port×1 (Support IEEE802.3af/at PoE and Passive PoE)
• Physical Security Lock
• Yes
• Button
• Reset
• Power Supply
• 802.3af/at PoE
• 48V Passive PoE (+4,5pins; -7,8pins. PoE Adapter IS NOT Included)
• Power Consumption
• EU: 9.7W
• US: 12.1W
• Dimensions ( W x D x H )
• 8.1 × 7.1 × 1.5 in (205.5 × 181.5 × 37.1 mm)
• Antenna Type
• 3 Internal Omni
• 2.4 GHz: 4 dBi
• 5 GHz: 5 dBi
• Mounting
• Ceiling /Wall Mounting (Kits included)

• WIRELESS FEATURES

• Wireless Standards
• IEEE 802.11ac/n/g/b/a
• Frequency
• 2.4 GHz and 5 GHz
• Signal Rate
• 5 GHz:Up to 867 Mbps
• 2.4 GHz:Up to 450 Mbps
• Wireless Functions
• Multiple SSIDs (Up to 15 SSIDs, 8 for 2.4GHz band, 7 for 5GHz band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• Seamless Roaming
• Omada Mesh
• Band Steering
• Load Balance
• MU-MIMO
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client
• Wireless Security
• Captive Portal Authentication
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• Transmission Power
• CE:
• <20 dBm(2.4 GHz, EIRP)
• <23 dBm(5 GHz, EIRP)
• FCC:
• <24 dBm(2.4 GHz)
• <22 dBm(5 GHz)

• MANAGEMENT

• Omada App
• Yes
• Centralized Management
• Omada Hardware Controller OC300
• Omada Hardware Controller OC200
• Omada Software Controller
• Omada Cloud-Based Controller
• Cloud Access
• Yes, through
• OC300
• OC200
• Omada Software Controller
• Omada Cloud-Based Controller
• Email Alerts
• Yes
• LED ON/OFF Control
• Yes
• Management MAC Access Control
• Yes
• SNMP
• v1,v2c
• System Logging Local/Remote Syslog
• Local/Remote Syslog
• SSH
• Yes
• Web-based Management
• HTTP/HTTPS
• L3 Management
• Yes
• Multi-site Management
• Yes
• Management VLAN
• Yes
• Zero-Touch Provisioning
• Yes. Requiring the use of Omada Cloud-Based Controller

• OTHERS

• Package Contents
• AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP223
• Mounting Kits
• Installation Guide
• System Requirements
• Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
• Environment
• Operating Temperature: 0-40 °C (32-104 ˘°F)
• Storage Temperature: -40-70 °C (-40-158 °F)
• Operating Humidity: 10-90% RH non-condensing
• Storage Humidity: 5-90% RH non-condensing
