TP-LINK EAP613 AX1800 CEILING MOUNT WIFI 6 ACCESS POINT

• HARDWARE FEATURES

• Interface
• 1× Gigabit Ethernet (RJ-45) Port
• Button
• Reset
• Power Supply
• 802.3at PoE
• 48 V Passive PoE
• 12 V / 1 A DC (Power Adapter IS NOT included)
• Power Consumption
• 11.0W (For PoE)
• 9.9W (For DC)
• Dimensions ( W x D x H )
• V2 and above: 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm)
• Antenna Type
• Internal Omni Antenna
• 2.4 GHz: 2× 4 dBi
• 5 GHz: 2× 5 dBi

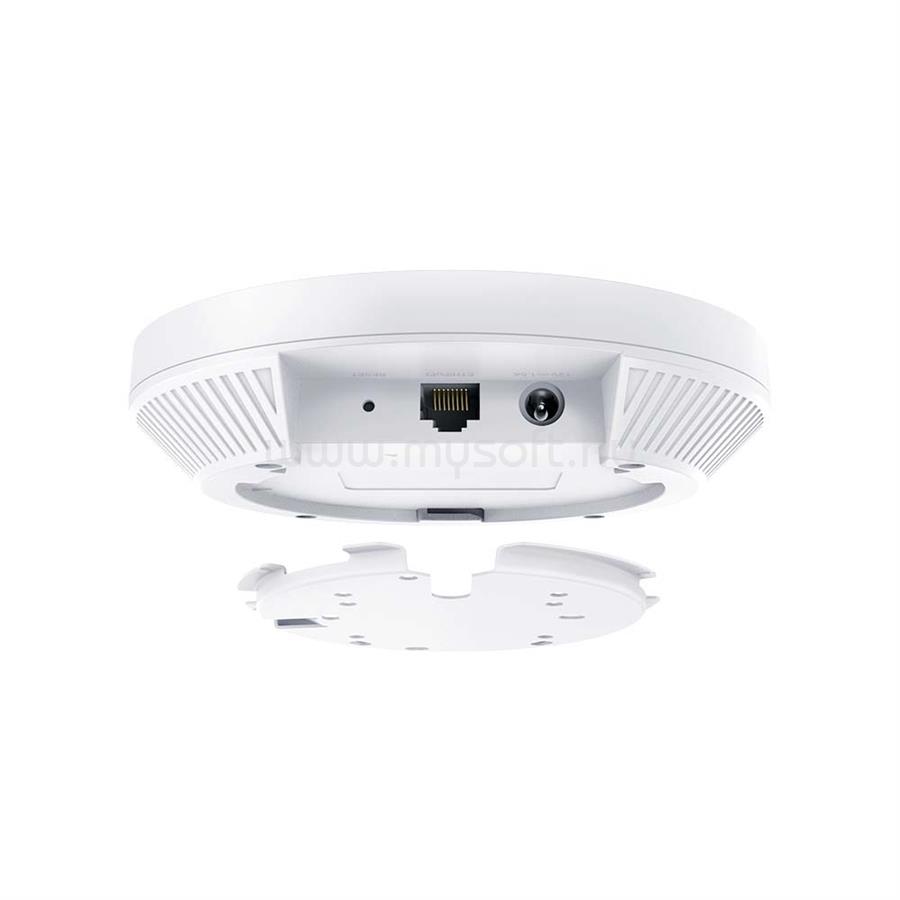

• Mounting
• Ceiling /Wall Mounting (Kits included)
• Junction Box Mounting

• WIRELESS FEATURES

• Wireless Standards
• IEEE 802.11ax/ac/n/g/b/a
• Frequency
• 2.4 GHz and 5 GHz
• Signal Rate
• 5 GHz: Up to 1201 Mbps
• 2.4 GHz: Up to 574 Mbps
• Wireless Functions
• 1024-QAM
• 4× Longer OFDM Symbol
• OFDMA
• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• MU-MIMO
• Seamless Roaming §
• Omada Mesh§
• Band Steering
• Load Balance
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client
• Wireless Security
• Captive Portal Authentication§
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
• Transmission Power
• CE:
• <20 dBm(2.4 GHz, EIRP)
• <23 dBm(5 GHz band1/2, EIRP) <25 dBm (5 GHz band3)
• FCC:
• <25 dBm (2.4 GHz)
• <25 dBm (5 GHz)

• MANAGEMENT

• Omada App
• Yes
• Centralized Management
• Omada Cloud-Based Controller
• Omada Hardware Controller OC300
• Omada Hardware Controller OC200
• Omada Software Controller
• Cloud Access
• Yes, through
• OC300
• OC200
• Omada Software Controller
• Omada Cloud-Based Controller
• Email Alerts
• Yes
• LED ON/OFF Control
• Yes
• Management MAC Access Control
• Yes
• SNMP
• v1, v2c, v3
• System Logging Local/Remote Syslog
• Local/Remote Syslog
• SSH
• Yes
• Web-based Management
• HTTP/HTTPS
• L3 Management
• Yes
• Multi-site Management
• Yes
• Management VLAN
• Yes
• Zero-Touch Provisioning
• Yes. Requiring the use of Omada Cloud-Based Controller

• OTHERS

• Package Contents
• EAP613
• Ceiling/ Wall Mounting Kits
• Installation Guide
• System Requirements
• Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
• Environment
• Operating Temperature: 0-40 °C (32-104 °F)
• Storage Temperature: -40-70 °C (-40-158 °F)
• Operating Humidity: 10-90% RH non-condensing
• Storage Humidity: 5-90% RH non-condensing
