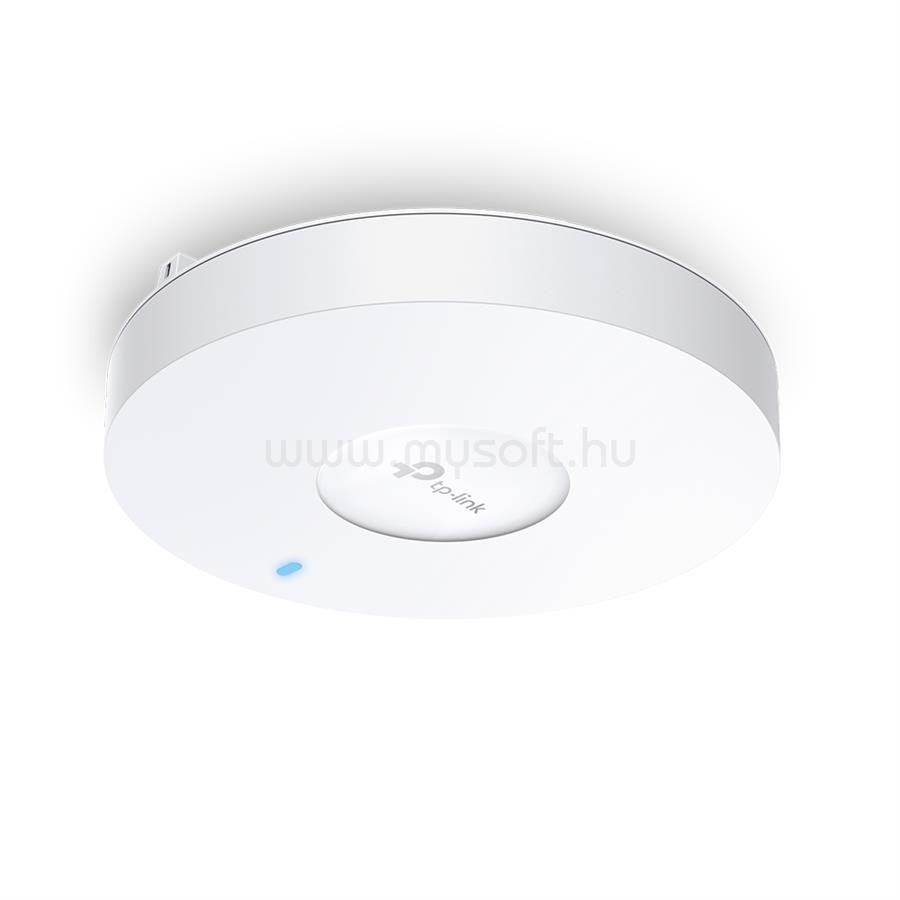

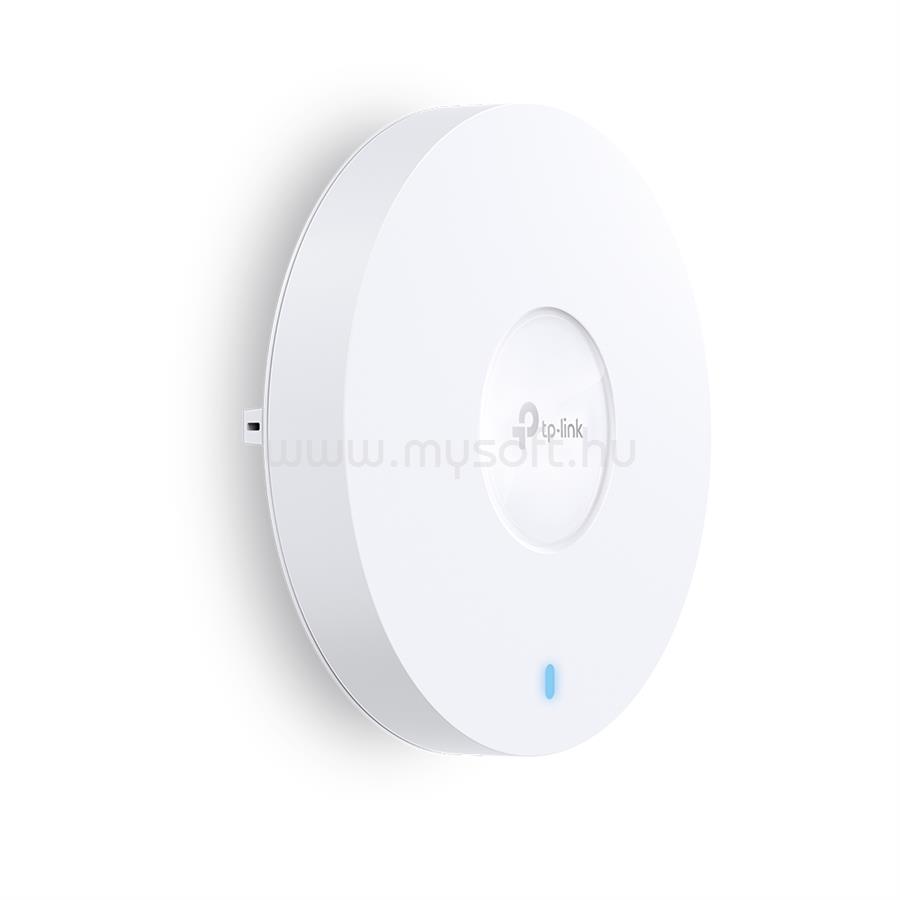

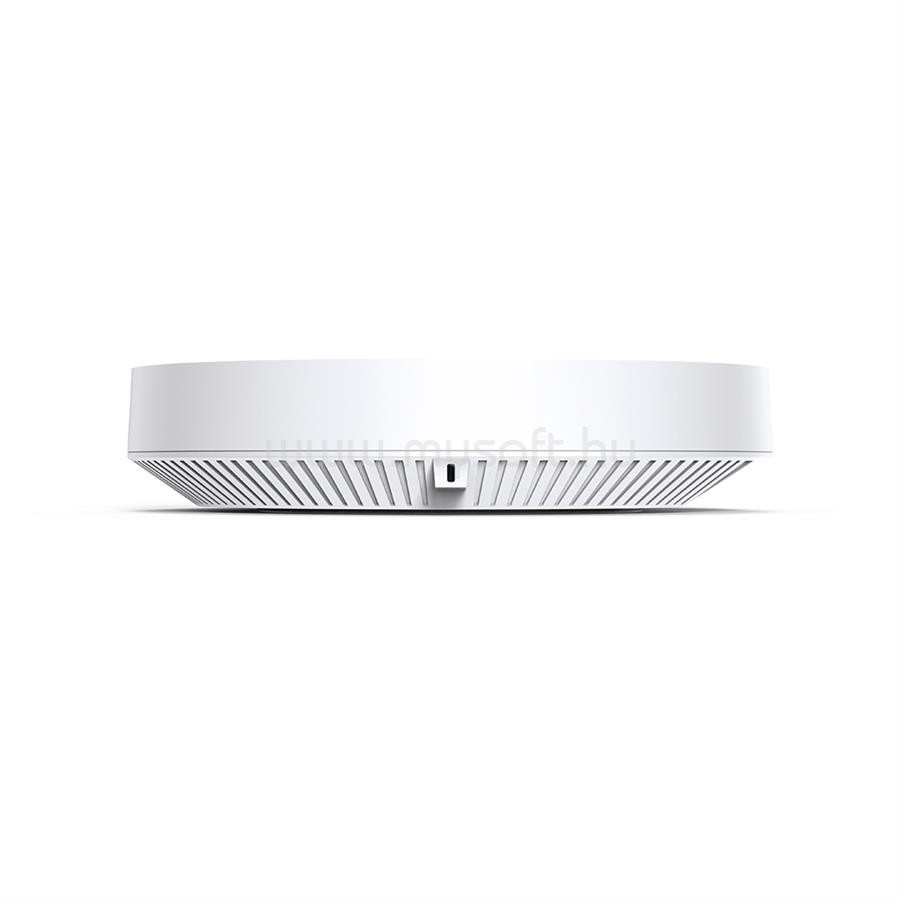

TP-LINK EAP690E HD AXE11000 CEILING MOUNT QUAD-BAND WI-FI 6E ACCESS POINT

• HARDWARE FEATURES

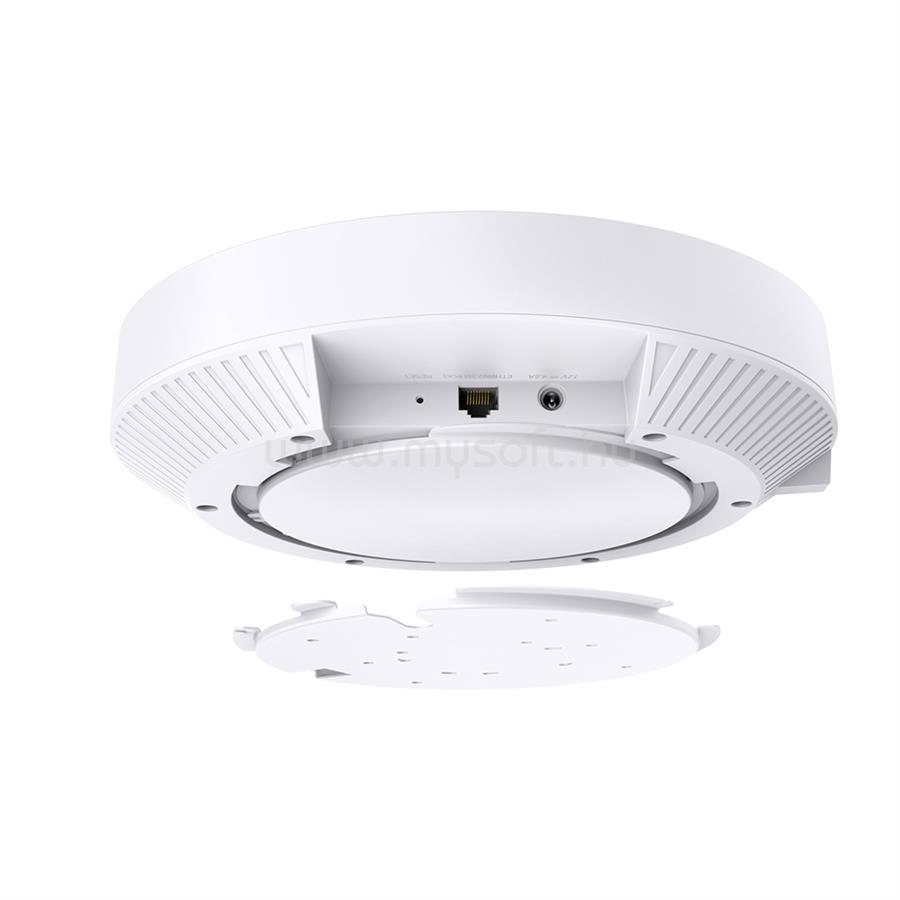

• Interface
• 1× 10Gbps Ethernet Port (supports IEEE802.3bt PoE++)
• Button
• Reset
• Power Supply
• 802.3bt PoE or 12V/4.5A DC
• Power Consumption
• Supports Smart Power Consumption Management
• US:
• 50.5 W (802.3bt, full functionality);
• 44.2 W (12/4.5A, full functionality);
• 25.5 W (802.3at, 5GHz-2 and 6 GHz off);
• 12.95 W (802.3af, radio off, only main chip and LAN working)
• Dimensions ( W x D x H )
• 11.0 × 11.0 × 2.3 in (280 × 280 × 59.1 mm)
• Antenna Type
• Internal Omni
• 2.4 GHz: 4 × 4.0 dBi
• 5 GHz_1: 4 × 5.0 dBi (Smart Antennas)
• 5 GHz_2: 4 × 5.5 dBi (Smart Antennas)
• 6 GHz: 4 × 5.0 dBi
• Mounting
• Ceiling /Wall Mounting (Kits included)

• WIRELESS FEATURES

• Wireless Client Capacity
• 2,000+
• Wireless Standards
• IEEE 802.11ax/ac/n/g/b/a
• Frequency
• 2.4 GHz
• 5 GHz
• 6 GHz
• Signal Rate
• 6 GHz:4804 Mbps
• 5 GHz_1: 2402 Mbps
• 5 GHz_2: 2402 Mbps
• 2.4 GHz: 1148 Mbps
• Wireless Functions
• 1024-QAM
• 4× Longer OFDM Symbol
• OFDMA
• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• MU-MIMO
• HE160 (160 MHz Bandwidth)?
• Seamless Roaming §
• Omada Mesh§
• Band Steering
• Load Balance
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client
• Wireless Security
• Captive Portal Authentication§
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
• Transmission Power
• CE:
• <20 dBm(2.4 GHz, EIRP)
• <23 dBm(5 GHz_1, EIRP)
• <30 dBm(5 GHz_2, EIRP)
• <23 dBm(6 GHz, EIRP)
• FCC:
• <26 dBm (2.4 GHz)
• <26 dBm (5 GHz_1)
• <26 dBm (5 GHz_2)
• <25 dBm (6 GHz)
• Multi-SSID
• 32(8 on each band)

• MANAGEMENT

• Omada App
• Yes
• Centralized Management
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Omada Cloud-Based Controller
• Cloud Access
• Yes (Through OC300, OC200, Omada Software Controller, or Omada Cloud-Based Controller)
• Email Alerts
• Yes
• LED ON/OFF Control
• Yes
• Management MAC Access Control
• Yes
• SNMP
• v1, v2c, v3
• System Logging Local/Remote Syslog
• Local/Remote Syslog
• SSH
• Yes
• Web-based Management
• HTTP/HTTPS
• L3 Management
• Yes
• Multi-site Management
• Yes
• Management VLAN
• Yes

• OTHERS

• Package Contents
• EAP690E HD
• Power Adapter
• Ceiling/Wall Mounting Kits
• Installation Guide
• Environment
• Operating Temperature: 0-40 ? (32-104 ?)
• Storage Temperature: -40-70 ? (-40-158 ?)
• Operating Humidity: 10-90% RH non-condensing
• Storage Humidity: 5-90% RH non-condensing
