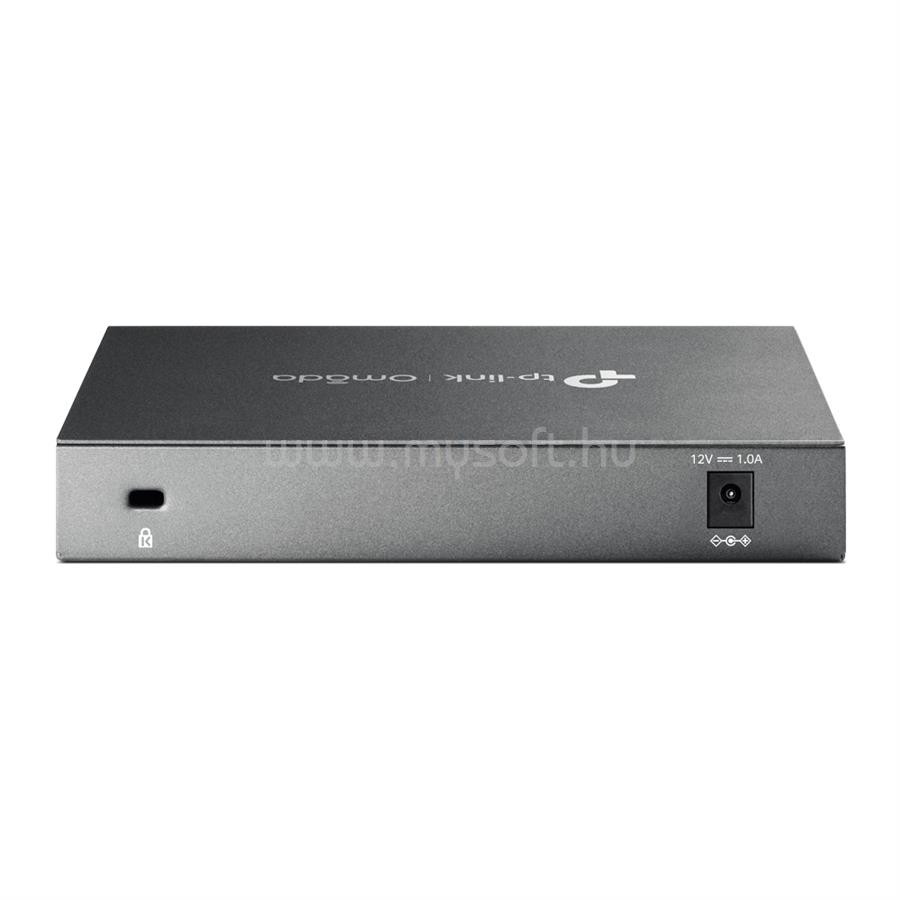

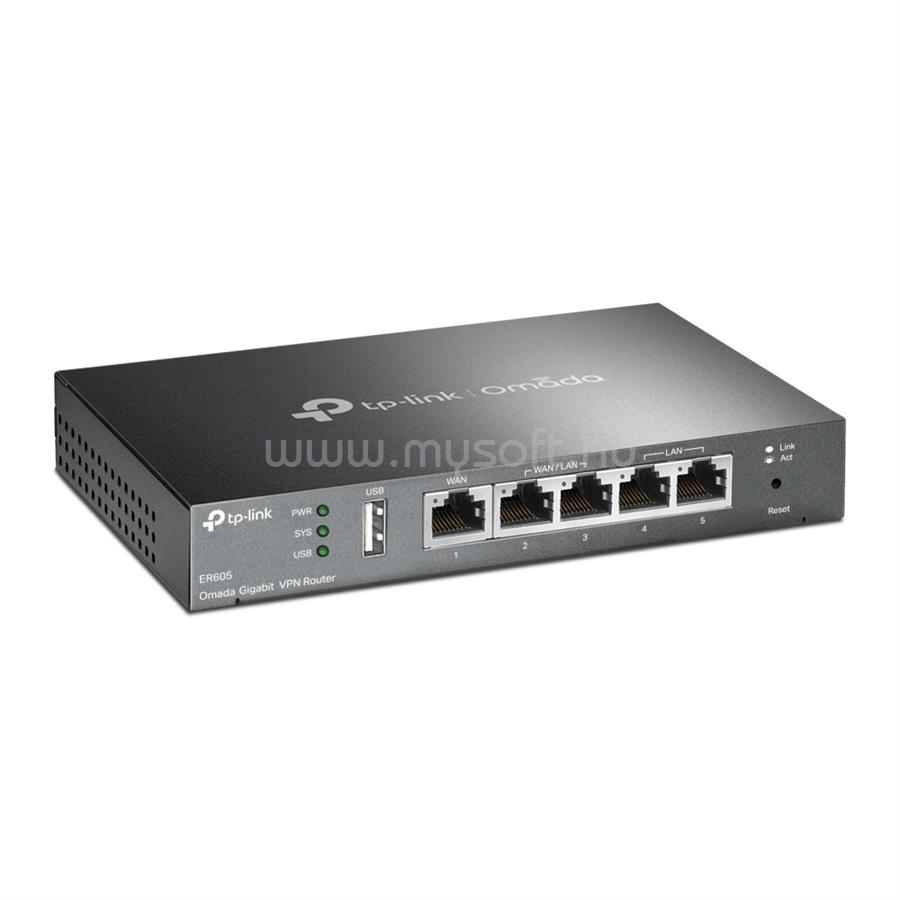

TP-LINK ER605 VEZETÉKES VPN ROUTER 1XWAN(1000MBPS) + 4XLAN(1000MBPS)

• TP-LINK Vezetékes VPN Router 1xWAN(1000Mbps) + 4xLAN(1000Mbps), ER605 (verzió: 2.0):

• HARDWARE FEATURES

• Standards and Protocols
• IEEE 802.3, 802.3u, 802.3ab, IEEE 802.3x, IEEE 802.1q
• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP
• Interface
• 1 Fixed Gigabit WAN Port
• 2 Fixed Gigabit LAN Ports
• 2 Changeable Gigabit WAN/LAN Ports
• 1 USB 2.0 Port (Connecting 4G/3G Modem as WAN Backup?)
• Network Media
• 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
• EIA/TIA-568 100? STP (Max 100m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100m)
• EIA/TIA-568 100? STP (Max 100m)
• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
• Button
• Reset Button
• Power Supply
• External 12V/1A DC Adapter
• Flash
• 128 MB NAND
• DRAM
• 256 MB DDR
• LED
• PWR, SYS, WAN (Link/Act), LAN (Link/Act), USB
• Dimensions ( W x D x H )
• 6.2 × 4.0 × 1.0 in (158 × 101 × 25mm)
• Max Power Consumption
• 7.94 W

• PERFORMANCE

• Concurrent Session
• 150,000
• New Sessions /Second
• 2,600
• NAT (Static IP)
• Upload: 945.77 Mbps
• Download: 945.56 Mbps
• Bi-Directional: 1808.29 Mbps
• NAT(DHCP)
• Upload: 945.93 Mbps
• Download: 945.43 Mbps
• Bi-Directional: 1808.11 Mbps
• NAT(PPPoE)
• Upload: 940.44Mbps
• Download: 940.52 Mbps
• Bi-Directional: 1804.27 Mbps
• NAT (L2TP)
• Upload: 845.64 Mbps
• Download: 802.65 Mbps
• Bi-Directional: 931.96 Mbps
• NAT (PPTP)
• Upload: 771.66 Mbps
• Download: 874.81 Mbps
• Bi-Directional: 999.54 Mbps
• 64 Byte Packet Forwarding Rate
• Upload/Download: 1,402,238 pps
• Bi-Directional: 1,681,548 pps
• IPsec VPN Throughput
• ESP-MD5-AES256: 171.26 Mbps
• ESP-SHA1-AES256: 224.86 Mbps
• ESP-SHA2-AES256: 248.04 Mbps
• OpenVPN
• 21.70 Mbps
• L2TP VPN Throughput
• Unencrypted: 864.65 Mbps
• Encrypted: 47.11 Mbps
• PPTP VPN Throughput
• Unencrypted: 703.20 Mbps
• Encrypted: 76.65 Mbps

• BASIC FUNCTIONS

• WAN Connection Type
• Static/Dynamic IP
• PPPoE
• PPTP
• L2TP
• Mobile Broadband: 4G/3G modem for backup via USB port
• MAC Clone
• Modify WAN/LAN MAC Address
• DHCP
• DHCP Server/Client
• DHCP Address Reservation
• Multi-net DHCP
• Multi-IP Interfaces
• IPv6
• StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough
• VLAN
• 802.1Q VLAN
• IPTV
• IGMP v2/v3 Proxy, Custom Mode, Bridge Mode

• ADVANCED FUNCTIONS

• ACL
• IP/Port/Protocol/Domain Name Filtering
• Advanced Routing
• Static Routing
• Policy Routing
• Bandwidth Control
• IP-based Bandwidth Control
• Load Balance
• Intelligent Load Balance
• Application Optimized Routing
• Link Backup (Timing§, Failover)
• Online Detection
• NAT
• One-to-One NAT
• Multi-Net NAT
• Virtual Server
• Port Triggering
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG, UPnP
• Security
• SPI Firewall
• VPN Passthrough
• FTP/H.323/PPTP/SIP/IPsec ALG
• DoS Defence, Ping of Death
• Local Management
• Session Limit
• IP-based Session Limit

• VPN

• IPsec VPN
• 20 IPsec VPN Tunnels
• LAN-to-LAN, Client-to-LAN
• Main, Aggressive Negotiation Mode
• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
• IKEv1/v2
• MD5, SHA1 Authentication Algorithm
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS)
• PPTP VPN
• PPTP VPN Server
• 10 PPTP VPN Clients
• 16 Tunnels
• PPTP with MPPE Encryption
• L2TP VPN
• L2TP VPN Server
• 10 L2TP VPN Clients
• 16 Tunnels
• L2TP over IPSec
• OpenVPN
• OpenVPN Server
• 10 OpenVPN Clients
• 16 OpenVPN Tunnels

• SECURITY

• Filtering
• WEB Group Filtering
• URL Filtering
• Web Security
• ARP Inspection
• Sending GARP Packets
• ARP Scanning
• IP-MAC Binding
• Attack Defense
• TCP/UDP/ICMP Flood Defense
• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN
• Access Control
• Source/Destination IP Based Access Control

• AUTHENTICATION

• Web Authentication
• No Authentication
• Simple Password
• Hotspot(Local User / Voucher / SMS / Radius)
• External Radius Sever
• External Portal Sever
• Facebook

• MANAGEMENT

• Omada App
• Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
• Centralized Management
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Omada Cloud-Based Controller
• Cloud Access
• Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
• Service
• Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)
• Maintenance
• Web Management Interface
• Remote Management
• Export & Import Configuration
• SNMP v1/v2c/v3
• Diagnostics (Ping & Traceroute)
• NTP Synchronize
• Syslog Support
• Zero-Touch Provisioning
• Yes. Requiring the use of Omada Cloud-Based Controller.
• Management Features
• Automatic Device Discovery
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
• Captive Portal Configuration

• OTHERS

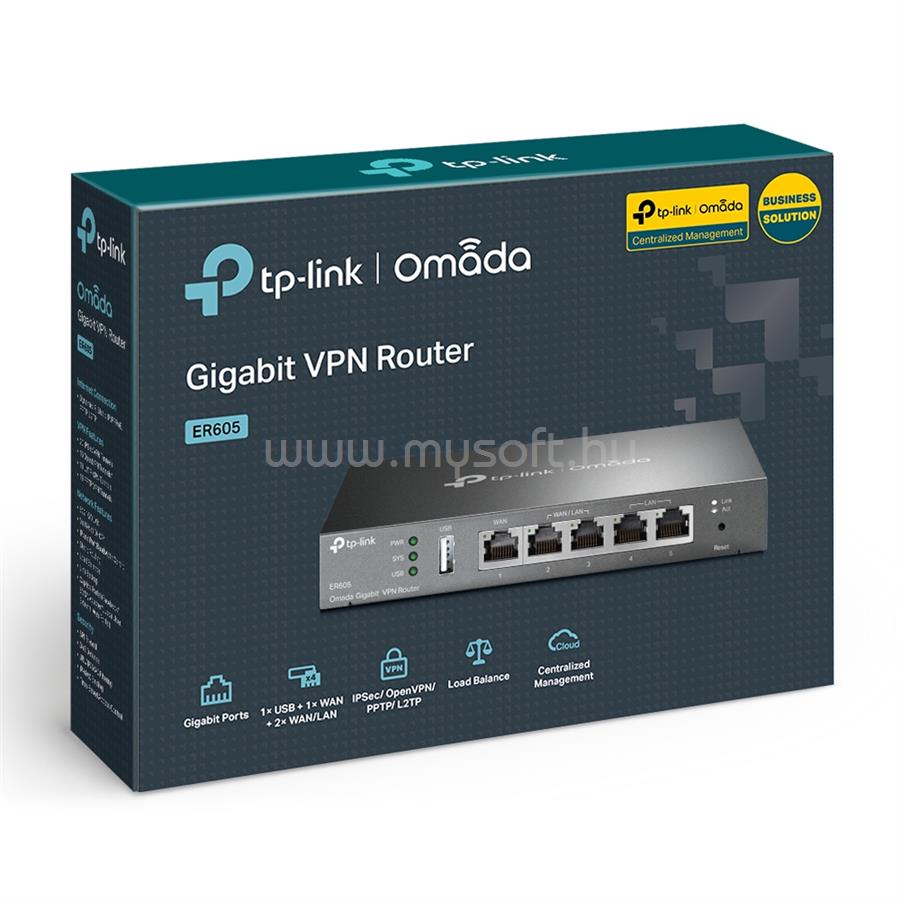

• Package Contents
• Gigabti VPN Router ER605
• Power Adapter
• RJ45 Ethernet Cable
• Quick Installation Guide
• System Requirements
• Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/8.1/10/11, MAC OS, NetWare, UNIX or Linux
• Environment
• Operating Temperature: 0-40 °C (32-104 °F);
• Storage Temperature: -40-70 °C (-40-158 °F)
• Operating Humidity: 10-90% RH non-condensing
• Storage Humidity: 5-90% RH non-condensing

Garancia fogyasztók részére

• 2 év kötelező jótállás + 3 év gyártó által biztosított szervizgarancia

Garancia nem fogyasztók részére

• 5 év gyártó által biztosított szervizgarancia
