FRACTAL DESIGN TÁPEGYSÉG ION+ 2 PLATINUM 860W MODULÁRIS 80+ PLATINUM

• Specifications

• 80PLUS certification
• Platinum
• Modular cables
• Fully modular

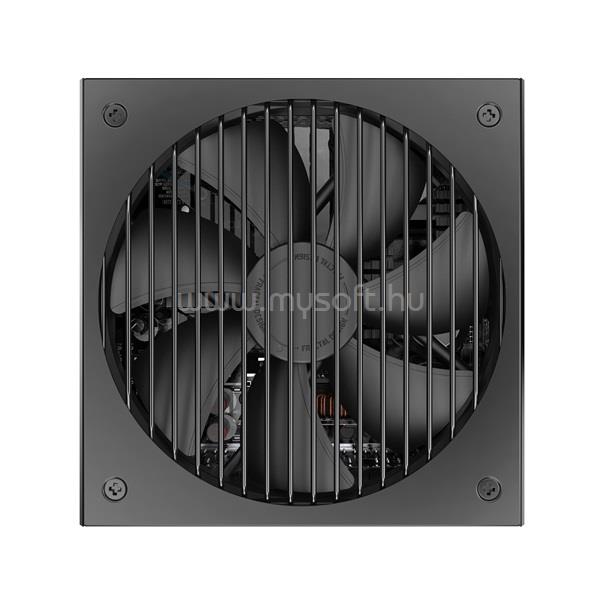

• Fan type
• 140 mm FDB bearing Fractal Design Dynamic series fan
• Maximum operating temperature (full load)
• 50°C
• Semi-passive operation
• Yes, user selectable (Zero RPM)
• Capacitors
• Japanese
• Life expectancy
• 100,000 hours
• PSU specification compliance
• ATX12V 2.52; EPS12V 2.92
• Cable type
• Modular 24-pin cable: Black UltraFlex wires in braided sleeve Other modular cables: Flat black UltraFlex wires
• Input voltage
• 100-240V C
• Input frequency
• 50-60 Hz
• Input current
• 10A/5A
• Protection features
• Over voltage protection, Under voltage protection, Overpower protection, Short circuit protection, Over current protection, Over temperature protection
• Standby efficiency
• ErP 2013 (<0.45W @230. VAC, 45 mA load on +5Vsb)
• Sleep state compliance
• C6/C7

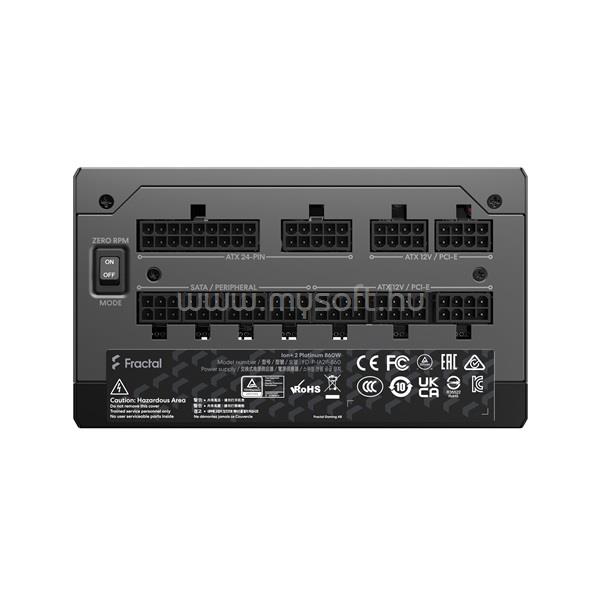

• Connectors

• ATX 24-pin
• 1
• ATX12V 4+4 pin / EPS12V 8-pin
• 2
• PCIe 6+2 pin
• 6
• SATA
• 10
• Peripheral
• 4

• Cable Configuration (length in mm between connectors)

• ATX 20+4 pin
• 600 mm
• ATX 12V 4+4 pin
• 700 mm
• EPS12V 8-pin
• 600 mm
• PCIe 6+2 pin
• 550 + 120 mm
• SATA
• 400+150+150+150 mm & 650+150mm
• Peripheral
• 400+150+150+150 mm

• DC Output

• 3.3V
• 22A
• 5V
• 22A
• 3.3V and 5V combined
• 120W
• 12V
• 71.6A
• -12V
• 0.3A
• +5Vsb
• 3A
• Total Power
• 860W

• Other

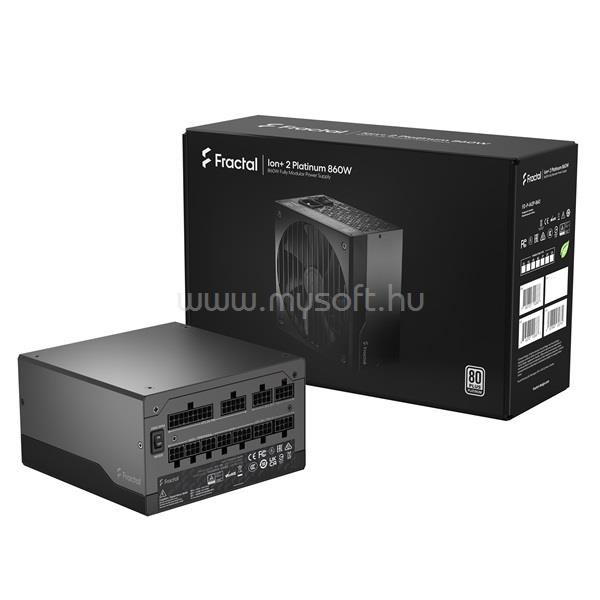

• Package contents
• Power Supply, Power Supply storage bag, Modular cable kit in storage bag, User guide, AC Power cord, Velcro cable ties and mounting screw pack, Included in packaging is a red note as well
• Unit dimensions (LxWxH)
• 150 x 150 x 86 mm
• Net weight (unit only)
• 2.53 kg
• Package dimensions (LxWxH)
• 325 x 210 x 110 mm
• Package weight
• 3.06 kg

Garancia fogyasztók részére

• 2 év kötelező jótállás (gyártó által biztosított szervizgarancia)

Garancia nem fogyasztók részére

• 1 év gyártó által biztosított szervizgarancia
