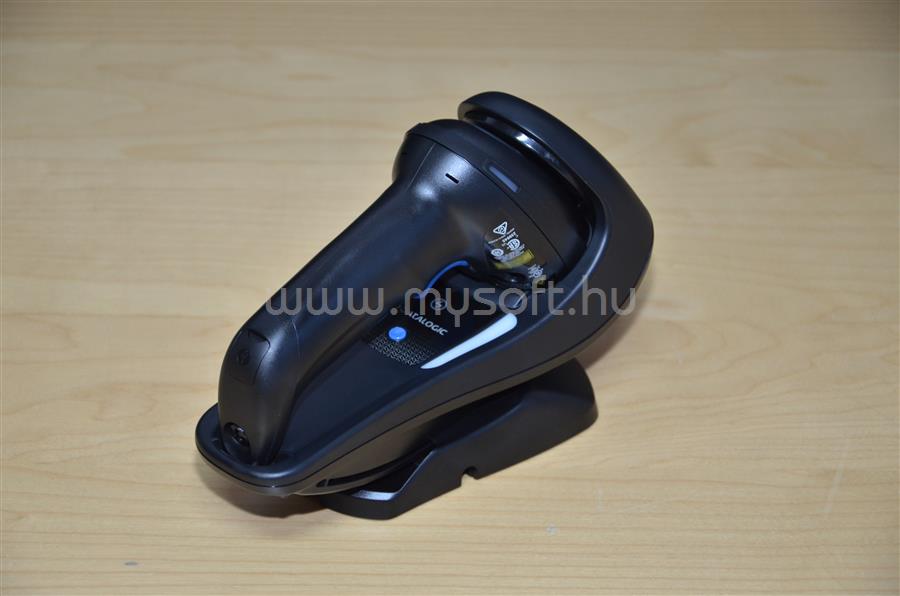

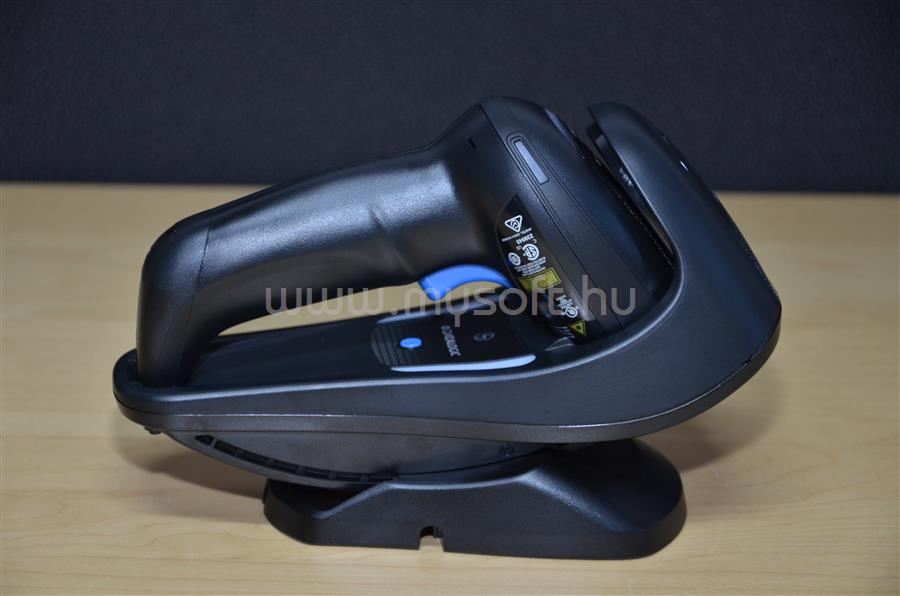

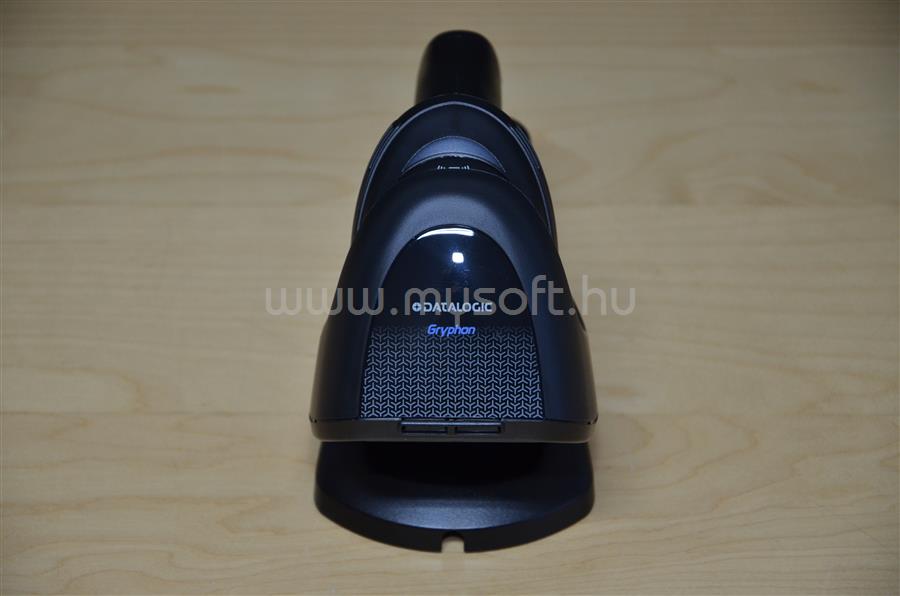

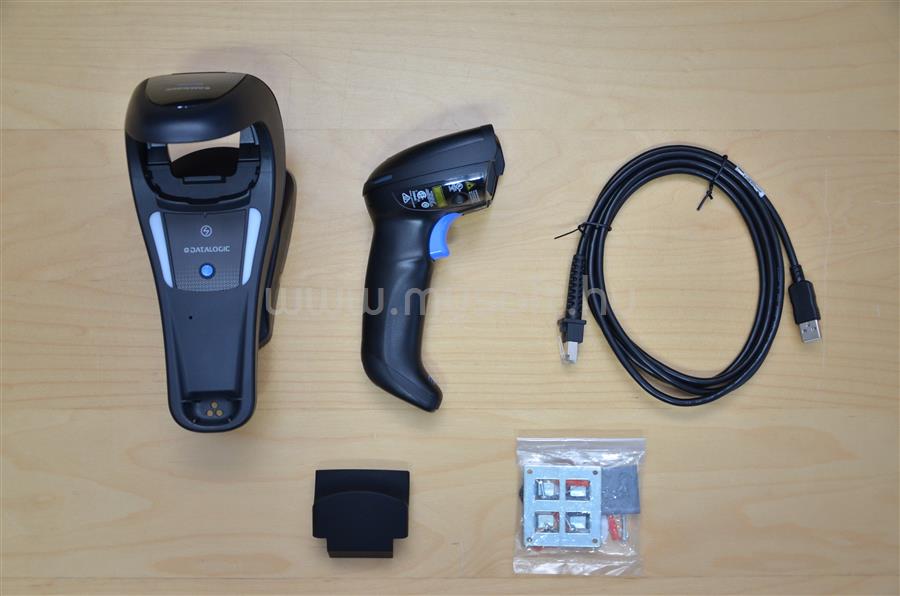

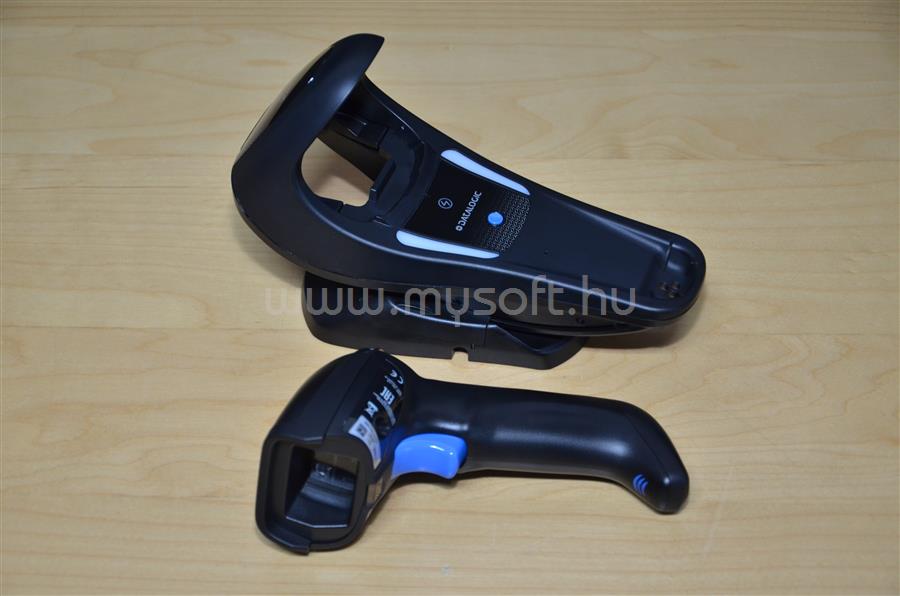

DATALOGIC GRYPHON GM4500, KIT, USB, 433 MHZ, BLACK (KIT INCLUDES SCANNER, WLC4090-BK-433 BASE AND USB CABLE 90A052258)

• CORDLESS MODELS COMMUNICATIONS

• Gryphon GM4500
• Datalogic STAR Cordless System
• Effective Radiated Power: 433.92 MHz: < 6.3 mW;
• 910 MHz: < 50 mW; Multi-Point Configuration: Max.
• Readers per Radio Receiver: 16; Point-to-Point
• Configuration; Radio Frequency: 433.92 MHz; 910 MHz;
• Two Way Communications
• Radio Range (Open Air): 50.0 m / 164.0 ft

• DECODING CAPABILITY

• 1D / Linear Codes
• Auto discriminates all standard 1D codes including GS1 DataBar linear codes.
• 2D Codes
• Aztec Code; China Han Xin Code; Data Matrix; MaxiCode;
• Micro QR Code; QR Code; Dot Code
• Postal Codes
• Australian Post; British Post; China Post; IMB; Japanese
• Post; KIX Post; Planet Code; Postnet; Royal Mail Code
• (RM4SCC)
• Stacked Codes
• EAN/JAN Composites; GS1 DataBar Composites; GS1
• DataBar Expanded Stacked; GS1 DataBar Stacked;
• GS1 DataBar Stacked Omnidirectional; MacroPDF;
• MicroPDF417; PDF417; UPC A/E Composites
• Digital Watermarking
• Digimarc Barcodes

• CORDLESS MODELS ELECTRICAL

• Battery
• Battery Type: Lithium-Ion: 3250 mAh
• Charge Time: External Power: 4 Hours @ 12 VDC;
• Reads per Charge: 80,000
• Cradle Indicator LEDs
• Battery Charging (flashing orange);
• Charge Completed (steady green)
• Current
• Charging (Typical): < 6 W;
• Scanner only: 330 mA @ 3.7 V (Operative)
• Cradle only: 80 mA @ 5 V (Operative)
• Input Voltage (Cradle)
• 4.5 - 14 VDC +/- 5% (WLC4090/WLC4190)

• ENVIRONMENTAL

• Ambient Light
• 0 - 100,000 lux
• Drop Resistance
• Withstands repeated drops from 1.8 m / 6.0 ft onto a
• concrete surface.
• ESD Protection (Air Discharge)
• 16 kV
• Humidity (Non-Condensing)
• 0 - 95%
• Particulate and Water Sealing
• IP52
• Temperature
• Operating: 0 to 50 °C / 32 to 122 °F
• Storage/Transport: -40 to 70 °C / -40 to 158 °F

• INTERFACES

• Interfaces
• CORDLESS MODELS:
• WLC4090: USB / RS-232 Multi-Interface
• WLC4190: USB Type C / USB / RS-232 Multi-Interface

• PHYSICAL CHARACTERISTICS

• Dimensions
• 16.6 x 6.8 x 10.9 cm / 6.5 x 2.7 x 4.3 in (corded/cordless models)
• Weight
• 235 g / 8.29 oz (cordless models, battery included)

• READING PERFORMANCE

• Image Capture
• Graphic Formats: BMP, JPEG, TIFF; Greyscale: 256, 16, 2
• Imager Sensor
• 1 Megapixel: 1280 x 800 pixels
• Light Source
• Aiming: Red Laser 650 nm
• Illumination: Warm White; Hyper Red LED for Digimarc
• Motion Tolerance
• 35 IPS
• Print Contrast Ratio (Minimum)
• 15%
• Reading Angle
• Pitch: +/- 65°; Roll (Tilt): 360°; Skew (Yaw): +/- 65°
• Reading Indicators
• Beeper (adjustable tone); Datalogic Three Green Lights
• (3GL) Good-read feedback: Datalogic 'Green Spot' on the
• Code, Dual Good-read LEDs; Vibration feedback option
• available on cordless models
• Resolution (Maximum)
• High Density (HD): 1D Linear: 0.077 mm / 3 mils;
• PDF417: 0.077 mm / 3 mils;
• Data Matrix: 0.102 mm / 4 mils
• Standard Range (SR): 1D Linear: 0.102 mm / 4 mils;
• PDF417: 0.127 mm / 5 mils;
• Data Matrix: 0.195 mm / 7.5 mils

• READING RANGES

• Typical Depth of Field
• Minimum distance determined by symbol length and scan angle. Printing resolution, contrast, and ambient light dependent.
• Standard Range (SR)
• Code 39: 5 mils: 7.0 to 38.0 cm / 2.7 to 14.9 in
• Code 39: 10 mils: 2.2 to 58.0 cm / 0.8 to 22.8 in
• Data Matrix: 10 mils: 5.5 to 27.0 cm / 2.2 to 10.6 in
• Data Matrix: 15 mils: 2.8 to 41.0 cm / 1.1 to 16.1 in
• EAN/UPC: 13 mils: 1.0 to 71.0 cm / 0.4 to 27.9 in
• PDF417: 10 mils: 2.5 to 41.0 cm / 1.0 to 16.1 in
• QR Code: 10 mils: 5.5 to 24.0 cm / 2.2 to 9.5 in
• High Density (HD)
• Code 39: 3 mils: 5.0 to 15.0 cm / 2.0 to 5.9 in
• Code 39: 5 mils: 0.5 to 25.0 cm / 0.2 to 9.8 in
• Data Matrix: 5 mils: 5.5 to 9.0 cm / 2.2 to 3.5 in
• Data Matrix: 10 mils: 2.0 to 27.0 cm / 0.8 to 10.6 in
• EAN/UPC: 7.5 mils: 2.0 to 23.5 cm / 0.8 to 9.3 in
• EAN/UPC: 13 mils: 1.0 to 40.0 cm / 0.4 to 15.7 in
• PDF417: 4 mils: 3.0 to 12.0 cm / 1.2 to 4.7 in
• PDF417: 10 mils: 0.5 to 31.0 cm / 0.2 to 12.2 in
• QR Code: 10 mils: 2.0 to 25.0 cm / 0.8 to 9.8 in

• SAFETY & REGULATORY

• Agency Approvals
• The product meets necessary safety and regulatory approvals for its intended use.
• The Quick Reference Guide for this product can be referred to for a complete list of certifications.
• Environmental Compliance
• Complies to China RoHS; Complies to EU RoHS
• Laser Classification
• Caution Laser Radiation - Do not stare into beam;
• IEC 60825 Class 2

• UTILITIES

• Datalogic Aladdin
• Datalogic Aladdin configuration program is available for download at no charge.
• OPOS / JavaPOS
• JavaPOS and OPOS Utilities are available for download at no charge.
• Remote Host Download
• Lowers service costs and improves operations
