GIGABYTE ALAPLAP H510M K V2 (LGA1200, MATX)

• CPU

• LGA1200 package:
• 11th Generation Intel© Core™ i9 processors/Intel© Core™ i7 processors/Intel© Core™ i5 processors
• 10th Generation Intel© Core™ i9 processors/Intel© Core™ i7 processors/Intel© Core™ i5 processors/Intel© Core™ i3 processors/Intel© Pentium© processors/Intel© Celeron© processors
• L3 cache varies with CPU

• Chipset

• Intel© H470 Express Chipset

• Memory

• 11th Generation Intel© Core i9/i7/i5 processors:
• Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
• 10th Generation Intel© Core i9/i7 processors:
• Support for DDR4 2933/2666/2400/2133 MT/s memory modules
• 10th Generation Intel© Core i5/i3/Pentium©/Celeron© processors:
• Support for DDR4 2666/2400/2133 MT/s memory modules
• 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
• Dual channel memory architecture
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules

• Onboard Graphics

• Integrated Graphics Processor-Intel© HD Graphics support:
• 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
• * Support for HDMI 1.4 version and HDCP 2.3.
• (Graphics specifications may vary depending on CPU support.)

• Audio

• Realtek© Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel
• * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

• LAN

• Realtek© GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

• Expansion Slots

• CPU:
• 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
• Chipset:
• 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

• Storage Interface

• Chipset:
• 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support)
• 2 x SATA 6Gb/s connectors
• RAID 0, RAID 1, and RAID5 support for NVMe SSD storage devices
• * Supported with an additional PCIe to M.2 NVMe SSD adapter card
• RAID 0, RAID 1, and RAID5 support for SATA storage devices

• USB

• Chipset:
• 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
• 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

• Internal I/O Connectors

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 1 x system fan header
• 1 x RGB LED strip header
• 1 x M.2 Socket 3 connector
• 2 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB 3.2 Gen 1 header
• 1 x USB 2.0/1.1 header
• 1 x serial port header
• 1 x Clear CMOS jumper

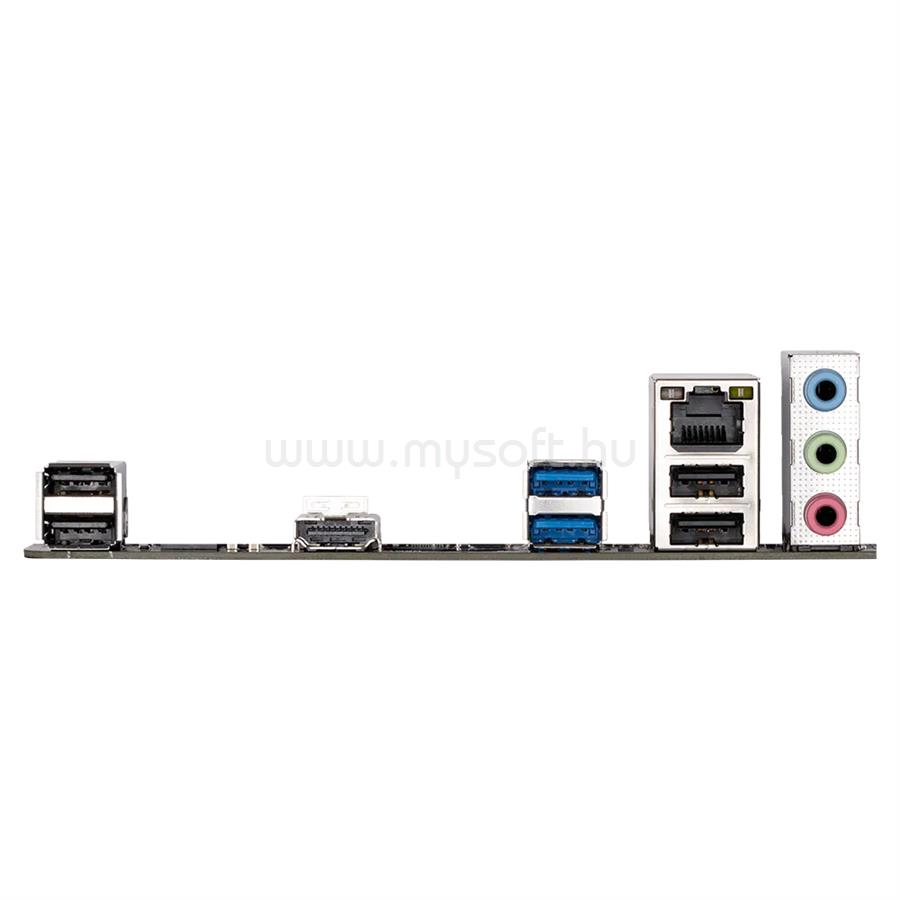

• Back Panel Connectors

• 1 x HDMI port
• 2 x USB 3.2 Gen 1 ports
• 4 x USB 2.0/1.1 ports
• 1 x RJ-45 port
• 3 x audio jacks

• I/O Controller

• iTE© I/O Controller Chip

• H/W Monitoring

• Voltage detection
• Temperature detection
• Fan speed detection
• Fan fail warning
• Fan speed control
• * Whether the fan speed control function is supported will depend on the cooler you install.

• BIOS

• 1 x 128 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Unique Features

• Support for APP Center
• * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
• @BIOS
• Ambient LED
• EasyTune
• Smart Backup
• System Information Viewer
• Support for Q-Flash
• Support for Xpress Install

• Bundled Software

• Norton© Internet Security (OEM version)
• LAN bandwidth management software

• Operating System

• Support for Windows 11 64-bit
• Support for Windows 10 64-bit

• Form Factor

• Micro ATX Form Factor; 22.6cm x 18.5cm

Garancia fogyasztók részére

• 2 év kötelező jótállás + 1 év gyártó által biztosított szervizgarancia

Garancia nem fogyasztók részére

• 3 év gyártó által biztosított szervizgarancia
