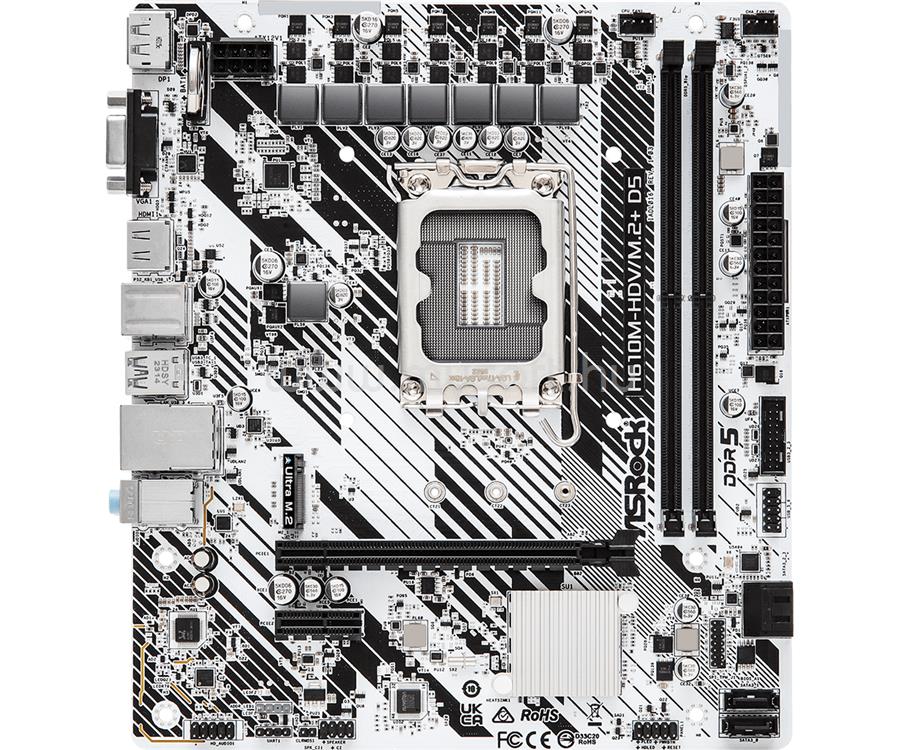

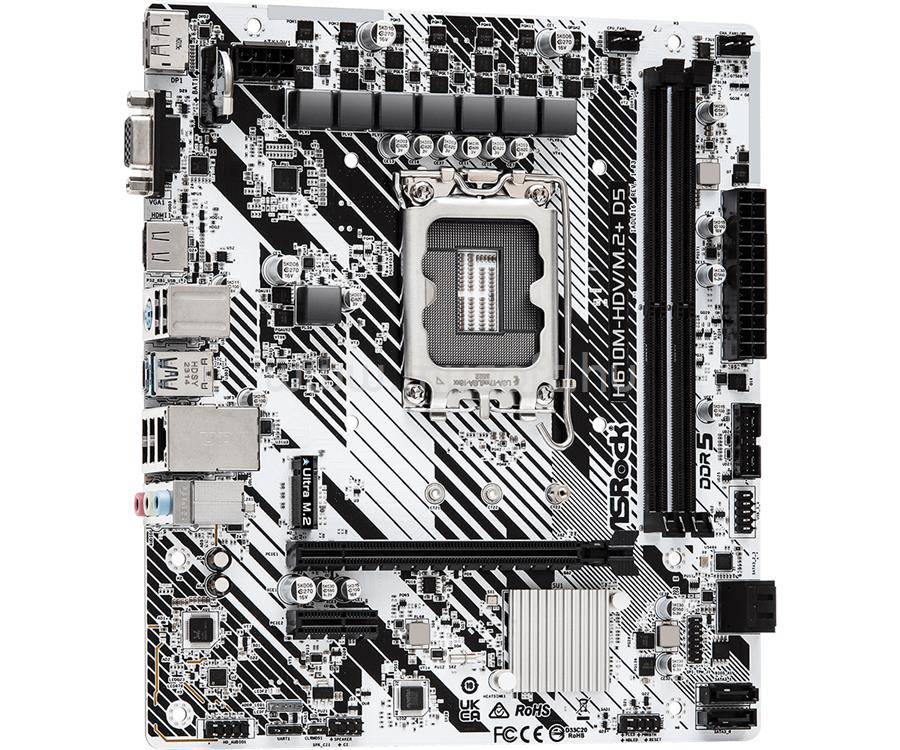

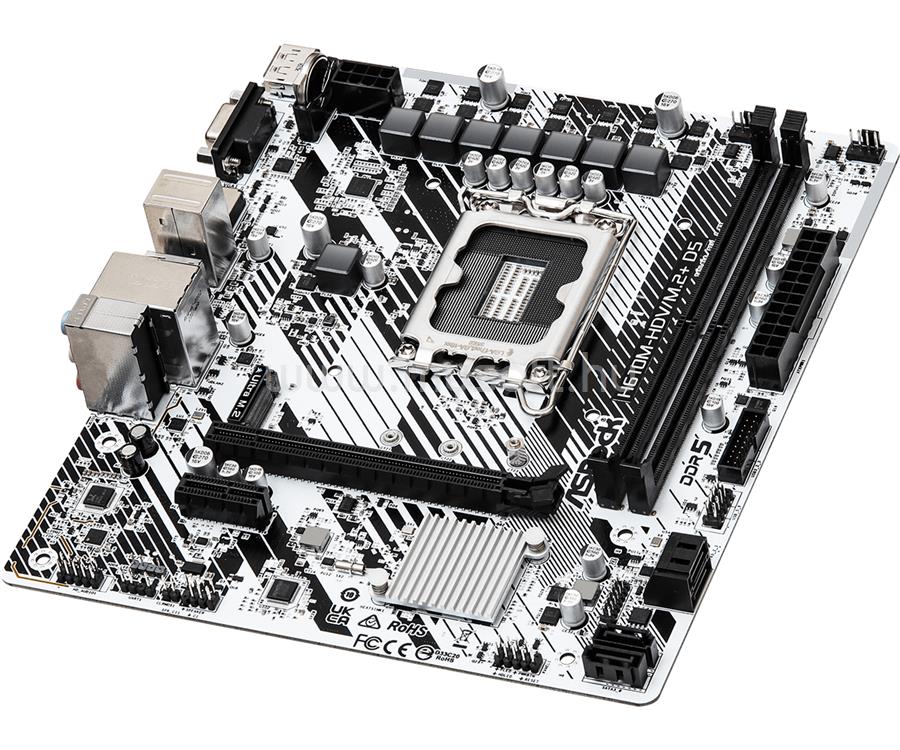

ASROCK ALAPLAP H610M-HDV/M.2+ D5 (LGA1700, MATX)

• Unique Feature

• Superb Productivity
• Dual Channel DDR5
• Rock-Solid Durability
• 6+1 Power Phase
• EZ Update
• ASRock Auto Driver Installer

• CPU

• Supports 14th, 13th & 12th Gen Intel© Core™ Processors (LGA1700)
• Supports Intel© Hybrid Technology
• Supports Intel© Turbo Boost Max 3.0 Technology

• Chipset

• Intel© H610

• Memory

• Dual Channel DDR5 Memory Technology
• 2 x DDR5 DIMM Slots
• 13th Gen Intel© Core Processors support DDR5 non-ECC, un-buffered memory up to 5600*
• 12th Gen Intel© Core Processors support DDR5 non-ECC, un-buffered memory up to 4800*
• Max. capacity of system memory: 96GB
• Supports Intel© Extreme Memory Profile (XMP) 3.0
• * Actual support may vary by CPU.

• BIOS

• 128Mb AMI UEFI Legal BIOS with GUI support

• Graphics

• Intel© Xe Graphics Architecture (Gen 12)*
• 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
• 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
• 1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz
• *Intel© UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

• Audio

• 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

• LAN

• Gigabit LAN 10/100/1000 Mb/s
• Realtek 8111H

• Slots

• CPU:
• 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
• Chipset:
• 1 x PCIe 3.0 x1 Slot (PCIE2)*
• *Supports NVMe SSD as boot disks

• Storage

• Chipset:
• 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode*
• 4 x SATA3 6.0 Gb/s Connectors
• *Supports NVMe SSD as boot disks

• USB

• 1 x USB 3.2 Gen1 Type-C (Rear)
• 3 x USB 3.2 Gen1 Type-A (1 Rear, 2 Front)
• 6 x USB 2.0 (4 Rear, 2 Front)
• * All USB ports support ESD Protection

• Connector

• 1 x SPI TPM Header
• 1 x Chassis Intrusion and Speaker Header
• 1 x Addressable LED Header*
• 1 x CPU Fan Connector (4-pin)**
• 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
• 1 x 24 pin ATX Power Connector
• 1 x 8 pin 12V Power Connector
• 1 x Front Panel Audio Connector
• 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
• 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
• *Support in total up to 5V/3A, 15W LED Strip
• ** CPU_FAN1 supports the fan power up to 1A (12W).
• *** CHA_FAN1/WP supports the fan power up to 2A (24W).
• CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.

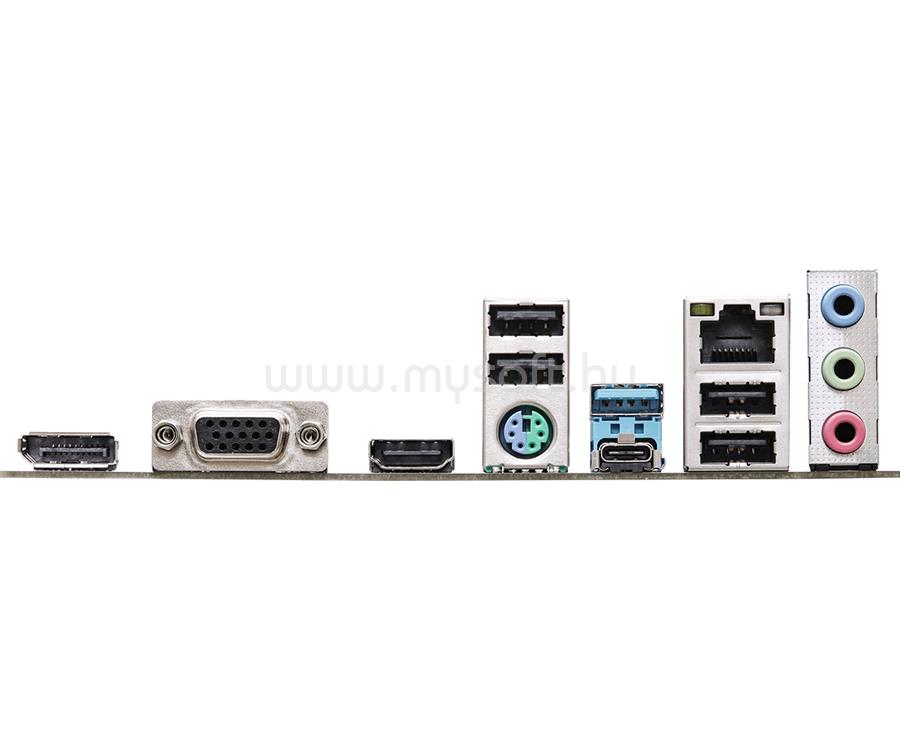

• Rear Panel I/O

• 1 x PS/2 Mouse/Keyboard Port
• 1 x D-Sub Port
• 1 x HDMI Port
• 1 x DisplayPort 1.4
• 1 x USB 3.2 Gen1 Type-C Port
• 1 x USB 3.2 Gen1 Type-A Port
• 4 x USB 2.0 Ports
• 1 x RJ-45 LAN Port
• HD Audio Jacks: Line in / Front Speaker / Microphone

• Software and UEFI

• Software
• ASRock Motherboard Utility (A-Tuning)
• ASRock Polychrome SYNC*
• UEFI
• ASRock EZ Mode
• ASRock Full HD UEFI
• ASRock My Favorites in UEFI
• ASRock Auto Driver Installer
• ASRock Instant Flash
• *These utilities can be downloaded from ASRock Live Update & APP Shop.

• Accessories

• 1 x User Manual
• 1 x I/O Shield
• 2 x SATA Data Cables
• 1 x Screw for M.2 Socket

• Form Factor

• Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm

• OS

• Microsoft Windows© 10 64-bit / 11 64-bit

• Certifications

• FCC, CE
• ErP/EuP ready (ErP/EuP ready power supply is required)
