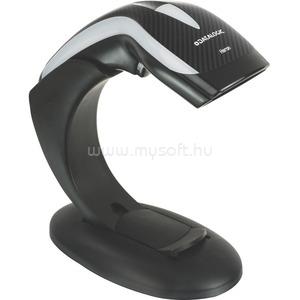

DATALOGIC HERON HD3130 KIT, BLACK (KIT INCLUDES 1D SCANNER, AUTOSENSE FLEX STAND AND USB CABLE)

• DECODING CAPABILITY

• 1D / Linear Codes
• Auto discriminates all standard 1D codes including GS1
• DataBar linear codes.
• Postal Codes
• China Post
• Stacked Codes
• GS1 DataBar Expanded Stacked; GS1 DataBar Stacked;
• GS1 DataBar Stacked Omnidirectional

• ELECTRICAL

• Current
• Operating (Maximum): <500 mA @ 5 VDC
• Operating (Typical): <300 mA @ 5 VDC
• Input Voltage
• 5 VDC +/- 5%

• ENVIRONMENTAL

• Ambient Light
• 0 - 100,000 lux
• Drop Resistance
• Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface.
• ESD Protection (Air Discharge)
• 16 kV
• Humidity (Non-Condensing)
• 5 - 90%
• Particulate and Water Sealing
• IP40
• Temperature
• Operating: 0 to 50 °C / 32 to 122 °F
• Storage/Transport: -20 to 70 °C / -4 to 158 °F

• INTERFACES

• Interfaces
• RS-232 / USB / Keyboard Wedge Multi-Interface

• PHYSICAL CHARACTERISTICS

• Dimensions
• 15.2 x 15.3 x 6.8 cm / 6.0 x 6.0 x 2.7 in
• Top Cap Design
• Carbon-Fiber; Silver
• Weight
• 150.0 g / 5.3 oz

• READING PERFORMANCE

• Imager Sensor
• CCD Solid-State (2,500 pixels)
• Print Contrast Ratio (Minimum)
• 15%
• Read Rate (Maximum)
• 270 reads/sec.
• Reading Indicators
• Beeper (Adjustable Tone and Volume);
• Datalogic 'Green Spot' Good Read Feedback;
• Side and Upper Illumination; Good Read LED
• Resolution (Maximum)
• 0.100 mm / 4 mils

• READING RANGES

• Typical Depth of Field
• Minimum distance determined by symbol length and scan angle. Printing resolution, contrast, and ambient light dependent.
• 5 mils: 5.0 to 15.0 cm / 2.0 to 6.0 in
• 10 mils: 2.0 to 35.0 cm / 0.8 to 13.8 in
• 13 mils: 2.0 to 40.0 cm / 0.8 to 15.7 in
• 20 mils: 2.0 to 60.0 cm / 0.8 to 23.6 in

• SAFETY & REGULATORY

• Agency Approvals
• The product meets necessary safety and regulatory approvals for its intended use.
• The Quick Reference Guide for this product can be referred to for a complete list of certifications.
• Environmental Compliance
• Complies to China RoHS; Complies to EU RoHS directive
• LED Classification
• IEC 62471 Exempt Class

• UTILITIES

• Datalogic Aladdin
• Datalogic Aladdin configuration program is available for download at no charge.
• OPOS / JavaPOS
• OPOS and JavaPOS utilities are available for download at no charge.
• Remote Host Download
• Lowers service costs and improves operations
