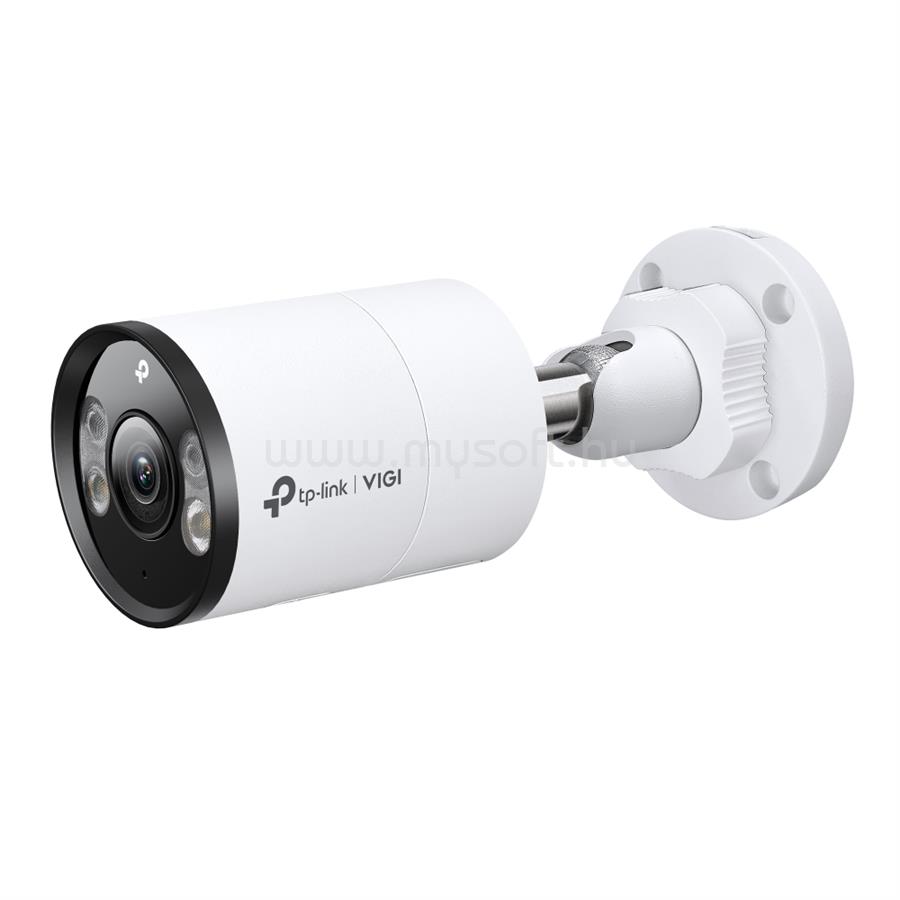

TP-LINK INSIGHT S345 IP CSŐKAMERA (FULLCOLOR, 4MP, 2.8MM, IP67, H265+, LED+IR30M, 12VDC/POE, MIKROFON, HANGSZ.; FÉM HÁZ)

• CAMERA

• Image Sensor
• 1/2.7" Progressive Scan CMOS
• Shutter Speed
• 1/3 to 1/10000 s
• Slow Shutter
• Yes
• Minimum Illumination
• 0.005 Lux; 0 Lux with IR/White light
• Day/Night Mechanism
• IR Cut Filter
• Day/Night Switch
• Unified/ Scheduled/ Auto

• LENS

• Type
• Fixed Focal Lens
• Focal Length
• 2.8 mm
• Aperture
• F1.6
• FOV
• 2.8 mm:
• Horizontal FOV: 100°, Vertical FOV: 54°, Diagonal FOV: 118°
• Lens Mount
• M12*P 0.5
• DORI Distance
• 2.8 mm
• Detect: 64 m (210 ft)
• Observe: 27 m (89 ft)
• Recognize: 13 m (43 ft)
• Identify: 6 m (20 ft)

• Angle Adjustment (Manual)

• Range
• Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°

• ILLUMINATOR

• IR LED
• Quantity: 2
• Range: 30m
• Wavelength: 850nm
• White LED
• Quantity: 2
• Range: 30m
• Illuminator On/Off Control
• Auto/Scheduled/Always on/Always off

• VIDEO

• Max. Resolution
• 2688 x 1520
• Main Stream
• Frame Rate:
• 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
• 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Resolution:
• 2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720
• Note:
• If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
• Sub-Stream
• Frame Rate:
• 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
• 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Resolution:
• 848x480, 704x576, 640x480, 640x360, 352x288, 320x240
• Note:
• If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
• Bit Rate Control
• CBR, VBR
• Video Compression
• Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264
• H.264 Type
• High Profile
• H.264+
• Main Stream Supported
• H.265 Type
• Main Profile*
• H.265+
• Main Stream Supported*
• Video Bit Rate
• Main Stream: 256 Kbps to 6 Mbps
• Sub-Stream: 64 Kbps to 512 Kbps

• Image

• Image Settings
• Mirror
• Brightness
• Contrast
• Saturation
• Sharpness
• Exposure
• WDR
• White Balance
• Prevent Overexposure to Infrared Light
• HLC Adjustable by Client Software
• Image Enhancement
• BLC/3D DNR/HLC/SmartIR
• Wide Dynamic Range
• 120 dB
• Note: When People & Vehicle Analytics is enabled, only DWDR is supported.
• SNR
• > 52 dB
• Image Parameters Switch
• Yes
• Privacy Mask
• Up to 4 Masks
• ROI
• 1 Region
• OSD Setting
• Yes

• AUDIO

• Audio Communication
• Two-Way Audio
• Audio Input
• Yes
• Audio Output
• Yes
• Audio Compression
• Yes
• Audio Sampling Rate
• 8KHz
• Environment Noise Filtering
• Yes
• Audio Bit Rate
• 64 Kbps(G.711 alaw)

• NETWORK

• Protocol
• TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
• ONVIF
• Yes
• API
• ONVIF Profile S/T/G
• Simultaneous Live View
• 3 Main Streams & 3 Sub-Streams
• Client
• VIGI App, VIGI Security Manager, Web UI, VIGI VMS, VIGI Cloud VMS
• Web Browser
• Google Chrome© 57 and above
• Firefox© 52 and above
• Safari© 11 and above
• Microsoft© Edge 91 and above
• Cloud
• Yes
• Security
• Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

• ALARM AND EVENT MANAGEMENT

• Smart Event
• Intrusion Detection
• Line-Crossing Detection
• Region Entering Detection
• Region Exiting Detection
• Object Abandoned Detection
• Object Removal Detection
• Loitering Detection
• People Detection
• Vehicle Detection
• Abnormal Sound Detection
• Scene Change Detection
• Basic Event
• Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts)
• Video Tampering Detection
• Exception ( Illegal Login)
• Alarm Linkage
• Memory Card Video Recording
• Message Push
• Audible Warning
• White Light Flashing
• Linkage Method
• N/A
• Output Notification
• Message Push

• Deep Learning Function

• People & Vehicle Analytics
• Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.§

• INTERFACES

• Network Interface
• 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
• Alarm
• N/A
• Reset Button
• Yes
• Power
• DC Power Port
• On-board Storage
• Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB**
• Built-in Microphone
• Yes; Records Anything Going on within a 15-ft Radius of the Camera
• Built-in Speaker
• Yes
• Audio
• N/A

• GENERAL

• Operating Temperature
• -30-60 °C
• Storage Temperature
• -40-60 °C
• Operating Humidity
• 95% or Less (Non-Condensing)
• Storage Humidity
• 95% or Less (Non-Condensing)
• Package Contents
• VIGI Network Camera
• Quick Start Guide
• Waterproof Cable Attachments
• Mounting Accessories
• Material
• Metal
• Net Weight
• 0.525 Kg
• Power Supply
• 12V DC +/- 5%, Max. 9.7 W, 5.5 mm Coaxial Power Plug
• PoE: 802.3af/at, class 0, Max. 10.7 W
• Protection
• IP67
• Product Dimensions (L x W x H)
• 7.2 × 2.9 × 2.9 in (184 × 74 × 74 mm)
• Certifications
• CE, NTRA, VCCI, KC, BSMI, FCC, IC
