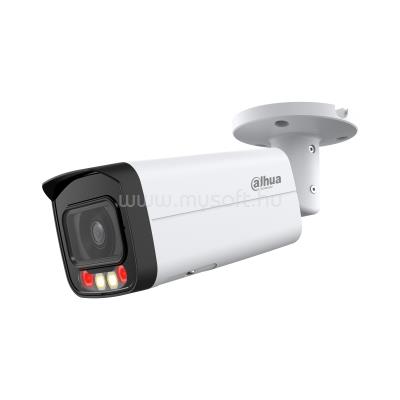

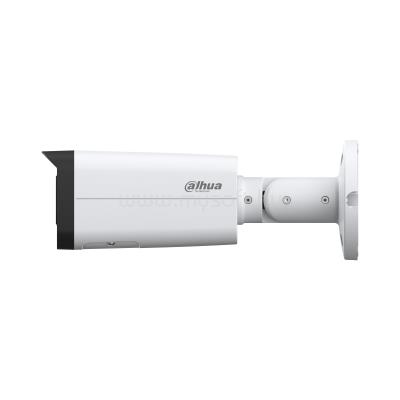

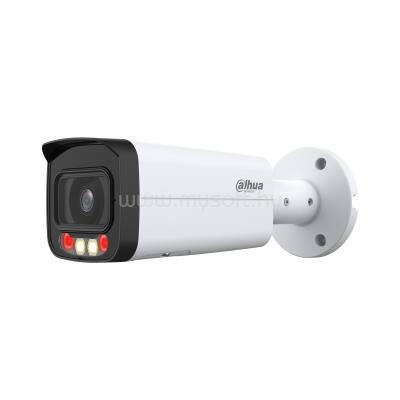

DAHUA IPC-HFW2849T-AS-IL IP CSŐKAMERA (8MP, 3,6MM, KÜLTÉRI, H265+, IP67, IR60M, IL50M, SD, POE, MIKROFON, LITE AI)

• Camera

• Image Sensor
• 1/2.7" CMOS
• Max. Resolution
• 3840 (H) × 2160 (V)
• ROM
• 128 MB
• RAM
• 256 MB
• Scanning System
• Progressive
• Electronic Shutter Speed
• Auto/Manual 1/3 s-1/100,000 s
• Min. Illumination
• 0.008 Lux@F1.6 (Color, 30 IRE)
• 0.0008 Lux@F1.6 (B/W, 30 IRE)
• 0 lux (Illuminator on)
• S/N Ratio
• >56 dB
• Illumination Distance
• up to 60 m (195.85 ft) (IR)
• up to 50 m (164.04 ft) (Warm light)
• Illuminator On/Off Control
• Auto; Manual
• Illuminator Number
• 2 (IR LED); 2 (Warm light)
• Pan/Tilt/Rotation Range
• Pan: 0°-360°
• Tilt: 0°-90°
• Rotation: 0°-360°

• Lens

• Lens Type
• Fixed-focal
• Lens Mount
• M12
• Focal Length
• 3.6 mm; 6 mm
• Max. Aperture
• F1.6
• Field of View
• 3.6 mm: H: 87°; V: 49°; D: 100°
• 6 mm: H: 55°; V: 31°; D: 62°
• Iris Control
• Fixed
• Close Focus Distance
• 3.6 mm: 1.9 m (6.23 ft)
• 6 mm: 3.5 m (11.48 ft)

• Intelligence

• IVS (Perimeter Protection)
• Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
• Smart Search
• Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

• Video

• Video Compression
• H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
• Smart Codec
• Smart H.265+; Smart H.264+
• Video Frame Rate
• Main stream: 3840 × 2160@(1-20 fps )/2688×1520@(1-25/30 fps)
• Sub stream: 704 × 576@(1-25 fps)/704 × 480@(1-30 fps)
• *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
• Stream Capability
• 2 streams
• Resolution
• 3840 × 2160 (3840 × 2160); 3072 × 2048 (3072 × 2048); 3072 ×1728 (3072 × 1728); 2880 × 1620 (2880 × 1620); 2688 × 1520 (2688 × 1520); 3M (2048 × 1536); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 ×480); VGA (640 ×480); CIF (352 × 288/352 × 240)
• Bit Rate Control
• CBR/VBR
• Video Bit Rate
• H.264: 32 kbps-8192 kbps
• H.265: 12 kbps-8192 kbps
• Day/Night
• Auto(ICR)/Color/B/W
• BLC
• Yes
• HLC
• Yes
• WDR
• 120 dB
• White Balance
• Auto; natural; street lamp; outdoor; manual; regional custom
• Gain Control
• Auto; Manual
• Noise Reduction
• 3D NR
• Motion Detection
• OFF/ON (4 areas, rectangular)
• Region of Interest (RoI)
• Yes (4 areas)
• Smart Illumination
• Yes
• Image Rotation
• 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
• Mirror
• Yes
• Privacy Masking
• 4 areas

• Audio

• Built-in MIC
• Yes
• Audio Compression
• G.711a; G.711Mu; G.726; PCM

• Alarm

• Alarm Event
• No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception; external alarm

• Network

• Network Port
• RJ-45 (10/100 Base-T)
• SDK and API
• Yes
• Network Protocol
• IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Boujour; P2P
• Interoperability
• ONVIF (Profile S/Profile T/Profile G); CGI
• User/Host
• 20 (Total bandwidth: 48 M)
• Storage
• FTP; SFTP; Micro SD card (support max. 256 GB)
• Management Software
• SmartPSS Lite; DSS; DMSS
• Browser
• IE; Chrome; Firefox
• Mobile Client
• iOS; Android
• Cyber Security
• Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade

• Port

• Audio Input
• 1 channel (RCA port)
• Audio Output
• 1 channel (RCA port)
• Alarm Input
• 1 channel in: 5 mA 3-5 VDC
• Alarm Output
• 1 channel out: 300 mA 12 VDC

• Power

• Power Supply
• 12 VDC/PoE (802.3af)
• Power Consumption
• Basic: 2.6 W (12 VDC); 3.4 W (PoE)
• Max. (H.265+ max. resolution + max. stream+ WDR + illuminator intensity + IVS): 7 W (12 VDC); 8.3 W (PoE)

• Environment

• Operating Temperature
• -40 °C to +60 °C (-40 °F to +140 °F)
• Operating Humidity
• <95%
• Storage Temperature
• -40 °C to +60 °C (-40 °F to +140 °F)
• Storage Humidity
• <95%
• Protection
• IP67; IK10 (optional)
• Anti-corrosion Level
• Low

• Structure

• Casing Material
• Metal
• Product Dimensions
• 238.5 mm × 90.7 mm × 90.7 mm (9.39" × 3.57" × 3.57") (L × W × H)
• Net Weight
• 0.72 kg (1.59 lb)
• Gross Weight
• 0.97 kg (2.14 lb)
