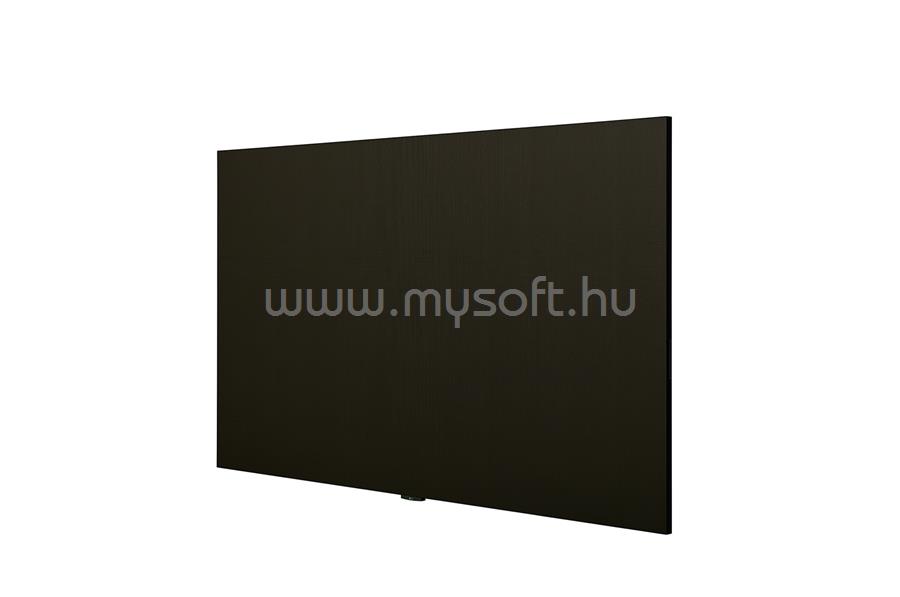

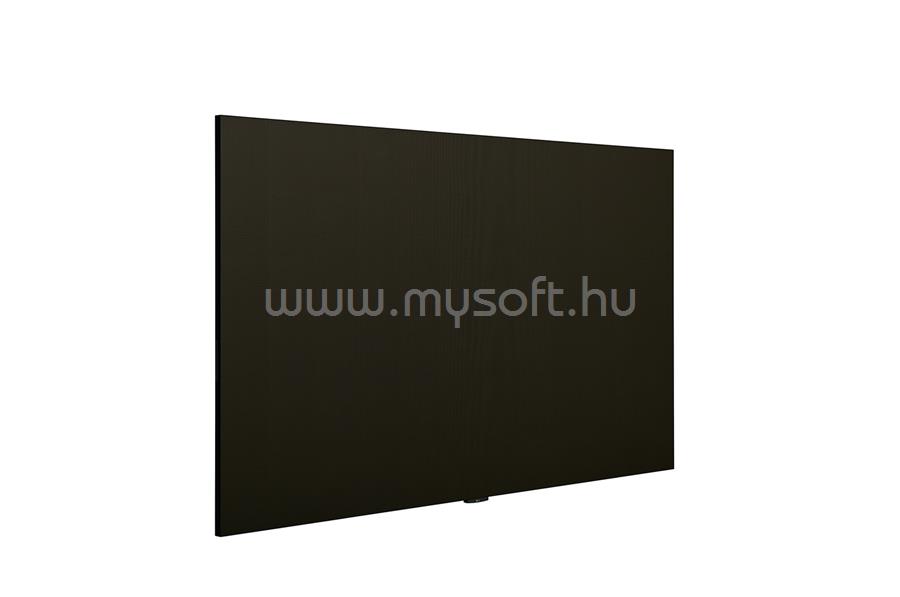

LG LAEC015-GN2 136" LFD

• Physical Parameters

• Pixel Configuration
• Single SMD
• Pixel Pitch (mm)
• 1.56
• Screen Resolution (WxH)
• 1,920 x 1,080
• Module Dimensions(WxH,mm)
• 250x281.25
• No. of Modules per Screen (WxH)
• 12 x 6 (Total 72)
• Screen Dimension (W x H x D, mm)
• 3,004 × 1,692 × 36.5 (Thickest 70)
• Screen Surface Area (M2)
• 5.06
• Screen Weight (kg)
• 132
• Physical Pixel Density (pixels/m2)
• 409,600
• Flatness of Unit Case (mm)
• +/-0.2
• Unit Case Material
• Aluminum
• Service Access
• Front

• OPTICAL SPECIFICATIONS

• Min. Brightness (After Calibration)
• 500 nit
• Color Temperature
• 3,200~9,300
• Visual Viewing Angle (H × V)
• 160° x 160°
• Brightness Uniformity
• 98%
• Color Uniformity
• +/-0.015Cx,Cy
• Contrast Ratio
• 3,000:1
• Processing Depth (bit)
• 16 (HDR10, HDR10 Pro)

• ELECTRICAL SPECIFICATIONS

• Power Consumption (W/screen, Max.)
• 1,700
• Power Consumption (W/screen, Avg.)
• 680
• Power Consumption (W/m2, Max.)
• 336
• Power Consumption (BTU/h/Screen, Max.)
• 5,800
• Power Consumption (BTU/h/Screen, Avg.)
• 2,321
• Power Consumption (BTU/h/?, Max.)
• 1,146
• Power Supply (V)
• 100 to 240
• Frame Rate (Hz)
• 50 / 60
• Refresh Rate (Hz)
• 3,960

• OPERATION SPECIFICATIONS

• LED Lifetime (Half brightness)
• 100,000
• Operating Temperature(?)
• 0? to +40?
• Operating Humidity
• 10-90% RH
• IP Rating Front
• IP30
• IP Rating Rear
• IP20

• Speaker

• Speaker
• Built-in(9W+9W)

• Certification

• Certification
• CE, FCC, ETL, CB

• Environment

• Environment
• RoHS, REACH

• Controller

• Controller
• Embedded

Garancia fogyasztók részére

• 3 év kötelező jótállás (gyártó által biztosított szervizgarancia)

Garancia nem fogyasztók részére

• 3 év gyártó által biztosított szervizgarancia
