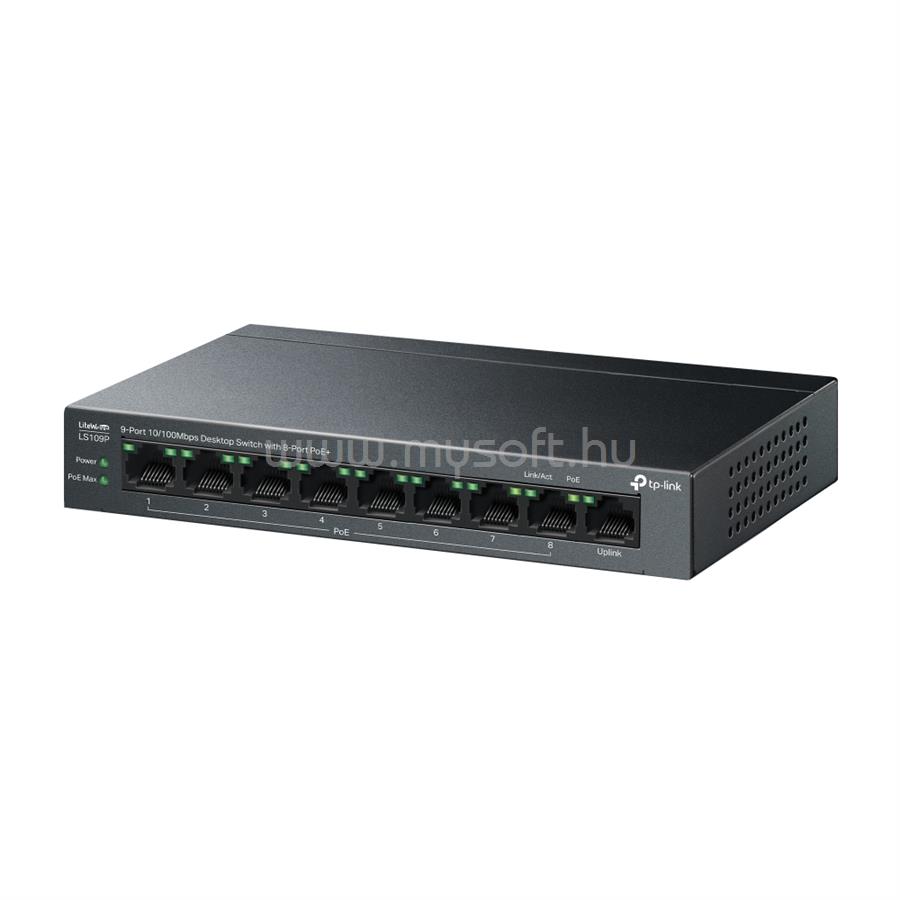

TP-LINK LS109P 9-PORT 10/100MBPS DESKTOP SWITCH WITH 8-PORT POE+

• HARDWARE FEATURES

• Interface
• 9× 10/100 Mbps RJ45 Ports (8× 10/100 Mbps 802.3af/at PoE+ Ports)
• AUTO Negotiation
• AUTO MDI/MDIX
• Network Media
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100? STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100? STP (maximum 100m)
• Fan Quantity
• Fanless
• Installation
• Desktop
• Wall Mounting
• Power Supply

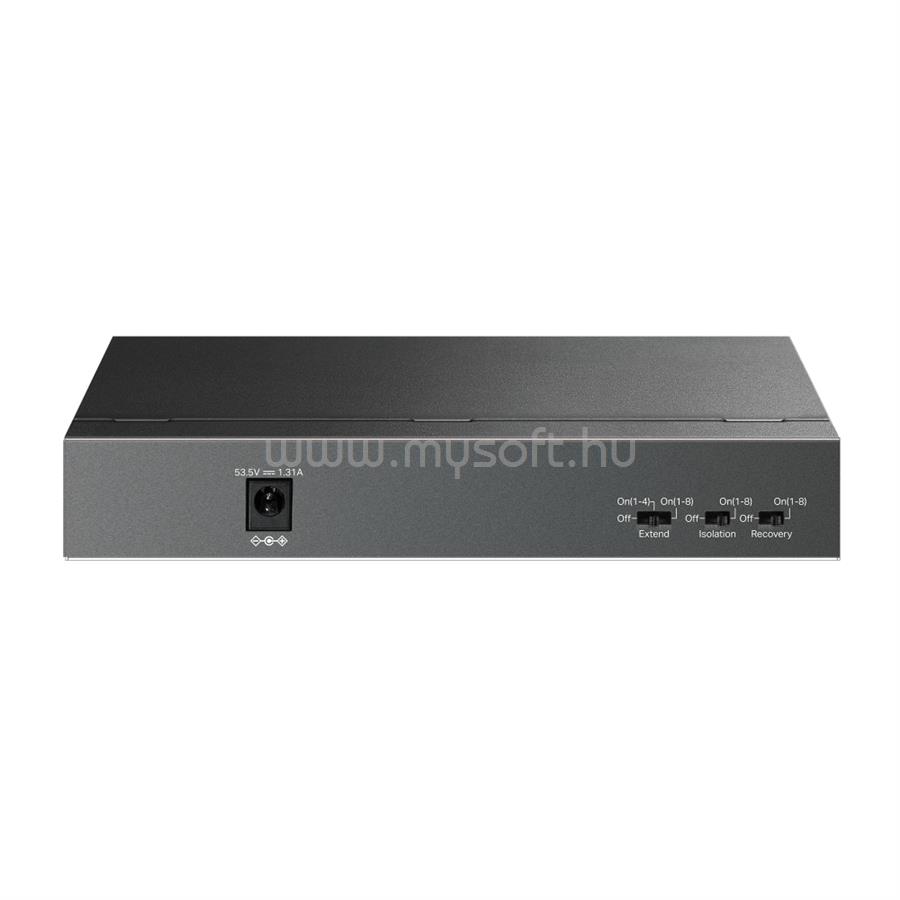

• External Power Adapter (Output: 53.5VDC / 1.31A)
• PoE Ports (RJ45)
• Standard: 802.3 af/at compliant
• PoE Ports: Ports 1-8, up to 30 W PoE output per port
• Power Supply: 63 W
• LED Indicator
• Power
• Link/Act
• PoE Status
• PoE MAX
• Dimensions ( W x D x H )
• 6.7×3.9×1.1 in (171×98×27 mm)
• Max Power Consumption
• 3.67 W (220 V/50 Hz no PD connected)
• 73.24 W (220 V/50 Hz with 63 W PD connected)
• Max Heat Dissipation
• 12.48 BTU/h (220 V/50 Hz no PD connected)
• 249 BTU/h (220 V/50 Hz with 63 W PD connected)

• PERFORMANCE

• Switching Capacity
• 1.8 Gbps
• Packet Forwarding Rate
• 1.3392 Mpps
• MAC Address Table
• 2K
• Jumbo Frame
• 1.5 KB

• SOFTWARE FEATURES

• Advanced Features
• Extend Mode Button (Ports 1-4/1-8, Up to 250 m PoE power supply and data transmission)
• Isolation Mode Button (Ports 1-8)
• PoE Auto Recovery Button (Ports 1-8)
• Compatible With IEEE 802.3af/at Compliant PDs
• Mac Address Auto-Learning and Auto-Aging
• IEEE 802.3x Flow Control
• Green Technology
• Transfer Method
• Store and Forward

• OTHERS

• Certification
• CE, FCC, RoHS
• Package Contents
• LS109P
• Power Adapter
• Installation Guide
• Rubber Feet
• Environment
• Operating Temperature: 0-40 ? (32-104 ?)
• Storage Temperature: -40-70 ? (-40-158 ?)
• Operating Humidity: 10-90% RH non-condensing
• Storage Humidity: 5-90% RH non-condensing
