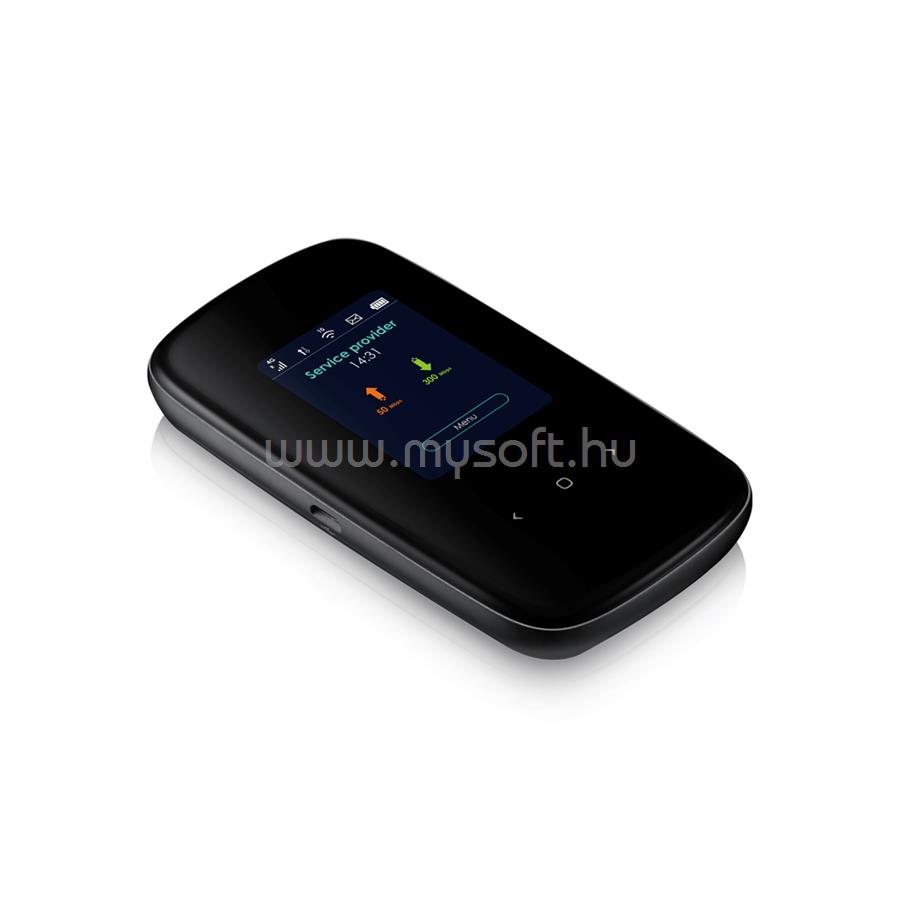

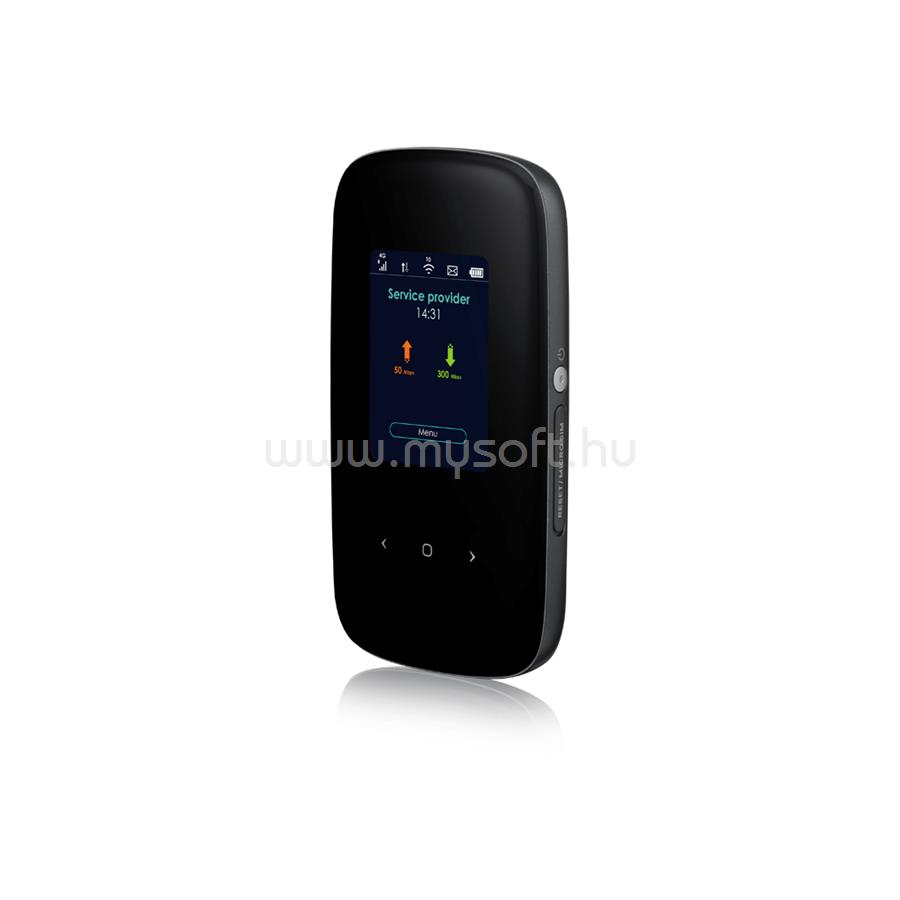

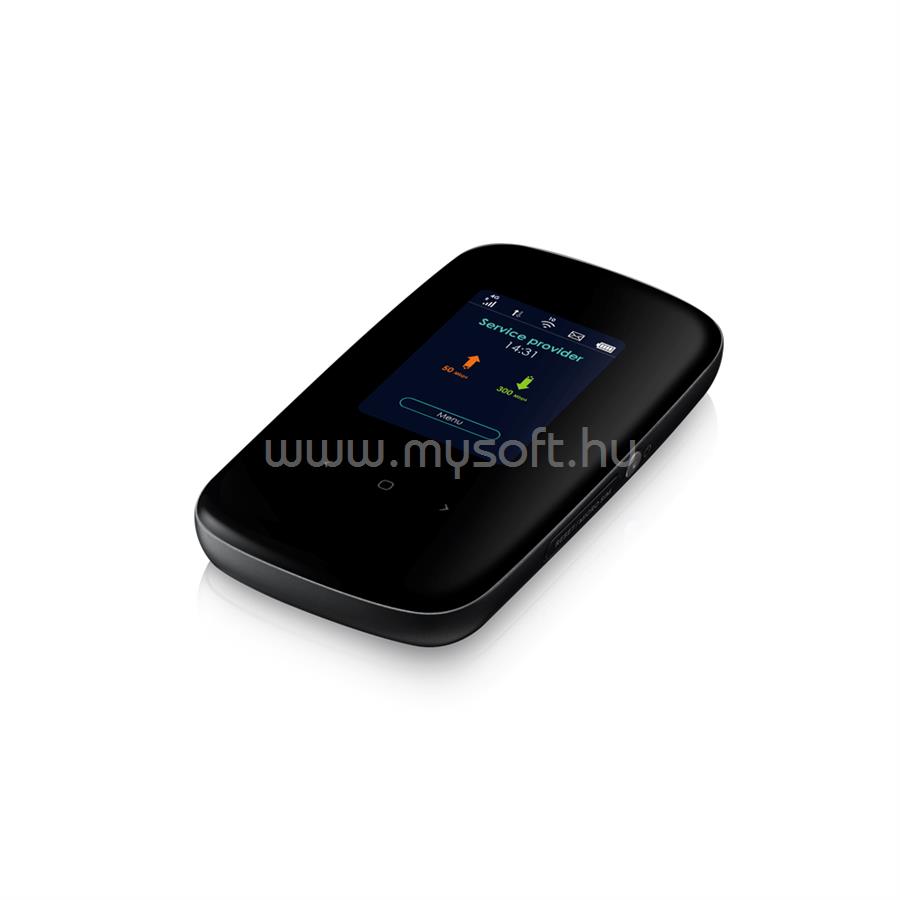

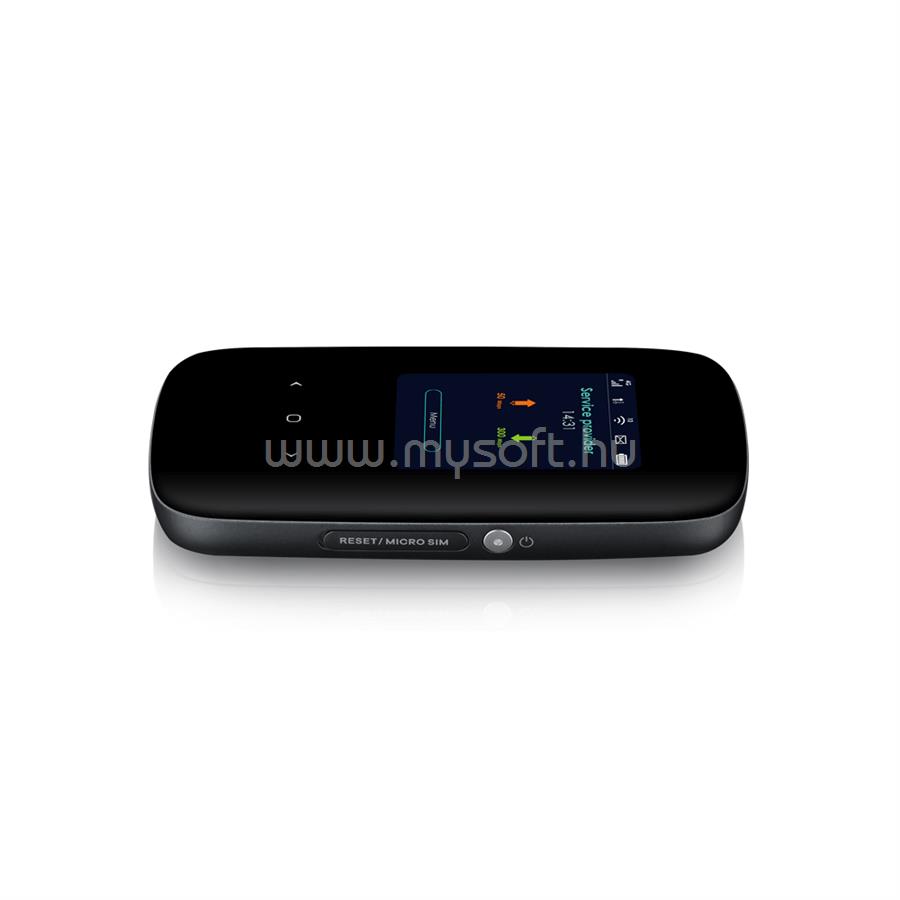

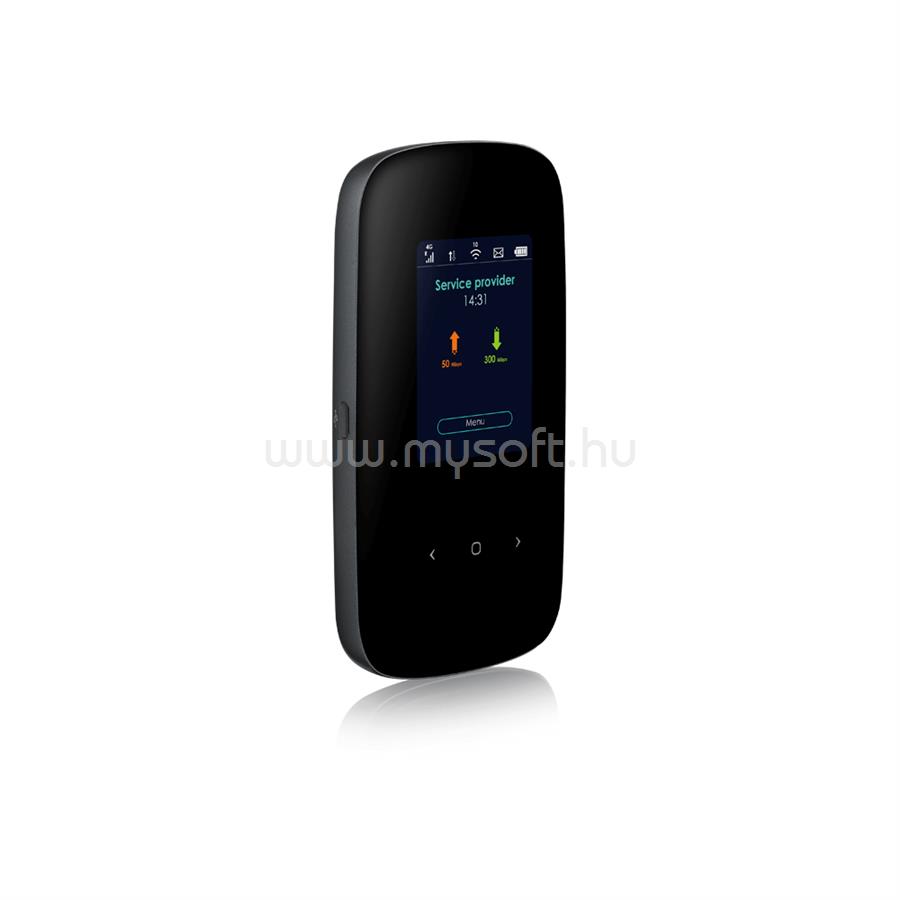

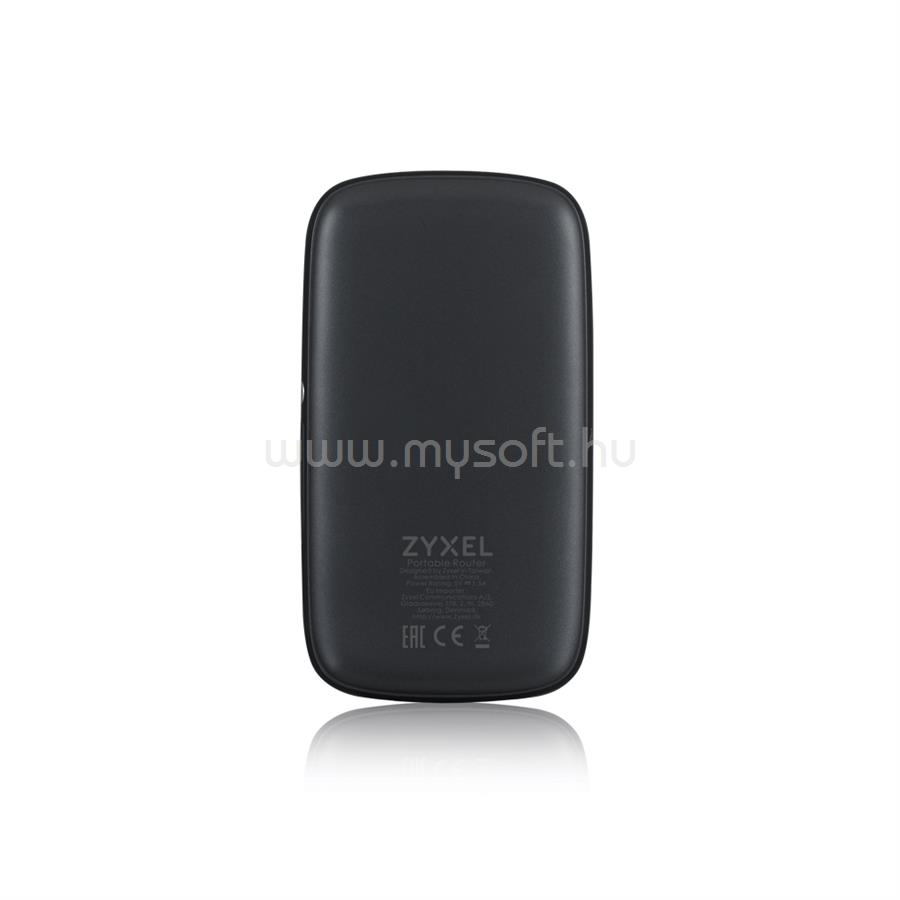

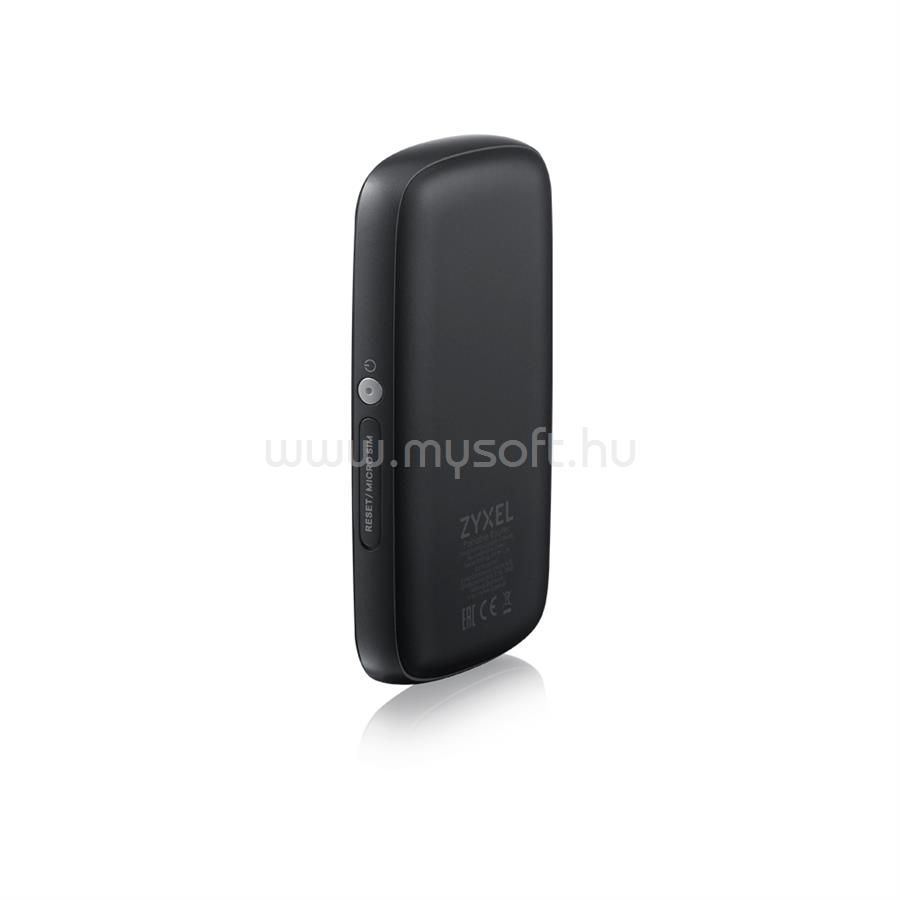

ZYXEL 4G LTE PORTABLE ROUTER

• System Specifications

• WiFi AP Features
• 802.11 ac/n/a/g/b, 2.4 GHz & 5 GHz dual-band
• Auto Channel Select (ACS)
• WiFi Enabled Device #: up to 32
• Hidden SSID
• Security modes: Open, WPA2-PSK, WPA-PSK/WPA2-PSK
• AP power saving mode
• Access control: STA blacklist/white list
• MAC ?ltering
• Dual-SSID support
• WPS: Pin and PBC, WPS2.0
• System Features
• Web UI/multiple language supported
• SMS/Quota/APN/PIN management
• Network selection
• Data usage/statistic
• DHCP server
• Dynamic DNS
• IP/URL filtering
• NAT Port forwarding/trigger/ALG/DMZ
• IP firewall
• Proxy DNS
• VPN pass-through
• FOTA firmware upgrade
• TR-069 remote management
• USSD management
• USB Tethering System Supported
• Win XP, Win Vista, Win 7, Win 8, Win 10
• MAC OS X10.7, 10.8, 10.9, 10.10 , 10.11, 10.12, 10.13
• Ubuntu 12.04 LTS, 14.04 LTS
• Browser Client
• Internet Explorer
• Edge
• Firefox
• Chrome
• Safari

• Hardware Specifications

• LTE Air Interface
• Standard compliant: 3GPP release 10, category 6
• Supported frequency: LTE B1/B3/B7/B8/B20/B28a/B38/B40/B41
• Carrier aggregation support:
• B1+B1/B3/B/B8/B20/B28a/38/40/41
• B3+B3/B7/B8/B20/28a/B38/B40/B41
• B7+B7/B8/B20/B28a
• B20+B38/40
• B38+B38, B40+B40, B41+B41
• FDD LTE peak data rate:
• 300 Mbps DL within 40 MHz bandwidth (CA)
• 50 Mbps UL within 20 MHz bandwidth
• TDD LTE peak data rate:
• 224 Mbps DL within 40MHz bandwidth (CA)
• 10 Mbps UL within 20 MHz bandwidth
• UMTS Air Interface
• Standard compliant: DC-HSDPA/ HSPA+ compliant
• Supported frequency: HSPA+/UMTS 2100/900 MHz (band 1/8)
• DC-HSPA+ downlink DL up to 42 Mbps
• HSUPA UL up to 5.76 Mbps
• Hardware Interface
• One 3FF/Micro SIM card slot
• One USB port for power supply or USB with RNDIS
• Reset button
• Power button
• Left, Home/OK, Right (touch sensing keys)
• DC input (5V/1.5A, Micro USB)
• 2.4-inch TFT display
• Service provider name
• 3G/4G network status
• Roaming status
• Signal strength
• Battery status
• WiFi status
• Battery
• 3000 mAh Lithium-ion polymer, un-removable battery
• Up to 10 hours operating time
• Up to 300 hours standby time

• Physical Specifications

• Item dimensions (WxDxH)
• 118.2 x 65 x 15.7 mm (4.65" x 2.56" x 0.618")
• Item weight
• 130 g (0.29 lb.)
• Packing dimensions (WxDxH)
• 150 x 80 x 50 mm (5.90" x 3.15" x 1.97")
• Packing weight
• 270g (0.59lb.)

• Environmental Specifications

• Operating Environment
• Temperature: 0°C to 40°C (32°F to 104°F)
• Humidity: 5% to 95% (Non-condensing)
• Storage Environment
• Temperature: -20°C to 60°C (-4°F to 140°F)
• Humidity: 5% to 95% (Non-condensing)

• Compliance & Certifications

• UN38.3
• CE: EMC/RF/SAR/Safety
• WiFi Alliance
• WEEE
• 2011/65/EC (RoHS) Restriction of
• Hazardous Substances Directive
• HSF (Hazardous Substance Free)
• European Parliament and Council
• Directive 94/62/EC of 20 December
• 1994 on packaging and packaging waste
