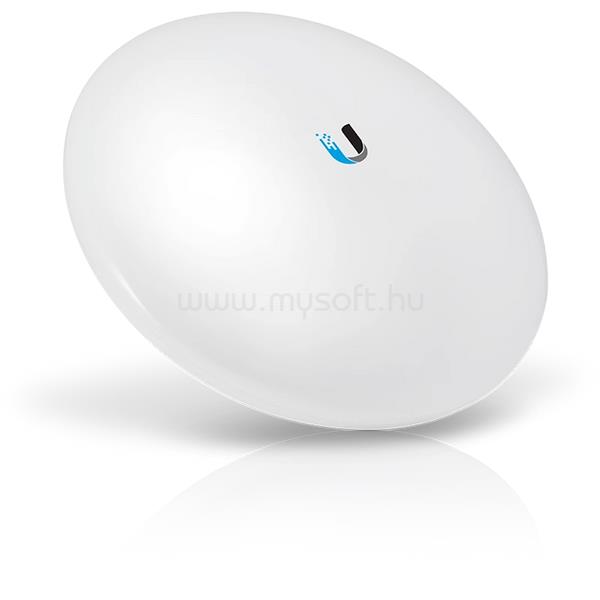

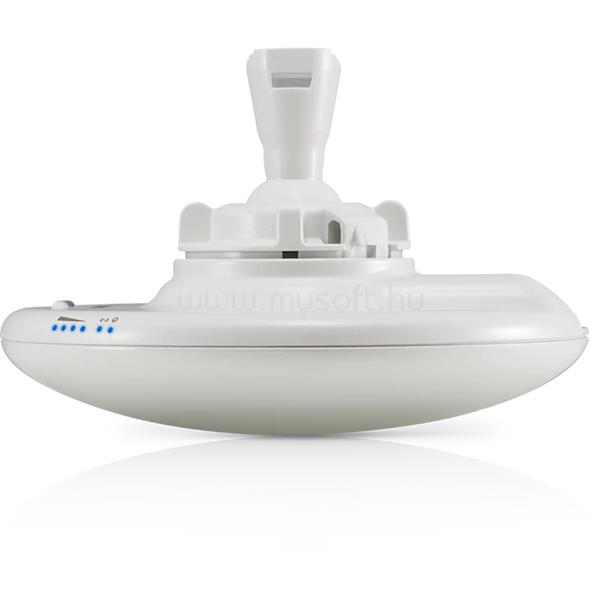

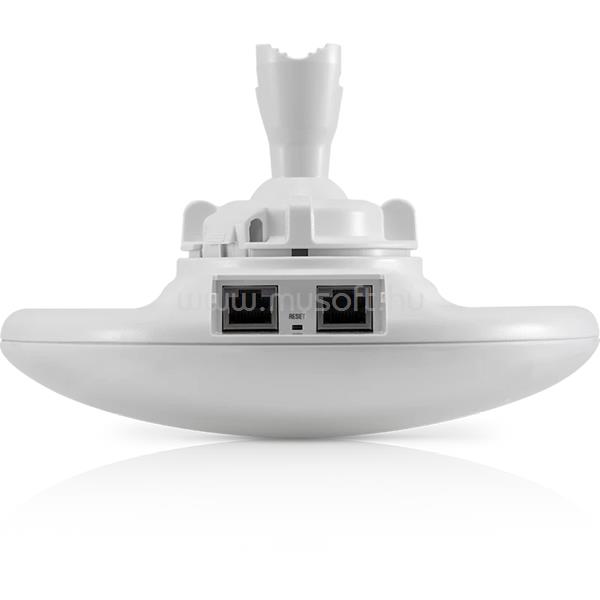

UBIQUITI ACCESS POINT - NANOBEAM 5AC GEN2

• NBE-5AC-Gen2

• Dimensions (Mount Included)
• 189 x 189 x 125 mm (7.44 x 7.44 x 4.92")
• Weight (Mount Included)
• 530 g (1.17 lb)
• Gain
• 19 dBi
• Networking Interface
• (2) 10/100/1000 Ethernet Port, Wi-Fi for Management
• Enclosure
• Outdoor UV Stabilized Plastic
• Max. Power Consumption
• 8.5W
• Power Supply
• 24V, 0.5A Gigabit PoE Adapter (Included)
• Power Method
• Passive PoE (Pairs 4, 5+; 7, 8 Return)
• Wind Loading
• 45.4 N @ 200 km/h (10.2 lbf @ 125 mph)
• Wind Survivability
• 200 km/h (125 mph)
• Certifications
• CE, FCC, IC
• Mounting
• Pole-Mount (Kit Included)
• Wall-Mount (Not Included)
• ESD/EMP Protection
• +/- 24kV Contact/Air
• Operating Temperature
• -40 to 80° C (-40 to 176 F)
• Operating Humidity
• 5 to 95% Noncondensing
• Salt Fog Test
• IEC 68-2-11 (ASTM B117),
• Equivalent: MIL-STD-810 G Method 509.5
• Vibration Test
• IEC 68-2-6
• Temperature Shock Test
• IEC 68-2-14
• Processor Specs
• Atheros MIPS 74Kc, 720 MHz
• Memory
• 128 MB DDR2, 8 MB Flash
• LEDs
• Power, Ethernet, (4) Signal Strength
• Signal Strenght LEDs
• Software-Adjustable to Correspond to Custom RSSI Levels
• Max. VSWR
• 1.5:1
• Channel Sizes
• PtP Mode
• 10/20/30/40/50/60/80 MHz
• PtMP Mode
• 10/20/30/40 MHz
• Polarization
• Dual Linear
• RoHS Compliance
• Yes
• UV Test
• IEC 68-2-5 at 40° C (104° F),
• Equivalent: ETS 300 019-1-4
• Wind-Driven Rain Test
• ETS 300 019-1-4,
• Equivalent: MIL-STD-810 G Method 506.5

• Operating Frequency MHz

• Worldwide
• 5150-5875
• USA
• U-NII-1
• 5150-5250
• U-NII-2A
• 5250-5350
• U-NII-2C
• 5240-5725
• U-NII-3
• 5725-5850

• Management Radio (MHz)

• Worldwide
• 2412 - 2472
• USA
• 2412 - 2462
