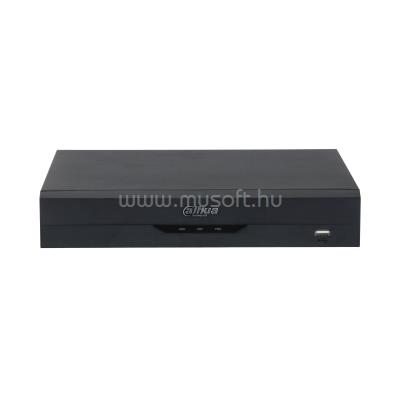

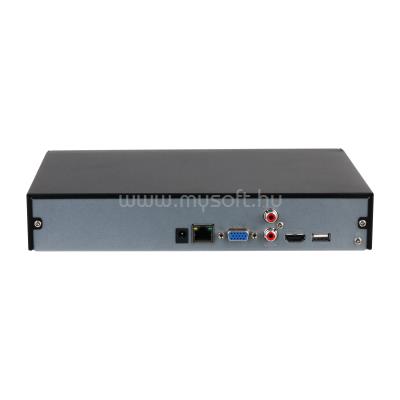

DAHUA NVR2104HS-I2 NVR RÖGZÍTŐ (4 CSATORNA, H265+, 80MBPS RÖGZÍTÉSI SÁVSZÉLESSÉG, HDMI+VGA, 2XUSB, 1X SATA)

• System

• Main Processor
• Industrial-grade embedded processor
• Operating System
• Embedded Linux
• Operation Interface
• Web; local GUI

• AI

• AI by Camera
• Face detection; face recognition; perimeter protection; SMD Plus
• AI by Device
• Face detection; face recognition; perimeter protection; SMD Plus

• Perimeter Protection

• Perimeter Performance AI by Device(Number of Channels)
• 1
• Perimeter Performance of AI by Camera (Number of Channels)
• 4

• Face Detection

• Face Attributes
• 6 attibutes: Gender; age group (6); glasses; expressions (8); mouth mask; beard
• Face Detection Performance of AI by Device (1080P) (Number of Channels)
• 1 (up to 12 face images/second)
• Face Detection Performance of AI by Camera (Number of Channels)
• 4

• Face Recognition

• Face Database Capacity
• Up to 10 face databases with 5,000 images
• Face Recognition Performance of AI by Device (1080P) (Number of Channels)
• 1 (up to 4 face images/second)
• Face Recognition Performance of AI by Camera (Number of Channels)
• 4

• SMD Plus

• SMD Plus by Device
• 4
• SMD Plus by Camera
• 4-channel SMD Plus (AI by camera): Detects tripwire and intrustion of human or vehicle; filters false alarms caused by leaves, raindrops and change of brightness away

• Video

• Access Channel
• 4 channels
• Network Bandwidth
• 80 Mbps for access, 80 Mbps for storage and 60 Mbps for forwarding.
• Resolution
• 12MP; 8MP; 5MP; 4MP; 3MP; 2MP; 720p; D1
• Decoding Capability
• AI disabled: 1-channel 12MP@30 fps; 1-channel 8MP@30 fps; 2-channel 5MP@30 fps; 3-channel 4MP@30 fps; 6-channel 1080p@30 fps
• AI enabled: 1-channel 8MP@30 fps; 1-channel 5MP@30 fps; 2-channel 4MP@30 fps; 4-channel 1080p@30 fps
• Video Output
• 1 × VGA, 1 × HDMI (simultaneous)
• Multi-screen Display
• 1, 4 views
• Third Party Camera Access
• Onvif

• Compression

• Video
• Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
• Audio
• PCM; G711A; G711U; G726

• Network

• Network Protocol
• HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; DDNS; Alarm Server; IP Search (Supports Dahua IP camera, DVR, NVS, etc.); P2P;Auto Registration
• Mobile Phone Access
• Android; iOS
• Interoperability
• ONVIF (profile T; profile S; profile G); CGI; SDK
• Browser
• Chrome; IE9 or later; Firefox

• Record Playback

• Multi-channel Playback
• Up to 4 channels
• Record Mode
• Manual record; alarm recordings; motion detection recordings; scheduled recordings
• Storage
• Local HDD and network
• Backup
• USB device
• Playback Function
• 1. Play; pause; stop; fast forward; fast backward; rewind; play by frame
• 2. Full screen; backup (vide clip/file); partially zom in; audio on/off

• Alarm

• General Alarm
• Motion detection; privacy masking; video loss; PIR alarm; IPC alarm
• Anomaly Alarm
• Camera offline; storage error; disk full; IP conflict; MAC conflict; login lock; cyber security exception
• Intelligent Alarm
• Face detection; face recognition; perimeter protection (intrusion and tripwire); IVS; SMD Plus
• Alarm Linkage
• Recording; snapshot; buzzer; log; preset; email; tour

• External Port

• HDD
• 1 SATA port, up to 10 TB. The maximum HDD capacity varies with environment temperature
• USB
• 1 × front USB2.0; 1 × back USB2.0
• HDMI
• 1 (max. resolution: 4K)
• VGA
• 1
• Network
• 1 × RJ-45 (10 or 100 Mbps)
• RCA Input
• 1
• RCA Output
• 1

• General Parameter

• Power Supply
• 12 V DC, 1.5 A
• Power Consumption
• Total output of NVR is ? 10 W (without HDD)
• Net Weight
• 0.81 kg (1.79 lb)
• Gross weight
• 1.38 kg (3.04 lb)
• Product Dimensions
• 260 mm × 232.7 mm × 47.6 mm (10.24" × 9.16" × 1.87") (W × L × H)
• Package Dimensions
• 89 mm × 333 mm × 315 mm (3.50" × 13.11" × 12.40") (W × L × H)
• Operating Temperature
• -10 °C to +55 °C (+14 °F to +131 °F)
• Storage Temperature
• 0 °C to 40 °C (32 °F to 104 °F)
• Operating Humidity
• 10%-93%
• Storage Humidity
• 30%-85%
• Operating Altitude
• 3,000 m (9,842.52 ft)
• Installation
• Desktop
• Certifications
• FCC:47 CFR FCC Part15,SubpartB,Class A
• CE-EMC:EN 55032:2015,Class A;EN IEC 61000-3-2:2019;EN 61000-3-3:2013+A1:2019;EN 55024:2010+A1:2015;EN 55035:2017;EN 50130-4:2011+A1:2014
• CE-LVD:EN 62368-1:2014+A11:2017
