DAHUA NVR2108-4KS3 NVR RÖGZÍTŐ (8 CSATORNA, H265, 80MBPS RÖGZÍTÉSI SÁVSZÉLESSÉG, HDMI+VGA, 2XUSB, 1X SATA)

• System

• Main Processor
• Industrial-grade processor
• Operating System
• Embedded Linux
• Operating Interface
• Web, Local GUI

• AI

• AI by Recorder
• SMD Plus
• AI by Camera
• Perimeter protection; SMD Plus

• Perimeter Protection

• Perimeter Performance of AI by Camera (Number of Channels)
• 4 channels

• SMD Plus

• SMD Plus by Recorder
• 4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change
• SMD Plus by Camera
• 4 channels

• Audio and Video

• Access Channel
• 8 channels
• Network Bandwidth
• 80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing
• Resolution
• 12 MP; 8 MP; 5 MP; 4 MP; 3 MP; 1080p; 720p; D1
• Decoding Capability
• AI disabled: 1-channel 12 MP@30 fps; 1-channel 8 MP@30 fps; 2-channel 5 MP@30 fps; 3-channel 4 MP@30 fps; 6-channel 1080p@30 fps AI enabled: 1-channel 8 MP@30 fps; 1-channel 5 MP@30 fps; 2-channel 4 MP@30 fps; 4-channel 1080p@30 fps
• Video Output
• 1 HDMI, 1 VGA HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
• Multi-screen Display
• 1/4/8/9
• Third-party Camera Access
• ONVIF

• Compression Standard

• Video Compression
• Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
• Audio Compression
• G.711a; G.711u; PCM; G726;

• Network

• Network Protocol
• HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; IP Filter; DDNS; IP Search (Supports IP camera, DVR, NVS, etc.); P2P; Auto Registration
• Mobile Phone Access
• iOS; Android
• Interoperability
• ONVIF 22.12(Profile T; Profile S; Profile G); CGI; SDK
• Browser
• Chrome; IE; Safari; Edge; Firefox

• Recording Playback

• Multi-channel Playback
• Up to 8 channels
• Record Mode
• General, motion detection; intelligent; alarm
• Backup Method
• USB device and network
• Playback Mode
• Instant playback; general playback; event playback; tag playback; smart playback

• Alarm

• General Alarm
• Motion detection; camera external alarm; PIR alarm
• Anomaly Alarm
• Error (no disk, disk error, low space, low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline
• Intelligent Alarm
• Perimeter protection; SMD Plus
• Alarm Linkage
• Recording; snapshot; buzzer; log; preset; email; tour

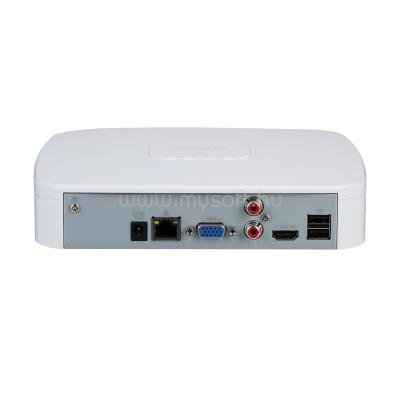

• Port

• Audio Input
• 1-channel RCA
• Audio Output
• 1-channel RCA
• Alarm Input
• NA (2 channels are optional)
• Alarm Output
• NA (1-channel 12 V 1 A output is optional)
• HDD Interface
• 1 SATA port. Each disk can contain up to 20 TB. this limit varies depending on the environment temperature.
• USB
• 2 (2 rear USB 2.0 ports)
• HDMI
• 1
• VGA
• 1
• Network Port
• 1 (10/100 Mbps Ethernet port, RJ-45)

• General

• Power Supply
• 12 VDC, 1.5 A
• Power Consumption
• <10 W (without HDD)
• Net Weight
• 0.45 kg (0.99 lb)
• Gross Weight
• 1.05 kg (2.31 lb)
• Product Dimensions
• 204.6 mm × 206.4 mm × 45.6 mm(8.06" × 8.12" × 1.80") (W × D × H)
• Packaging Dimensions
• 364.0 mm × 96.0 mm × 261.0 mm(14.33" × 3.78" × 10.28")(W × D × H)
• Operating Temperature
• -10 °C to +55 °C (14 °F to +131 °F)
• Storage Temperature
• -20 °C to +60 °C (-4 °F to +140 °F)
• Operating Humidity
• 10%-93% (RH), non-condensing
• Installation
• Rack or desktop
