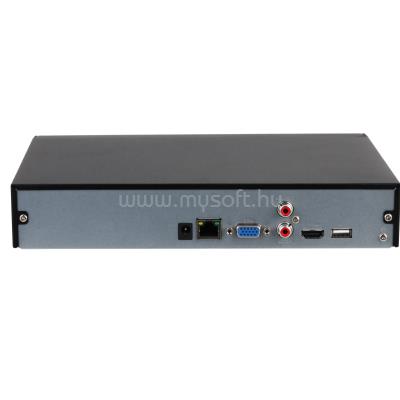

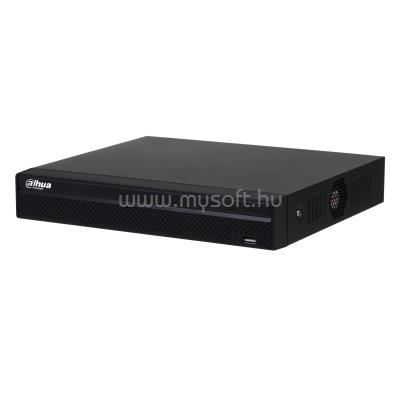

DAHUA NVR4104HS-4KS3 NVR RÖGZÍTŐ (4 CSATORNA/H265+/80 MBPS RÖGZÍTÉS/LITE/1X SATA)

• System

• Main Processor
• Industrial-grade processor
• Operating System
• Embedded Linux
• Operating Interface
• Web, Local GUI

• AI

• AI by Recorder
• SMD Plus
• AI by Camera
• Face detection; face recognition; perimeter protection; SMD Plus; people counting; stereo analysis; heat map

• Perimeter Protection

• Perimeter Performance of AI by Camera (Number of Channels)
• 4 channels

• Face Detection

• Face Attributes
• Gender; age group; glasses; expressions; face mask; beard
• Face Detection Performance of AI by Camera (Number of Channels)
• 4 channels

• Face Recognition

• Face Recognition Performance of AI by Camera (Number of Channels)
• 4 channels

• SMD Plus

• SMD Plus by Recorder
• 4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change
• SMD Plus by Camera
• 4 channels

• Audio and Video

• Access Channel
• 4 channels
• Network Bandwidth
• 80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing
• Resolution
• 12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3 MP; 1080p; 960p; 720p; D1; CIF; QCIF
• Decoding Capability
• AI disabled: 1-channel 12 MP@30 fps; 2-channel 8 MP@30 fps; 3-channel 5 MP@30 fps; 4-channel 4 MP@30 fps AI enabled: 1-channel 12 MP@30 fps; 1-channel 8 MP@30 fps; 2-channel 5 MP@30 fps; 3-channel 4 MP@30 fps
• Video Output
• 1 HDMI, 1 VGA Simultaneous: HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 Heterogeneous: HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
• Multi-screen Display
• Main Screen: 1/4 Sub Screen: 1/4
• Third-party Camera Access
• ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Hanwha

• Compression Standard

• Video Compression
• Smart H.265+; H.265; Smart H.264+; H.264
• Audio Compression
• G.711a; G.711u; PCM; G726

• Network

• Network Protocol
• HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
• Mobile Phone Access
• iOS; Android
• Interoperability
• ONVIF 22.12(Profile T; Profile S; Profile G); CGI; SDK
• Browser
• Chrome; IE; Safari; Edge; Firefox

• Recording Playback

• Multi-channel Playback
• Up to 4 channels
• Record Mode
• General, motion detection; intelligent; alarm
• Backup Method
• USB device and network
• Playback Mode
• Instant playback, general playback, event playback, tag playback, smart playback

• Alarm

• General Alarm
• Motion detection; privacy masking; video loss; scene changing; PIR alarm; IPC external alarm
• Anomaly Alarm
• Camera disconnection; storage error; disk full; IP conflict; MAC conflict; login locked; and cybersecurity exception
• Intelligent Alarm
• Face detection; face recognition; perimeter protection; SMD Plus; people counting; stereo analysis; heat map
• Alarm Linkage
• Record; snapshot; IPC external alarm output; audio; buzzer; log; preset; email

• Port

• Audio Input
• 1-channel RCA
• Audio Output
• 1-channel RCA
• Alarm Input
• NA (2 channels is optional)
• Alarm Output
• NA (1-channel 12 V 1 A output is optional)
• Disk Interface
• 1 SATA port. Each disk can contain up to 20 TB. This limit varies depending on the environment temperature.
• USB
• 2 (1 front USB 2.0 port, 1 rear USB 2.0 port)
• HDMI
• 1
• VGA
• 1
• Network Port
• 1 (10/100 Mbps Ethernet port, RJ-45)

• General

• Power Supply
• 12 VDC, 2 A
• Power Consumption
• Total output of NVR is <10 W(without HDD)
• Net Weight
• 0.81 kg (1.79 lb)
• Gross Weight
• 1.38 kg (3.04 lb)
• Product Dimensions
• 260.0 mm × 232.5 mm × 47.6 mm(10.24" × 9.15" × 1.87") (W × D × H)
• Packaging Dimensions
• 334 mm × 89 mm × 314 mm (13.15" × 3.50" × 12.36") (W × D × H)
• Operating Temperature
• -10 °C to +55 °C (14 °F to +131 °F)
• Storage Temperature
• -20 °C to +60 °C (-4 °F to +140 °F)
• Operating Humidity
• 10%-93% (RH), non-condensing
• Installation
• Rack or desktop
• Certifications
• CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014

Garancia fogyasztók részére

• 2 év kötelező jótállás + 1 év gyártó által biztosított szervizgarancia

Garancia nem fogyasztók részére

• 3 év gyártó által biztosított szervizgarancia
