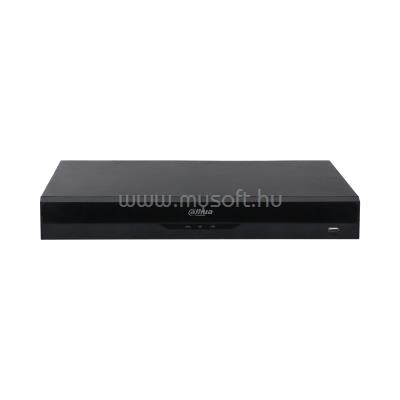

DAHUA NVR4208-EI NVR RÖGZÍTŐ (8 CSATORNA, H265+, 16MP, 256MBPS, HDMI+VGA, 2XUSB, 2X SATA, AI)

• System

• Main Processor
• Industrial-grade processor
• Operating System
• Embedded Linux
• Operating Interface
• Web; Local GUI

• AI

• AI by Recorder
• Face detection, face recognition, perimeter protection, and SMD Plus
• AI by Camera
• Face detection; face recognition; perimeter protection; SMD Plus; people counting; stereo analysis; heat map

• Perimeter Protection

• Perimeter Performance AI by Recorder (Number of Channels)
• 2 channels, 10 IVS rules for each channel
• Perimeter Performance of AI by Camera (Number of Channels)
• 8 channels

• Face Detection

• Face Attributes
• Gender; age group; glasses; expressions; face mask; beard
• Face Detection Performance of AI by Recorder (Number of Channels)
• 1 channel (up to 12 face images/s each channel)
• Face Detection Performance of AI by Camera (Number of Channels)
• 8 channels

• Face Recognition

• Face Database Capacity
• Up to 10 face databases with 20,000 images, with a total capacity of 2.5 G. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image.
• Face Recognition Performance of AI by Recorder (Number of Channels)
• 8-channel FD (by camera) + FR (by recorder),image stream: 12 face images/s
• 1-channel FD (by recorder) + FR (by recorder), video stream: 12 face images/s
• Face Recognition Performance of AI by Camera (Number of Channels)
• 8 channels

• SMD Plus

• SMD Plus by Recorder
• 4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change
• SMD Plus by Camera
• 8 channels

• Audio and Video

• Access Channel
• 8 channels
• Network Bandwidth
• AI disabled: 256 Mbps incoming, 256 Mbps recording and 256 Mbps outgoing
• AI enabled: 180 Mbps incoming, 180 Mbps recording and 180 Mbps outgoing
• Resolution
• 16 MP; 12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3 MP; 1080p; 960p; 720p; D1; CIF
• Decoding Capability
• AI disabled: 2-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 4-channel 8 MP@30 fps; 6-channel 5 MP@30 fps; 8-channel 4 MP@30 fps
• AI enabled: 1-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 3-channel 8 MP@30 fps; 4-channel 5 MP@30 fps; 6-channel 4 MP@30 fps; 8-channel 1080p@30 fps
• Video Output
• 1 HDMI, 1 VGA
• HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
• VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
• *Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable.
• Multi-screen Display
• 1st Screen: 1/4/8/9
• 2nd Screen: 1/4/8/9
• Third-party Camera Access
• Panasonic, Sony, Samsung, Axis, Pelco, Arecont, ONVIF, Canon

• Compression Standard

• Video Compression
• Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
• Audio Compression
• G.711a; G.711u; PCM; G726

• Network

• Network Protocol
• HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; IP Search (Support Dahua IP camera; DVR; NVS; etc.); P2P; auto register
• Mobile Phone Access
• iOS; Android
• Interoperability
• ONVIF 22.06(Profile T; Profile S; Profile G); CGI; SDK
• Browser
• Chrome; IE9 and later; Firefox

• Recording Playback

• Multi-channel Playback
• Up to 8 channels
• Record Mode
• General, motion detection; intelligent; alarm
• Backup Method
• USB device and network
• Playback Mode
• Instant playback, general playback, event playback, tag playback, smart playback

• Storage

• Disk Group
• Yes

• Alarm

• General Alarm
• Motion detection; privacy masking; video loss; scene changing; PIR alarm; IPC external alarm
• Anomaly Alarm
• Camera disconnection; storage error; disk full; IP conflict; MAC conflict; login locked; and cybersecurity exception
• Intelligent Alarm
• Face detection; face recognition; perimeter protection; SMD Plus; people counting; stereo analysis; heat map
• Alarm Linkage
• Record; snapshot; IPC external alarm output; audio; buzzer; log; preset; email

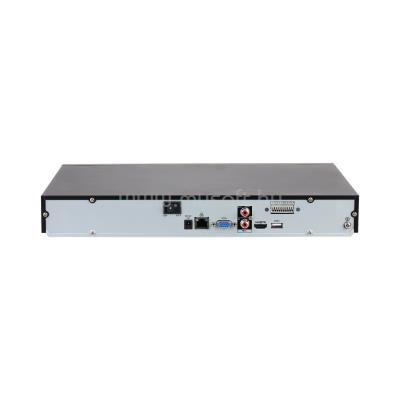

• Port

• Audio Input
• 1-channel RCA
• Audio Output
• 1-channel RCA
• Alarm Input
• 4 channels
• Alarm Output
• 2 channels
• HDD Interface
• 2 SATA ports, up to 16 TB.The maximum HDD capacity varies with environment temperature.
• USB
• 2 (1 front USB 2.0 port, 1 rear USB 2.0 port)
• HDMI
• 1
• VGA
• 1
• Network Port
• 1 (10/100/1000 Mbps Ethernet port, RJ-45)

• General

• Power Supply
• 12 VDC, 4 A
• Power Consumption
• <10 W(without HDD)
• Net Weight
• 1.51 kg (3.33 lb)
• Gross Weight
• 2.76 kg (6.08 lb)
• Product Dimensions
• 375 mm × 284.3 mm × 53 mm (14.76" × 11.19" × 2.09") (W × L × H)
• Packaging Dimensions
• 433 mm × 141 mm × 366 mm (17.05" × 5.55" × 14.41") (W × L × H)
• Operating Temperature
• -10 °C to +55 °C (14 °F to +131 °F)
• Storage Temperature
• -20 °C to +60 °C (-4 °F to +140 °F)
• Operating Humidity
• 10%-93% (RH)
• Installation
• Rack or desktop
• Certifications
• FCC: 47 CFR FCC Part15, SubpartB, Class A
• CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014
• CE-LVD: EN 62368-1:2014

Garancia fogyasztók részére

• 2 év kötelező jótállás + 1 év gyártó által biztosított szervizgarancia

Garancia nem fogyasztók részére

• 3 év gyártó által biztosított szervizgarancia
