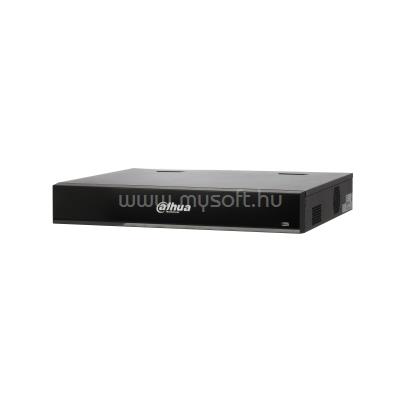

DAHUA NVR5432-16P-I/L NVR RÖGZÍTŐ (AI; 32 CSATORNA, H265+, 320MBPS RÖGZ., HDMI+VGA, 3XUSB, 4X SATA, I/O; POE 150W)

• System

• Main Processor
• Multi-core embedded processor
• Operating System
• Embedded LINUX

• Perimeter Protection

• Performance
• 12 channel, 10 IVS rules for each channel
• Object classification
• Human/Vehicle secondary recognition for tripwire and intrusion
• AI Search
• Search by target classification (Human, Vehicle)

• Face Recognition

• Performance
• Max 16 face pictures/sec processing (modeling and comparing)
• 4 channel video stream face recognition/16 channel picture stream face recognition (with FD camera)
• Stranger Mode
• Detect strangers' faces (not in device's face database).Similarity threshold can be set manually.
• AI Search
• Up to 8 target face images search at same time, similarity threshold can be set for each target face image.
• Database Management
• Up to 20 face databases with 200,000 face images in total. Name, gender, birthday, nationality, address, ID information can be added to each face picture.
• Database Application
• Each database can be applied to video channels independently.
• Trigger Events
• Buzzer, Voice Prompts, Email, Snapshot, Recording, Alarm Out, PTZ Activation, etc.

• Metadata

• Face
• Gender, age, glasses, beard, mouth mask, expression.
• Vehicle
• Plate No., type, color, vehicle type, logo, plate color, ornament, calling, seatbelt, region.
• Human Body
• Top, top color, bottom, bottom color, hat, bag, gender, age, umbrella.
• Non-motor Vehicle
• Type, color, number of passengers, helmet.
• AI Search
• Support search target video by metadata.

• Audio and Video

• IP Camera Input
• 32 Channel
• Two-way Talk
• 1 Channel Input, 1 Channel Output, RCA

• Display

• Interface
• 2 HDMI, 1 VGA
• Resolution
• HDMI1/VGA: 1920 × 1080 , 1280 × 1024, 1280 × 720
• HDMI2: 3840 × 2160 , 1920 × 1080 , 1280 × 1024, 1280 × 720
• Decoding Capability
• 4-ch@8MP (30fps), 16-ch@1080P (30fps)
• Multi-screen Display
• 1st Screen: 1/4/8/9/16/25/36
• 2nd Screen: 1/4/8/9/16

• Recording

• Bandwidth
• 320 Mbps (160 Mbps when AI function enabled)
• Compression
• Smart H.265+/H.265/Smart H.264+/H.264/MJPEG
• Resolution
• 24MP, 16MP, 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P, D1 etc.
• Record Mode
• Manual, Schedule (Continuous, MD (Motion Detection), Alarm, IVS)
• Record Interval
• 1-120 min (default: 60 min), Pre-record: 1-30 sec, Post-record: 10-300 sec

• Video Detection and Alarm

• Trigger Events
• Alarm Out, Video Push, Email, Recording, PTZ, Tour, Snapshot, Voice Prompt, Buzzer and Screen Tips
• Video Detection
• Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Scene Change
• Alarm input
• 16 Channel
• Relay Output
• 6 Channel

• Playback and Backup

• Sync Playback
• 1/4/9/16
• Search Mode
• Time/Date, Alarm, MD and Exact Search (accurate to second)
• Backup Mode
• USB Device/Network

• Third-party Support

• Third-party Support
• Panasonic, Sony, Samsung, Axis, Pelco, Arecont, Onvif, Canon and more

• Network

• Interface
• 1 RJ-45 Ports (10/100/1000 Mbps)
• PoE
• 16 ports (IEEE802.3af/at)
• 1-8 ports support ePoE & EoC
• Network Protocol
• HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, IP Search (Support Dahua IP camera, DVR, NVS, etc.), P2P
• Max. User Access
• 128 users
• Mobile App
• iPhone, iPad, Android
• Interoperability
• ONVIF 2.4, SDK, CGI

• Storage

• Internal HDD
• 4 SATA III ports, up to 10 TB for a single HDD. The maximum HDD capacity varies with environment temperature
• eSATA
• 1 eSATA

• Auxiliary Interface

• USB
• 3 USB Ports (2 Rear USB 3.0 , 1 Front USB 2.0)
• RS232
• 1 Port, for PC Communication and Keyboard
• RS485
• 1 Port, for PTZ Control

• Electrical

• Power Supply
• Single, AC100V-240V, 50-60 Hz
• Power Consumption
• NVR: <21.1W (Without HDD)
• PoE: Max 25.5W for single port
• 150W total rated power, 80% control for protection
• Fan
• Smart fan, automatically adjust running speed

• Environmental

• Operating Conditions
• -10°C to +55°C (+14°F to +131°F), 86-106kpa
• Storage Conditions
• 0°C to +40°C (+32°F to +104°F), 30-85% RH

• Construction

• Dimensions
• 1.5U, 440.0 mm × 411.1 mm × 76.0 mm (17.32" × 16.19" × 2.99")
• Net Weight
• 5.00 kg (11.0 lb) (without HDD)
• Gross Weight
• 7.05 kg (15.5 lb) (without HDD)

• Certifications

• CE
• EN55032, EN55024, EN50130-4, EN62368-1
• FCC
• Part 15 Subpart B, ANSI C63.4-2014
