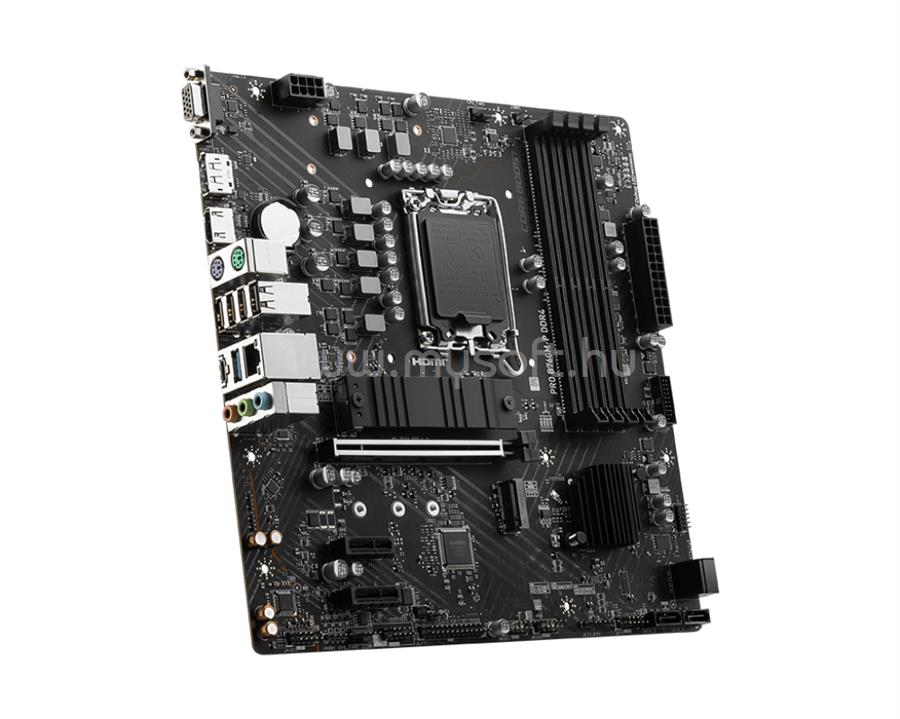

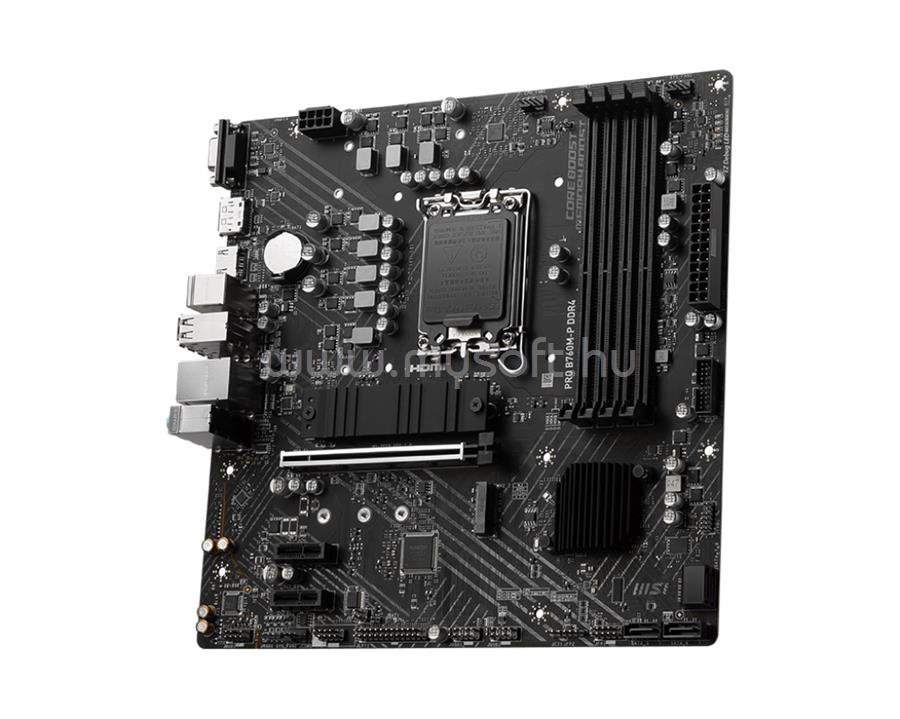

MSI ALAPLAP PRO B760M-P DDR4 (LGA1700, MATX)

• Specification

• CHIPSET
• INTEL B760
• CPU SUPPORT
• Supports 12th/13th Gen Intel© Core Processors, Pentium© Gold and Celeron© Processors
• LGA 1700
• MEMORY
• 4x DDR4, Maximum Memory Capacity 128GB
• Memory Support 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)
• Max. overclocking frequency:
• 1DPC 1R Max speed up to 4800+ MHz
• 1DPC 2R Max speed up to 4600+ MHz
• 2DPC 1R Max speed up to 4400+ MHz
• 2DPC 2R Max speed up to 4000+ MHz
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports Intel© Extreme Memory Profile (XMP)
• ONBOARD GRAPHICS
• 1x HDMI
• Support HDMI 1.4, maximum resolution of 4K 30Hz*
• 1x DisplayPort
• Support DP 1.4, maximum resolution of 4K 60Hz*
• 1x VGA
• Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
• *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
• EXPANSION SLOT
• 1x PCI-E x16 slot
• 2x PCI-E x1 slot
• PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
• PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
• PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)
• STORAGE
• 2x M.2
• M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
• M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
• 4x SATA 6G
• * SATA5 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
• RAID
• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
• USB
• 4x USB 2.0 (Rear)
• 4x USB 2.0 (Front)
• 1x USB 3.2 Gen1 Type A (Rear)
• 2x USB 3.2 Gen1 Type A (Front)
• 1x USB 3.2 Gen2 Type C (Rear)
• LAN
• Realtek© RTL8111H Gigabit LAN
• AUDIO
• Realtek© ALC897 Codec
• 7.1-Channel High Definition Audio
• INTERNAL I/O
• 1x Power Connector(ATX_PWR)
• 1x Power Connector(CPU_PWR)
• 1x CPU Fan
• 2x System Fan
• 2x Front Panel (JFP)
• 1x Chassis Intrusion (JCI)
• 1x Front Audio (JAUD)
• 1x Printer Port (JLPT)
• 1x Com Port (JCOM)
• 1x RGB LED connector(JRGB)
• 1x TPM pin header(Support TPM 2.0)
• 4x USB 2.0 ports
• 2x USB 3.2 Gen1 Type A ports
• LED FEATURE
• 4x EZ Debug LED
• OPERATING SYSTEM
• Support for Windows© 11 64-bit, Windows© 10 64-bit
• PCB DIMENSION (W × L)
• mATX
• 243.84mmx243.84mm
