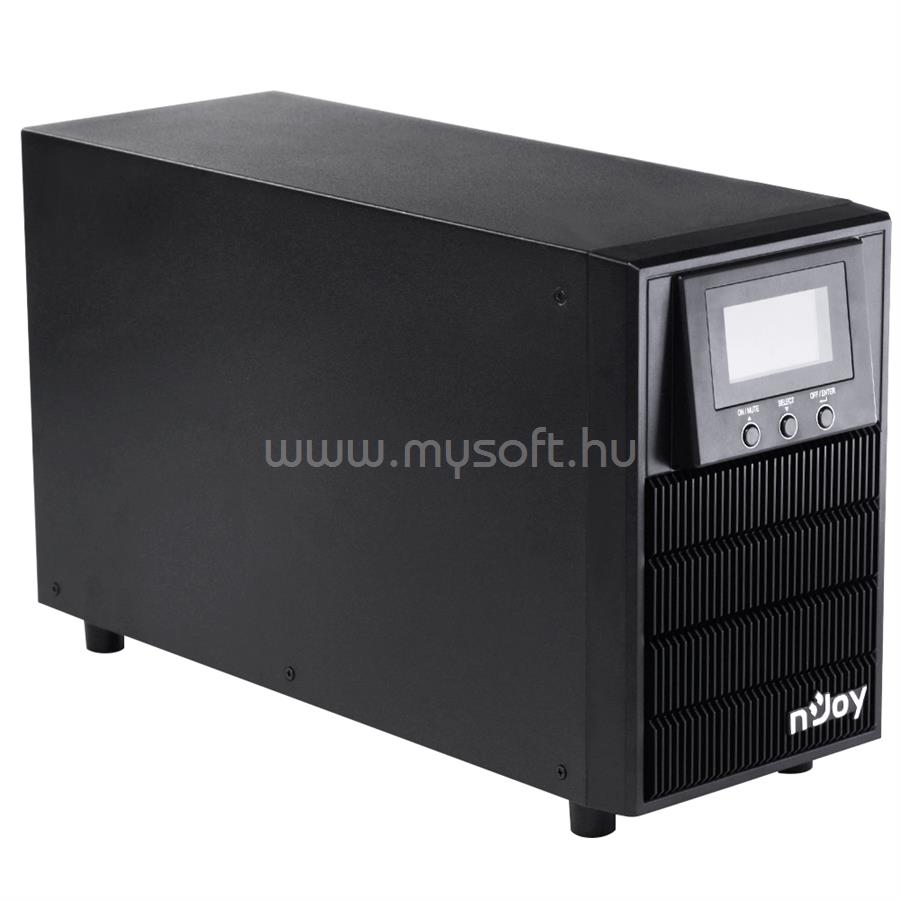

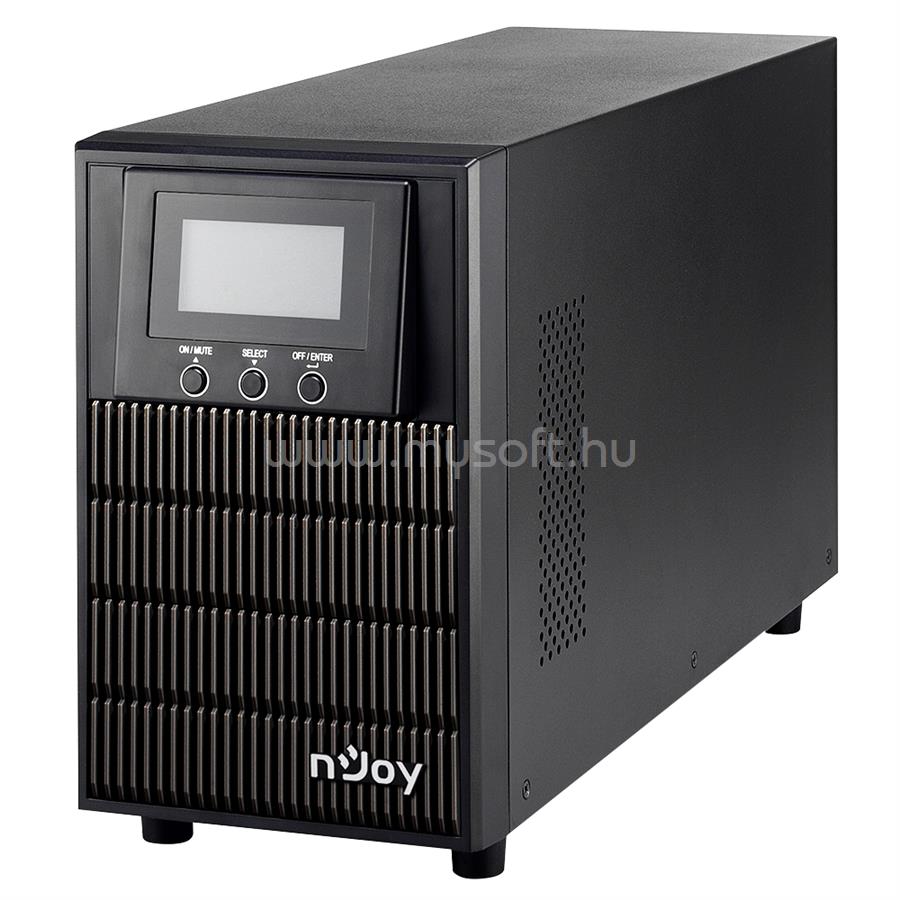

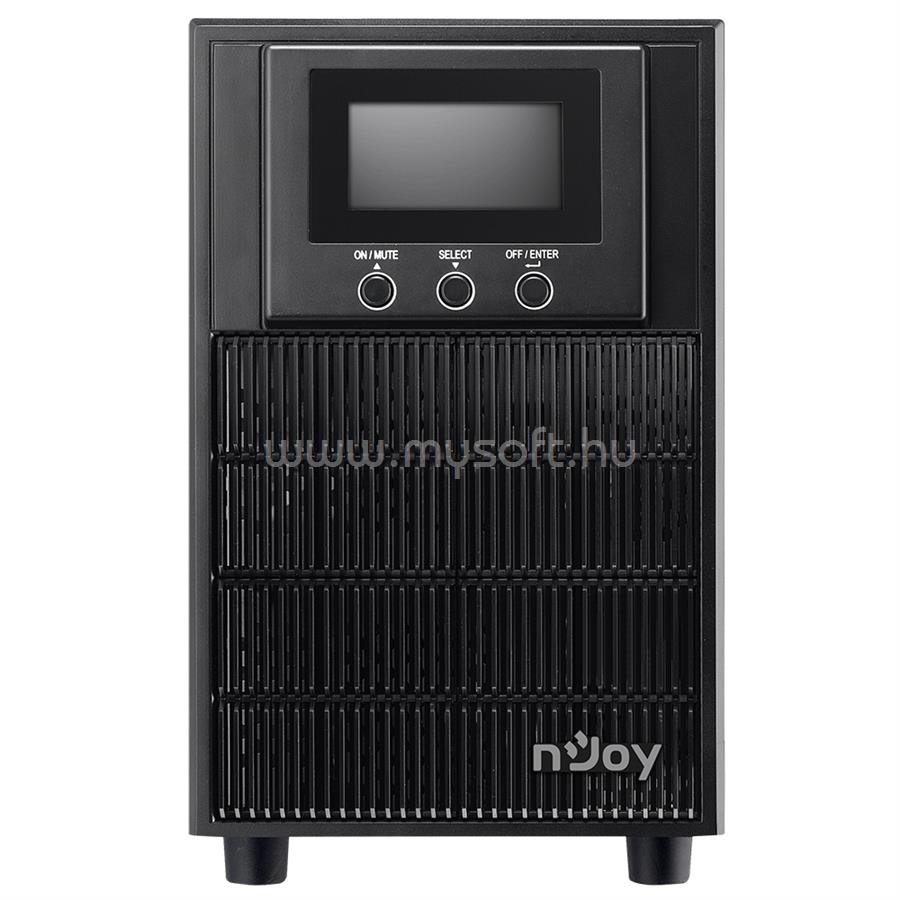

NJOY ATEN PRO 2000 SZÜNETMENTES TÁPEGYSÉG

• Capacity
• 2000 VA / 1800 W
• Type
• On line

• Input

• Nominal Voltage
• 230 VAC
• Accepted Voltage Range
• 120-300 VAC (Based on load at 50%)
• 180-280 VAC (Based on load at 100%)
• Frequency Range
• 40Hz ~ 70 Hz
• Power Factor
• > 0.90 @ nominal voltage (100% load)

• Output

• Output Voltage
• 200/208/220/230/240 VAC
• Voltage Regulation
• +/-1%
• Frequency Range (Synchronized Range)
• 57 ~ 63 Hz
• Frequency Range (Battery Mode)
• 50 Hz or 60Hz +/- 0.5 %
• Waveform (Batt. Mode)
• Pure Sinewave
• Harmonic Distortion
• 3 % THD (Linear Load)
• 6 % THD (Non-linear Load)
• Current Crest Ratio
• 3:1

• Transfer Time

• AC Mode to Battery Mode
• Zero
• Inverter to Bypass
• 4 ms (Typical)

• Efficiency

• To AC Mode
• 89 % at full charged battery
• To Battery Mode
• 85 % at full charged battery
• ECO Mode
• 94 % at full charged battery

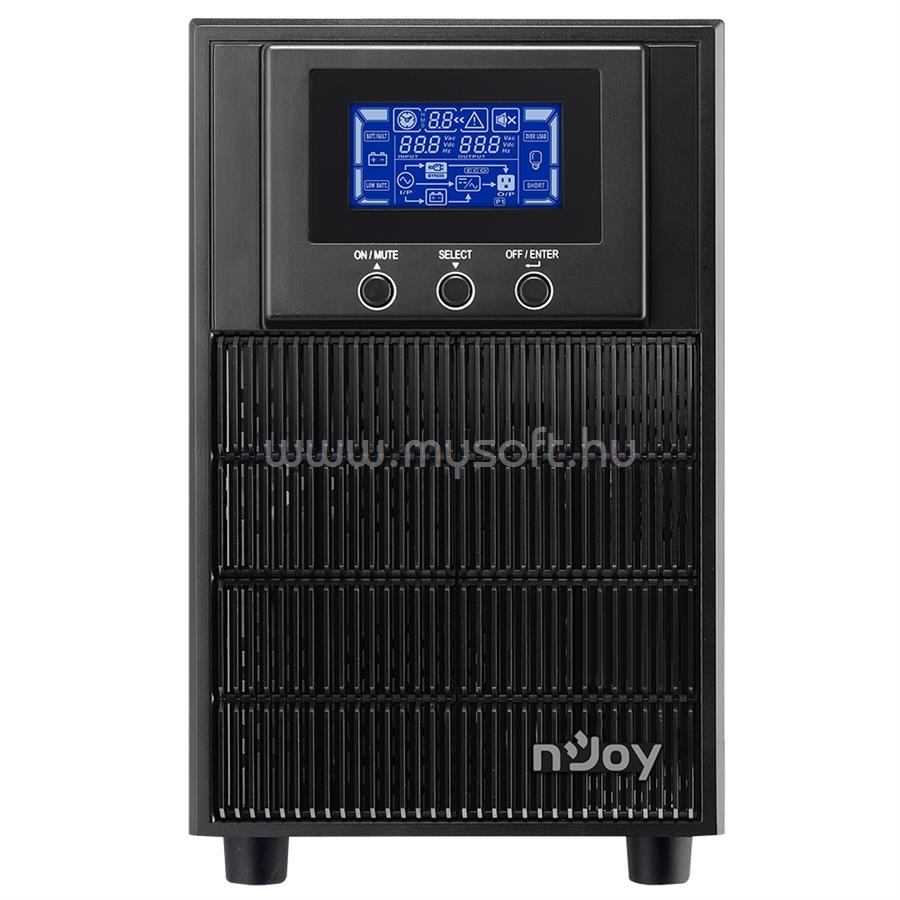

• Indicators type

• LCD Display
• Load level, Battery level, AC mode, Battery mode, Bypass mode and Fault indicators

• Alarm

• Battery Mode
• Sounding every 4 seconds
• Low Battery
• Sounding every second
• Overload
• Sounding twice every second
• Fault
• Continuously sounding

• Protection

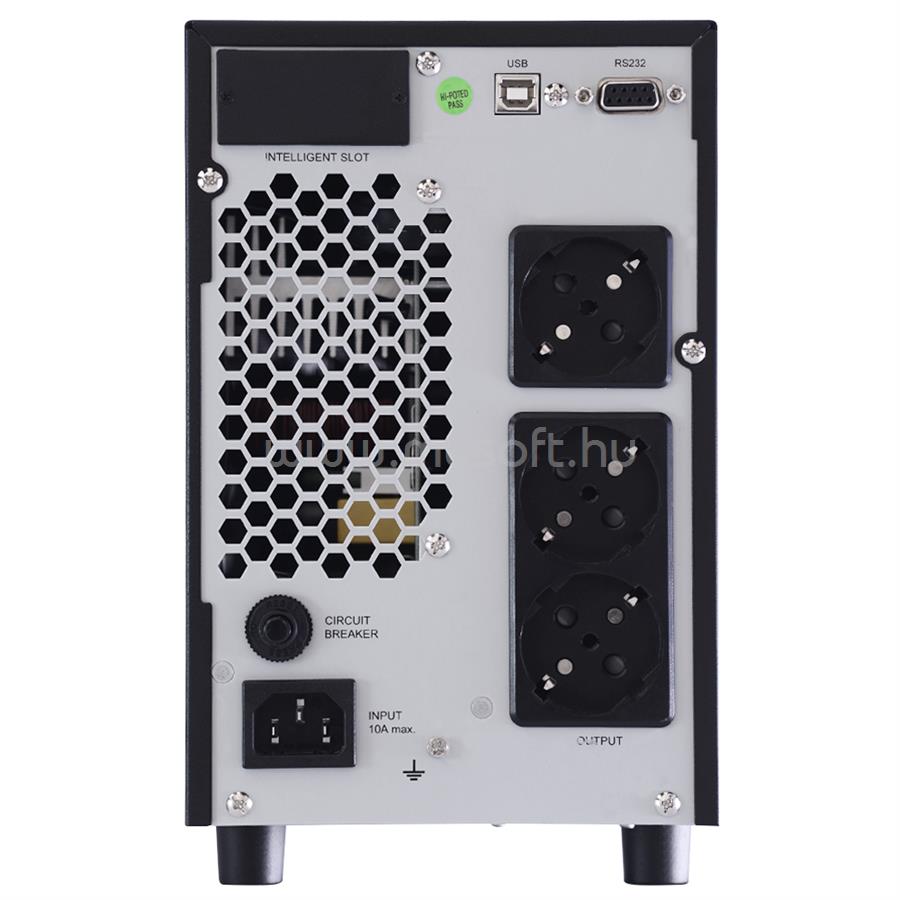

• Outlets type
• 3x Schuko Battery Backup & Surge Protection
• Full protection
• Overload, Discharge & Overcharge protection
• Input spike protection
• Surge rating energy
• 760 Joules

• Environement

• Humidity
• 20-90 % RH @ 0-40oC (non-condensing)
• Noise level
• Less than 50dB

• Battery

• Battery Type & Number
• 4 x CSB HR1234W
• Battery Voltage
• 12V
• Typical Recharge Time
• 4 hours up to 90% capacity
• Charging Voltage
• 54.7 VDC +/- 1%
• Battery Compatibility
• nJoy HR09122F
• Running time on battery (minutes)
• 25% Load - 25 min
• 50% Load - 10 min
• 75% Load - 6 min
• 100% Load - 3 min

• Management

• Connection port
• RS232 / USB / Intelligent Port

Garancia fogyasztók részére

• 2 év kötelező jótállás + 1 év gyártó által biztosított szervizgarancia

Garancia nem fogyasztók részére

• 3 év gyártó által biztosított szervizgarancia
