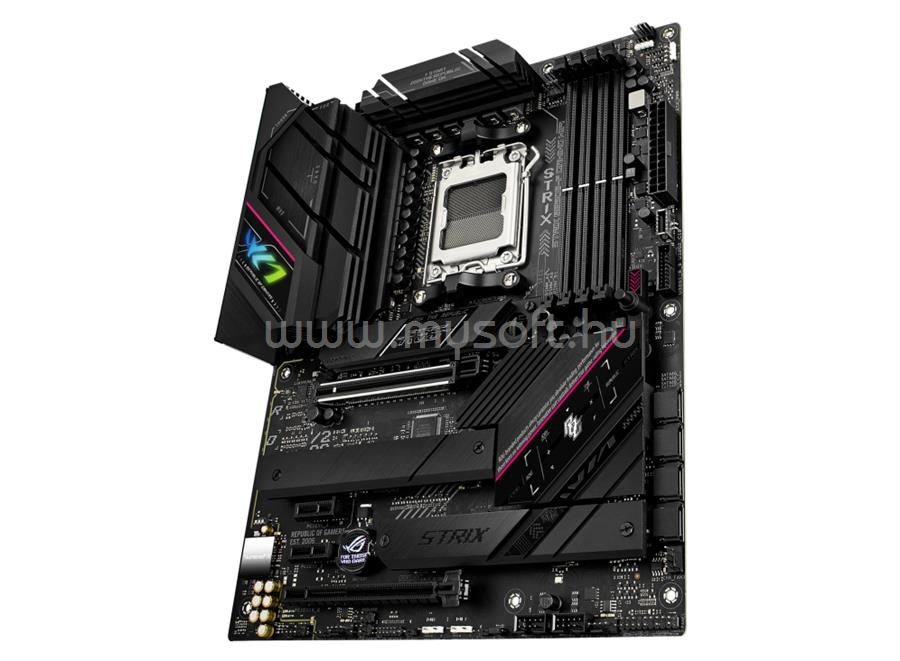

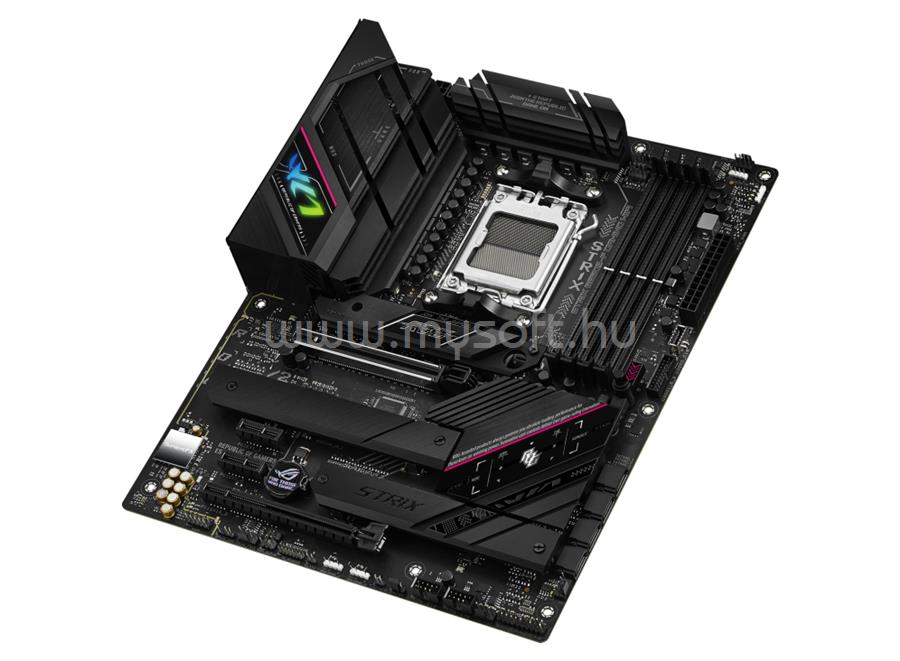

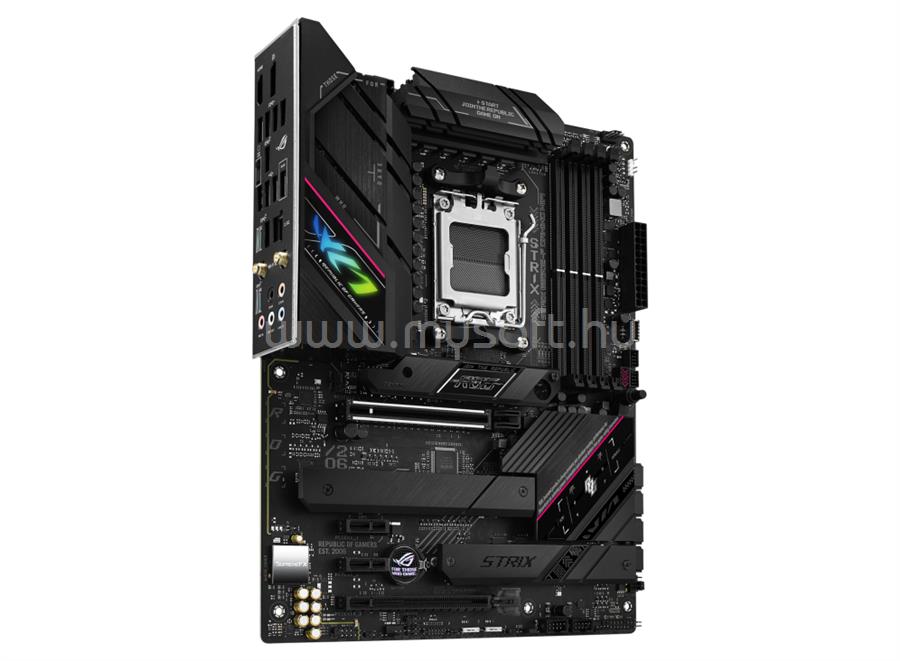

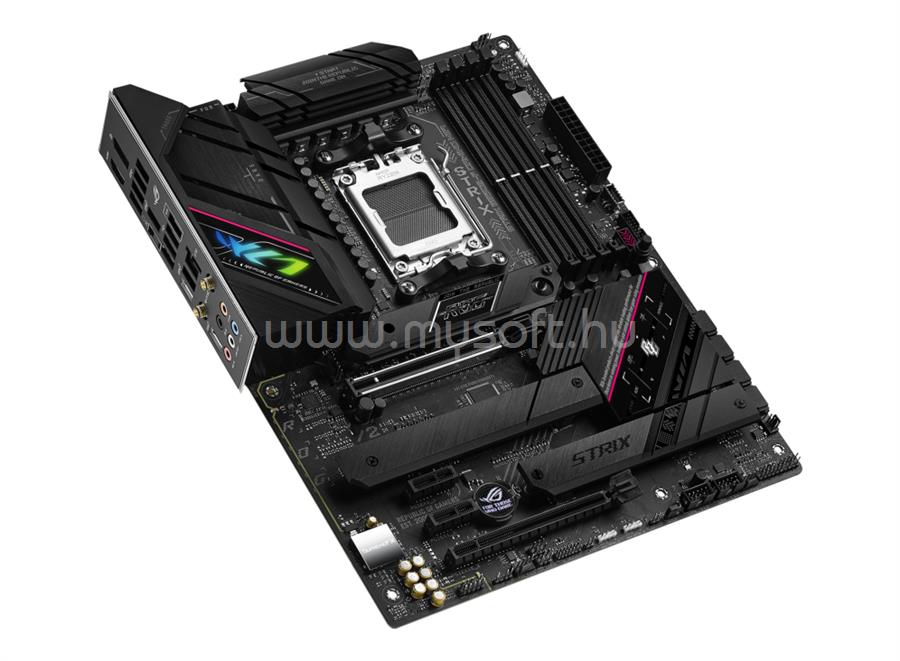

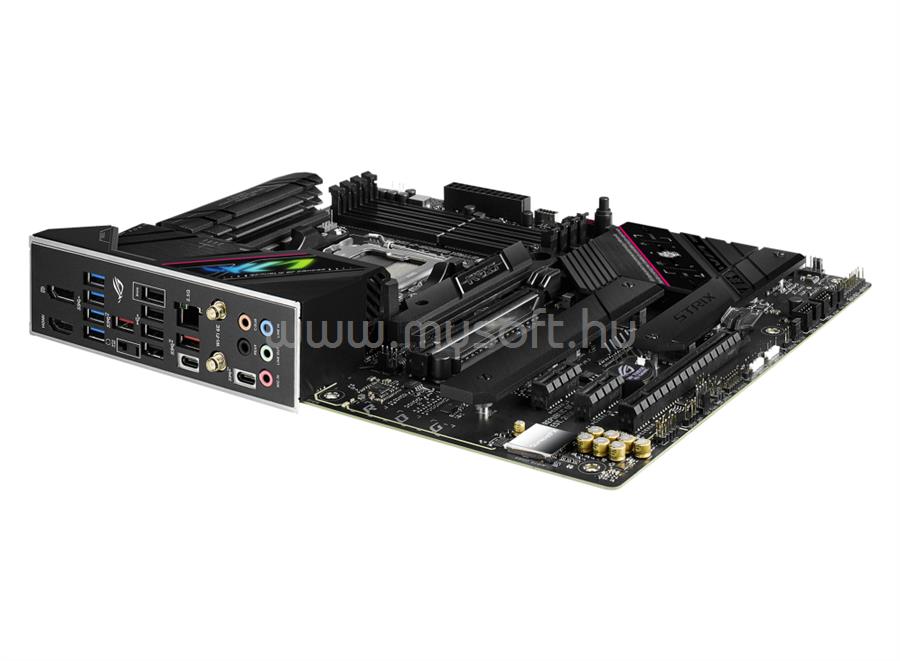

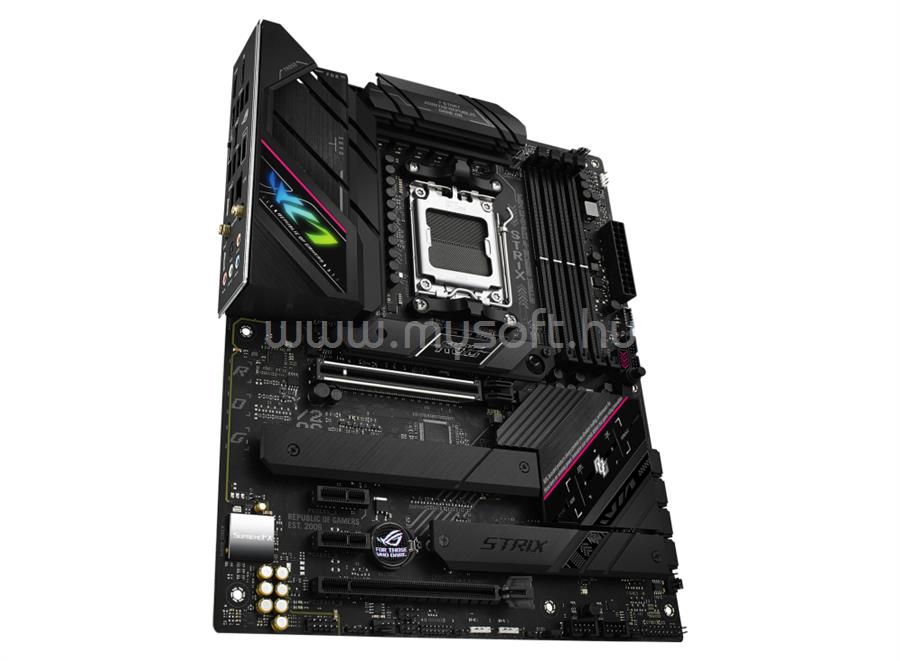

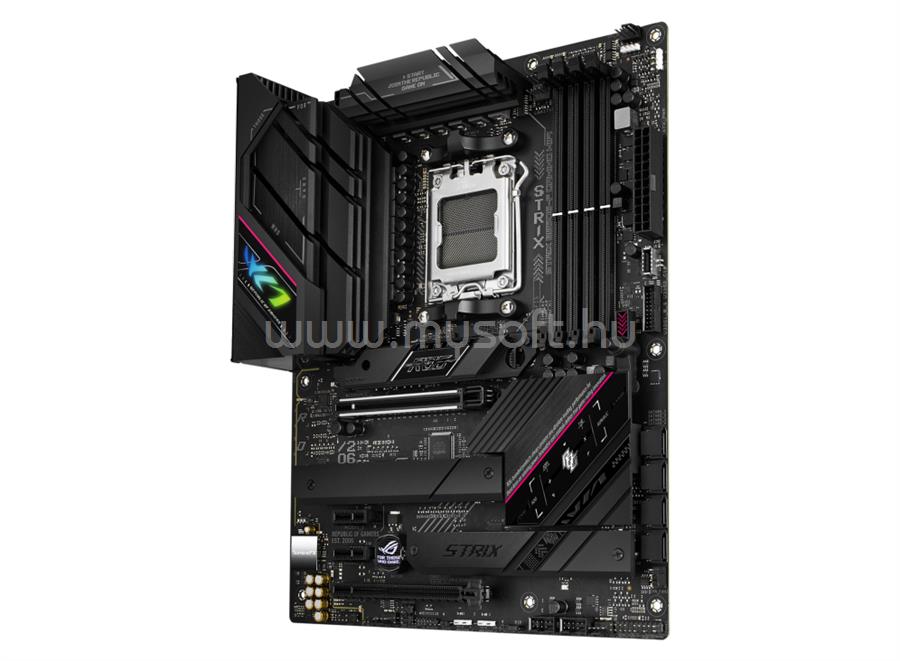

ASUS ALAPLAP ROG STRIX B650E-F GAMING WIFI (AM5, ATX)

• CPU

• AM5 Socket for AMD Ryzen™ 9000& 8000 & 7000 Desktop Processorss

• Chipset

• AMD B650

• Memory

• 4 x DIMM, Max. 192GB, DDR5 8000+(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/
• 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory*
• Dual Channel Memory Architecture
• Supports AMD EXTended Profiles for Overclocking (EXPO™)
• OptiMem II

• Graphics

• 1 x DisplayPort*
• 1 x HDMI© port**
• * Supports max. 8K@60Hz as specified in DisplayPort 1.4.
• **Supports 4K@60Hz as specified in HDMI 2.1.

• Expansion Slots

• AMD Ryzen 9000 & 7000 Series Desktop Processors
• 1 x PCIe 5.0 x16 slot
• AMD Ryzen 8000 Series Desktop Processors
• 1 x PCIe 4.0 x16 slot (support x8/x4 mode)*
• AMD B650 Chipset
• 1 x PCIe 4.0 x16 slot (supports x4 mode)**
• 2 x PCIe 4.0/3.0 x1 slots
• *Specification vary by CPU types.*
• ** PCIe 4.0 x16 slot (supports x4 mode) from AMD B650 Chipset shares bandwidth with M.2_3.

• Storage

• Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
• AMD Ryzen™ 9000 & 7000 Series Desktop Processors
• M.2_1 slot (Key M), type 2242/2260/2280(supports PCIe 5.0 x4 mode)
• M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
• AMD Ryzen™ 8000 Series Desktop Processors
• M.2_1 slot (Key M), type 2242/2260/2280(supports PCIe 4.0 x4 mode)
• M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4/x2 mode)**
• AMD B650 Chipset
• M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)***
• 4 x SATA 6Gb/s port
• * AMD RAID Xpert Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
• ** Specification vary by CPU types.
• *** M.2_3 slot shares bandwidth with PCIe 4.0 x16 slot (supports x4 mode) When M.2_3 slot is operating in PCIe mode, M.2_3 will be disabled.

• Ethernet

• 1 x Intel© 2.5Gb Ethernet
• ASUS LANGuard

• Wireless & Bluetooth

• Wi-Fi 6E
• 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
• Supports 2.4/5GHz frequency band
• Bluetooth v5.2
• * Wi-Fi 6E 6GHz regulatory may vary between countries, and function will be
• ready in Windows 11 or later.

• USB

• Rear USB (Total 12 ports)
• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C©)
• 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C©)
• 4 x USB 3.2 Gen 1 port (4 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• Front USB (Total 7 ports)
• 1 x USB 3.2 Gen 2 connector (supports USB Type-C©)
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers supports additional 4 USB 2.0 ports

• Audio

• ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
• Impedance sense for front and rear headphone outputs
• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
• Supports up to 32-Bit/384 kHz playback
• Audio Features
• SupremeFX Shielding Technology
• Savitech SV3H712 AMP
• Premium audio capacitors
• Audio cover

• Back Panel I/O Ports

• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C©)
• 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C©)
• 4 x USB 3.2 Gen 1 ports (4 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• 1 x DisplayPort
• 1 x HDMI© port
• 1 x Wi-Fi Module
• 1 x Intel© I225-V 2.5Gb Ethernet port
• 5 x Audio jacks
• 1 x BIOS FlashBack button

• Internal I/O Connectors

• Fan and Cooling related
• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 4 x 4-pin Chassis Fan headers
• Power related
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector
• 1 x 4-pin +12V Power connector
• Storage related
• 3 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
• USB
• 1 x USB 3.2 Gen 2 connector (supports USB Type-C©)
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers supports additional 4 USB 2.0 ports
• Miscellaneous
• 3 x Addressable Gen 2 headers
• 1 x AURA RGB header
• 1 x Clear CMOS header
• 1 x CPU Over Voltage jumper
• 1 x Front Panel Audio header (AAFP)
• 1 x S/PDIF Out header
• 1 x 20-3 pin System Panel header with Chassis intrude function
• 1 x Thermal Sensor header
• 1 x Thunderbolt header
• 1 x COM_DEBUGheader

• Special Features

• Extreme Engine Digi+
• 5K Black Metallic Capacitors
• ASUS Q-Design
• M.2 Q-Latch
• PCIe Slot Q-Release
• Q-LED
• Q-DIMM
• Q-Slot
• ASUS Thermal Solution
• M.2 heatsink
• VRM heatsink design
• ASUS EZ DIY
• BIOS FlashBack button
• BIOS FlashBack LED
• ProCool
• Pre-mounted I/O shield
• SafeSlot
• SafeDIMM
• AURA Sync
• AURA RGB header
• Addressable Gen 2 headers

• Software Features

• ROG Exclusive Software
• GameFirst VI
• ROG CPU-Z
• Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
• Sonic Radar III
• DTS© Sound Unbound
• Anti-virus software
• ASUS Exclusive Software
• Armoury Crate
• AIDA64 Extreme (60 days free trial)
• AURA Creator
• AURA Sync
• Fan Xpert 4
• Power Saving
• Two-Way AI Noise Cancellation
• AI Suite 3
• TPU
• DIGI+ VRM
• Turbo app
• PC Cleaner
• MyAsus
• WinRAR
• UEFI BIOS
• ASUS EZ DIY
• ASUS CrashFree BIOS 3
• ASUS EZ Flash 3
• ASUS UEFI BIOS EZ Mode
• FlexKey

• BIOS

• 256 Mb Flash ROM, UEFI AMI BIOS

• Manageability

• WOL by PME, PXE

• Accessories

• Cables
• 2 x SATA 6Gb/s cables
• Additional Cooling Kit
• 1 x Thermal pad for M.2
• Miscellaneous
• 1 x ASUS Wi-Fi moving antennas
• 1 x Cable ties pack
• 1 x M.2 Q-Latch package
• 1 x ROG key chain
• 1 x ROG Strix stickers
• 1 x ROG Strix thank you card
• 2 x M.2 Rubber Packages
• Documentation
• 1 x User guide

• Operating System

• Windows© 11 64-bit

• Form Factor

• ATX Form Factor
• 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
