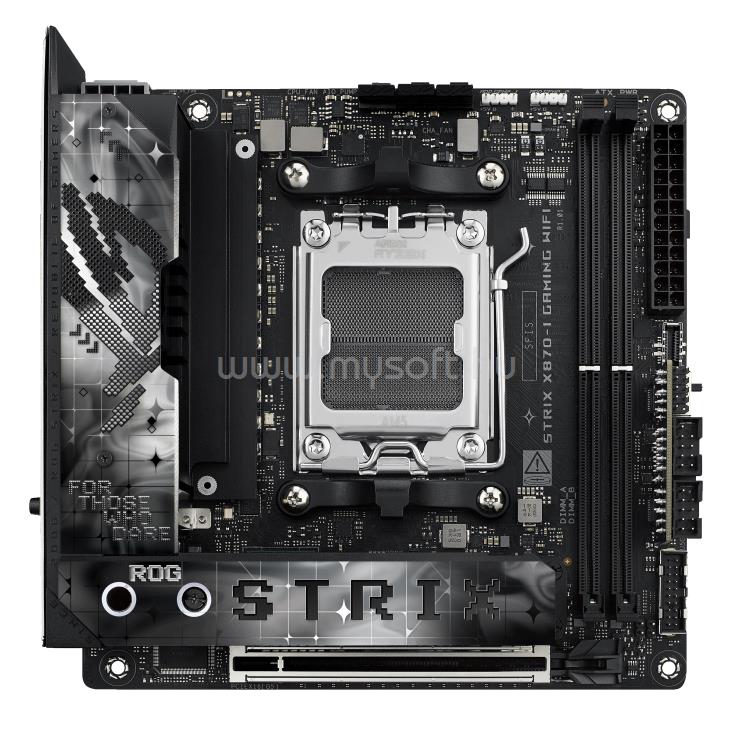

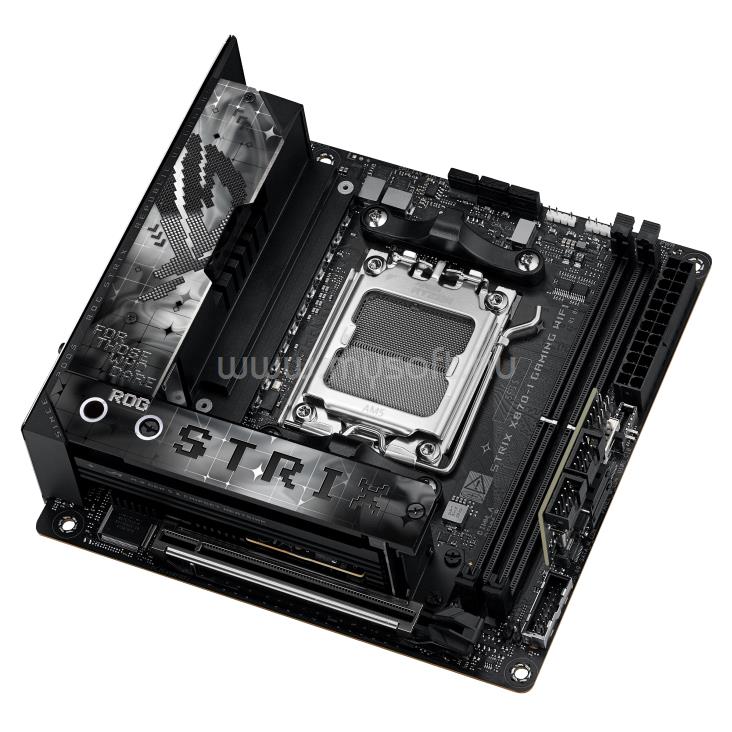

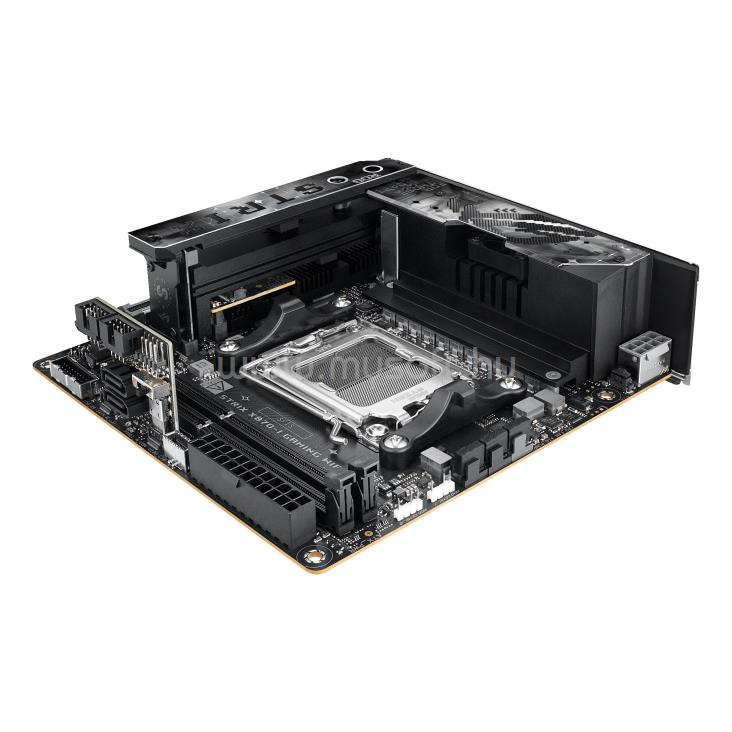

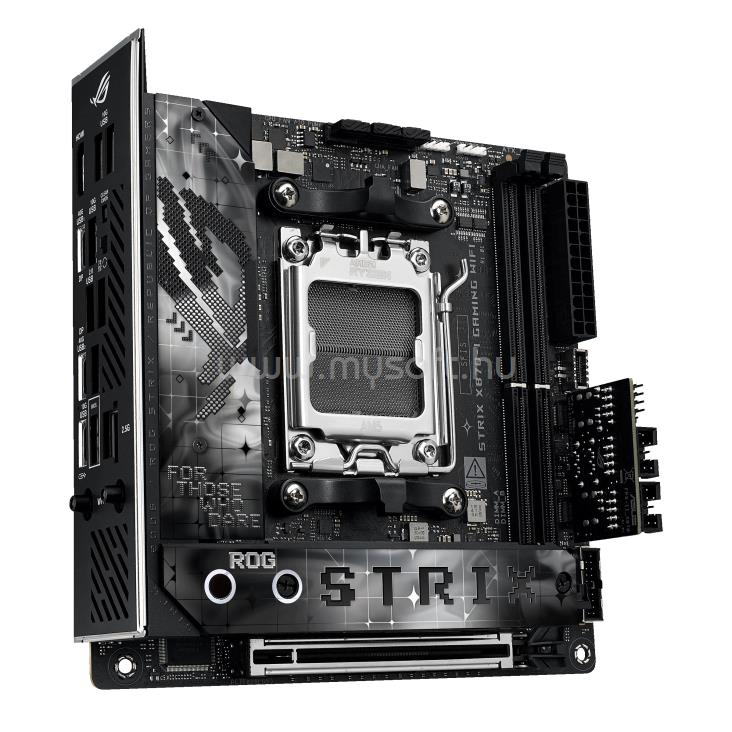

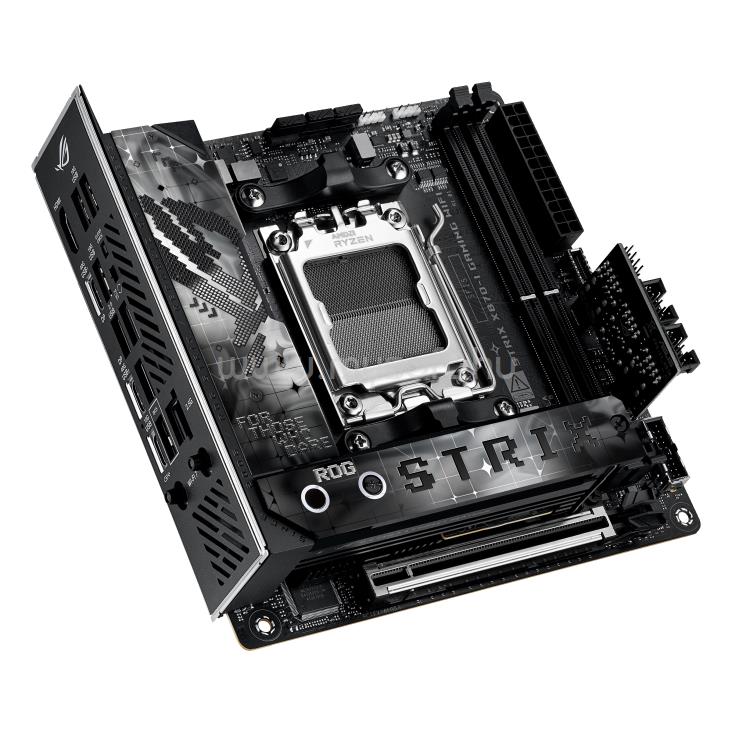

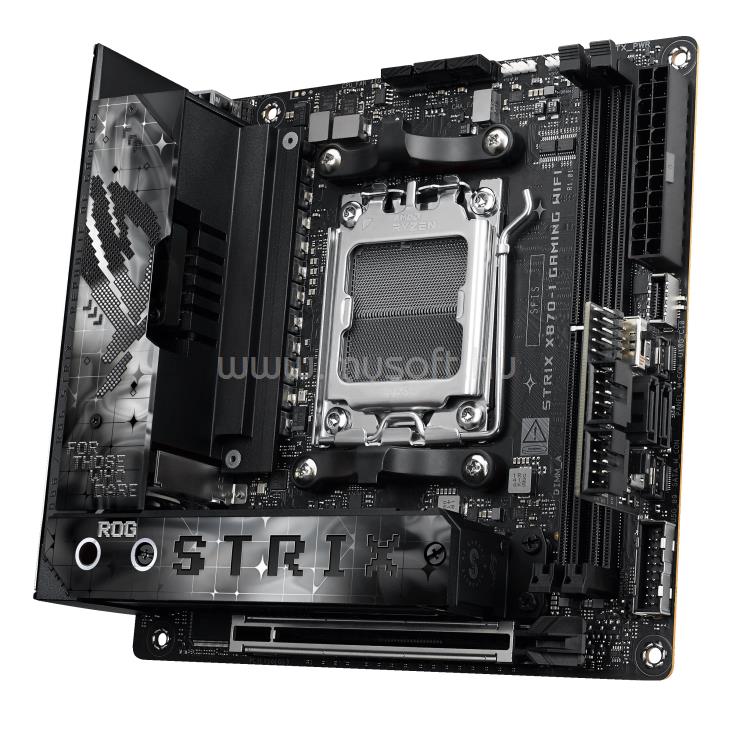

ASUS ALAPLAP ROG STRIX X870-I GAMING WIFI (AM5, MINI-ITX)

• CPU

• AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
• * Refer to https://www.asus.com/support/download-center/ for CPU support list.

• Chipset

• AMD X870

• Memory

• 2 x DIMM slots, max. 96GB, DDR5
• Supports up to
• 8400+MT/s(OC) with Ryzen™ 9000 Series Processors,
• 8600+MT/s(OC) with Ryzen™ 8000 Series Processors,
• 8000+MT/s(OC) with Ryzen™ 7000 Series Processors,
• ECC and Non-ECC Un-buffered DIMM*"
• Dual channel memory architecture
• Supports AMD Extended Profiles for Overclocking (EXPO™)
• ASUS Enhanced Memory Profile (AEMP)
• * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory
• configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
• * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

• Graphics

• 1 x HDMI™ port**
• 2 x USB4© (40Gbps) ports support USB Type-C© display outputs***
• * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
• ** Supports 4K@60Hz as specified in HDMI 2.1.
• *** Supports max. 4K@60Hz as specified in DisplayPort 1.4a
• **** VGA resolution support depends on processors' or graphic cards' resolution.

• Expansion Slots

• AMD Ryzen™ 9000 & 7000 Series Desktop Processors
• 1 x PCIe 5.0 x16 slot
• AMD Ryzen™ 8000 Series Desktop Processors
• 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)*
• * Specifications vary by CPU types.
• To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

• Storage

• Supports 2 x M.2 slots and 2 x SATA 6Gb/s ports*
• AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
• M.2_1 slot (Key M), type 2280(supports PCIe 5.0 x4 mode)
• AMD Ryzen™ 8000 Series Desktop Processors*
• M.2_1 slot (Key M), type 2280(supports PCIe 4.0 x4 mode)
• AMD X870 Chipset
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)
• 2 x SATA 6Gb/s ports***
• * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1
• *** Install ROG FPS Card to support 2 x SATA 6Gb/s ports.

• Ethernet

• 1 x Intel© 2.5Gb Ethernet
• ASUS LANGuard

• Wireless & Bluetooth

• Wi-Fi 7*
• 2x2 Wi-Fi 7 (802.11be)
• Supports 2.4/5/6GHz frequency band**
• Support Wi-Fi 7 320MHz bandwidth, up to 6.5Gbpstransfer rate.
• Bluetooth© v5.4***
• *Wi-Fi features may vary depending on the operating system
• For Windows 11, Wi-Fi 7 will require24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
• For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor's website for details.
• ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
• *** The Bluetooth© version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications."

• USB

• Rear USB (Total 10 ports)
• 2 x USB4© (40Gbps) port(s)(2 x USB Type-C©)
• 5 x USB 10Gbps port(s) (4 x Type-A + 1 x USB Type-C©)
• 3 x USB 2.0 port(s) (3 x Type-A)
• Front USB (Total 3 ports)
• 1 x USB 10Gbps connector (supports USB Type-C©)
• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• * USB Type-C© power delivery output: max. 5V/3A
• ROG STRIX HIVE II(Total 2 ports)
• 2 x USB 10Gbps port ( 1 x Type-A + 1 x USB Type-C©)
• ROG FPS Card (Total 3 ports)
• 2 x USB 2.0 headers additional 3 USB 2.0 ports

• Audio

• ROG Strix Hive II Audio Features
• ROG Hyper-Grounding Technology
• ESS© SABRE9260Q DAC
• Silver-plated audio jacks
• Dedicated audio PCB layers

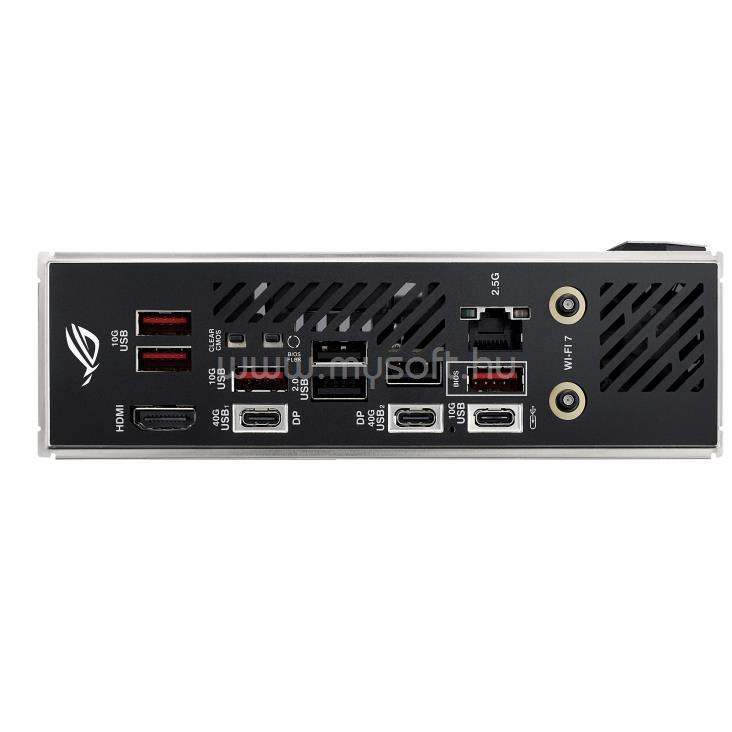

• Back Panel I/O Ports

• 2 x USB4© (40Gbps)(2 x USB Type-C©)
• 5 x USB 10Gbps port(s) (4 x Type-A + 1 x USB Type-C©, 1 port supports ROG STRIX HIVE II)
• 3 x USB 2.0 port(s) (2 x Type-A)
• 1 x HDMI™ port
• 1 x Wi-Fi module
• 1 x Intel© 2.5Gb Ethernet port
• 1 x BIOS FlashBack™ button
• 1 x Clear CMOS button

• Internal I/O Connectors

• Fan and Cooling Related
• 1 x 4-pin CPU Fan header(s)
• 1 x 4-pin AIO Pump header(s)
• 1 x 4-pin Chassis Fan header(s)
• Power Related
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V CPU Power connector
• Storage Related
• 2 x M.2 slots (Key M)
• USB
• 1 x USB 10Gbps connector (supports USB Type-C© )
• 1 x USB 5Gbps header support(s) 2
• additional USB 5Gbps ports
• Miscellaneous
• 2 x Addressable Gen 2 headers
• 1 x 2-pin Power Button header
• 1 x Thermal Sensor header
• 2 x USB Type-C© connectors to install ROG FPS card
• ROG FPS card
• 2 x SATA 6Gb/s ports
• 1 x CPU Over Voltage jumper
• 1 x Front Panel header
• 1 x Alteration PCIe Mode switch
• 2 x USB 2.0 headers support 3 additional USB 2.0 ports

• Special Features

• ASUS Q-Design
• M.2 Q-Latch
• PCIe Slot Q-Release Slim (with PCIe SafeSlot)
• Q-Antenna
• Q-DIMM
• Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
• Q-Slot
• ASUS Thermal Solution
• M.2 heatsink

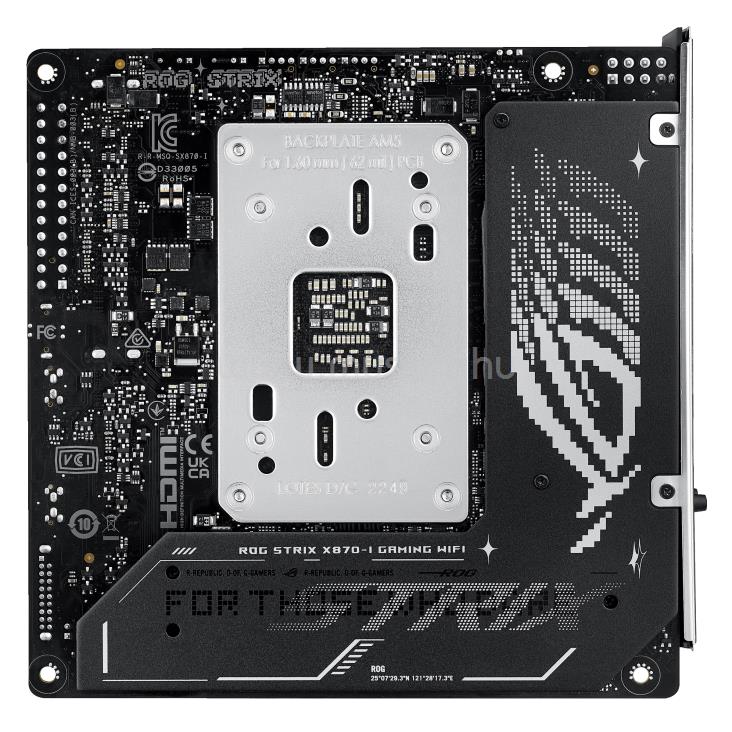

• Aluminum backplate
• ASUS EZ DIY
• BIOS FlashBack™ button
• BIOS FlashBack™ LED
• Clear CMOS button
• ProCool II
• Pre-mounted I/O shield
• SafeSlot
• SafeDIMM
• Aura Sync
• Addressable Gen 2 header(s)

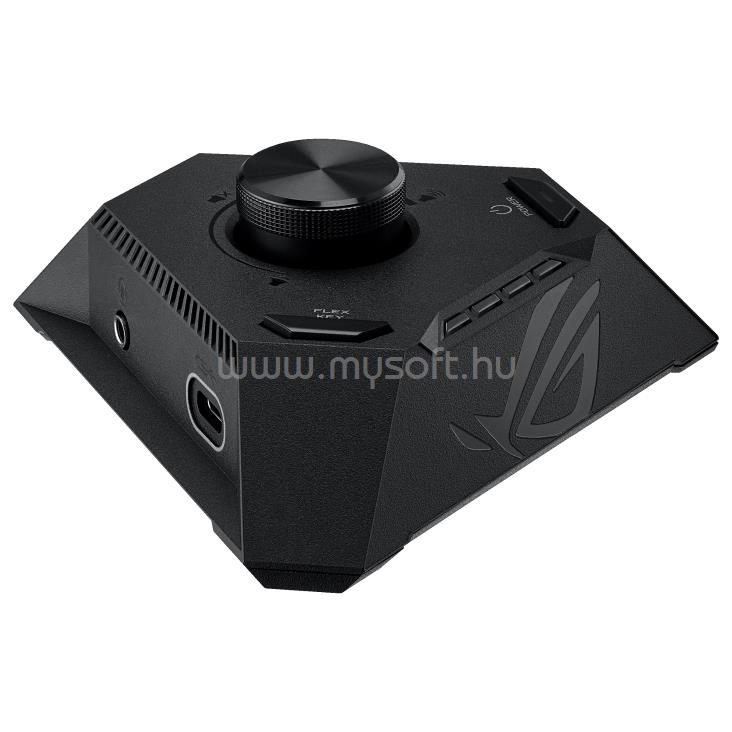

• ROG STRIX HIVE II
• 1 x USB Type-C© connects to motherboard
• 2 x USB 10Gbps port ( 1 x Type-A + 1 x USB Type-C©)
• 1 x Headphone jack with mic in
• 1 x Power button
• 1 x FlexKey button
• 1 x Volume control knob with mute button Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

• Software Features

• ROG Exclusive Software
• ROG CPU-Z
• Dolby Atmos
• ASUS Exclusive Software
• Armoury Crate
• AIDA64 (60 days free trial)
• Aura Creator
• Aura Sync
• Fan Xpert 4 (with AI Cooling II)
• GameFirst
• HWiNFO
• Power Saving
• ASUS Driver Hub
• ASUS GlideX
• Adobe Creative Cloud (Free Trial)
• Norton 360 for Gamers (60 Days Free Trial)
• WinRAR (40 Days Free Trial)
• UEFI BIOS
• AI Overclocking Guide
• ASUS EZ DIY
• ASUS CrashFree BIOS 3
• ASUS EZ Flash 3
• ASUS UEFI
• BIOS EZ Mode
• ASUS
• MyHotkey
• FlexKey
• Dynamic OC Switcher

• BIOS

• 256 Mb Flash ROM, UEFI AMI BIOS

• Manageability

• WOL by PME, PXE

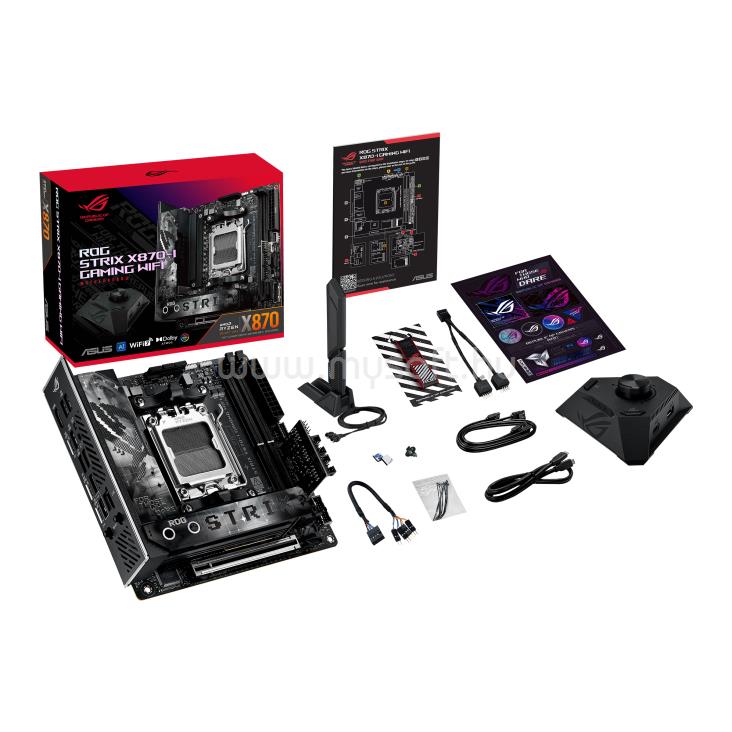

• Accessories

• Cables
• 1 x Panel cable
• 1 x ROG USB2.0 splitter cable
• 2 x SATA 6Gb/s cables

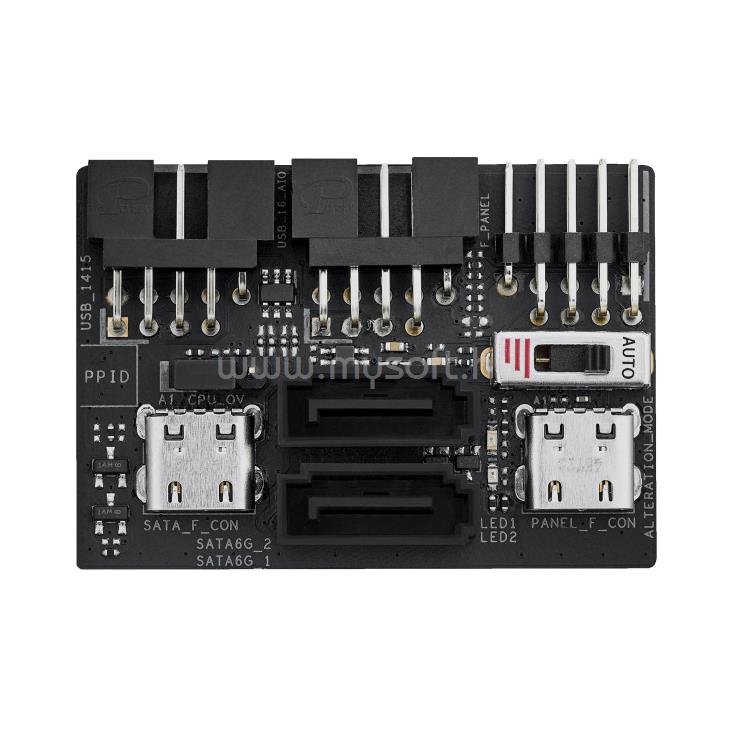

• ROG FPS Card
• 1 x ROG FPS Card
• ROG STRIX HIVE II
• 1 x ROG STRIX HIVE II
• 1 x USB Type-C© power connection cable
• Miscellaneous
• 1 x ASUS WiFi Q-Antenna
• 1 x Cable ties package
• 1 x M.2 Q-Latch package(s)
• 1 x ROG key chain
• 1 x ROG Strix stickers
• 1 x M.2 rubber package(s)
• Documentation
• 1 x Quick start guide

• Operating System

• Windows© 11 64-bit

• Form Factor

• Mini-ITX Form Factor
• 6.7 inch x 6.7 inch (17 cm x 17 cm)
