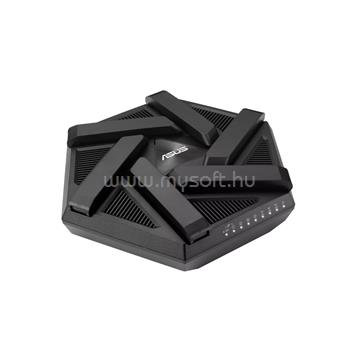

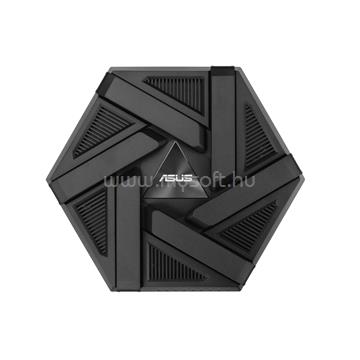

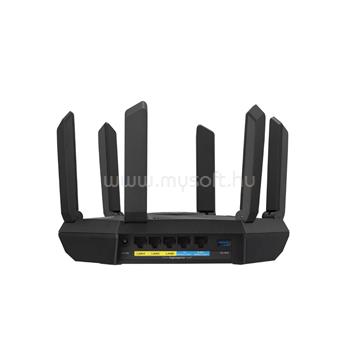

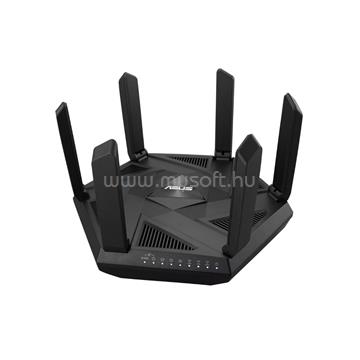

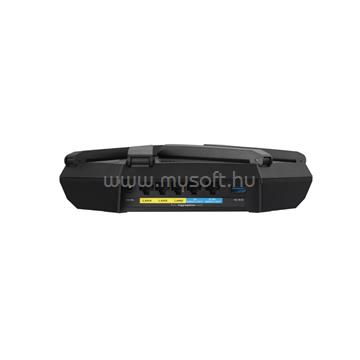

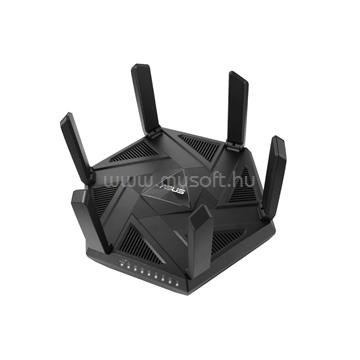

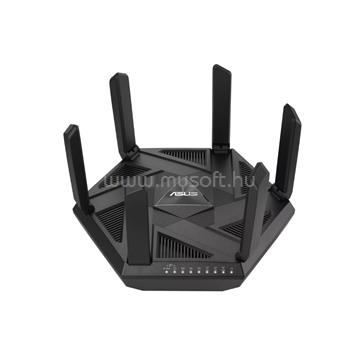

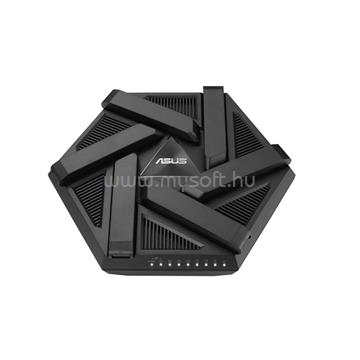

ASUS RT-AXE7800 LAN/WIFI ROUTER AXE7800 TRI-BAND WIFI 6E

• Specification

• Network Standard
• IEEE 802.11a
• IEEE 802.11b
• IEEE 802.11g
• WiFi 4 (802.11n)
• WiFi 5 (802.11ac)
• WiFi 6 (802.11ax)
• WiFi 6E (802.11ax)
• IPv4
• IPv6
• Product Segment
• AXE7800 ultimate AX performance : 574+4804+2402 Mbps
• WiFi Data Rate
• 802.11a : up to 54 Mbps
• 802.11b : up to 11 Mbps
• 802.11g : up to 54 Mbps
• WiFi 4 (802.11n) : up to 300 Mbps
• WiFi 5 (802.11ac) : up to 500 Mbps
• WiFi 5 (802.11ac) (1024QAM) : up to 2167 Mbps
• WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
• WiFi 6 (802.11ax) (5GHz) : up to 4804 Mbps
• WiFi 6E (802.11ax) (6GHz) : up to 2402 Mbps
• Antenna
• External antenna x 6 (non-detachable)
• Transmit / Receive
• 2.4GHz 2x2
• 5GHz 4x4
• 6GHz 2x2
• Processor
• 1.7GHz quad-core processor
• Memory
• 256 MB Flash and 512 MB DDR4 RAM
• Boosts Speed
• OFDMA (Orthogonal Frequency Division Multiple Access)
• Beamforming: standard-based and universal
• 1024-QAM high data rate
• 20/40/80/160 MHz bandwidth
• Operating Frequency
• Tri-band Wi-Fi: 2.4 GHz / 5 GHz / 6 GHz
• Operating Mode
• Router(AiMesh router), AiMesh node, Access point, Repeater, Media bridge
• I/O Ports
• RJ45 for 2.5 Gigabits BaseT for WAN/LAN x 1,
• RJ45 for Gigabits BaseT for WAN/LAN x 1,
• RJ45 for Gigabits BaseT for LAN x 3,
• USB 3.2 Gen 1 Port x 1,
• Buttons
• Power on/off switch
• Reset Button
• WPS Button
• LED Indicator
• Power x 1
• 2.4GHz x 1
• 5GHz x 1
• 6HGz x 1
• 2.5G WAN/LAN1 x 1
• 1G WAN/LAN1 x 1
• 1G LAN x 3
• Power Supply
• AC Input : 110V~240V(50~60Hz)
• DC Output: 12 V with max. 3.0 A current
• Package Content
• RT-AXE7800 WiFi Router
• RJ-45 Cable
• Power Adapter
• Quick Start Guide
• Warranty Card
• Product Weight (g)
• 1033g
• Product Dimensions
• 243*223*155 mm
• AiMesh
• AiMesh
• Primary AiMesh Router
• AiMesh Node
• Parental Control
• "Allow you to block access to unwanted websites and apps."
• Safe Browsing
• Customized Internet Schedule
• Maximum Parental Control Profile : 64
• Maximum Parental Control Content Cilter Rule : 64
• Guest Network
• "The Guest Network provides Internet connection for guests but restricts access to your local network."
• Maximum Guest Network Rule : 2.4 GHz x 3, 5 GHz-1 x 3, 6 GHz x 3
• Guest Network Connection Time Limit
• Guest Network Encryption : Open system, WPA/WPA2/WPA3-Personal, WPS
• Security
• AiProtection
• WPA3-Personal, WPA2-Personal, WPA-Personal, WPA-Enterprise , WPA2-Enterprise , WPS support
• WPS
• Let's Encrypt
• DNS-over-TLS
• SSH
• Security Scan
• Firewall
• Maximum Firewall Keyword Filter : 64
• Maximum Firewall Network Service Filter : 32
• Maximum Firewall URL Filter : 64
• AiProtection
• Router Security Assessment
• Malicious Site Blocking
• Two-Way IPS
• Infected Device Prevention and Blocking
• VPN
• Instant Guard
• VPN Client L2TP
• VPN Client Open VPN
• VPN Client PPTP
• VPN Client WireGuard
• VPN Server IPSec
• VPN Server Open VPN
• VPN Server PPTP
• VPN Server WireGuard
• VPN Fusion
• Traffic Control
• Adaptive QoS
• Bandwidth Monitor
• Bandwidth Limiter
• -- Maximum Bandwidth Limiter Rule : 32
• Traditional QoS
• -- Maximum Traditional QoS Rule : 32
• Traffic Monitor
• Real-time Traffic Monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor
• Traffic Analyzer
• Traffic Analysis Period : Daily, Weekly, Monthly
• Website History
• WAN
• Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
• Dual WAN
• WAN Aggregation
• 3G / 4G LTE dongle
• Port forwarding
• Maximum Port Forwarding Rule : 64
• Port triggering
• Maximum Port Triggering Rule : 32
• DMZ
• DDNS
• NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Passthrough, PPPoE relay
• LAN
• DHCP Server
• IGMP Snooping
• IPTV
• LAN Link Aggregation
• Manually Assign IP Address
• Maximum Manually Assign IP Address Rule : 64
• Wake on LAN (WOL)
• Wireless
• MU-MIMO
• UTF-8 SSID
• WiFi MAC Address Filter
• Maximum MAC Filters : 64
• Wireless Scheduler
• Airtime Fairness
• RADIUS Client
• Universal Beamforming
• Explicit Beamforming
• USB application
• File System : HFS+, NTFS, vFAT, ext2, ext3, ext4
• Safely Remove Disk
• AiCloud
• Download Master
• AiDisk
• Media Server
• Time Machine
• Samba Server
• FTP Server
• Shared Folder Privileges
• Administration
• Configuration Backup and Restore
• Diagnosis tools
• Feedback System
• System Log
• New Device Connect Notification
• Login Captcha
• Connection Diagnosis
• Auto Firmware Update
