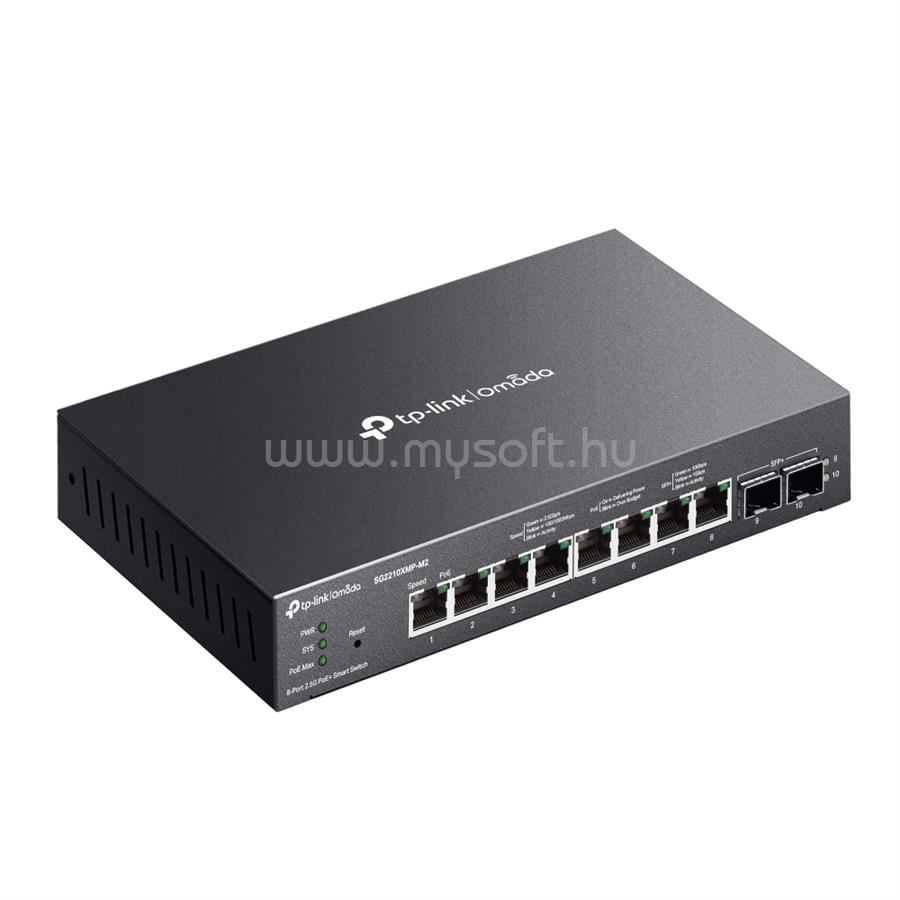

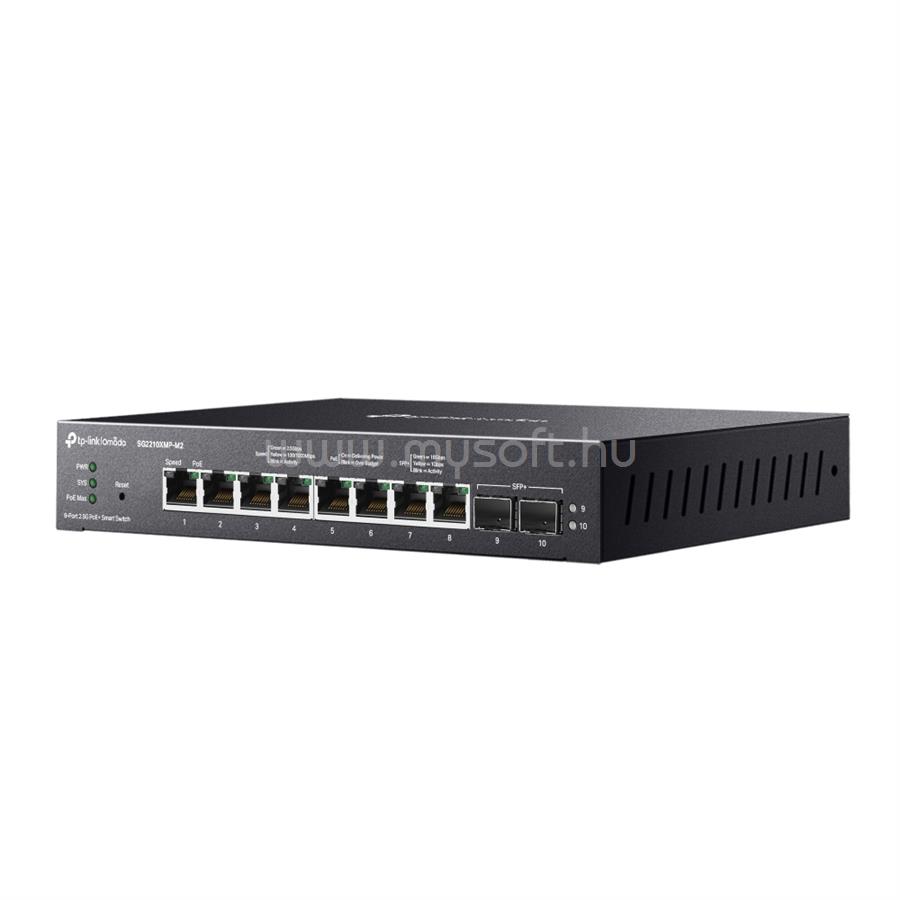

TP-LINK SG2210XMP-M2 SWITCH 8X2500MBPS(8XPOE+) + 2X10G SFP+, MENEDZSELHETŐ

• HARDWARE FEATURES

• Interface
• 8× 100/1000/2500 Mbps RJ45 PoE+ Ports
• 2× 10G SFP+ Slots
• Fan Quantity
• Fanless
• Physical Security Lock
• Yes
• Power Supply

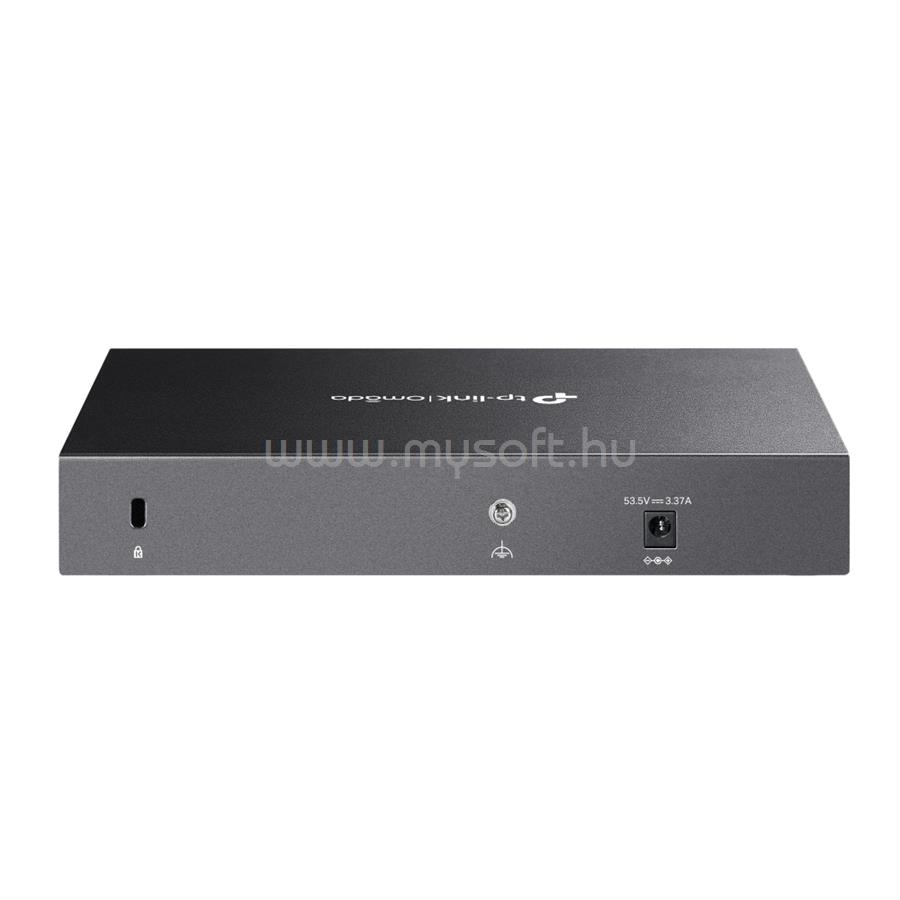

• 53.5VDC/3.37A Power Adapter
• PoE Ports (RJ45)
• Standard: 802.3at/af compliant
• PoE+ Ports: 8 Ports
• PoE Power Budget: 160 W*
• Dimensions ( W x D x H )
• 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)
• Mounting

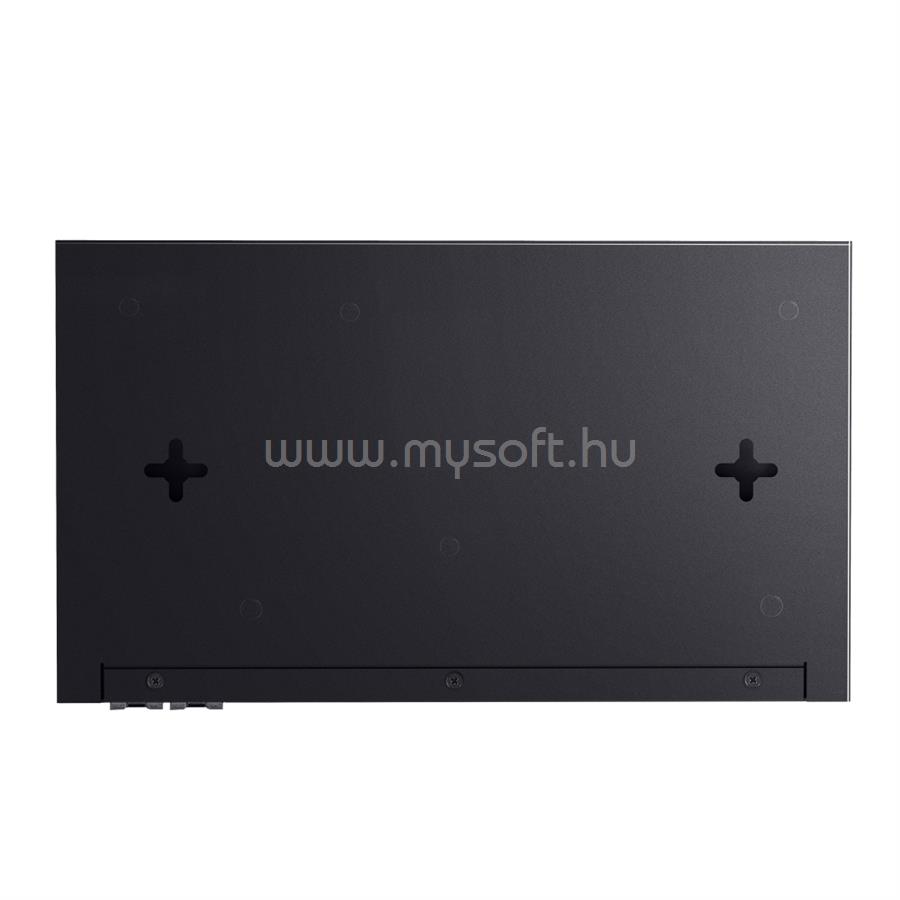

• Desktop/Wall-Mounting
• Max Power Consumption
• 180.1 W (110V/60Hz) (with 160 W PD connected)
• Max Heat Dissipation
• 614.58 BTU/hr (110V/60Hz) (with 160 W PD connected)

• PERFORMANCE

• Switching Capacity
• 80 Gbps
• Packet Forwarding Rate
• 59.52 Mpps
• MAC Address Table
• 16 K
• Packet Buffer Memory
• 12 Mbit
• Jumbo Frame
• 9 KB

• SOFTWARE FEATURES

• Quality of Service
• 802.1p CoS/DSCP priority
• 8 priority queues
• Priority Schedule Mode
• SP (Strict Priority)
• WRR (Weighted Round Robin)
• Queue Weight Config
• Bandwidth Control
• Port/Flow based Rating Limit
• Smoother Performance
• Storm Control
• Multiple Control Modes(kbps/ratio)
• Broadcast/Multicast/Unknown-Unicast Control
• L2 and L2+ Features
• 32 IP Interfaces: Support IPv4/IPv6 Interface
• Static Routing: 32 IPv4/IPv6 Static Routes
• DHCP Server
• DHCP Relay
• DHCP Interface Relay
• DHCP VLAN Relay
• DHCP L2 Relay
• Static ARP
• Proxy ARP
• Gratuitous ARP
• Link Aggregation
• Spanning Tree Protocol
• Loopback Detection
• 802.3x Flow Control
• Mirroring
• Device Link Detect Protocol (DLDP)
• 802.1ab LLDP/ LLDP-MED
• L2 Multicast
• 511 IPv4, IPv6 shared multicast groups
• IGMP Snooping
• Multicast VLAN Registration (MVR)
• Multicast Filtering
• Limited IP Multicast (256 profiles and 16 entries per profile)
• Advanced Features
• Automatic Device Discovery
• Batch Configuration
• Batch Firmware Upgrading
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
• VLAN
• VLAN Group
• Max 4K VLAN Groups
• 802.1Q Tagged VLAN
• MAC VLAN: 12 Entries
• Protocol VLAN
• GVRP
• Voice VLAN
• Access Control List
• Support up to 230 entries
• Time-based ACL
• MAC ACL
• IP ACL
• IPv6 ACL
• Combined ACL
• Rule Operation: Permit/Deny
• Policy Action
• Mirroring
• Redirect
• Rate Limit
• QoS Remark
• ACL Rules Binding
• Port Binding
• VLAN Binding
• Security
• IP-MAC-Port Binding
• AAA
• 802.1X
• Port based authentication
• MAC (Host) based authentication
• Authentication Method includes PAP/EAP-MD5
• MAB
• Guest VLAN
• Support Radius authentication and accountability
• IP/IPv6-MAC Binding
• 512 Binding Entries
• DHCP Snooping
• DHCPv6 Snooping
• ARP Inspection
• ND Detection
• ND Snooping
• IP Source Guard
• 253 Entries
• Source IP+Source MAC
• IPv6 Source Guard
• 183 Entries
• Source IPv6 Address+Source MAC
• DoS Defend
• DHCP Filter
• Static/Dynamic/Permanent Port Security
• Up to 64 MAC addresses per port
• Broadcast/Multicast/Unicast Storm Control
• Port Isolation
• Secure web management through HTTPS with SSLv3/TLS 1.2
• Secure Command Line Interface (CLI) management with SSHv1/SSHv2
• IP/Port/MAC based access control
• IPv6
• IPv6 Static Routing and ACL
• IPv6 Dual IPv4/IPv6
• IPv6 Interface
• Multicast Listener Discovery (MLD) Snooping
• IPv6 neighbor discovery (ND)
• Path maximum transmission unit (MTU) discovery
• Internet Control Message Protocol (ICMP) version 6
• TCPv6/UDPv6
• IPv6 applications
• DHCPv6 Client
• Ping6
• Tracert6
• Telnet(v6)
• IPv6 SNMP
• IPv6 SSH
• IPv6 SSL
• Http/Https
• IPv6 TFTP
• MIBs
• MIB II (RFC1213)
• Interface MIB (RFC2233)
• Ethernet Interface MIB (RFC1643)
• Bridge MIB (RFC1493)
• P/Q-Bridge MIB (RFC2674)
• RMON MIB (RFC2819)
• RMON2 MIB (RFC2021)
• Radius Accounting Client MIB (RFC2620)
• Radius Authentication Client MIB (RFC2618)
• Remote Ping, Traceroute MIB (RFC2925)
• Support TP-Link private MIB

• MANAGEMENT

• Omada App
• Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
• Centralized Management
• Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller
• Cloud Access
• Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
• Zero-Touch Provisioning
• Yes. Requiring the use of Omada Cloud-Based Controller.
• Management Features
• Web-based GUI
• Command Line Interface (CLI) through telnet
• SNMPv1/v2c/v3
• SNMP Trap/Inform
• RMON (1,2,3,9 groups)
• SDM Template
• DHCP/BOOTP Client
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• EEE
• SNTP
• System Log

• OTHERS

• Certification
• CE, FCC, RoHS
• Package Contents
• SG2210XHP-M2 Switch
• Power Adapter
• Quick Installation Guide
• Rubber Feet
• System Requirements
• Microsoft© Windows© 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC© OS, NetWare©, UNIX© or Linux.
• Environment
• Operating Temperature: 0-40 ? (32-104 ?);
• Storage Temperature: -40-70 ? (-40-158 ?)
• Operating Humidity: 10-90% RH non-condensing
• Storage Humidity: 5-90% RH non-condensing
