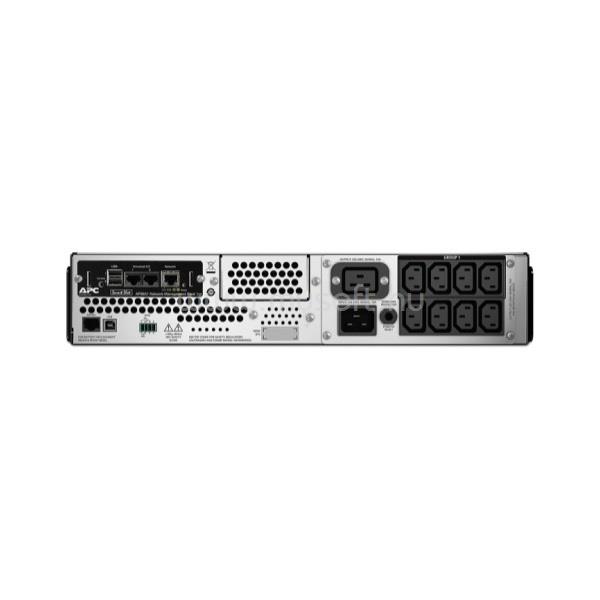

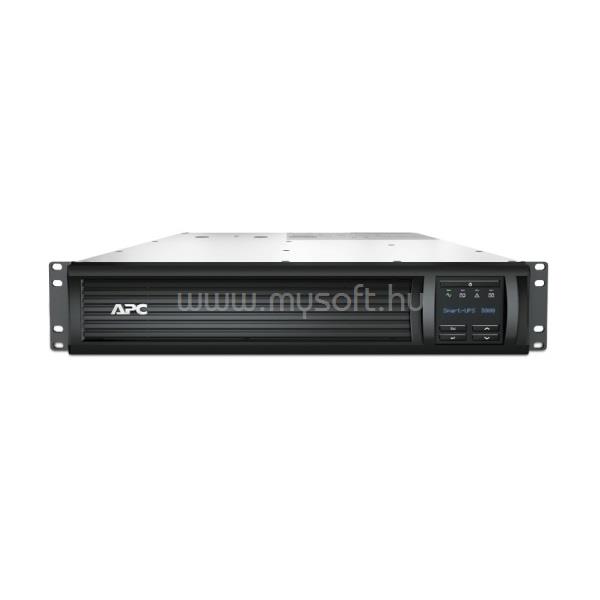

APC SMT3000RMI2UNC SMART 3000VA RM 2U LCD SZÜNETMENTES TÁPEGYSÉG HÁLÓZATI KÁRTYÁVAL

• Key Features

• Run time for load 2700 W
• Min-max: 270-2700 W
• 3m 11s
• Max. Capacity Used
• 100%
• Output power capacity
• 2.7kWatts / 3.0kVA
• Rack Height
• 2U
• Output Connections
• (1) IEC 320 C19 (Battery Backup)
• (8) IEC 320 C13 (Battery Backup)
• (3) IEC Jumpers (Battery Backup)
• Nominal Output Voltage
• 230V
• Nominal Input Voltage
• 230V
• Input Connections
• BS1363A British, IEC 320 C20, Schuko CEE 7 / EU1-16P
• Cord Length
• 2meters

• Output

• Max Configurable Power (Watts)
• 2.7kWatts / 3.0kVA
• Output Voltage Note
• Configurable for 220 : 230 or 240 nominal output voltage
• Output Frequency (sync to mains)
• 50/60 Hz +/- 3 Hz Sync to mains
• Other Output Voltages
• 220 V, 240 V
• Topology
• Line interactive
• Waveform type
• Sine wave
• Transfer Time
• 4 ms typical

• Input

• Input frequency
• 50/60 Hz +/- 3 Hz Auto-sensing
• Input voltage range for main operations
• 151 - 302 Adjustable, 160 - 286V
• Number of Power Cords
• 1
• Other Input Voltages
• 220 V, 240 V

• Batteries & Runtime

• Battery type
• Lead-acid battery
• Typical recharge time
• 3hour(s)
• Replacement Battery
• RBC43
• Expected Battery Life (years)
• 3 - 5
• RBC Quantity
• 1
• Battery Charge Power (Watts)
• 182 Watts

• Communications & Management

• Interface Port(s)
• RJ-45 10/100 Base-T, RJ-45 Serial, SmartSlot, USB
• Pre-Installed SmartSlot Cards
• AP9631
• Control panel
• LED status display with on line : on battery : replace battery and overload indicators, Multifunction LCD status and control console
• Audible Alarm
• Alarm when on battery : distinctive low battery alarm : configurable delays

• Surge Protection and Filtering

• Surge energy rating
• 320Joules

• Physical

• Maximum Height
• 86MM, 8.6CM
• Maximum Width
• 480MM, 48.0CM
• Maximum Depth
• 683MM, 68.3CM
• Net Weight
• 44.19KG
• Shipping weight
• 51.59KG
• Shipping Height
• 254MM, 25.4CM
• Shipping Width
• 600MM, 60.0CM
• Shipping Depth
• 980MM, 98.0CM
• Color
• Black

• Environmental

• Operating Temperature
• 0 - 40 °C
• Operating Relative Humidity
• 0 - 95 %
• Operating Elevation
• 0 - 3048meters
• Storage Temperature
• -15 - 40 °C
• Storage Relative Humidity
• 0 - 95 %
• Storage Elevation
• 0 - 15240meters
• Audible noise at 1 meter from surface of unit
• 55.0dBA
• Online thermal dissipation
• 348.0BTU/hr

Garancia fogyasztók részére

• 3 év kötelező jótállás (gyártó által biztosított szervizgarancia)

Garancia nem fogyasztók részére

• 3 év gyártó által biztosított szervizgarancia
