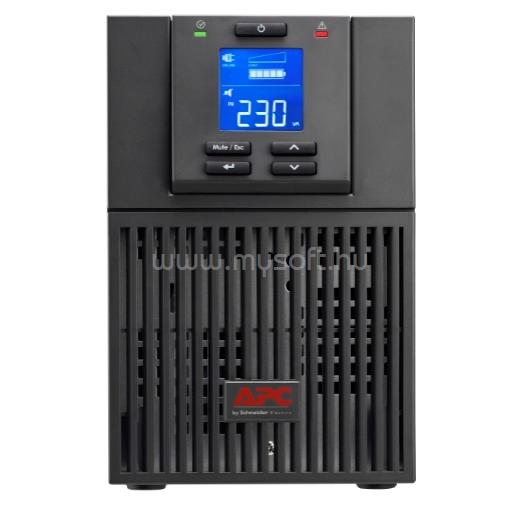

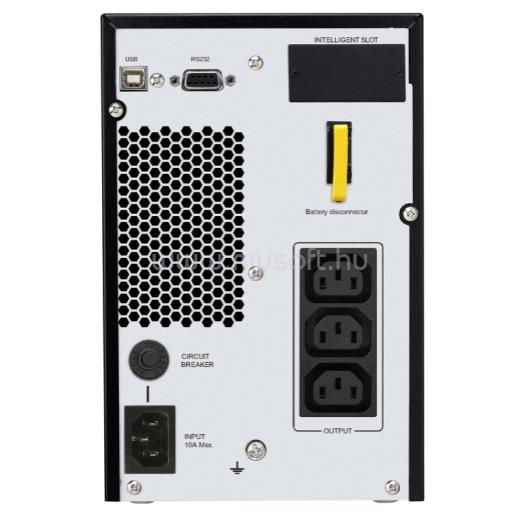

APC UPS 1000VA SRV1KI SZÜNETMENTES TÁPEGYSÉG C13/C14 SRV EASY ONLINE KETTŐS KONVERZIÓ

• Key Features

• Run time for load 800 W
• Min-max: 80-800 W
• 3m 49s
• Max. Capacity Used
• 100%
• Output power capacity
• 800 Watts / 1.0kVA
• Output Connections
• (3) IEC 60320 C13 (Battery Backup)
• (3) IEC 320 C13 (Battery Backup)
• Nominal Output Voltage
• 230V
• Nominal Input Voltage
• 230V
• Input Connections
• IEC 60320 C14
• Cord Length
• 1.5meters

• Output

• Max Configurable Power (Watts)
• 800 Watts / 1.0kVA
• Output Voltage Note
• Configurable for 220 : 230 or 240 nominal output voltage
• Efficiency at Full Load
• 88.0 %
• Output Voltage Distortion
• 3 %
• Output Frequency (sync to mains)
• 50/60 Hz +/- 3 Hz Sync to mains
• Other Output Voltages
• 220 V, 240 V
• Load Crest Factor
• 3 : 1
• Topology
• Double conversion online
• Waveform type
• Sine wave
• Bypass
• Internal bypass (automatic and manual)

• Input

• Input frequency
• 40 - 70 Hz Auto sensing
• Input voltage range for main operations
• 110 - 285 Half load, 160 - 280 Full loadV
• Number of Power Cords
• 1
• Efficiency at Full Load
• 88.0 %
• Other Input Voltages
• 220 V, 240 V

• Batteries & Runtime

• Battery type
• Lead-acid battery
• Included Battery Modules
• 1
• Typical recharge time
• 4hour(s)
• Nominal Battery Voltage
• 24 V
• Expected Battery Life (years)
• 3 - 5
• Battery Charge Power (Watts)
• 30 Watts

• Communications & Management

• Interface Port(s)
• DB-9 RS-232, USB
• Control panel
• Multifunction LCD status and control console
• Audible Alarm
• Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
• Available SmartSlot Interface Quantity
• 1

• Surge Protection and Filtering

• Surge energy rating
• 600Joules

• Physical

• Maximum Height
• 223MM, 22.3CM
• Maximum Width
• 145MM, 14.5CM
• Maximum Depth
• 288MM, 28.8CM
• Net Weight
• 9.3KG
• Shipping weight
• 10.6KG
• Shipping Height
• 330MM, 33.0CM
• Shipping Width
• 235MM, 23.5CM
• Shipping Depth
• 365MM, 36.5CM
• Color
• Black

• Environmental

• Operating Temperature
• 0 - 40 °C
• Operating Relative Humidity
• 0 - 95 (Non-condensing) %
• Operating Elevation
• 0 - 3000meters
• Storage Temperature
• -20 - 50 °C
• Storage Relative Humidity
• 0 - 95 (Non-condensing) %
• Storage Elevation
• 0 - 15000meters
• Audible noise at 1 meter from surface of unit
• 50.0dBA
• Online thermal dissipation
• 372.0BTU/hr
• Protection Class
• IP20
